Indoor or outdoor surge protection device 20kA 4P power strip surge protector
- Category: Other Electrical Equipment >>>
- Supplier: Fatech Electronic (Foshan) Co. Ltd.
Share on (60159314888):
Product Overview
Description

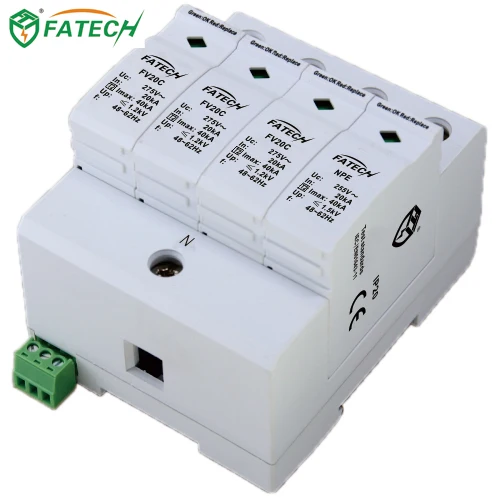

1. surge protection device for low-voltage power system Characteristic FV20C/3+NPE-275(S)
-Class II / Type 2 3 phase 3P+N surge protective devices.
-Consisting of a base part and 1 MOV + 1GDT plug-in protection modules.
-For using in the lightning protection zones concept at boundary 1-2.
-The core parts are metal oxide vristor components with high discharge capacity.
-Low residual voltage and quick response
-Reliable control thanks to Thermo Dynamic Control disconnector.
-With remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
-Protection mode: L1, L2, L3-N, N-PE.

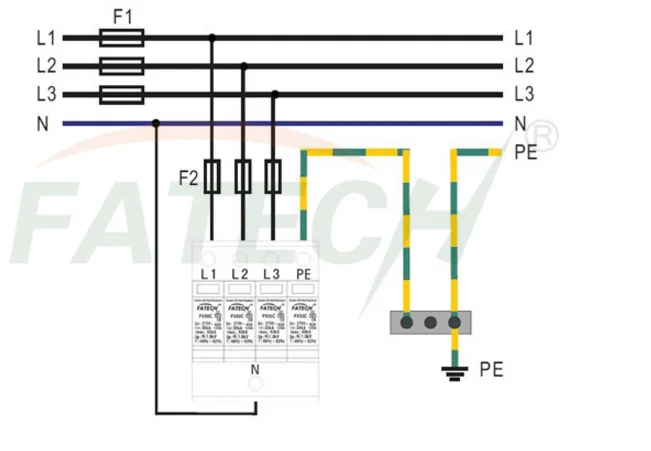

2. surge protection device for low-voltage power system Dimension and Circuit FV20C/3+NPE-275(S)
3. surge protector for low-voltage power system Electrical parameters FV20C/3+NPE-275(S)
Test class according to IEC61643-1:2005 | II | |
Type of Network | TT, TN,IT | |
Nominal voltage | UN | 230V |
Rated Voltage (Max. Cont. Operating Voltage) | Uc | 275V |
Maximum discharge current (8/20μs) | Imax(L-N, N-PE) | 40kA / Phase |
Nominal discharge current (8/20μs) | In(L-N, N-PE) | 20kA/ Phase |
Voltage protective level at In | Up | ≤1.2kV |
Response time | tA | ≤25ns |
Recommended back-up fuse | 125A | |
I/O Connections | By screw terminal:10-35mm2 By connection bus | |
Mounting | Symmetrical rail (EN50022/DIN46277-3) | |
Operation temperature range | -40℃~+85℃ | |
Degree of protection | IP20 | |
Housing material | UL94V0 | |
Disconnection indicator | Mechanical indicator | |
Remote control contract | Yes | |
 |  |  |  |
protection photovoltaic system | protection power supply system | Lightning Rods & Surge Counters |
Workshop
→
→
Module assembling Base part producing Finished products tests
↓
←
←
Go to warehouse Packing Impulse current test
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.
FAQ:
1. Q: Could l know which advantages do you have please?
A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.
2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.
3. Q: Warranty and return?
A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.
4. Q: What's the delievery time?
A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.
