X-ray Developer Machine
5.2L Medical Automatic X-ray Film Processor
Exclusively in used in medical and lab filed, be suited for all standard filem with brand of 35 cm.
Applied outlook design, load fleet design to adgusted and maintain conventently.
Run time set in 135 S,directly wash glandula film animal film lab and print film.

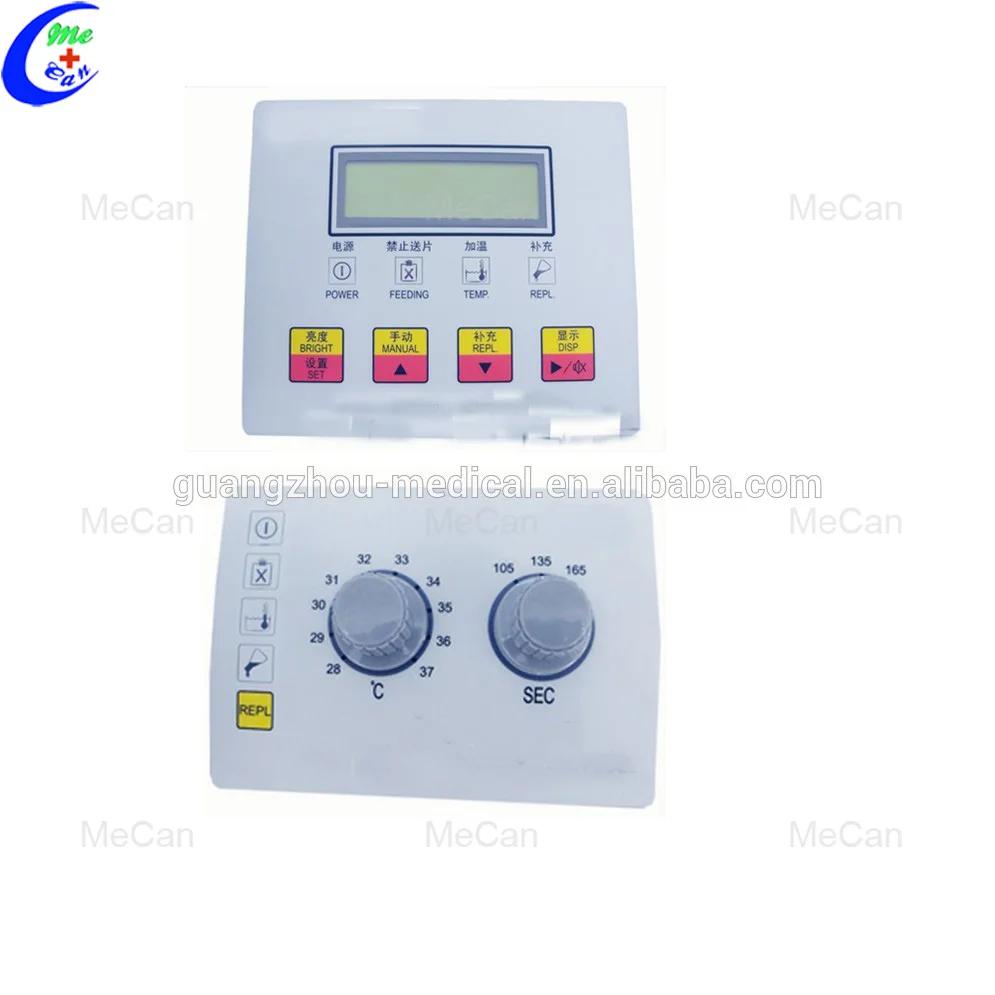

Excellent micro-computered flate can simple set warm and speed of wash machine.
Maintain conventiently send accurancy axis protect film for daily clear.
Particular combination of axis and fresh dry shot design protection to hot wind dry film.
Protect-oxygen function, effectively protect drug liquid from be old, producing high clear image.
High economic profit: function of waiting for machine can lower comsumption of water and electronic, both save drug liquid and improve image
Operate simple and excellent safe, simple and unstand, sound and viedo repair put the next film, protect oxide and loop drug liquid, automatic adjust of display warm ,optional the following different run time meet particular requirement:105s,135s,165s.
Excellent, simple and personal design, the used can get pleasure high quality and clear image film.
Parts of the 5.2L Medical Automatic X-ray Film Processor:
Operation Conditions of the 5.2L Medical Automatic X-ray Film Processor:
2.Ambient temperature :5~25
3.Ambient humidity: less than 60%
4.Power of the whole machine: less than 2kw
Technical Specifications of the 5.2L Medical Automatic X-ray Film Processor:
Type desktop /Console model
1. Size of the processor film: 4"*4"-14"*17"
2. Process time: 105/135/165s
3. Develop time: 25/35/45s
4.Film feed mode:U-slot
5.Film sensing mode:micro switch
6. Develop temperature: Adjustble28 -37 degree (plus or minus0.3 )
7. Developing Capacity: 80p/h (14"*17"); 145p/h (10"*12")
8. Dryer temperature: 40-65degree
9. Channel volume: Develop\Fixer\Water\each 5.2litres
10.Water developing control mode: solenoid vavle control
11.Anti-oxidation function:60mins interval
12.Anti-crystallization function: 20mins interval
13. Washing Control :water 2~8L/min when rinsh
14. Replenishment: Auto./manual 20~200ml/for 0.5s.q.m
X-ray Machine Series
We provide different kinds of X-ray machines and accessories of X-ray machines. Some are shown in the following pictures. For more infomation, please refer to our webside: guangzhou-medical.en.alibaba.com.
One Stop Supplier
Anesthesia Machine | Autoclave | Ultrasound Machine | Color Doppler Ultrasound | Defibrillator | Medical Refrigerator | Centrifuge | Dental Chair | E.N.T Unit | ECG Machine | Patient Monitor | Endoscope | Video Gastroscope Colonoscope | Hospital Furniture | Infant Incubator | Infant Radiant Warmer | Clinical Laboratory Equipment | Biochemistry Analyzer | Hematology Analyzer | Coagulometer | ESR Analyzer | Dialysis Machine | Lab Incubator | Water Bath | Water Distiller | Microscope | Physiotherapy Equipment | OB/GYN Equipment | Colposcope | Slit Lamp | Ophthamoc Equipment | Surgical Power Drill | Operation Table | Operation Light | Ventilator | X-ray Machine | Film Processor | Veterinary Equipment ... ...
1. One stop supplier for medical equipments and laboratory equipments in Guangzhou
2. More than 2000 hospitals have become our partners
3. Superior quality with factory price
4. Quick reply and considerate service
6. Fast delivery by air, sea or in other ways
7. More than 10 years in medical machines supply business
8. Exported to more than 109 countries
9. Warranty time: AT LEAST 12 months and Over 8 years' technical and accessories-change support
10.Excellent and immediate after-sale service
Together with client
We have sold 50mA Mobile X-ray Machine MCX-L102 and other medical equipment to more than 109 countries and built long term partnerships with clients such as UK, US, Italy, South Africa, Nigeria, Ghana, Kenya, Turkey, Greece, Philippines, etc
1. From the Biomedical Engineer of Senegal.
hello, the installation of the RX unit was a success. all is ok and i have a very good picture.
2. From Dr. Salman Hasan, Doctor from Nigeria
Hello we have installed the radio and we are really satisfied with its operation.
3. From Dr. Emma Adapoe, Ghana, Africa.
Mecan Medical Company Limited:
I have tried them for their honesty
I have tested their products for Good Quality
I have experienced their Good and and nice service and customer relations
I endorse Mecan because they stand the test of time.
Please contact us and let’s talk details for the MCXA-P015.2L Medical Automatic X-ray Film Processor
