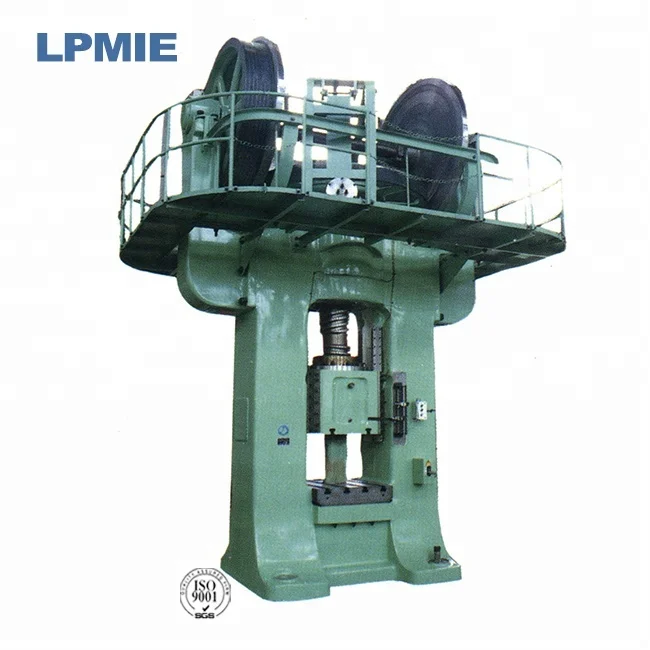

400T Metal Forging press, Tableware/gear/metal parts,surgical instrument forgings productionmachine
- Category: Metal Forging Machinery >>>
- Supplier: Liaoyang Pharma Machinery Imp. & Exp. Co. Ltd.
Share on (60169329443):
Product Overview
Description
Product Description
1.Application and feature
This press is a special pressing device and can be widely used all kinds of pressing industries. In machinery industry, it can finish blanking, bending, correction, precision pressing and punching in forging process.
The press has all purpose in use, simple in structure, assembly operation and auxiliary equipment and its price is lower, so it can be widely used in pressing shop, forging shop and die forging shop for machinery manufacturing, etc.
The press has the following characteristics:
1) The press adopts hand control ,and its operation has sensitive and reliable
2) There is the cushion equipment under the crossbeam ,when the brake is out of order ,it can reduce impact to protect the device.
2.Technique parameters:
| Main parameters | unit | model | |||||||
| JA53-63 | J53-100B | J53-100C | J53-160A | J53-160B | J53-300B | J53-400D | |||
| Nominal pressure | KN | 630 | 1000 | 1000 | 1600 | 1600 | 3000 | 4000 | |
| Energy | KJ | 2.25 | 5 | 5 | 10 | 10 | 20 | 40 | |
| Slide stroke | mm | 200 | 310 | 310 | 360 | 360 | 400 | 500 | |
| Stroke per minute | min-1 | 35 | 19 | 19 | 17 | 17 | 15 | 14 | |
| Min closing height | mm | 315 | 320 | 320 | 260 | 260 | 300 | 520 | |
| Thickness of bolster | mm | 80 | 100 | 100 | -- | -- | -- | 120 | |
| Dimension of working table | F/B | mm | 315 | 500 | 500 | 560 | 560 | 650 | 820 |
| L/R | mm | 270 | 450 | 450 | 510 | 510 | 570 | 730 | |
| Bottom of slide | F/B | mm | 275 | 390 | 390 | 440 | 440 | 520 | 636 |
| L/R | mm | 227 | 280 | 280 | 444 | 444 | 485 | 636 | |
| Overall dimension | F/B | mm | 1010 | 1393 | 1870 | 1260 | 1505 | 2350 | 3200 |
| L/R | mm | 1141 | 1884 | 2450 | 2240 | 2240 | 2900 | 2812 | |
| H | mm | 2655 | 3755 | 3755 | 3730 | 3730 | 4345 | 5165 | |
| Motor power | KW | 5.5 | 7.5 | 7.5 | 11 | 11 | 22 | 30 | |
| Weight | kg | 3640 | 6000 | 7000 | 8500 | 8860 | 14500 | 23500 | |
| Structure | one piece | one piece | one piece | separate connectiong | separate connectiong | separate connectiong | separate connectiong | separate connectiong | |
3.Structure Explanation
This press consists of frame, drive, flywheel, slide, operation, brake, lubrication, electric, foundation ,etc.
Packaging & Shipping
Packing:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Our Services
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Company Information
Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.
FAQ
Why choose us?
15 years gold supplier of Alibaba.
20+ years experience of machinery.
Trade assurance member of Alibaba.
How long can we get the goods?
For standard machine, we usually delivery in two weeks.
Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
Online trade assurance order, L/C, T/T or as negotiated terms with clients.
