Ролико гибочная машина для профилирования угловых шариков
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (60171203466):
Product Overview
Description

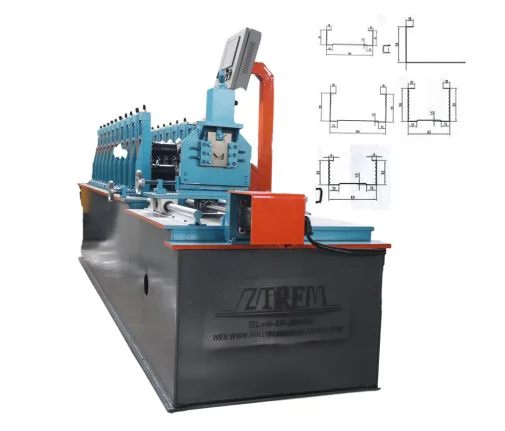

Slotted Angle Bead Angle Bar Roll Forming Machine
Product Description
Basic informaion of slotted angle racks machine :
1.The machine is stable,no noise,no shake.
2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable.
3.cutting machine is characterized by stable driving, easy operation.
4.hydraulic system use the hydraulic pump, long operating life,no noise.
Zhongtuo slotted angle racks machine feature:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2. slotted angle racks machine finished with good flatness bending pressure performance is good, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation,
3.the product can be used as medium-sized industrial and civil buildings the main force structure ,such as factories, warehouses, machine garages, hangars, exhibition halls, theaters, stadiums, fairs Shed roof and wall flat load bearing support.
1. Processing technique and deployment of slotted angle racks machine
Flow chart : Decoiler-- Roll Forming--PLC System—Hydraulic System --Cutting Output Table
2. Components of the all line
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Entry Beach | set | 1 |
3 | Main Machine for roll forming | set | 1 |
4 | Cutting System | set | 1 |
5 | Output Table | set | 1 |
6 | Control System(PLC) | set | 1 |
7 | set | 1 |

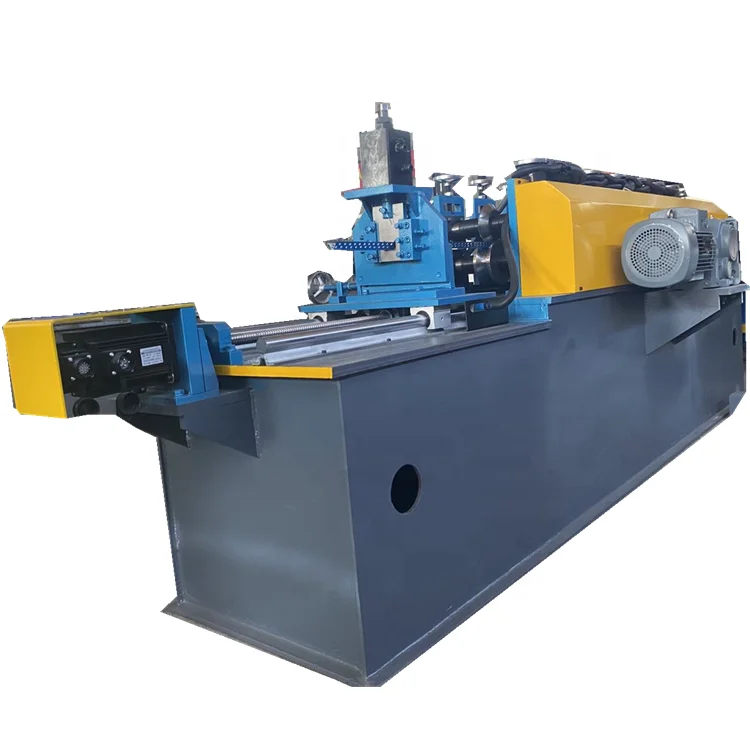

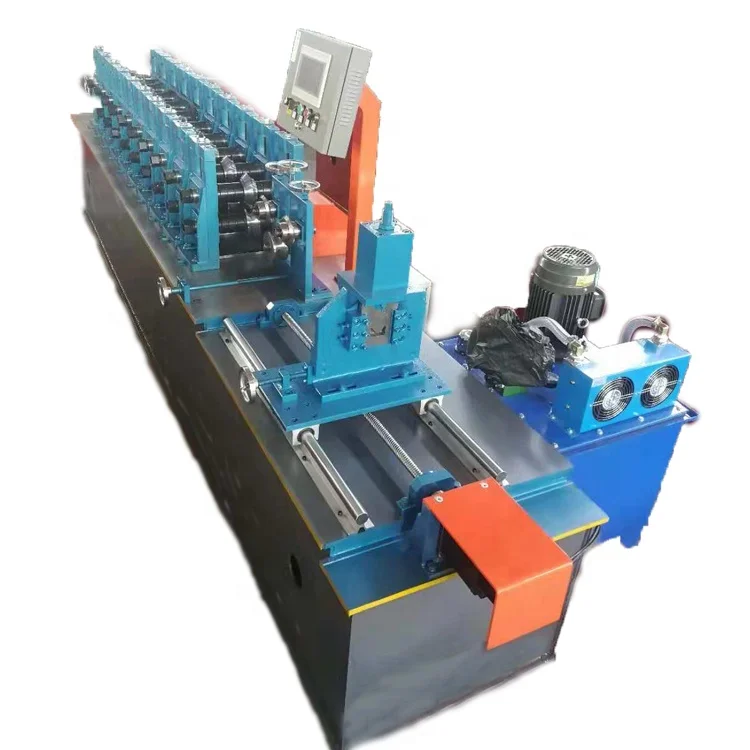

the picture of main machine(make a reference)
3.the Parameters of main machine
Length of the main part | 6800mm*800mm*1200mm |
Weight of main part | 3.5-7.2 tons |
Voltage | 380V 50HZ 3Phase or as you need |
Frame | 400 H steel or as you need |
Drive mode | gear |
Main axle material | GR12MOV |
Material of shafts | 45# steel |
Diameter of shafts | φ50 -φ80mm |
Number of rollers | 12 rollers |
Main power | 7.5-11kw |
Forming speed | 8m-30m/min |
Adjustment method | Half seams type Looper |

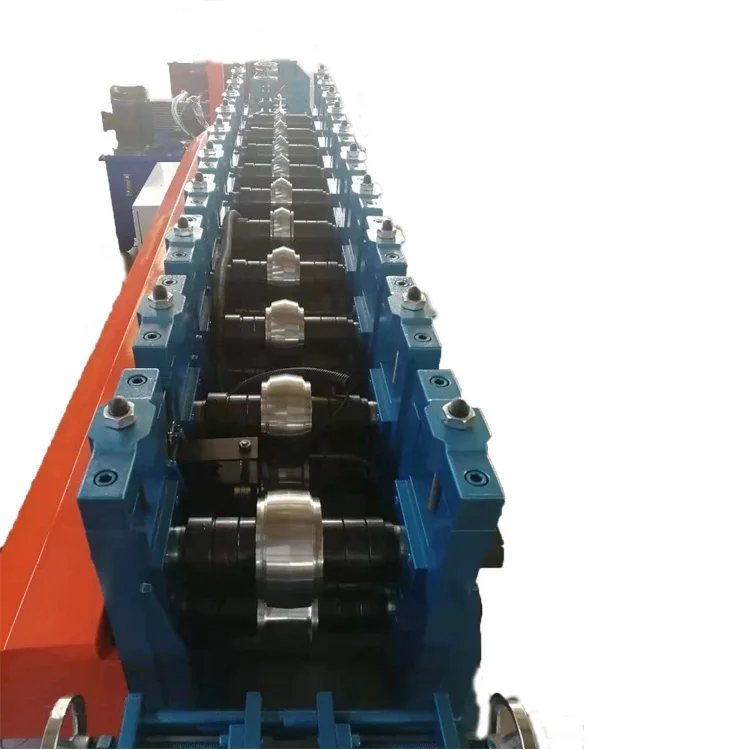

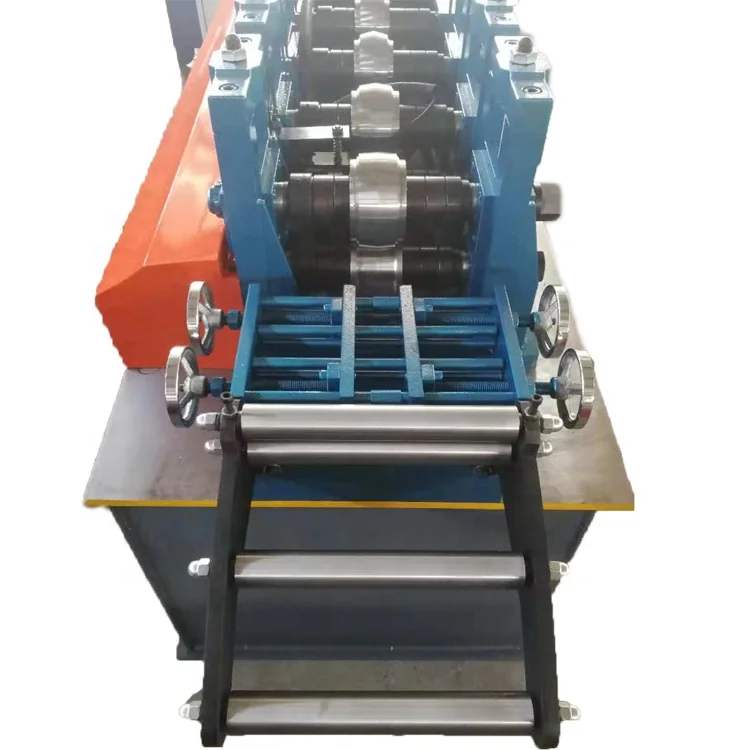

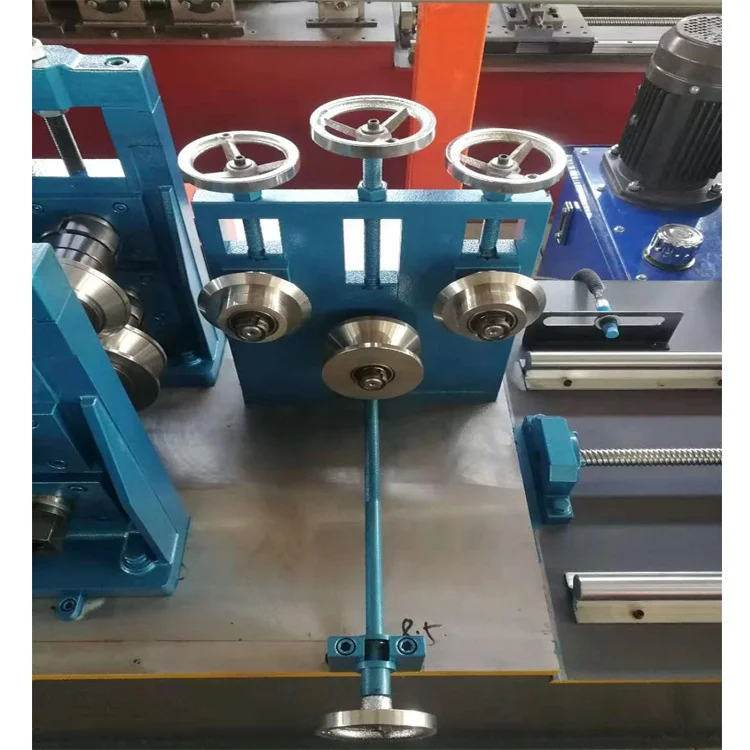

the deatils(make a reference)

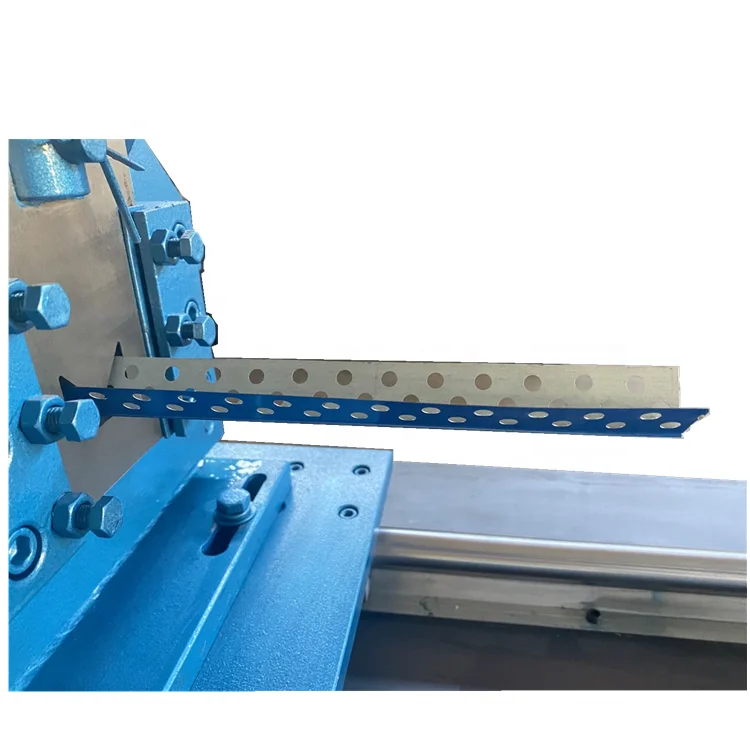

Samples of purlin made by Zhongtuo slotted angle racks machine :
Packaging & Shipping
Packaging Detail of slotted angle racks machine :
1. One 20ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our Services
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Company Information
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and
exporter which has its own factory and also cooperate with several production factories and
concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming
machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
FAQ
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How long the machine could be made?
- Normally speaking, the machine could be made without 30 working days. If you need machines in a hurry, we can make it for you less than a month.
4. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
5. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
6. What can you do if the machine broken?
-Our machine's warranty period is 12months,if the broken parts can't repair,we can send the
new parts replace the broken parts freell,but you need pay the express cost yourself.if
after warranty period,we can through negotiationfor to solve the problems,and we supply the
technical support for the whole life of the equipment.
7. Can you be responsible for transport?
-Yes,please tell me the destination port or address.we have rich experience in transport.
other machine
We can produce other machine, if you have insteresting, you can enter our Web have a look.
Here is the Connection:
Some pictures of our machine to make a reference:
1.Roof roll forming machine:
2. Door frame roll forming machine:
.
3. roofing purlin roll forming machine:
4. roller shutter door roll foeming machine:
