2 color Keychain Button Golf Ball Toys Pen Mouse Pad Printing Machine
- Category: Pad Printers >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (60172717576):
Product Overview
Description
product information
Two Color Closed Ink Cup Shuttle Pad Printer
Applications:
It is applied for print various kinds of material, such as metal, glass, chinaware, plastic, and so on. It is also suitable for small printing areas like planes, cambered and irregular surfaces, such as the button in mobile phones, golf balls, toys, pens, mice, electronic appliances, crafts, and so on.
Advantages:
1. Double color printing, shuttle worktable .
2. Microprocessor control, convenient operation.
3. Automatic 5-digit counter installed.
4. With aluminum alloy frame, the machine is light and sturdy.
5. The speed and the vertical stroke of the pad can be adjusted .
6. Sealed cup for supply ink to pretect environment clean and save ink over 25% .
7. The extra function "twice inking, once printing" is designed for thicker ink film.
8. For different requirements, the working speed can be adjusted.
9. Sweeps forward and backward without pad falling down, to prevent ink drying.
10.2-color, 1-color printing available,
11.With air jet for fast drying two colours Sealed cup pad printer with shuttle:
12. Independent cylinder to drive selaed cup ensure removing ink completely.
2. Microprocessor control, convenient operation.
3. Automatic 5-digit counter installed.
4. With aluminum alloy frame, the machine is light and sturdy.
5. The speed and the vertical stroke of the pad can be adjusted .
6. Sealed cup for supply ink to pretect environment clean and save ink over 25% .
7. The extra function "twice inking, once printing" is designed for thicker ink film.
8. For different requirements, the working speed can be adjusted.
9. Sweeps forward and backward without pad falling down, to prevent ink drying.
10.2-color, 1-color printing available,
11.With air jet for fast drying two colours Sealed cup pad printer with shuttle:
12. Independent cylinder to drive selaed cup ensure removing ink completely.
Model Number | LC-PM2-100T | Print Colour | 2 Colours |
Work Station | 1 pcs | Pad Stroke | 160mm |
Standard Plate Size | 100 x 200mm | Ink Cup Size | Diam 90mm |
Max Printing Size | 80*90mm | Max Workpiece Height | 240mm |
Max. Printing Speed | 1400 Pcs/Hr | Voltage | 220V/50Hz, 110V/60Hz |
Power Consumption | 35 W | Air Pressure | 6 Bar |
Air Consumption | 62 Liter/Min | Dimension | 870 x 450 x 1370mm |
The oil cup is used to hold the ink. Its advantage is that the ink is not easy to volatilize, which achieves energy saving, environmental protection and harmless to the human body.

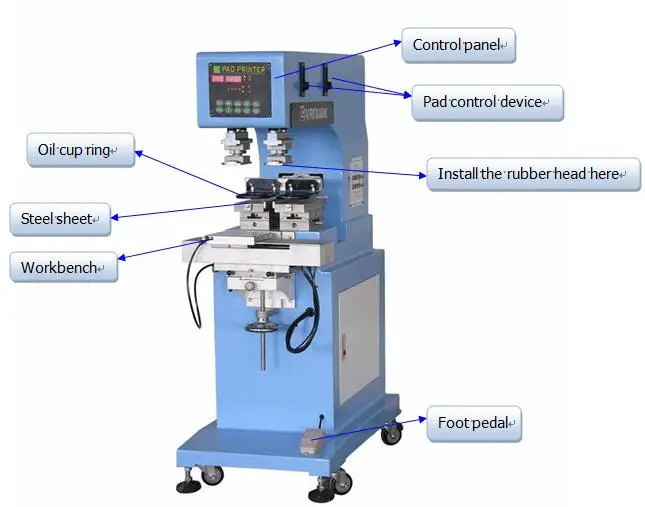

Control panel
Microprocessor control, convenient operation.
The steel sheet is also an important part of the oil cup machine. It is used to engrave the logo you need to print.
Jigs and inks are also important consumables of the oil cup machine. We will customize the jigs according to your products. The inks are ordinary solvent-based inks.

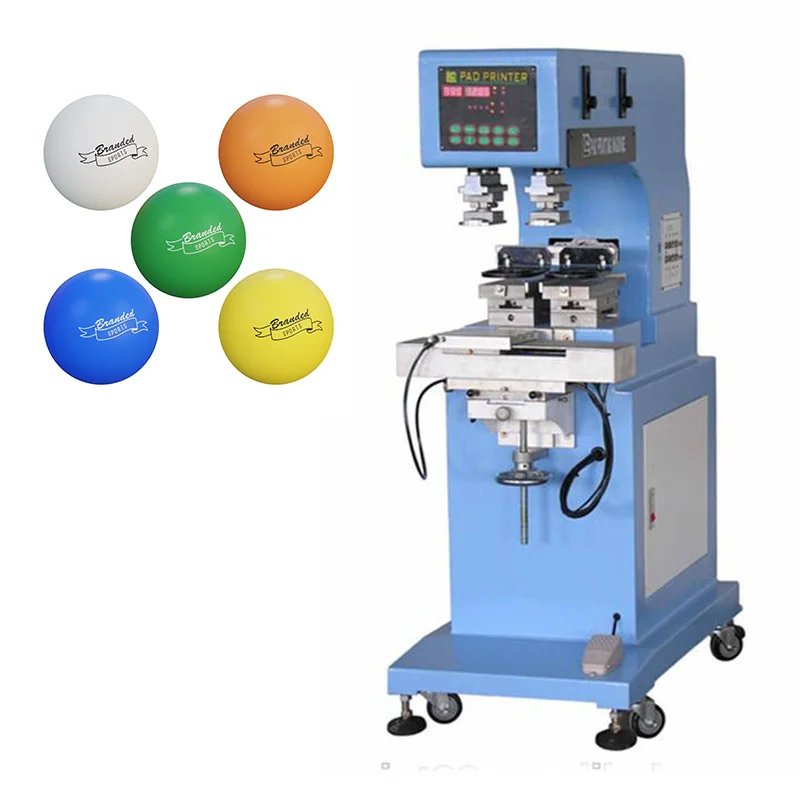

Printed products
Pad printer is suitable for printing small objects with irregular shapes.
