pumps machine HBT25 small concrete pump for sale

Product Overview

Description

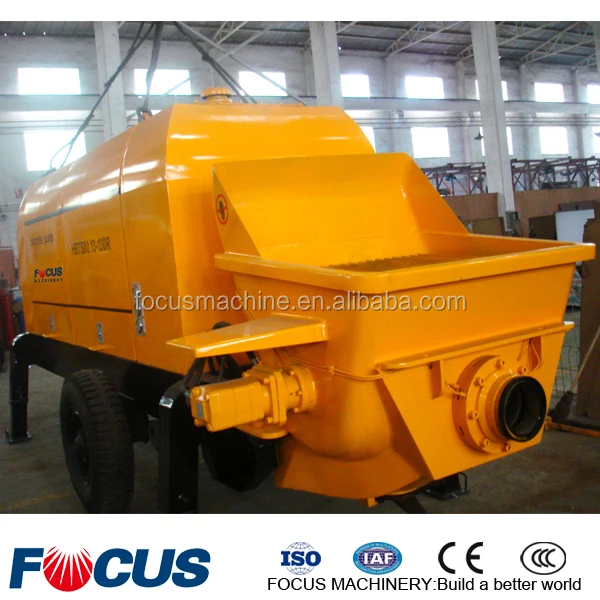

pumps machine HBT25 small concrete pump for sale



Sizes of FOCUS Electric and Diesel Trailer mounted line pump:
JBT30 concrete pump with mixer, HBTS30 small trailer mounted line pump, HBTS40 small trailer mounted line pump, HBTS60 Electric Trailer mounted line pump, HBTS60 Diesel trailer mounted line pump, HBTS80 Electric trailer mounted line pump, HBTS80 Diesel Trailer mounted line pump.

Why would our clients choose FOCUS trailer mounted line pump?
FOCUS trailer mounted line pump is categorized into two types of engine powered: electric motor and diesel engine. Main features are as follows:
1. Open hydraulic system with tri-pump and two circuit is adopted in the concrete pump, constant power control and pressure cut-off control can promise a multistage and reliable main pump.
2. High quality hydraulic components and valves use German REXROTH.
3. The equipped leading overflow valve makes the overflow to be safer, the main pumping circuit and S valve circuit of the trailer mounted line pump are independent to each other, which makes the working system reliable and the changeover steady.

What are the main features of FOCUS trailer mounted concrete pump?

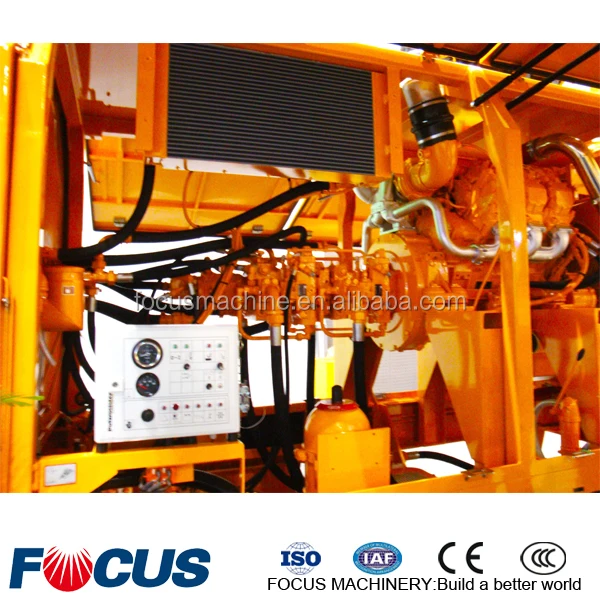

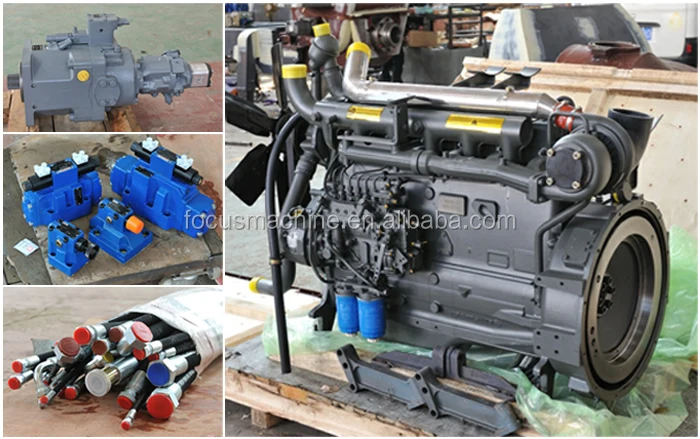

*Power system of trailer mounted line pump
Main hydraulic pumps are famous German REXROTH products.

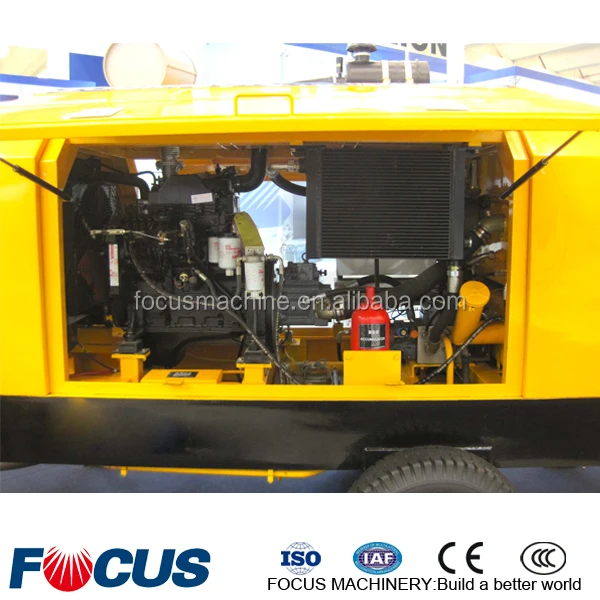

Engine: German Deutz
*Electric control system of trailer mounted line pump
The reversing control of the trailer pump is electric-hydraulic type. The electric part is controlled by PLC, which is reliable, more accurate with small impact. The main oil pump is under the famous brand of Kawasaki from Japan.
Main electric elements are imported original Schneider, OMRON, Siemens, LG, etc.

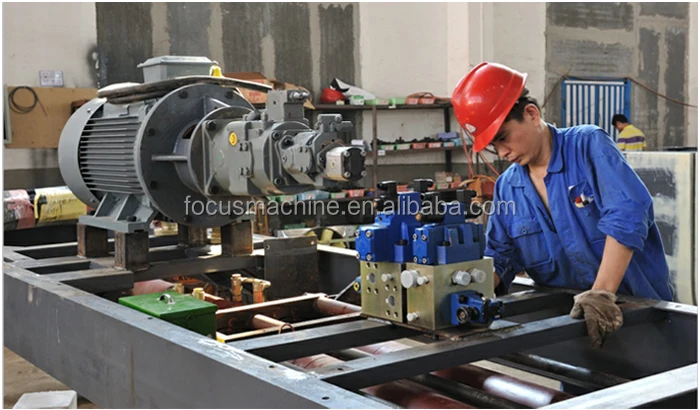

*Hydraulic system of trailer mounted line pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
*Pumping system of trailer mounted line pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.



FOCUS Mobile Trailer Concrete Pump Truck Parameters:

Model Parameter	HBTS60 13.90E	HBTS80 13.110E	HBTS80 16.110E	HBTS80 13.130R	HBTS80 16.145R	HBTS80 16.162R
Engine	Electric motor			Diesel engine
Max. delivery capacity	69m³/h	81m³/h	81m³/h	88m³/h	88m³/h	88m³/h
Max. pumping pressure	13mpa	13mpa	16mpa	13mpa	16mpa	16mpa
Hydraulic system	Dual open circuit
Engine power	90kw	110kw	110kw	130kw	145kw	162kw
Rotation	1480r/min			2200r/min
Main oil cylinder size (diameter/stroke)	125/1600 mm	125/1800 mm	140/1800 mm	140/1800 mm	150/1800 mm	150/1800 mm
Concrete cylinder size (diameter/stroke)	200/1600 mm	200/1800 mm	200/1800 mm	200/1800 mm
Max. delivery distance (vertical/horizontal)	280/1200 M	280/1200 M	360/1600 M	360/1600 M	360/1800 M	400/2000 M
Concrete slump	120-230mm
Weight	6000kg	6300kg	6500kg	6480kg	7000kg	7100kg

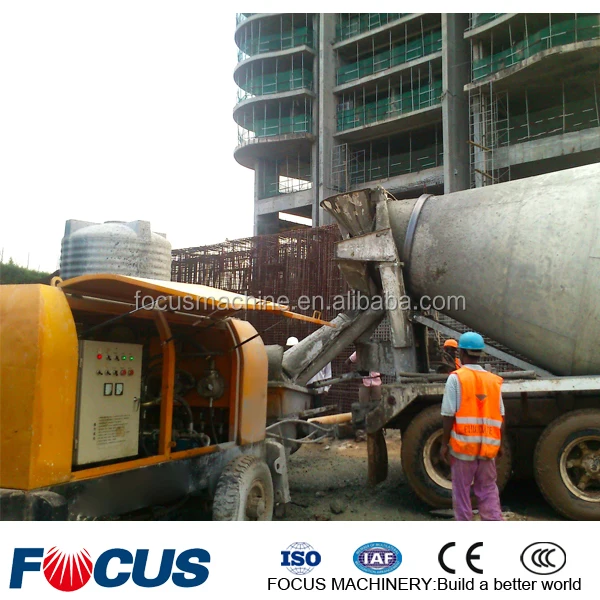

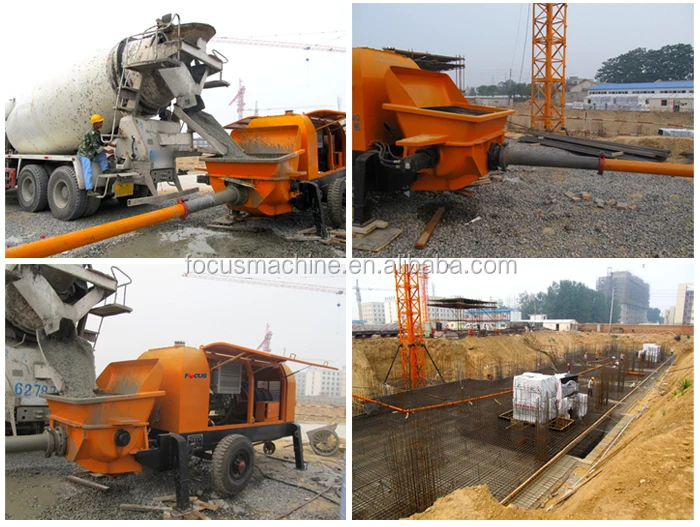

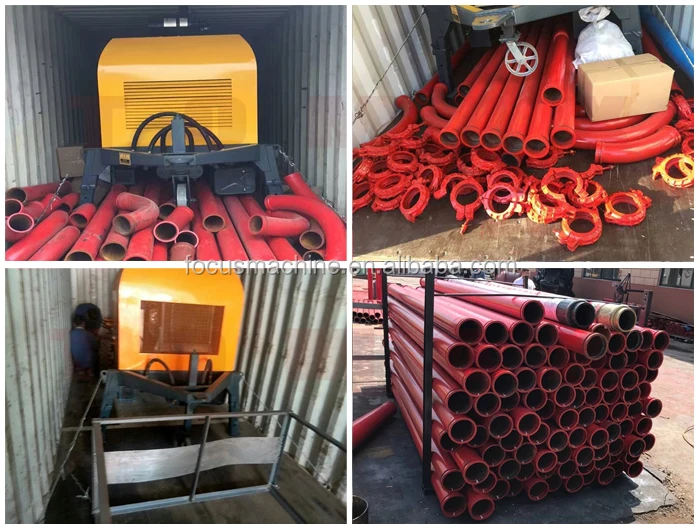

Our  mobile trailer concrete pump trucks have been purchased, installed and operated all over the world:

Thanks for visiting, our mobile trailer concrete pump trucks have been delivered /distributed to the world, it’ll be such a great honor if you can join us:
