4000 kg/h capacity wood pellets machine / rind die wood pellet mill



 Our company, Liyang Weifeng Equipment Co.,Ltd, is specialized in all kinds of CE biomass fuel pellet production line, wood pellet production line,sawdust pellet production line,rice husk pellet production line,straw pellet production line,bark pellet production line, bamboo pellet production line. sunflower husk pellet production line, peanut pellet production line, etc.





How to make wood pellets? The following process can tell you the exactly:

*Debarking process(if needed)

*Chipping process(if the log is larger than 150mm,wood chipper can chip it into 20-50mm)

*Grinding process(grind the material into small powder to feed in pellet mill)

*Drying process(if the moisture is higher than 17%, need drying)

*Pelleting process(6mm,8mm,10mm,12mm pellets can be formed by our pellet mill)

*Cooling & Sieving process(the temperature after pelleting is high to 90°C, it needs cooling)

*Packing process

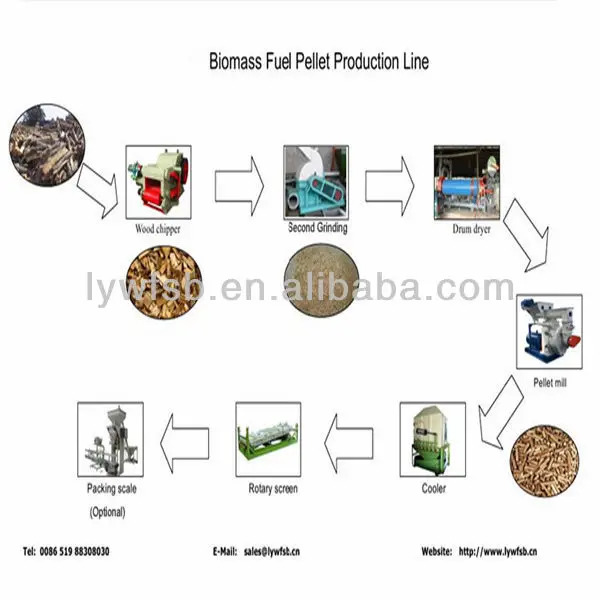

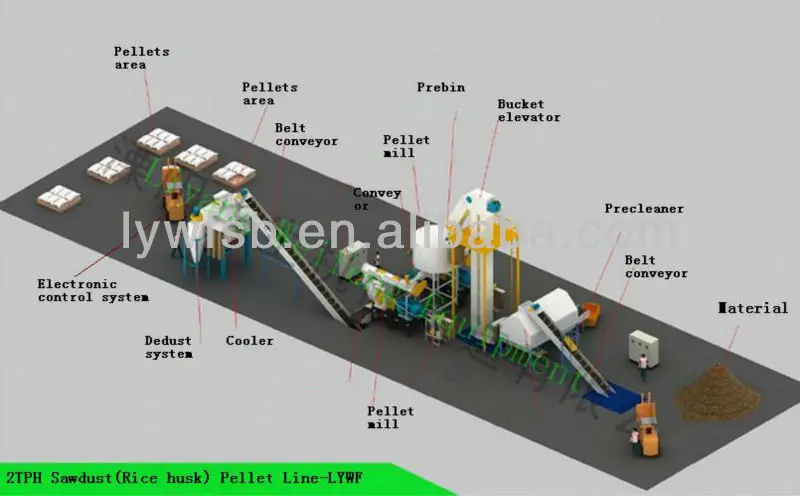

Whole process of 4000 kg/h capacity wood pellets machine / rind die wood pellet mill:

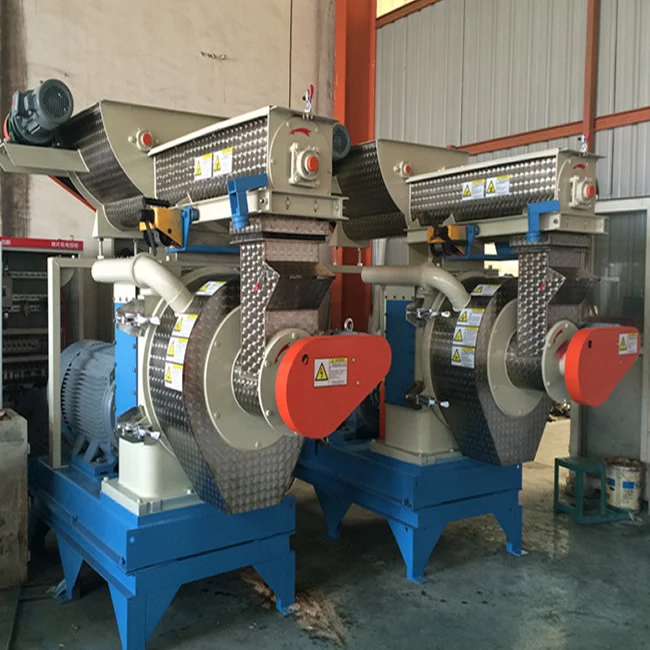

Effect picture of 4000 kg/h capacity wood pellets machine / rind die wood pellet mill  :

 Ring die pellet machine Technical parameter:

NO	NAME	Model
		MZLH30	MZLH35	MZLH40	MZLH42	MZLH508
1	Capacity (wood pellet )	0.1-0.3	0.3-0.5	0.5-0.8	0.8-1.5	1.5-2.0
2	Power	37	55	70/90	90	132/160
3	Screw feeder Power	0.55	0.55	0.75	0.75	0.75
4	Pellet size	φ6, φ8, φ10, φ12	φ6, φ8, φ10, φ12	φ6, φ8, φ10, φ12	φ6, φ8,φ10,φ12	φ6, φ8,φ10,φ12
5	No. of press roll	2	2	2	2	2
6	Outer diameter of press roll	146	165	190	206	222
7	Mashing rae(%)	≤12%	≤12%	≤12%	≤12%	≤12%
8	Dimension(mm)	2006*800*1300	2165*895*1450	2302*970*2105	3150*1100*1650	3200*1300*1850
9	Weight(t)	2.1	2.5	2.8	3.1	3.5

Sample 4000 kg/h capacity wood pellets machine / rind die wood pellet mill  :

 Details of the Main Wood Pellet Machine:







If you're interested in our 4000 kg/h capacity wood pellets machine / rind die wood pellet mill , pls kindly tell us the following information:

1. What's the capacity you want?

2. What's the raw material?

3. What's the size of the raw material?

4. What's the moisture content?

5. What's the final pellet size do you want?

6. Automatic packing or manual packing needed?

7. What's your country voltage?
