Top Class Alfalfa Pellet Production Line
US $98000
R type wood pellet making machinery
- Category: Wood Pellet Mill >>>
- Supplier: Laizhou,Chengda,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
the Below machine are also sold very well.

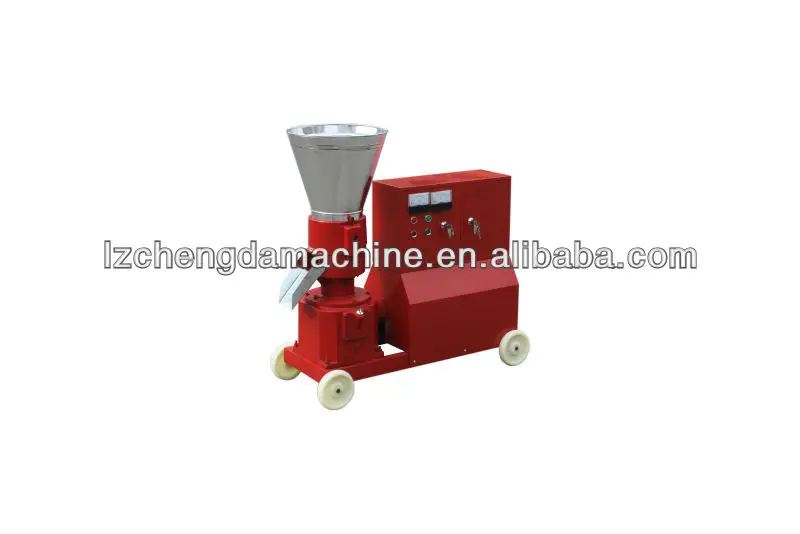

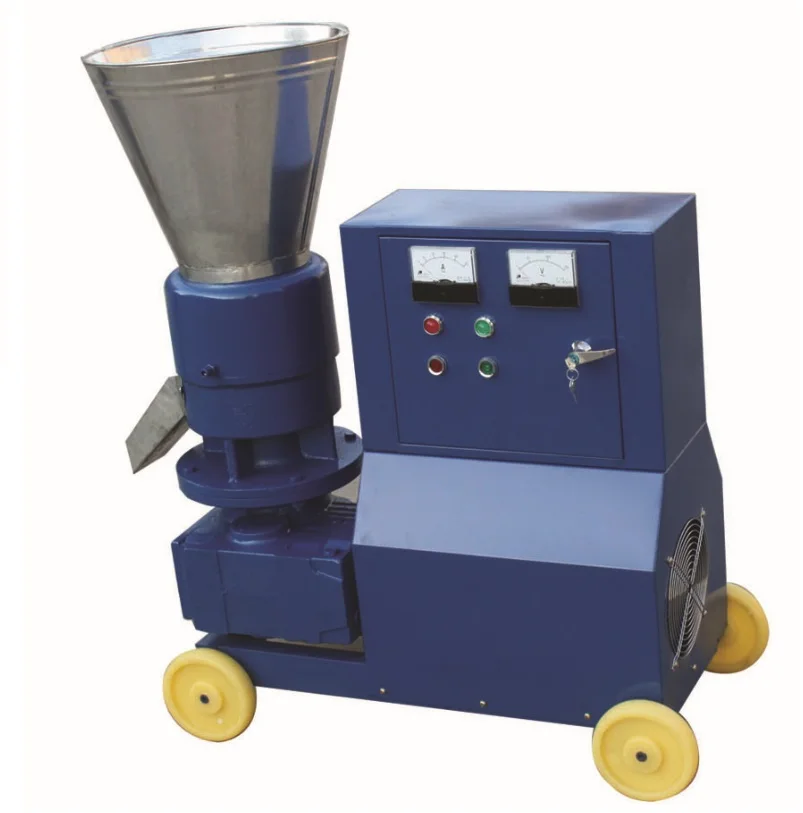

1. Picture of sawdust pellet machine wood pellet making machine price
2. Description of sawdust pellet machine wood pellet making machine price
| MKL E-motor B series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL225B | 7.5KW 220V 3PHASE | 90-140 | 230/260 | 230mm | 98*47*98 |
| MKL229B | 11kw 220v 3phase | 140-180 | 320/360 | 230mm | 92*64*103 |
| MKL E-motor C series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL225C | 7.5KW 220V 3PHASE | 90-140 | 230/260 | 230mm | 98*47*98 |
| MKL229C | 11kw 220v 3phase | 140-180 | 320/360 | 230mm | 92*64*103 |
| MKL295C | 15kw 220v 3phase | 180-260 | 450/480 | 300mm | 117*52*105 |
| MKL E-motor A series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL225A | 15hp with electric starter | 90-140 | 310/320 | 230mm | 118*56*95 |
| MKL229A | 22hp with electric starter | 140-180 | 310/320 | 230mm | 119*92*102 |
| MKL295A | 35hp with electric starter | 180-260 | 450/480 | 300mm | 121*92*105 |
| MKL E-motor D series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL225D | 15hp with electric starter | 90-140 | 310/320 | 230mm | 118*56*95 |
| MKL229D | 22hp with electric starter | 140-180 | 310/320 | 230mm | 119*92*102 |
| MKL295D | 35hp with electric starter | 180-260 | 450/480 | 300mm | 121*92*105 |
| MKL335D | 55hp with electric starter | 240-300 | 680/700 | 335mm | 134*60*115 |
| MKL395D | 55hp with electric starter | 300-400 | 880/900 | 400mm | 152*60*121 |
| MKL E-motor ring die series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL400-37 | 37kw+1.5kw+0.37kw | 500-600 | 1200/1400 | 400mm | 212*84*225 |
| MKL400-45 | 45kw+1.5kw+0.37kw | 600-700 | 1600/1800 | 400mm | 212*84*225 |
| MKL450-55 | 55kw+1.5kw+0.37kw+1.5kw | 700-900 | 2200/2400 | 450mm | 255*123*216 |
| MKL450-75 | 75kw+1.5kw+0.37kw+1.5kw | 900-1200 | 3200/3400 | 450mm | 255*123*216+195*95*80 |
| MKL450-90 | 90kw+1.5kw+0.37kw+1.5kw | 1000-1500 | 4200/4400 | 450mm | 262*129*219+194*120*125 |
| MKL E-motor ring die diesel engine series | |||||
| Voltage | Capacity(kg/h) | ||||
| Model | Power(E-motor)60hz | Wood output | N/G weight(kg) | Die Hole | Packing Size(cm) |
| MKL450-110hp | 110hp+1.5kw+0.37kw+1.5kw | 900-1200 | 3200/3400 | 450mm | 255*123*216+195*95*80 |
| MKL450-150hp | 150hp+1.5kw+0.37kw+1.5kw | 1000-1500 | 4200/4400 | 450mm | 262*129*219+194*120*125 |
3. Different series of sawdust pellet machine wood pellet making machine price
Version A pellet mills are driven by Diesel engine or gasoline engine.
Version B mills are driven by Emotor, without extra cabinet and cover on the motor.
Version C mills are improved B-models with extra cabinet and closed house on the motor. CE elec-parts & insulated plate.
Version D mills are driven by diesel motor with reducer gear box
4. The raw material of sawdust pellet machine wood pellet making machine price
5. The production of sawdust pellet machine wood pellet making machine price
6. The parameter of the output of sawdust pellet machine wood pellet making machine price
| Parameters of the output pellets | |
| calorific value | >4500~4800 kcal/kg |
| density | >1.1~1.3t/m³ |
| moisture | <=10% |
| combustion ratio | >=98% |
| heat efficiency | >=81% |
| ringelman emittance | <1 |
| discharged dust consistence | <=80mg/m³ |
| ash content | <=2% |
7. How to order our sawdust pellet machine wood pellet making machine price
(1) You find the product you are interested in in Alibaba and send the price inquiry to us.
(2) I will send you a email about the information and the price list of the product.
(3) You can chose the suitable model you need.
If you have any problems for our machine or if you have any requires for our machine, just feel free to let me know.
I will reply you at once and follow your requires to produce the machine.
(4) I will make a proforma invoice for you the you can do the payment according to the proforma invoice.
(5) After we receive the payment, we will begin to produce the machine.
8. Certification of sawdust pellet machine wood pellet making machine price
9. More product to choose
10. Packing of sawdust pellet machine wood pellet making machine price
Product Description
12. Details of sawdust pellet machine wood pellet making machine price
(1) The speed of our sawdust pellet machine wood pellet making machine price :
The motor speed is fixed, all of the particles machine motor speed is 1400RPM.
Our pellet machine's speed is 200-300RPM, inside the machine with a complex reducer, which can change the E-motor speed and the main shaft speed.
(2) Fuel consumption of our sawdust pellet machine wood pellet making machine price
Diesel engine pellet machine's fuel consumption: For 8Hp, it is 1.23L/H.For 15Hp, it is 2.31L/H.For 22Hp, it is 3.36L/H.
For 35HP, it is 5.39L/H. 7.5HP gasoline guzzling about 1.2L / Hour.
(3) Wheel of our sawdust pellet machine wood pellet making machine price :
Motor-driven particle machine not with wheels, diesel particulate gasoline powered machines with wheels.
(4) Transmission of our sawdust pellet machine wood pellet making machine price
Motor is shaft drive. Diesel shaft drive.
(5) Package of our sawdust pellet machine wood pellet making machine price
Packaging is plywood wood care, non-wood, fumigation.
(6) Spare parts and lubrication of our sawdust pellet machine wood pellet making machine price
The machines' spare parts case takes a Grease gun, used to add lubricating oil pressure roller and spindle bearings, where oil useLithium-based lubricants: GB7324-94.
(7) Emergency stop switch of our sawdust pellet machine wood pellet making machine price
If you need, we can add the emergency stop switch for you.
(8) MKL225,MKL229,M KL 335, MKL 395 is three pressure rollers. At the time of installation, the gap between the pressure roller and the matrix (Die) needs adjusted 0 ~ 0.5mm. (The thickness of a sheet of A4 paper is about 0.1mm) smaller the gap, the material will be sooner, butthe disc and the pressure roller loss is also faster.
(9) Star-delta starter of our sawdust pellet machine wood pellet making machine price
It is main used to protect the motor.
(10)pellet's length of our sawdust pellet machine wood pellet making machine price
The pellet isn't fixed, it is 2-5cm.But you can adjust the spout's screw to change the position of the blade, it could also conteol the pellet's length.
13. Trade items of sawdust pellet machine wood pellet making machine price
| MOQ | 1 set |
| Package | Wooden, metal frame box |
| Delivery Term | FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery |
| Payment Term | T/T,L/C, Paypal,Western Union,Escrow |
| Supply Ability | 100 sets per month |
| Port | Qingdao |
| Warranty | 1 year |
