OTR Tyre Recycling Machine For Making Rubber Powder
- Category: Tire Shredders >>>
- Supplier: Qingdao Eenor Science&Technology Co. Ltd.
Share on (601740286):
Product Overview
Description
Fully Automatic Old Tire Recycling Rubber Powder Machine / Rubber Cutting Machine
Product Description
The Link for full automatic system:
//cloud.video.taobao.com/play/u/1960957669/p/1/e/1/t/1/41639041.swf
The Link for semi automatic system:
//cloud.video.taobao.com/play/u/1960957669/p/1/e/1/t/1/41639147.swf
1- THE Layout diagram OF COMPLETE USED TIRE RECYCLING MACHINE:
2- THE DETAILS OF WASTE TYRE RECYCLING PLANT:
ITEM | PICTURE | PRODUCTS DESCRIPTION |

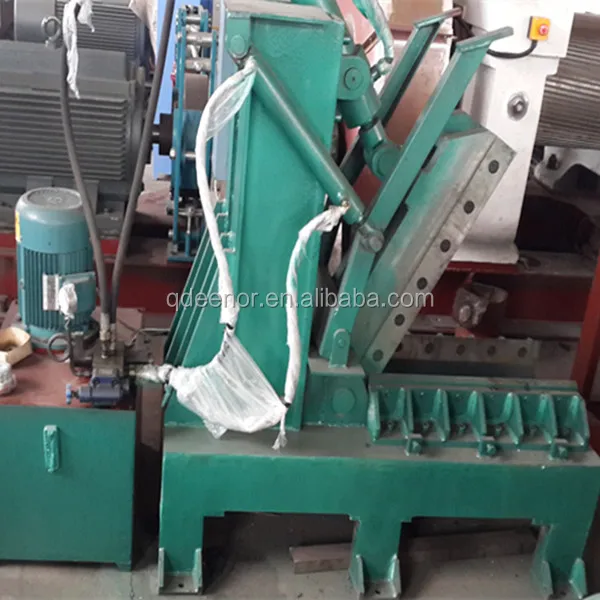

LS-1200 double hook debeader |
| Application: It is mainly use to extract the bead wire from tyre rim
1-Capacity:40-60 tires/hour 2-Pulling force(T): 13 Tons 3-Max.tire diameter:550mm-1200mm 4-Power(KW): 11 KW 5-Operation way: hydraulic system
|

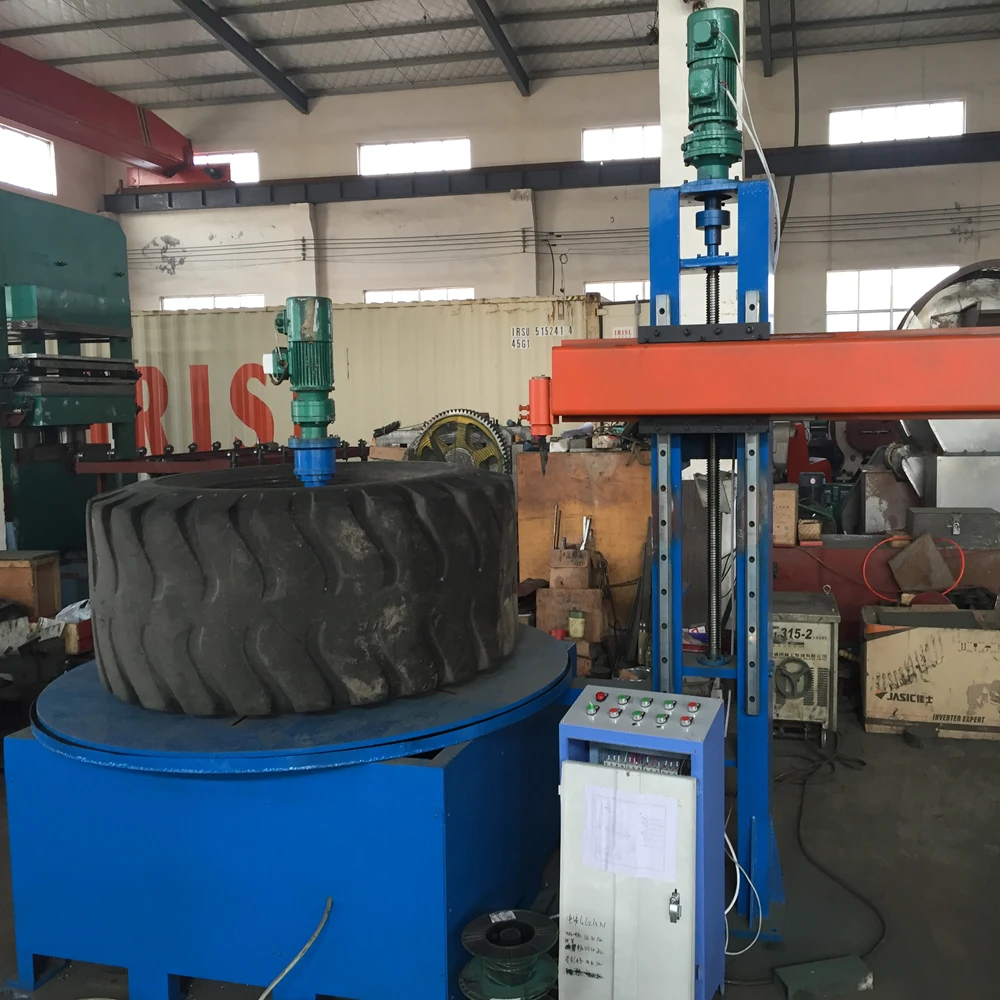

QTJ-1200 tire cutter |
| Application:Tire cutter is designed to cut car, truck and rear tractor tires. Range is up to 2000 mm truck tires.
Raw material: 900-1200mm tire Finished material: 2-4PCS of tire blocks Production Capacity: 40-60 tire/hour Pulling force: 13T Max. Tyre diameter: ≤1200mm Main motor (kw): 5.5 |

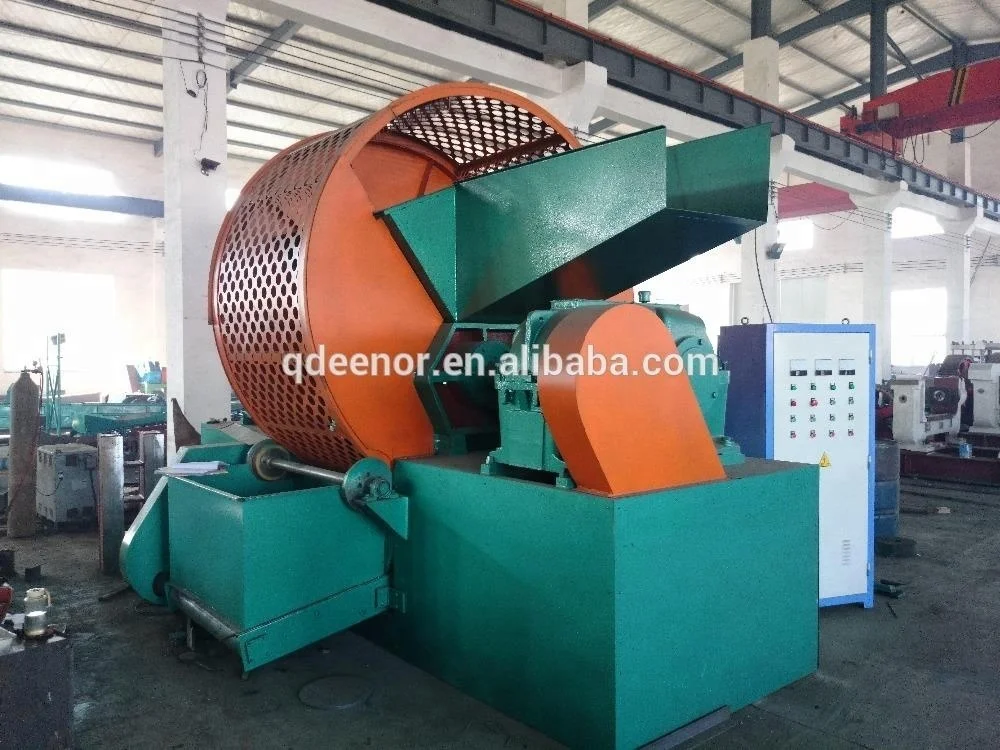

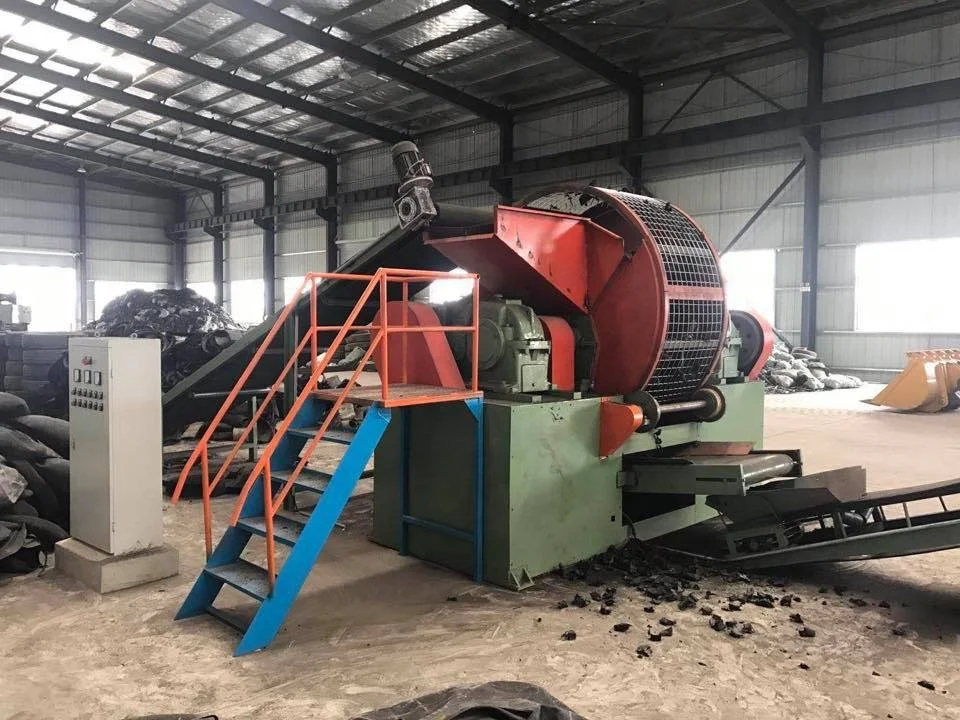

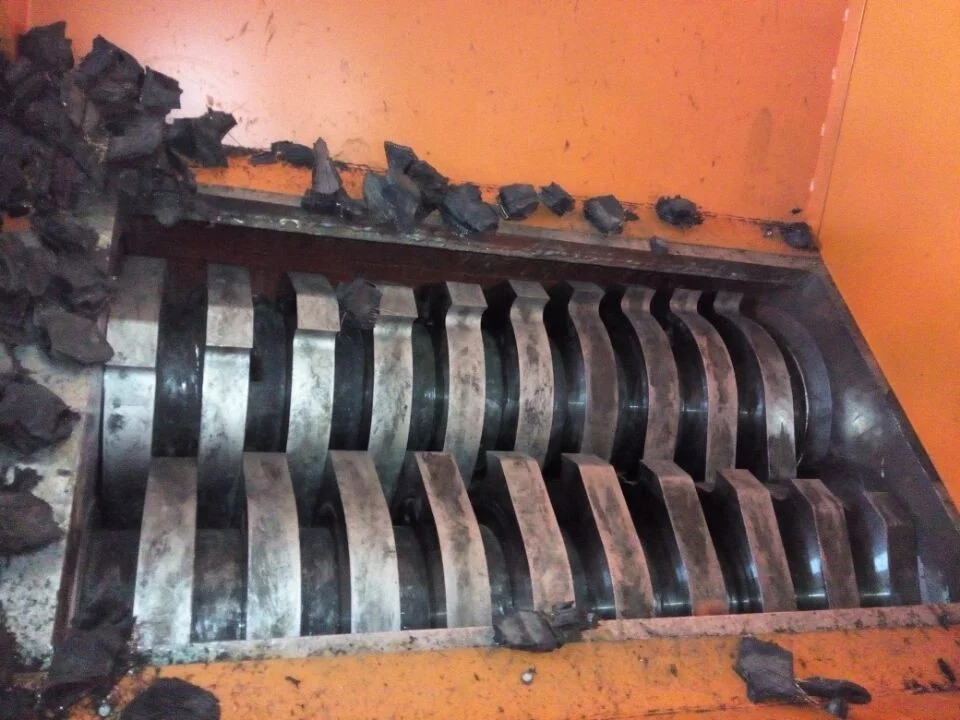

ZPS-900 / ZPS-1200 Waste tyre shredder |
| Application:It is mainly use to shred tire to 50x50mm blocks.
1-Size of feeding: ≤900 mm whole tire 2-Discharging particles: ≤50*50 mm 3-Motor powder: 45kw x2sets 4-Feed Conveyor : 2.2 kw 5-Production capacity: 1000-1500kg/hr 6-Cutter rotate speed: 26 r/min 7-Screener rotate speed: 8 r/min 8-Knife quantity: 18 pieces 9-Knife material: Alloyed steel 10-Shaft mode: double shaft
|
3- TIRE POWDER PRODUCTION LINE, AS FOLLOWING:
BCL-8 conveyor | To conveyor the rubber block into crusher. 1-motor power: 2.2kw 2-The width of belt: 550mm 3-speed: 40m/min |

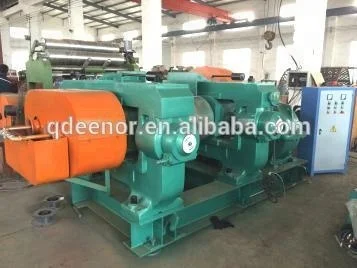

XKP-400/450/560
Rubber crusher | Application: It is the main equipment to process steel wire tires and fiber tires, it can directly treat rubber stripes, rubber blocks, shoe soles and leftover scraps into rubber power with different Mesh. 1-Diameter of front roll: 560mm(smooth roller) 2-Diameter of back roll: 560mm(groove roller) 3-Working length: 800(mm) 4-Linear speed of front roll: 25.56(m/min) 5-Ratio: 1:1.38 6-MAX gap: 15(mm) 7-The material of rollers: Alloy chilled cast iron 8-Production capacity: 500-800(kg/h) 9-Motor power: 90(kw) |
BCL-3 conveyor | 1-Motor power:1.1kw 2-The width of belt: 400mm 3-Speed: 30m/min |
BMS-22 Magnet separator | Purpose: separate the steel small block from the rubber powder. 1-Motor power: 1.1kw 2-The width of belt: 400mm 3-Speed: 30m/min 4-Magnetic roll: 2 sets (Permanent magnetic) |
SMS-1 magnet srparator | 1-Motor power: 1.1kw 2-The width of belt: 400mm 3-Speed: 30m/min 4-Magnetic roll: 1 set (Permanent magnetic) |
BSS-8 Shaking screen | separate the rubber granule and powder, Resend the granule to crusher, and send powder to Magnet separator through small conveyor belt.
separate“COARSE FIBER”from rubber powder
1-Working width: 1000mm 2-Motor power: 7.5kw |
SSS-3 Shaking screen | The machine is mainly use to separate the different size of rubber powder in the same time, Not enough size will resend to rubber crusher by big conveyor, For second crushing.
1-Working width: 1500mm 2-Motor power: 3kw |

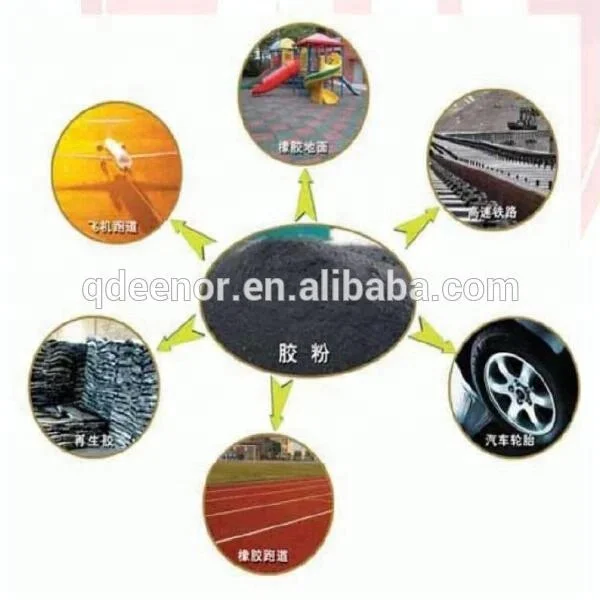

4- FINAL PRODUCT, TYRE POWDER USES:
5-10 mesh: runway, the school playground, garden trails, bowling alleys, sidewalks, composite rubber floor tile, anti-static floor tiles, artificial lawns, playgrounds, artificial turf soccer pitches, sports venues and entertainment markets kindergarten tennis and basketball courts.
10-20 mesh: rubber tiles, plastic-rubber runway, lawn quartz sand grain leather cottonseed meal, tennis courts, volleyball courts, golf courses, aircraft, stadium, basketball courts and recreation fields, EPDM safety mats, gym mats, all kinds of stadium floor mattress.
30 mesh: plastic insulation material, waterproof materials, earthquake, gaskets, roof and wall waterproofing membrane, modified bitumen additives, reclaimed rubber, livestock, straw, fender, multi-purpose pad, stables pad.
60 mesh: sleepers, rubber sheet, waterproof membrane, reclaimed rubber, tire mats, car body at the end of sealing, waterproof ring, rubber, miscellaneous parts and replace the original production of raw rubber rubber products.
5- THE OTHER MACHINE FOR USED TIRE RECYCLING INDUSTRY:
XMF-330/420 FINE POWDER GRINDER FOR 40-120MESH:

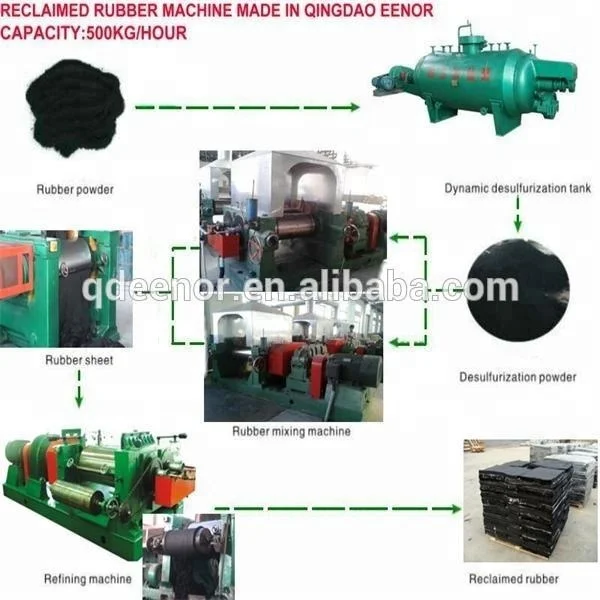

RECLAIMED RUBBER MAKING MACHINE:
Our Services
THE PRODUCTION LINE WAS PASS"BV" AUTHENTICATION:
Company Information
ABOUT OUR COMPANY:
Our company is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. our main products: plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
OUR COMPANY BANNER: "THE HONESTY IS THE ROOT,
A PROMISE IS A PROMISE".
FAQ
1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3,Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4,What’s your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6,Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
9,Do you have any certificate of your company?
Yes, ISO 9001:2000.
10,Did your products apply the patent?
Yes,we have waste tyre recycling machine & rubber tile making machine protector patent.
Welcome new and old customers to visit and inquiry, We will be patient answer customer all of the questions.
