Product Overview
Description

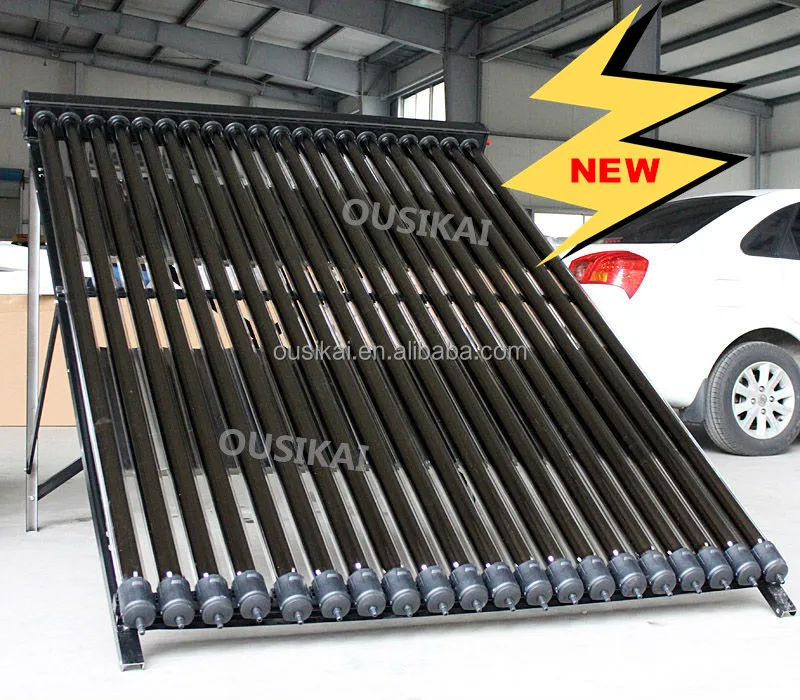

Use Of Sun Energy Heat Pipe Solar Collector
OUSIKAI is the Toppest solar water heter Manufacturer.
Model:
| OS-HPB-10 |
| OS-HPB-15 |
| OS-HPB-18 |
| OS-HPB-20 |
| OS-HPB-25 |
| OS-HPB-30 |
Solar collectors,bid with our commitment, your satisfaction.
Haining Ousikai Industry & Trade Co., Ltd | |
Solar heat pipe Techinical Specifications | |
Item | Measured value |
Heat conduction coefficient | >99% |
Axial heat transition auantity | 0.93-2.49kw/cm |
Heat conduction speed | >200mm/s |
Axial temperature difference | 1-2centi-degree/m |
Starting temperature | 20centi-degree |
Starting speed | 2min |
Working temperature range | 30centi-degree~300centi-degree |
Resistance to high temperature | No deformation in 48hours under 250C high temp condition |
Resistance to low temperature | -35C |
Life | 15 years |
Specification:
| Manifold: | |
| Shell: | Anti-corrosion aluminium alloy,thickness 2mm; |
| Insulation layer: | Rock wool, thickness 35mm; |
| Chanel copper: | Thickness 0.8mm;diameter 35/38mm; |
| Operating fluid pressure: | 0.6Mpa |
| Heat pipe: | |
| Vacuum tube: | High borocilicate 3.3 glass tube, 1.6mm thickness,dimension 58*1800mm |

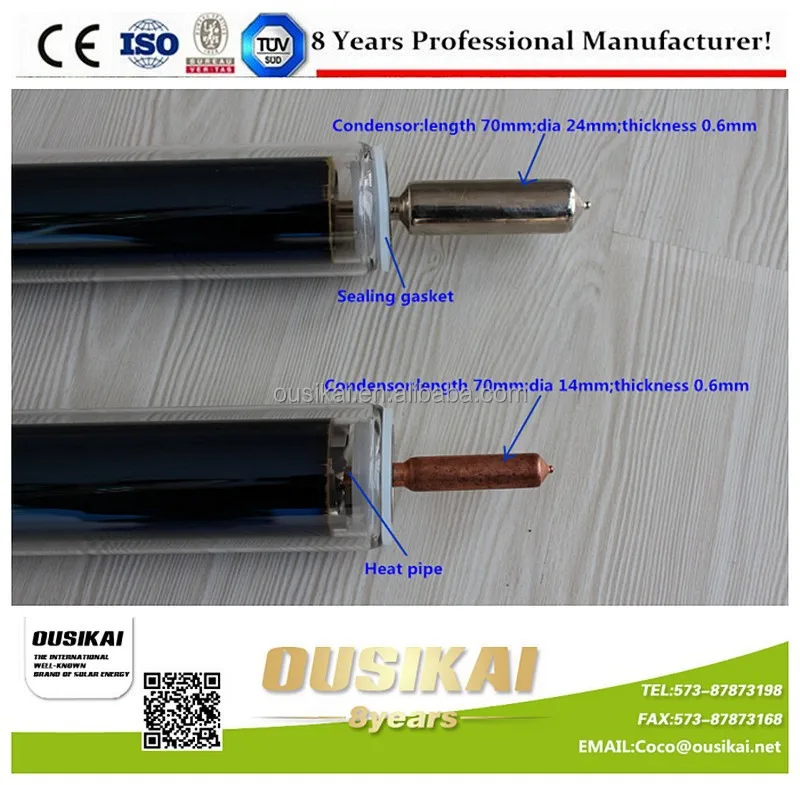

| Heat pipe : | Material is copper TU1, diameter of body is 8mm, thickness of body is 0.6mm; |
Diameter of condensor is 14mm or 24mm, length of condesor is 70mm. | |
| Sealing ring: | Anti-corrosion |
| Distance from tube to tube: | 75mm |
| Frame/Bracket: | |
| Material : | Aluminium alloy , thickness 2mm same as manifold. |
| Vacuum holder : | Adjustable and anti-corrosion |
Models for selection:
Usually 50Liters hot water is need for one person's shower.
| Model | Tube specification | Tube quantity | Packing size(CBM) | Loading quantity(Sets) | ||
| 20'GP | 40'GP | 40'HQ | ||||
| OS-HPB-10 | 58*1800 | 10 | 0.170 | 171 | 347 | 406 |
| OS-HPB-15 | 58*1800 | 15 | 0.230 | 126 | 257 | 300 |
| OS-HPB-18 | 58*1800 | 18 | 0.260 | 111 | 227 | 265 |
| OS-HPB-20 | 58*1800 | 20 | 0.290 | 97 | 200 | 234 |
| OS-HPB-25 | 58*1800 | 25 | 0.340 | 82 | 171 | 200 |
| OS-HPB-30 | 58*1800 | 30 | 0.420 | 67 | 138 | 162 |
MOQ: 20'GP container (Sample is available)
Warranty: 10 years guarantee for whole set solar water heater
Payment term: 30% deposit by TT, Balance for BL by TT or LC
Delivery time: 7 days after confirmed
Port of departure: Shanghai or Ningbo
Supply ability: 8000 sets per month
Package: Standard export cartons
Looking forward to work with you hand in hand to make a bright future.
Any Problem, feel free to contact, we are just a click of the mouse away from you.
