48m truck mounted putzmeister concrete pump for sale
- Category: >>>
- Supplier: Zhengzhou Focus Machinery Co. Ltd.
Share on (60179563496):
Product Overview
Description
48m truck mounted putzmeister concrete pump for sale
FOCUS truck mounted concrete pump:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO certified.
Why would our clients choose FOCUS truck mounted concrete pump?
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
4. full hydraulic system guarantee stable pumping performance;
Parameter | Unit | HDT5380THB-48/5 | HDT5420THB-52/5 |
Output in theory | m3/h | 125 | 125 |
Bucket volume | L | 700 | 700 |
Height of top surface of bucket | mm | 1400 | 1400 |
Model of distribution valve |
| S Valve | S Valve |
Max. operation radius | m | 43.7 | 47.8 |
Max. operation height | m | 47.7 | 51.8 |
Max. operation depth | m | 34.3 | 39.8 |
Open height of boom | mm | 9065 | 9400 |
Distance between front landing legs | mm | 9780 | 10295 |
Diameter of delivery pipe | mm | 125 | 125 |
Quantity of boom |
| 5 | 5 |
Rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 |
Wire line control distance | m | 33 | 33 |
Remote control distance | m | 200 | 200 |
Max. speed | km/h | 89 | 80 |
Min. turn radius | mm | 11900 | 12500 |
Brake distance | m | 10 | 10 |
Chassis model |
| ISUZU CYH51Y | ISUZU CYH51Y |
Max. engine output power | kw | 287(2200r/min) | 259(2100r/min) |
Max. engine output torque | n.m | 1863(1100r/min) | 1460(1100r/min) |
Max, gradient ability | % | 37 | 37 |
Fuel consumption | L/100km | 38 | 38 |
Out dimension (L*W*H) | mm | 13300*2500*4000 | 13990*2500*4000 |
Total weight | kg | 38000 | 42000 |

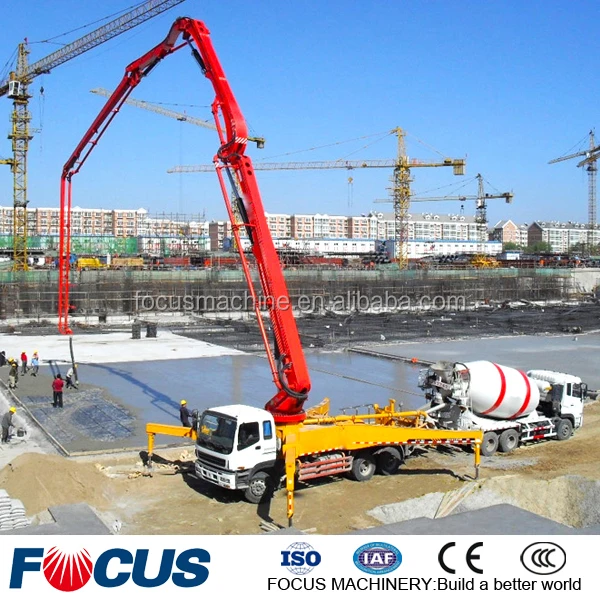

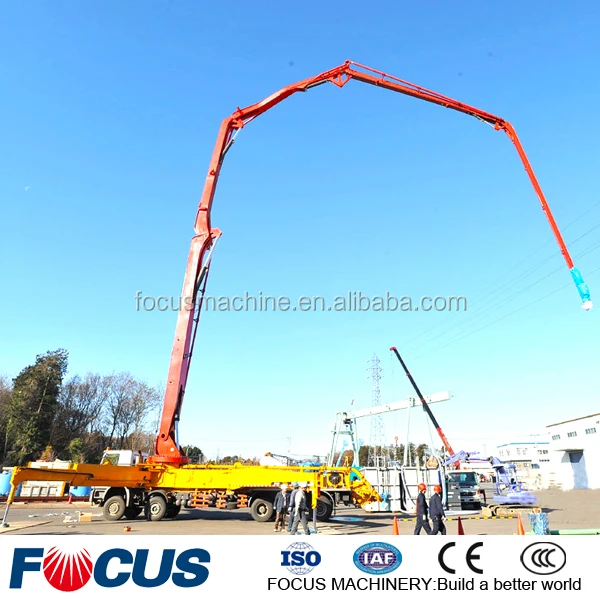

Our truck mounted concrete pump are being purchased, installed and operated all over the world:
