evaporative cooling cellulose pad cooler
- Category: >>>
- Supplier: Shandong Goldenest Machinery Manufacturing Co. Ltd.
Share on (60179772795):
Product Overview
Description
Product Description
Cooling System
Cooling pad are made of imported glue and imported paper which are pressed in an angle of 45 degree and bond together according to the opposite direction of ripples in an angle of 45 or 15 degree.

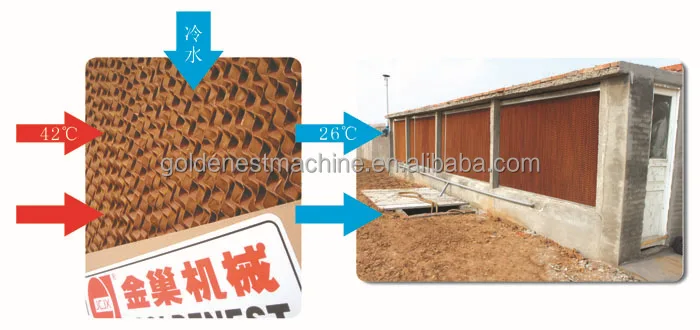

Cooling system working theory: Water go through the pipe under the pressure of pump and enter the paper, then forms water spray, when the dry and hot air go through the cooling pad under the pressure of fans, the heat in the air left by the cool water in the cooling pad, in this way, reach the cooling purposes.
Feature:
Adopting new material and high tech, good absorbing ability, water and mildew resisting, anti - aging.
Large evaporation area, cooling efficiency can reach 80%.
Active carbon ensure good speed of cooling, one drop water can spread within 4 - 5 seconds, height of absorb: 60 - 70 MM / 5 minutes, 200 MM / 1.5 hours, reach the international standard.
The products don't contain phenol which easy to skin allergy and other chemical substances, when installed non-toxic harmless to human body, safety, energy saving, environment protection and economic applicable.
Strict production as per standard, width of 600 MM cooling pad involves 85 sheets above; raw material adopt imported glue and imported paper ( 100GSM, thickeness: 0.18 - 0.20 MM, tension resistance at 70 N, absorbability height as 45 MM / 10 min , moisture at 5 - 8%, humidity at 18 N ). 24 -25 KGS / CBM.

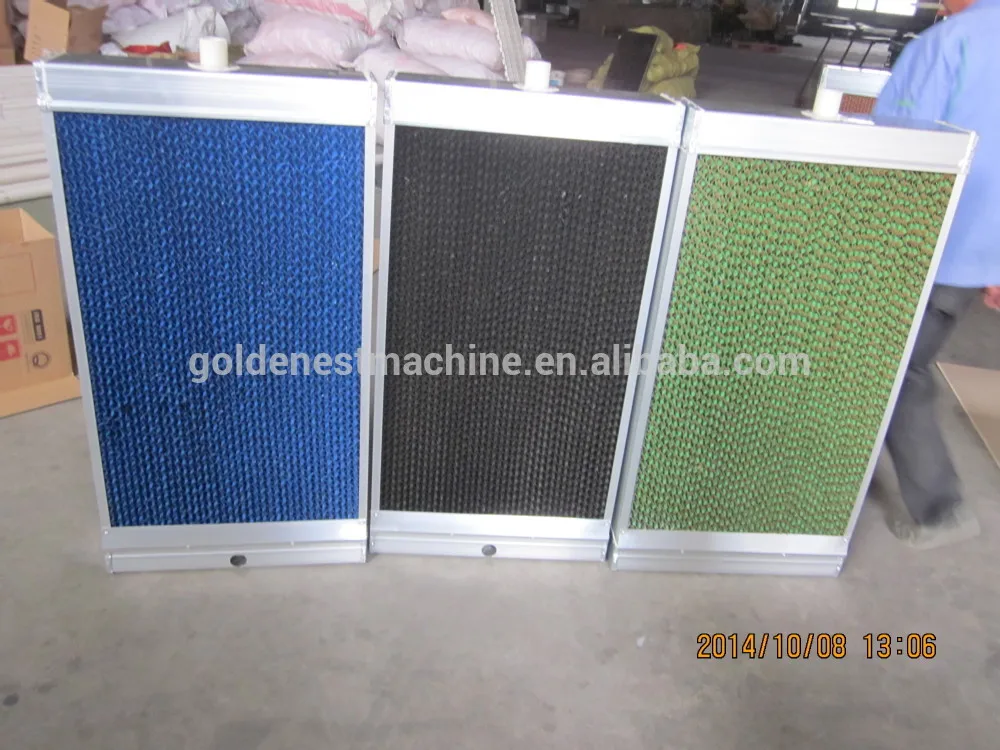

Variety of frames for choices, galvanized steel, stainless steel, aluminium alloy.

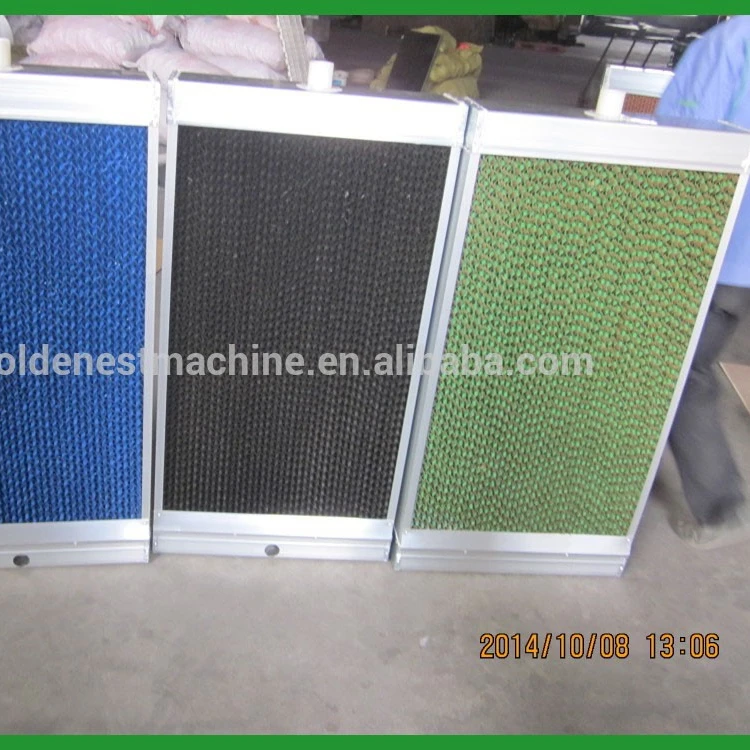

Variety of colors: dark brown, green, brown & green and single - black.

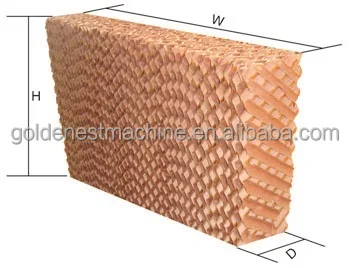

Cooling pad paper ( reinforced ) specification and with a side black coated ( washable ) as follow:
| Model | 7090 | 7060 |
| H (MM) | 1500. 1800. 2000 | 1500. 1800. 2000 |
| W (MM) | 900. 600. 300 | 900. 600 |
| D (MM) | 100. 150. 200. 300 | 100. 150. 200. 300 |
| Ripple height | 70 | 70 |
| Ripple angle | 45 * 45 degree | 45 * 15 degree |
Custom made specification according to client ' s requirment for model 6090 and 5090, .
The Ex - work price detail:
7090 USD73.00 / cubic meter
7060 USD98.50 / cubic meter
6090 USD76.00 / cubic meter
5090 USD113.50 / cubic meter
add USD1.65 / square meter with a side black coated
size and frame ' s material can made on customer ' s request.

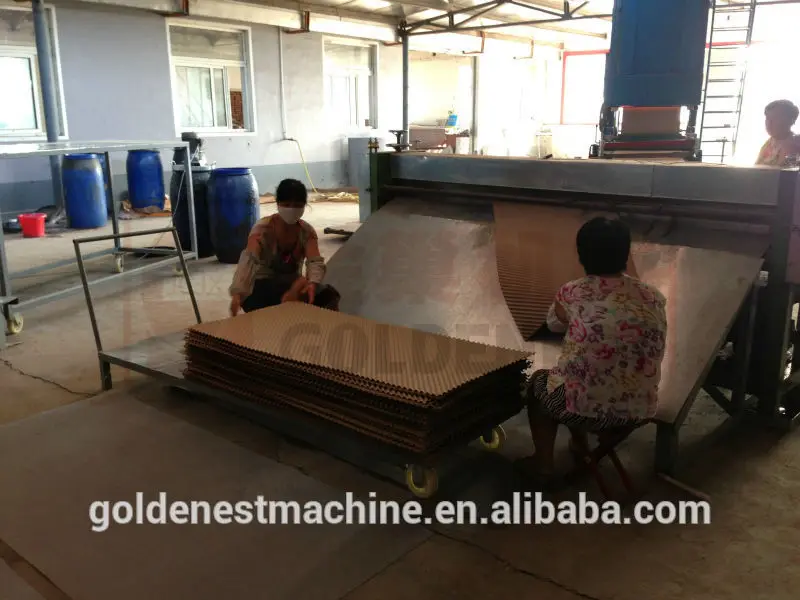

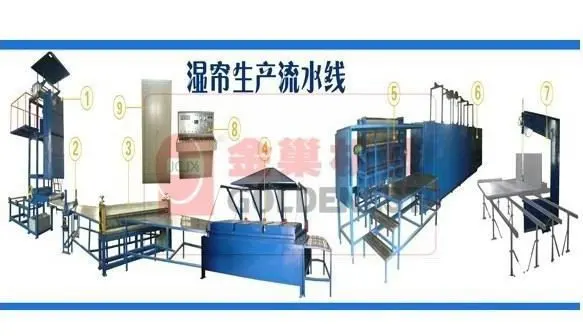

Product flow lines:

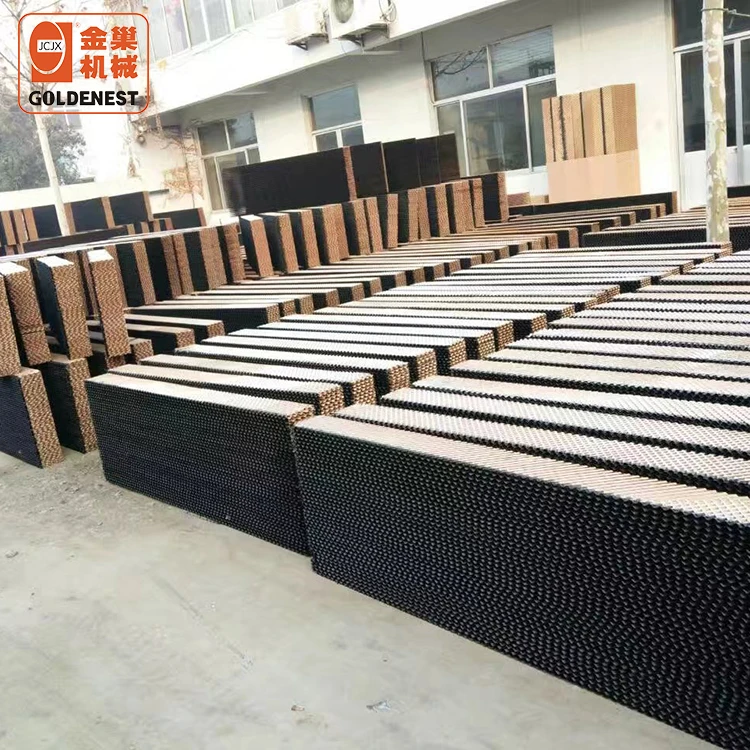

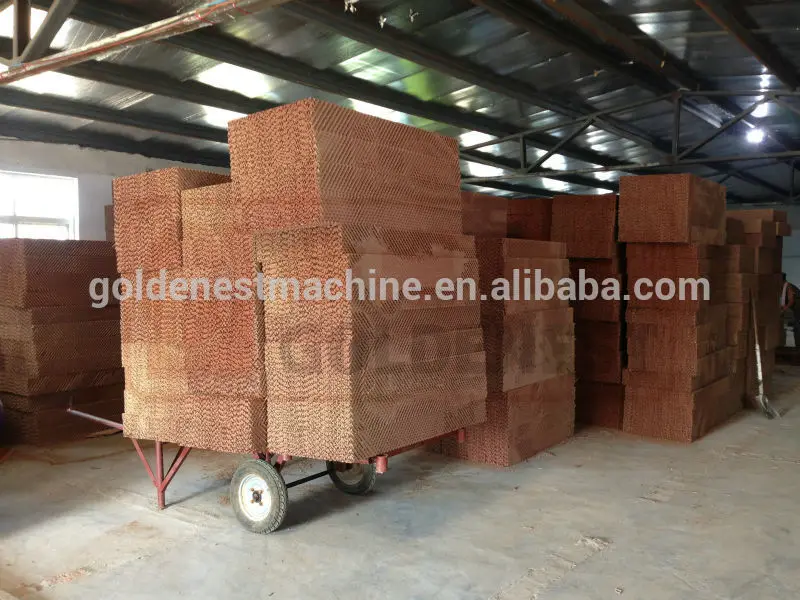

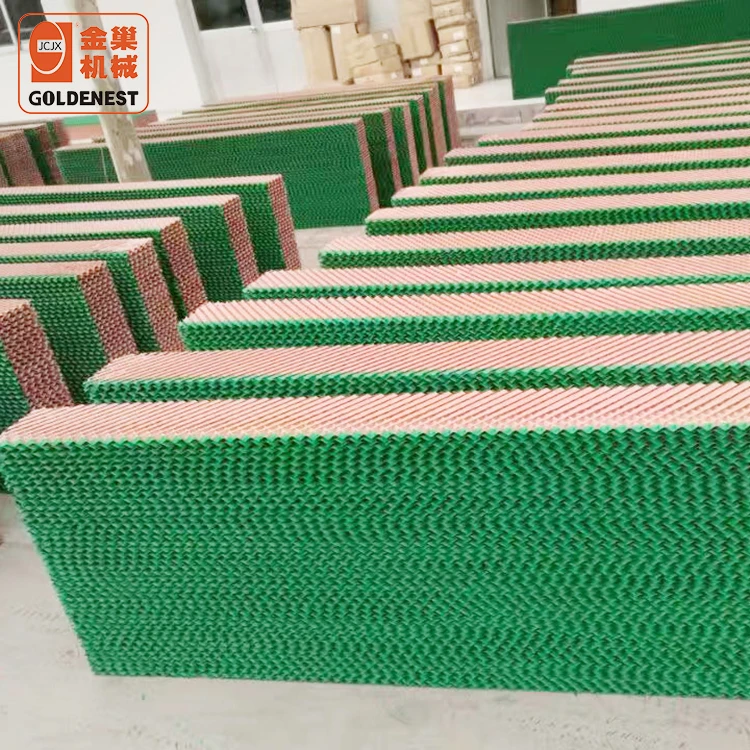

Products pictures:

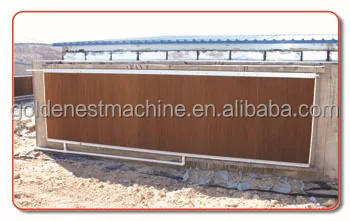

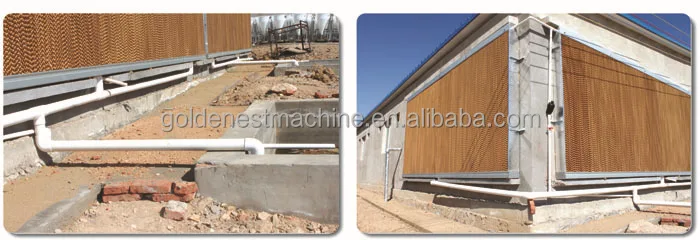

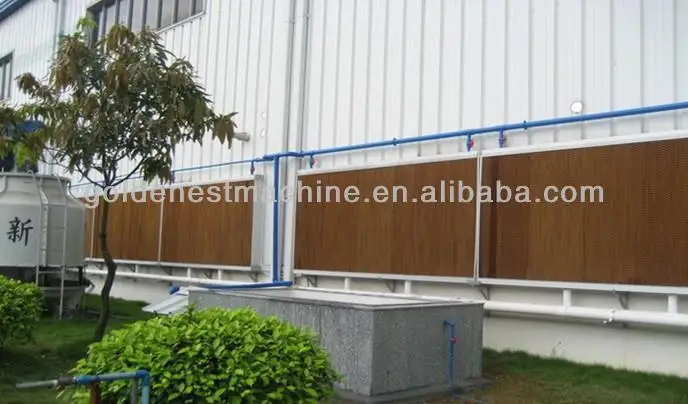

Engineering Projects
Our factory was established in 1987.
Cooling pad system is our one of main products.
We products complete automatic husbandry equipments of poultry and pigs.
Packaging & Shipping
Standard export quality of cartons.
Our products have been shipped to West Europe, Eastern Asia, Mid East, Oceania and Africa Etc.
Our Services
Free sample
The express costs of the sample need to be paid at fist, if order the procucts, it will be return.

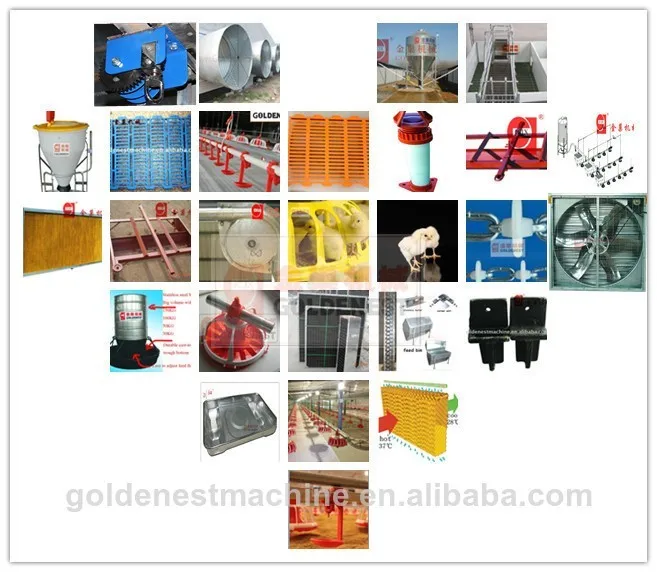

Our other products
Company Information
Shandong Goldenest Machinery Manufacturing Co.,Ltd is the famous enterprise which engaged in the design,research,and manufacture automatic farming equipment for poultry and livestock in China. By now,Goldenest has accumulated about 3 0 year’s experience in technical innovation.
Goldenest’s poultry and pig equipment pay more attention to technical innovation and quality improvement,our mainly product,like broiler pan feeding line,broiler nipple drinking line, poultry outside main filling line,breeder metering cylinder pan feeding line,breeder open trough chain feeding line, automatic egg nest system,manure fermentation compost, pig chain feeding system,pig stall system,poultry house environment control system always get unanimous praise from our customers all over the world.
FAQ
A:TT and LC is ok for us.
2.Q:Delivery time.
A:All poultry and livestock farm equipmen will be shipped in 20 days after order confirmd.
3.Q:Service life of the poultry farm equipment.
A:10 years service life of our poultry farm equipment.
4.Q:Is free sample available?
A:Free sample is ok for us, it's the client for freight.
5.Q:I need quotation for full sets poultry farm equipment.
A:Please let me know the following info:
1.House size:Length&Width
2.Height of side¢ral wall
3.If for chicken/broiler,chicken weight while moved out.
4.If for breeder,rearing density or target breeder amounts.
Your enquiry will be replied at first time.
