4.5mm 50m Conduit snake rod fiberglass cable snakes electric cable duct rodders
- Category: Other Wiring Accessories >>>
- Supplier: Hebei,Long,Zhuo,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Conduit snake rod fiberglass cable snakes electric cable duct rodders
Products Description
1. Fiberglass duct rodder introduction
Fiber Glass duct rodders or push rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .
It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame
and easily roll like trolley on ground by its wheels fitted at bottom.
It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame
and easily roll like trolley on ground by its wheels fitted at bottom.
Type | Diameter | Length | Frame size(cm) | Packing size |
LZFDR-01 | 4.5mm | 60m | 50*40*15 | 50*40*15 |
LZFDR-02 | 6mm | 100m | 67*55*16 | 67*55*16 |
LZFDR-03 | 8mm | 150m | 95*90*48 | 95*90*48 |
LZFDR-04 | 12mm | 200m | 105*100*48 | 105*100*48 |
LZFDR-05 | 12mm | 250m | 130*120*48 | 130*120*48 |
LZFDR-06 | 16mm | 300m | 150*140*48 | 150*140*48 |
Product Features
2.FRP Duct Rodder Feature
1> Light weight, durable, good resistance to chemical and corrosion.
2> High tensile strength and bending properties to make it go through narrow pipes easily.
3> good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature
4> Rod jacket: developed composite materials, hard, smooth and wear-resistant.
5> meter marks: available
6> Rod colors: yellow, other colors are optional
7> Rod Length (m): 30-350m
8> Rod Diameter: 4mm-16mm
2> High tensile strength and bending properties to make it go through narrow pipes easily.
3> good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature
4> Rod jacket: developed composite materials, hard, smooth and wear-resistant.
5> meter marks: available
6> Rod colors: yellow, other colors are optional
7> Rod Length (m): 30-350m
8> Rod Diameter: 4mm-16mm
Details Images

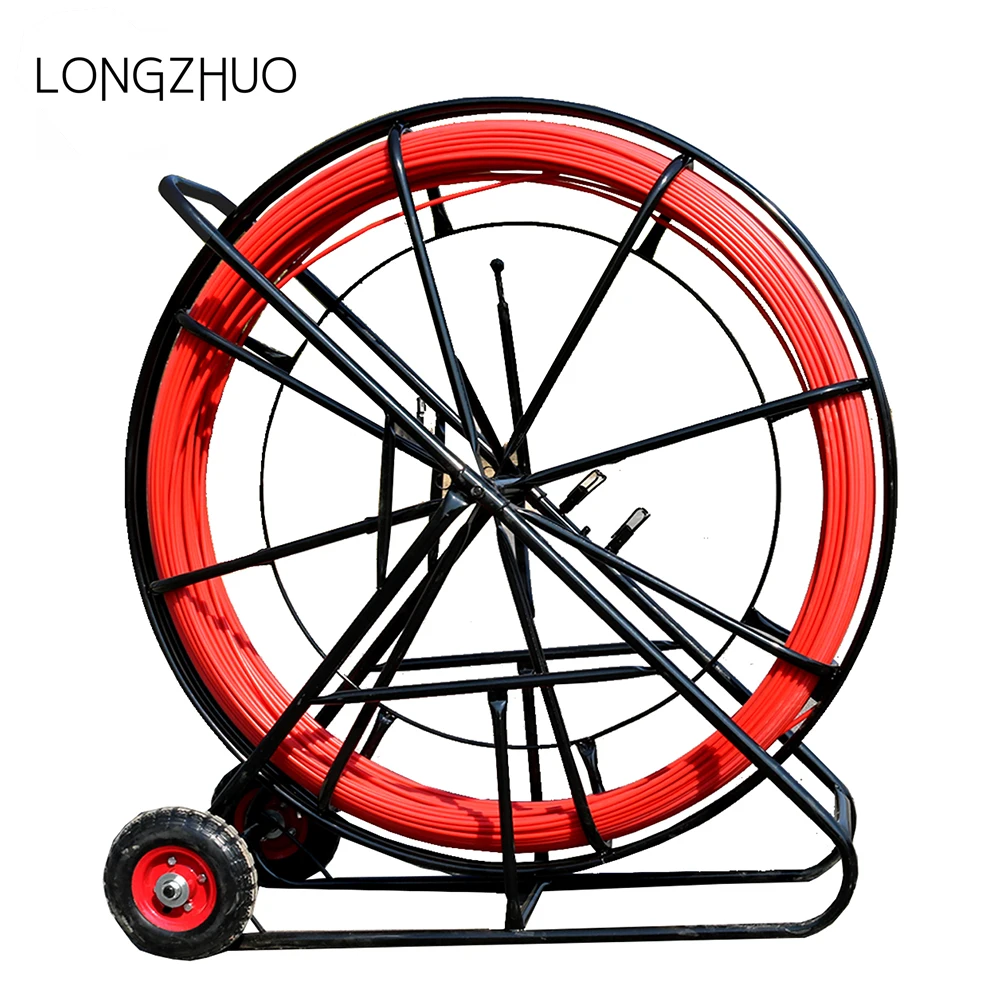

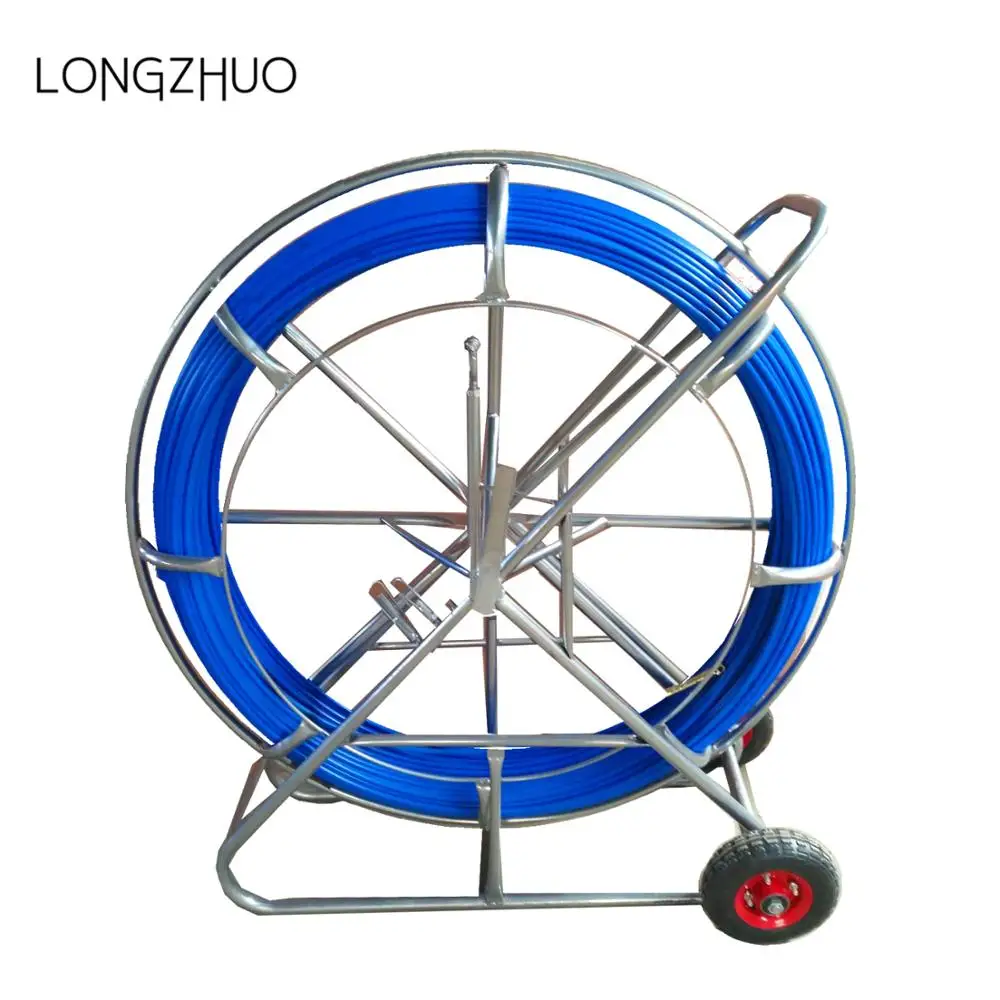

3. Fiberglass duct rodder product details
Our Workshop
Fiberglass duct rodder production process
Product packaging
