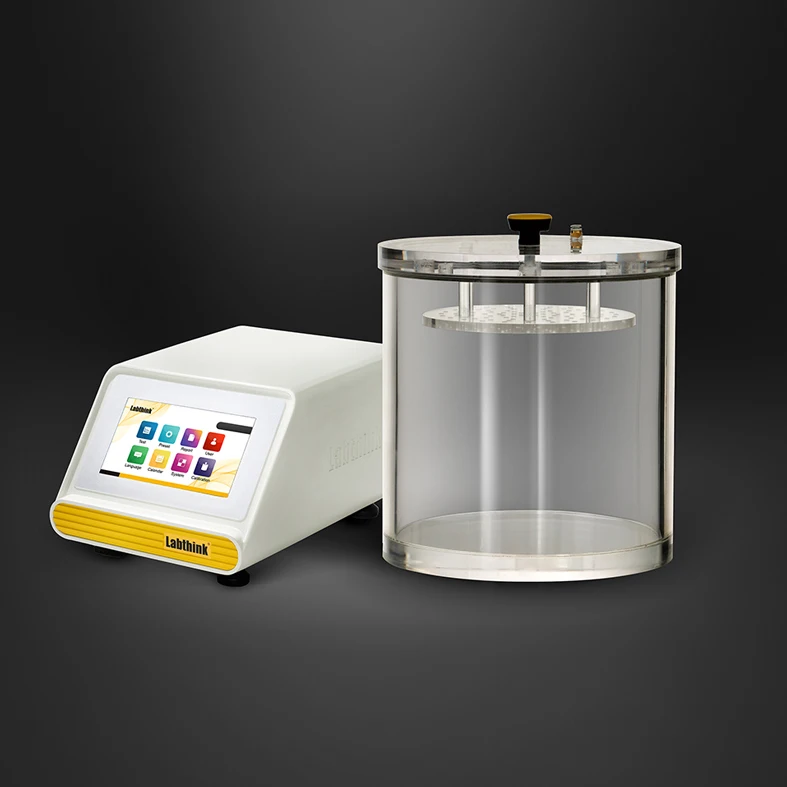

C660B Leak and Seal Strength Tester is professionally designed for the leakage tests of packages for food, drugs, medical
instruments, household chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests





Features

* Negative pressure method
* Multiple test modes including standard, multi-grade vacuum and methylthionine chloride mode
* Automatic test with traditional methylthionine chloride
* Vacuum degree, test time and infiltration time can be adjusted and test parameters can be saved automatically so that the tests with same test parameters can be started quickly
* Automatic constant pressure compensation ensures that the tests can be performed under preset vacuum conditions
* Real-time display of test curves, easy to observe the test results
* Automatic statistics of qualified specimens
* Main components and parts are supplied by well-known global manufacturers, with guaranteed performance

Standard
ASTM D3078, GB/T 15171

Applications
Glass Bottles, Pipes, Cans and Boxes
Plastic Bottles, Pipes, Cans and Boxes
Metal Bottles, Pipes, Cans and Boxes
Paper Plastic Composite Bags and Boxes




Specifications
Vacuum Degree
0 ~ -90 KPa/ 0 ~ -13 psi
Accuracy
±0.25% FS
Resolution
0.1 KPa / 0.01 psi
Vacuum Chamber
Effective Sizes
Φ270 mm x 210 mm (H) (standard)
Φ360 mm x 585 mm (H) (optional)
Φ460 mm x 330 mm (H) (optional)
Note: customization is available for other sizes
Gas Supply
Air (outside of supply scope)
Gas Supply Pressure
0.5 MPa ~ 0.7 Mpa (73psi ~ 101psi)
Instrument Dimension
334 mm (L) x 230 mm (W) x 170 mm (H)
Power Supply
220VAC±10% 50Hz / 120VAC±10% 60Hz
Net Weight
Instrument: 6.5 kg Standard Vacuum Chamber: 9kg


Our Service


Romote Service

Lifelong free of charge! unpacking, Installation, debugging, training, maintainance, etc

Field Service

Include installation, debugging, operation and application training, calibration, repairing

Local Service Centers

More than 30 International service providers give you promote services.



Our Company


Labthink China

Founded in 1989, Located in Ji'nan, Shandong, has 200+ empolyees and self owned laboratory

Labthink USA

Located in Medford, MA; has 30+ employees, including sales team, after-service team and shown room.



Labthink Labotary

360 m2 test area, 120 testing instruments,  20+ experienced lab technicians. Provide test data as well as soluction services

Debugging Department

Each Lathink instrument are carefully checked and debugged by the engineers.







Labthink has taken the lead in proposing & drafting 14 national standards and has been granted more th-an 109 patents.
