Used in south africa to produce rib and block concrete slabs

Product Overview

Description

Used in south africa to produce rib and block concrete slabs

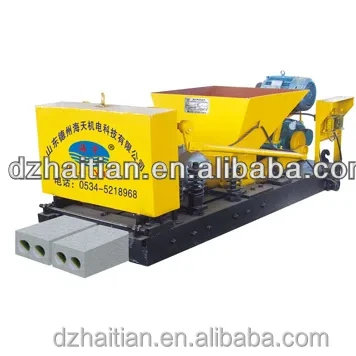

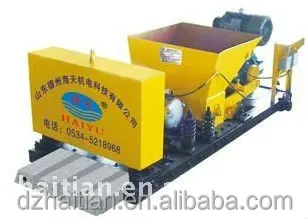

Concrete rib and block concrete slab machine / lintel or column machine works on the long-line concrete bed, use the flat pushing work method to form the concrete lintels, columns, etc . The concrete lintels and columns being finished have the advantages of smooth surface, high-density structure. And those machines are easy for operation and convenient for maintenance with high price performance ratio. They could be used to hold the weight for windows or doors well.





Machine Configuration:



Type: TW120x240x2
Thickness of Slab: 120mm
Width of Slab: 240mm
Number of Slabs: 2pecs
Molding Speed: 1.2-1.4m/min
Number of Holes: 4pecs
Hole Diameter: Φ70mm
Slab Length: 2500mm
Steel Diameter: Φ5.2mm
Motor Power: 4kw
Vibration Power: 2.2kw
Machine Dimension: 2100*880*750mm
Machine Weight: 980kg

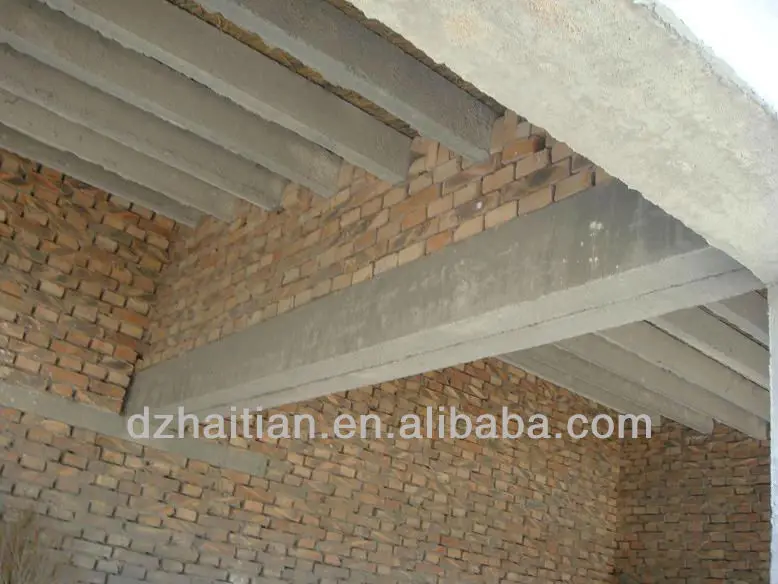

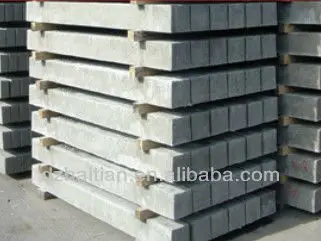

New beams produced by Precast Beam Machine

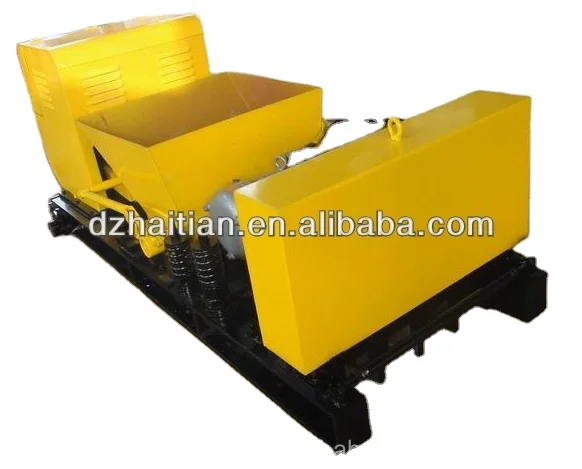

Precast Beam Machine

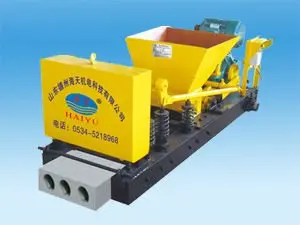

Other Models



TW120*370	3holes*Φ70mm
TW120*240	2holes*Φ70mm
TW120*370*2	6holes*Φ70mm
TW120*240*2	4holes*Φ70mm
120*240+180*240	2holes*Φ70mm
120*370+180*370	3holes*Φ70mm













package
















Why choose our machines:

16 years experience in the precast concrete making machinary industry!

Vice president of CCPA: China association of concrete and cement products!

An ISO9001:2008 and CE certified company!
