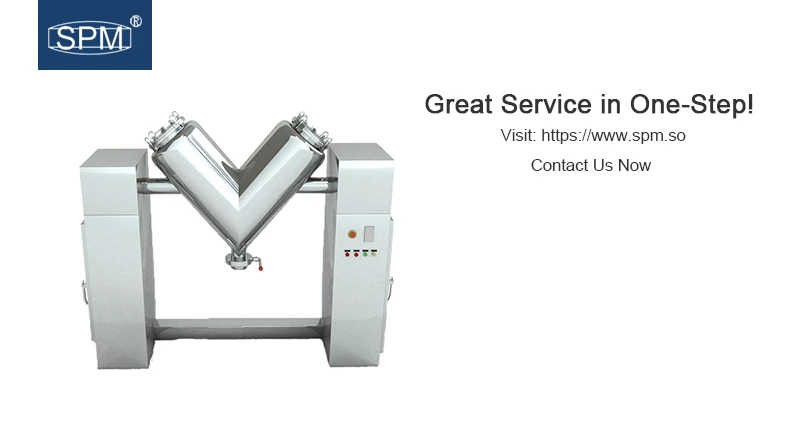

V Type Mixer V Type Powder Mixer Application:


This machine has the following distinguishing features,no blind eagle in the cylinders,no accumulation of materials,high speed,and short mixing time.With the body made of stainless steel and both inner and outer walls polished,the cylinders have elegant appearance.The charging of materials in pharmaceutical and other industries.It consists of two V-type cylinders of different altitudes,and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and agagin,thereby achieving the goal of uniform mixing.


All machines are customized. Please consult with our sales agents for detailed specification and quotation.

































































































































ModelBarrel volumeMax loading volumeMax loading weighMixing timeMotor powerBarrel speedOverall diWeight
CH-50V50L20L20kg0-99min0.75kw20r/min1250*450*1060mm160kg
CH-100V100L40L40kg0-99min1.1kw15r/min1620*500*1480mm220kg
CH-200V200L80L80kg0-99min1.1kw15r/min1800*600*1850mm280kg
CH-300V300L120L120kg0-99min1.1kw12r/min1900*650*1850mm320kg
CH-500V500L200L200kg0-99min2.2kw12r/min2500*800*1850mm550kg
CH-1000V1000L400L400kg0-99min4kw10r/min2850*1050*2050mm950kg
CH-1500V1500L680L680kg0-99min5.5kw10r/min3400*1100*3200mm1200kg
CH-2500V2500L1200L1200kg0-99min11kw8r/min3820*1100*3200mm2040kg
CH-4000V4000L1800L1800kg0-99min15kw6r/min4600*1300*3500mm2800kg
CH-6000V6000L2500L2500kg0-99min18.5kw5r/min5500*1300*4380mm3200kg
