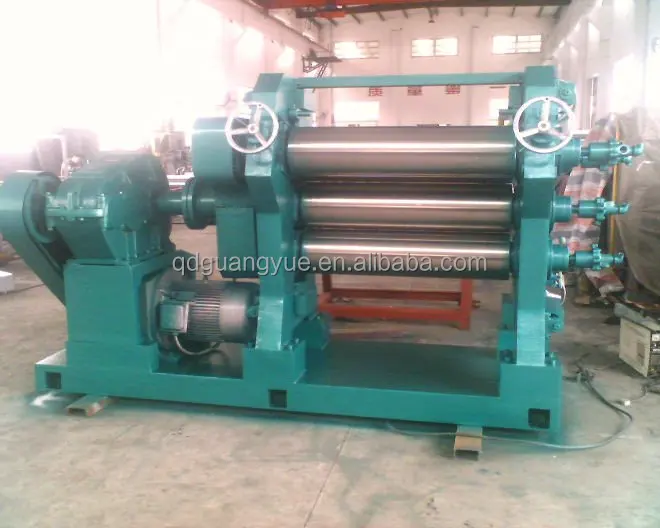

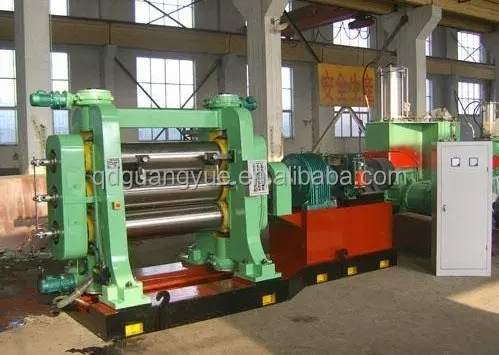

Rubber Calender Mill/Rubber Calender Machine





Application:



The machine is chiefly applied to put rubber on fabrics, canvas or other fabrics; to rubberize fabrics; or to make rubber sheets.



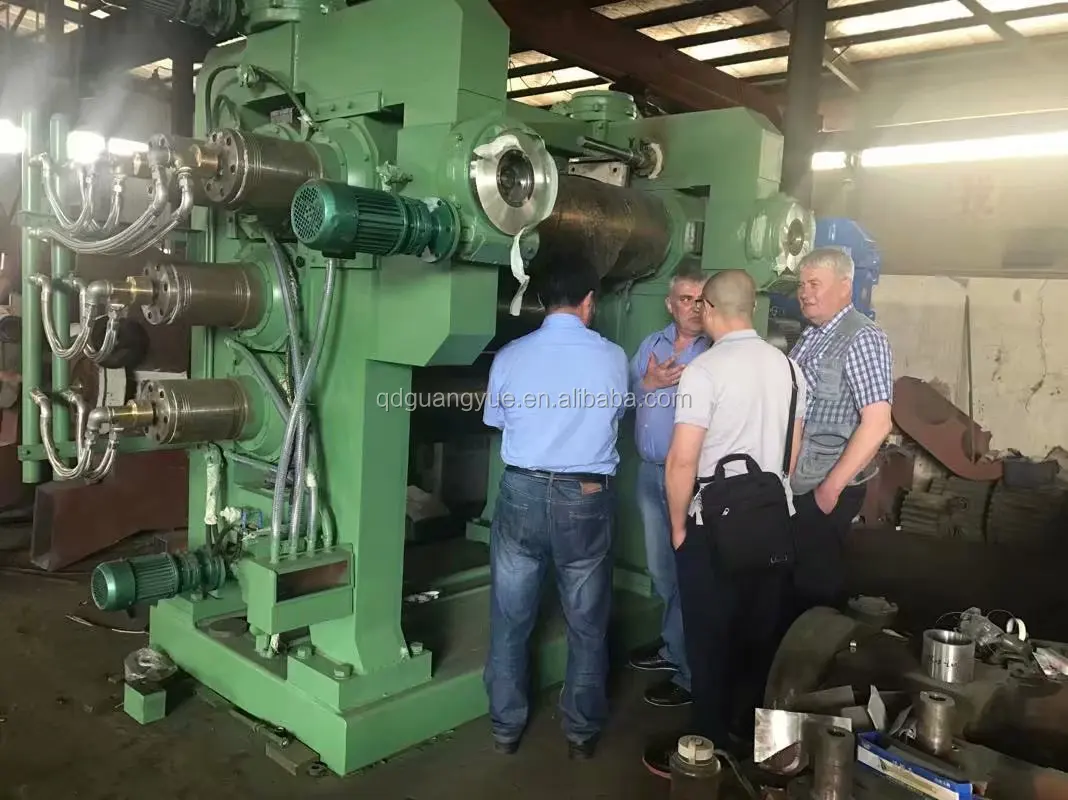

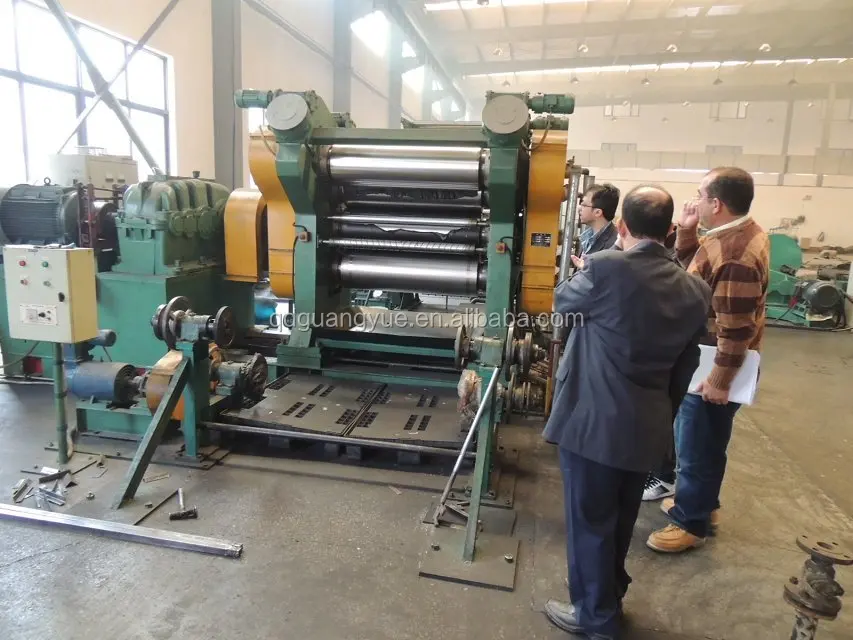

Structure Characters:



The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications. The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.



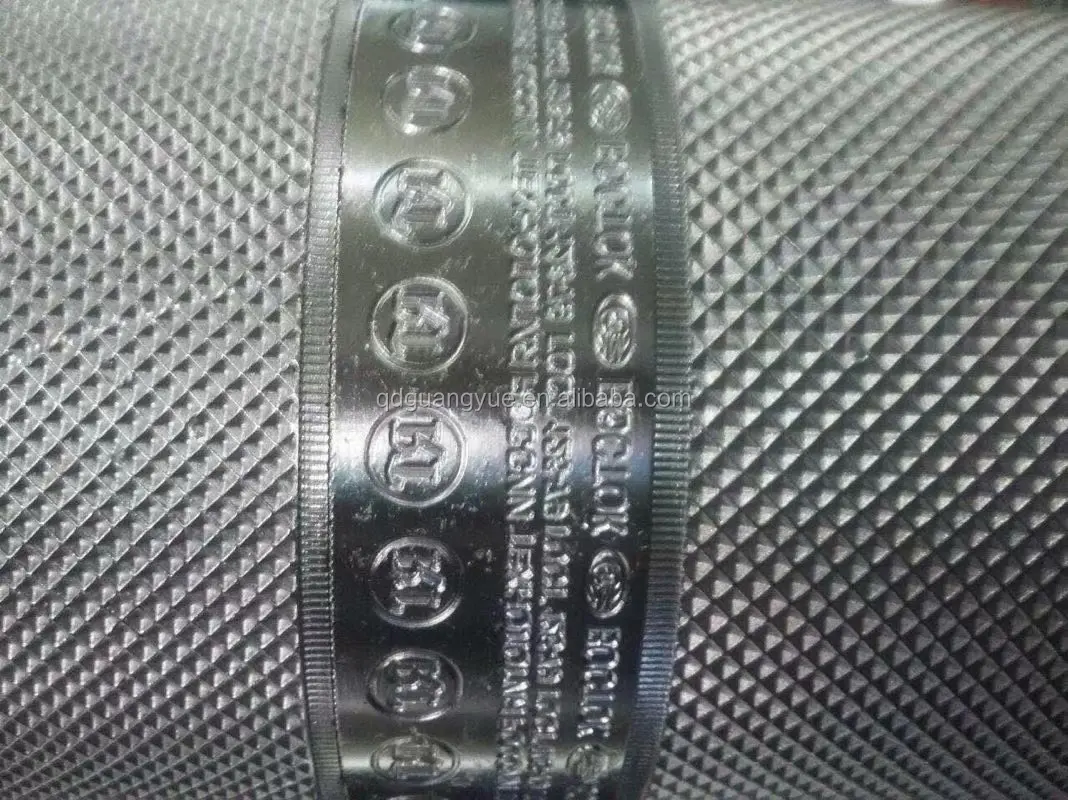

The rolls are made of chilled cast iron of vanadium and titanium alloy. The roll face is hard and anti-wear. For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



The transmission system adopts hard gear speed reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.



Specification:

Model		XY- 630 XY- 630 XY-630	XY- 1120A XY-1120A XY-1120A	XY-1400	XY-1500	XY-1730	XY-2130	XY-2430
Roll dia	mm	230	360	400	450	610	710	810
Roll working length	mm	630	1120	1400	1500	1730	2130	2430
Roll ratio		1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	1:1:1	1:1:1 1:1.5:1
Middle-roll linear speed	r/min	0.8-8	3-21.06	3-26.39	2.62-26.2	5.4-54	8-50	2-20
Adjusting nip range	mm	0-7	0-10	0-10	0-6	0-20	0-20	0.5-25
Min.Calendering product thickness	mm	0.2	0.2	0.2	0.2	0.15	0.15	0.5
Calendering product width	kg	100-500	500-	1200	1400	1400	1900	2150
Motor power	kW	7.5	45	55	75	132	185	220
Overall dimensions	mm	3168	5550	6500	7420	7010	7650	9300
	mm	890	1640	1500	2200	3950	4560	3150
	mm	1830	2120	2440	2900	3730	4080	5200
About weight	t	~2.6	~11	~22	~26	~52	~67	~94
