JC K 220 2 3kg 220V Electric Portable Mini Metal Smelting Furnace

Product Overview

Description

JC-K-220-2 3kg 220V Electric Portable Mini Metal Smelting Furnace

JIUCHEN  Metal Smelting Furnace Model JC-K-220-2 220V 1.5Kw with automatic controls is easy to program and simple to pour. The Maxi Jiuchen melt has a 4000 gram/130 troy oz. gold capacity and a silver capacity of 3460 gram/110 troy oz.

JIUCHEN Metal Casting Furnace are designed to be hand-held for easy pouring of the metal directly from the furnace. This makes them ideal for use in casting,

Metal Casting Furnace are automatic and feature electronic controllers for extremely precise melting of metal, including high-karat gold. The electronic feature regulates the temperature by providing full power input to the furnace until a selected temperature is attained.

JIUCHEN electro Melts is used in dentist offices and jewelry shops.

Advantages of JIUCHEN Electric Metal Smelting Furnace

1. Complete Stainless Steel & maintenance free body with elegant look.

2. Room Temperature to 1150 oC in 15-20 minutes,

3. Prevents temperature oscillations and maintains the temperature at the set value (+/- 1o C), hence giving accurate melting points,

4.Prevents shooting the coil with higher peaks of ac current- when the coil is in off state, 5.,thus insuring longer life of the coil to the furnace,

6.When the lid is opened, it prevents high dropdown of the temperature and then quickly refurbishes the temperature to the set value, thus not only saving your precious time but also electrical power,

 7.Automatically tunes to the variation in properties of the coil over the period of time and the variation in surrounding environment. All this on just on click of a button!



JIUCHEN furnace meets the needs for individuals who are melting small to medium jobs. The unit is light and compact for easy travel.

Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

We have professional packaging and shipping insurance so your purchase will arrive safely.

his package comes with all of these features listed.

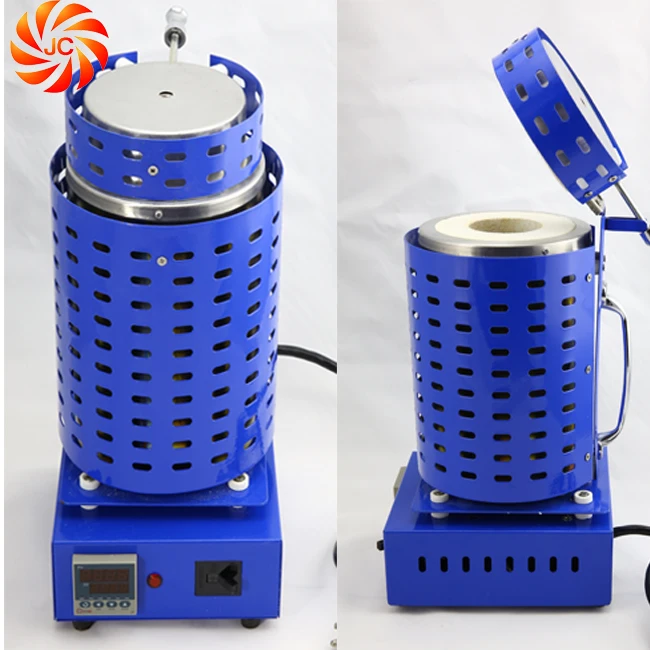

 JIU CHEN furnace is designed for handheld pouring directly from the specially designed crucible and tongs.

The crucible is grooved at the top for easy removal from the furnace using the specially designed tongs that are provided with the furnace.

Some of the Metals that can be melted with this Furnace;Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc.Melts Pure Jewelry grade Metals such as: Gold 8k-24k, Silver (coin,sterling,fine), Copper, and more.

One Furnaces Unit delivery with:

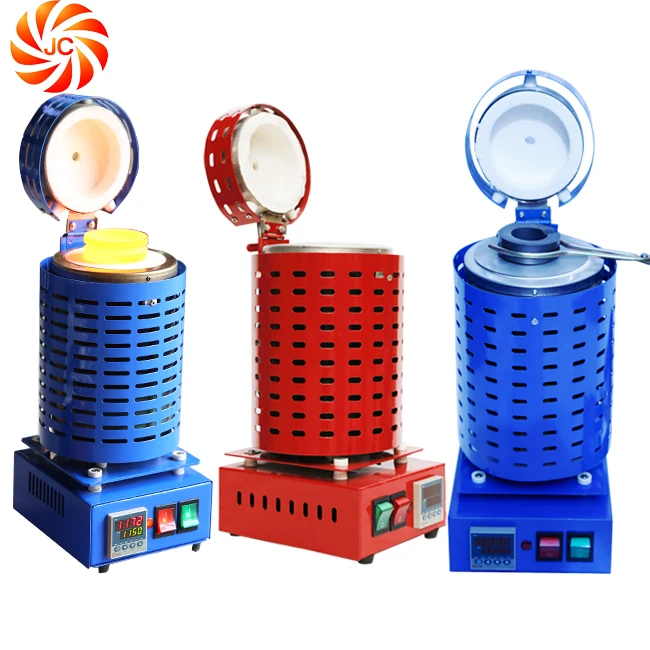

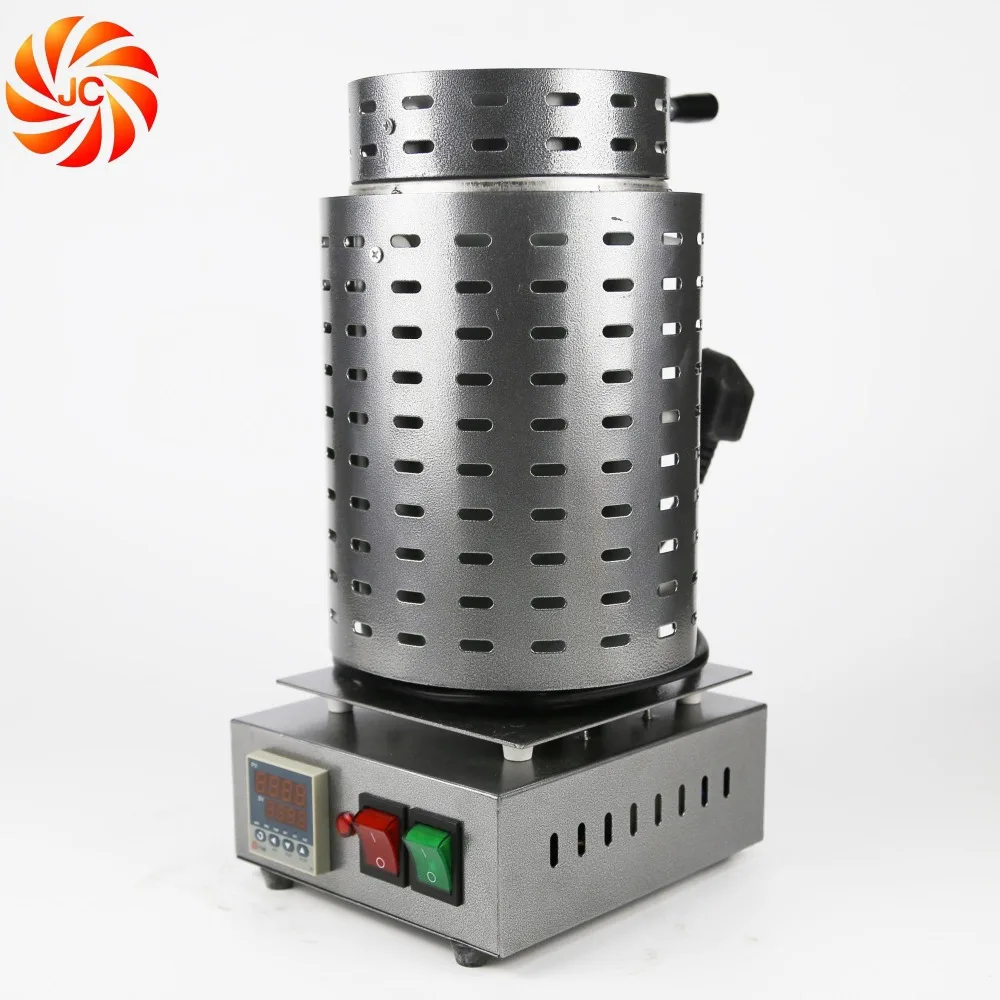

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional

1-1kg graphite crucible 1-crucible tongs. 1-replacement fuse. 1-insulating heat glasses.1- gloves.

                         Metal Casting Furnace Brief Instruction

Use	Removable crucible furnace for melting or maintaining melted state of non-ferrous metals.Handling the crucible with tongs.
Construction	Access to crucible from top,manual cover closing
Insulation	Multilayer insulation with double thickness of ceramic fiber
Electricity	Single-phase 220VAC,1500W,50Hz,220V standard plug
Heating	Silicon Carbide chamber with no crack,no distortion,comparied with other traditional ceramic fiber chamber and quartz chamber
Working temp	2192F (1200C) Temperature controlled with an accurate digital thermostat
Melting Speed	(Model JC-K-220-2) 15-20mins heat up to 1200 Degrees Celsius 25-30Mins(JC-K-220-1) heat up to 1200 Degrees Celsius
Standard Delivered with	1x1kg crucible,1xcrucible tongs,1xinsluation glasses,1xgloves

 Metal Smelting Furnace Operation

.

Metal Smelting Furnace Instruction

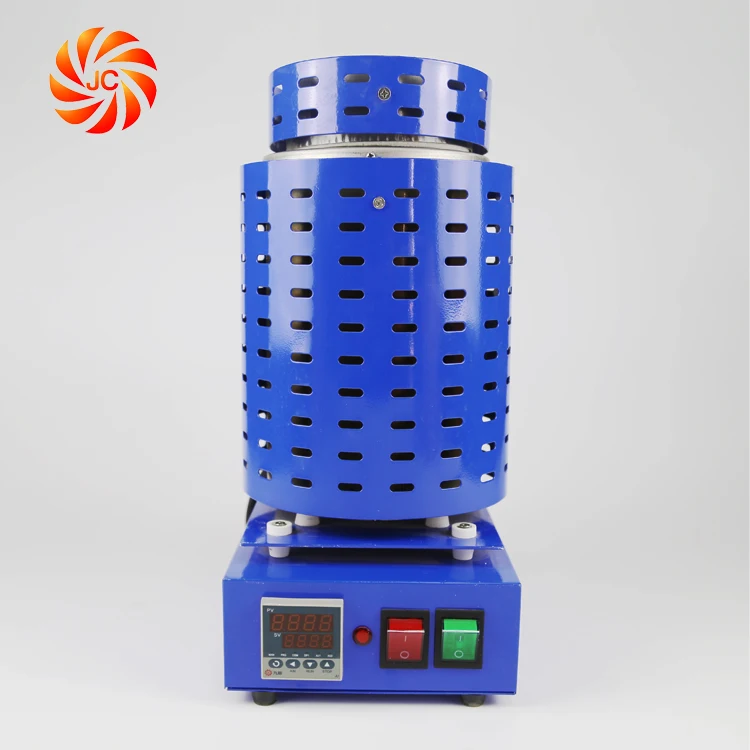

The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat allowing you to set the desired melting temperature.

The RED switch turns on the heating element to start the melting process.



The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.

To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.

To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

When you are ready, place the metal pieces or grain in the crucible and set the crucible in the furnace. Close the lid.

Press the red button to start the melting process.

When the metal is molten and has reached casting temperature, turn off the red switch. Open the lid and pour the metal into your prepared flask.

Difference Feature JIUCHEN with Other Similar Furnace

Items	JC Electric Furnace	Other Similar Furnace
Furnace chamber	Adopts new advanced SIC material with no crack no distortion under normal temp 1-1200 Degrees Celsius,which prevents disadvantage of short work life with tranditional ceramic fiber, quartz chambers.	Traditional chamber material:ceramic fiber, quartz with easy crack and distort after use 2-3 times,which easily lead to short circuit and reduce work life.
Heating Coil	Material: Fe-Cr-Ni alloys   Limited test temp up to 1600°C,make sure long continues continuous work time under normal 1200°C,which effectly extend furnace work life	Easy to crack after use 2-3times and lead to be out of work,it is very complicated process if replace coil singly,also many end users unable to replace it successfully by themselves.
Heating Speed	JC-K-220-1(220V1Kw)  25-30Mins JC-K-220-1(220V 1.5Kw)        15-20Mins	25-45mins: Reheat:15-30mins Then need 10-15mins to complete finish the melting.
Working temp	1-1200  Degrees Celsius	1-1150  Degrees Celsius

Metal Smelting Furnace Shipping

We can accept T/T,Paypal,Western Union,Escrow,the best and fast way is Paypal.

We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination,

We will send the goods within 3 working days after the full payment has been confirmed.

Warranty and Return:

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.

If there is no man-made problems,we will replace or repair for you freely.
