Hot sales rubber extruder / famous rubber vulcanizing extruder

Product Overview

Description

Hot sales rubber extruder / famous rubber vulcanizing extruder



Type :

hot feed rubber extruder , cold feed rubber extruder , Pin barrel cold feed rubber extruder , exhaust cold feed rubber extruder , rubber strainer extruder  . Lab extruder



Model :



hot feed rubber extruder :XJ-30, XJ-65, XJ-85 , XJ-115 , XJ-150



Normal cold feed rubber extruder :XJW-65 , XJW-90 , XJW-120



Pin barrel cold feed rubber extruder :XJD-90 , XJD-120 , XJD-150 , XJD-200



Rubber strainer:XJL-115,XJL-150,XJL-200,XJL-250



we can also design for your need



Extruder head and  die :

this can be designed according to your need



Features

1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )



2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )



3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.





Parameters of cold feed rubber extruder machine



The machine is hot-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing, we can give different filtering and rubber covering of press plate of semi-product for contant outline, so the machine has many uses.



Model		XJW-60	XJW-90	XJW-120	XJW-150	XJW-200	XJW-250
Screw diameter	Mm	60	90	120	150	200	250
Length-diameter ratio		8-12	12-16	12-16	12-18	12-18	12-18
Screw RPM	r/min	80	60(55)	50	45	33	26
Production capacity	kg/h	80150	250350	600800	10001500	16002500	28003500
Number of lines of pins		-7	-10	-10	-12	-12	-12
Cooling water pressure	Mpa	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2	≥0.2
Power supply		380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
main motor power	kw	18.522	4575	75110	160250	220355	355450
Total power consumption	kw	18.522+26	4575+46	75110+66	160250+66	220355+82	355450+82
Overall Dimensions (L×W×H)	mm	1800×1310 ×1400	3360×1350 ×1450	3750×1600 ×1550	5200×1650 ×1600	7150×1950 ×2300	7150×1950 ×2300 8500×2450 ×2600

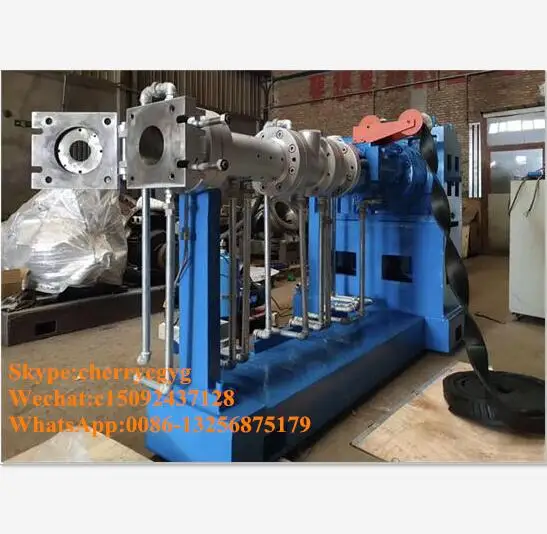

Cold feed rubber extruder

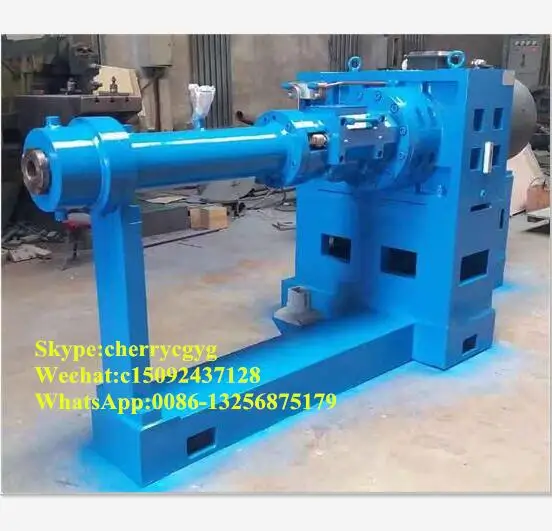

Hot feeding rubber extruder



Pin-barrel cold feed rubber extruder



Rubber strainer





Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
