Машина для извлечения меда, машина для фильтрации экстракта меда

Share on (60198224883):


Price:

Quantity:


Product Overview

Description

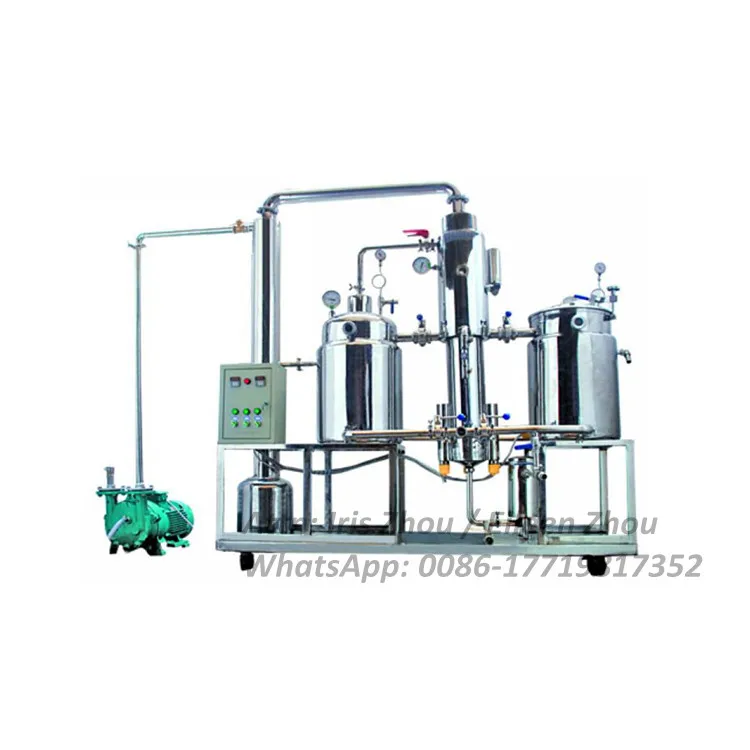

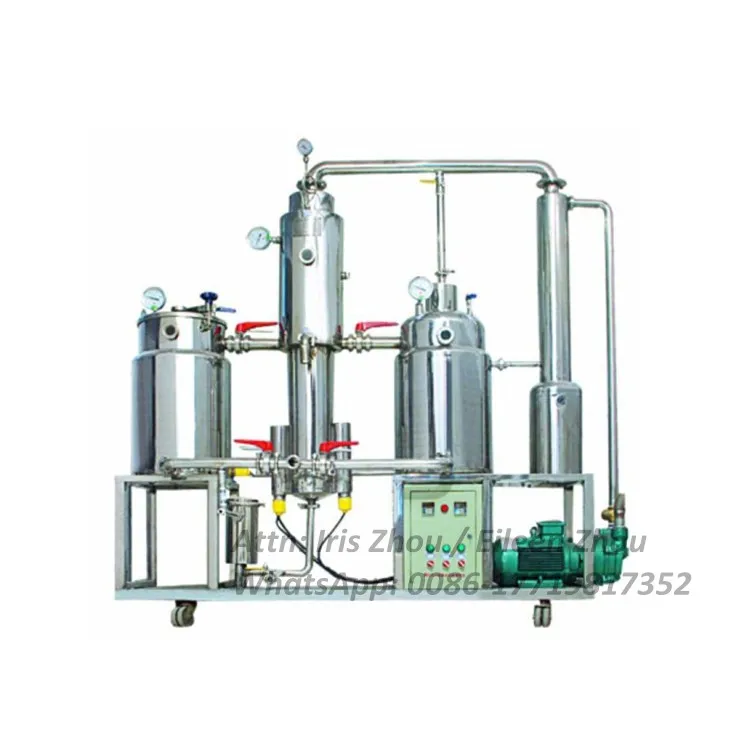

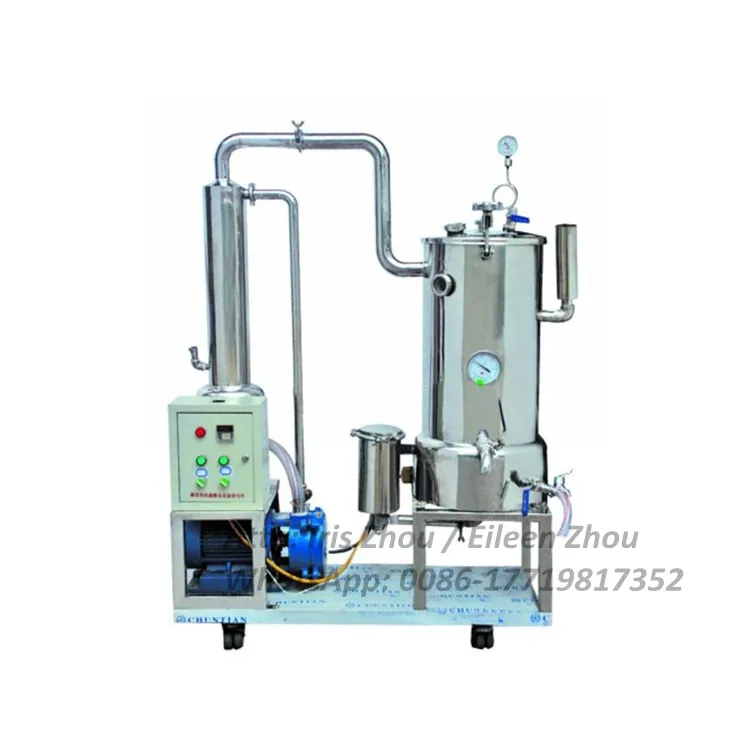

Honey extractor machine, honey extract filtering making machine






Product Description




Introduction of honey extract machine





1. Honey used in high vacuum concentrator vacuum reduces the boiling point of water


principle, the honey in the water quickly evaporates, increase the concentration of honey.



2. Device has melted crystal, to the net impurity, extract the excess moisture and other functions,


to maintain quality of honey.



3. Equipment by preheating tank, filter, concentrate tanks, condensers, vacuum pumps and other


components, electric heating with automatic control of heating, sanitary convenience, circulating


hot water heating boiler can also be used.



4. Equipment and materials are of high quality stainless steel, in line with QS certification require-


ments.



5. Equipment, simple operation, high efficiency, suitable for honey production and processing of


small and medium enterprises.




Parameters of honey extract machine



























































Model



LK50



LK100



LK200



LK300



Output



50kg/h



100kg/h



200kg/h



300kg/h



Vacuum pump power



0.75kw



1.1kw



2.2kw



2.2kw



concentrated temperature



Less than 50



Degree of vacuum



More than 0.092



Heating power



8kw



15kw



24kw



36kw



Mixing power



0.55kw



0.55kw



0.55kw



0.55kw



Preheated pot volume



50L



100L



200L



300L






conew_234520150310160555_.jpgconew_234520150310160642_.jpgconew_234520150310160715_.jpgconew_234520150310160730_.jpg








































































































Model



ZDN500



ZDN1000



ZDN2000



ZDN4000



Output (ton/7h)



5



10



20



40



The output is under the standard of increasing 4 baume degrees per hour



Voltage (V)



380



380



380



380



Electric Power (KW)



5.5



7.5



7.5



11



Concentrated temperature (degree)



≤50



≤50



≤50



≤50



Vacuum degree (Mpa)



≥0.092



≥0.092



≥0.092



≥0.092



Heating area (m2)



4.5



6.6



11.3



14.9



Steam pressure (Mpa)



0.1



0.2



0.3



0.4



Boiler (ton)



1



1



1



2



Height of Thickerner (M)



3.2



3.4



3.6



3.85



Water spray height (M)



4.1



4.3



4.5



4.7



Working form



the way of climbing filmand constantly feed in and out



Heating method



steam



Usable area (m2)



15



15



20



20










Dear Clients, we have many other related beekeeping equipments, pls kindly let us know if


you need, and the catalog would be served to you for your reference!


Thanks for your cooperation in advance!







Packaging & Shipping




By sea, by air, or via DHL, UPS, TNT, FEDEX, EMS etc.


(We'll choose the most suitable way and lowest delivery cost for you.)





Our Services


1. Professional pre-sales team:
Being patient to learn clients’need


Suggesting item in according to clientsneed


Being Patient to answer clientsdoubt



2. Professional after-sale team


Keeping in touch with clients in order to let clients know process of the orders


Technical support throughout whole transaction


Designing suitable marketing plan


Timing visit after transaction completed


Being positive to answer occurring question during transaction





































Company name



Zhengzhou Really Machinery



Contact person



Iris Zhou



Website



www.zzreally.en.alibaba.com



Email



iris(at)zzreally.com



Tel



0086-371-53706735



Fax



0086-371-86153736



Skype



zhou.iris0601






More details information pls check our website: www.zzreally.en.alibaba.com


You can also email iris(at)zzreally.com






FAQ


Client: What’s your payment terms?



Iris: We accept T/T, L/C, Western Union, Escrow.





Client: What’s your shipping way?


Iris: By sea, by air, or via DHL, UPS, TNT, FEDEX, EMS etc. (We'll choose the most suitable way and lowest delivery cost for you.)





Client: How long about your delivery time?


Iris: All delivery will be forwarded as purchasing order.


Delivery time for order within available stock is in 3-5 days.


Delivery time for order without available stock is 7-15 days.






Company Information


Our company--Zhengzhou Really Machinery, owns rich export experience for many years,


which is specialized in beekeeping equipments. With the advantage of good reputation and


great varieties high quality and inexpensive products, we have exported machines to Amercia,


EU, AU, South Africa, and South East Asia etc. and well appreciated by our purchaser.





Our website is: //www.zzreally.en.alibaba.com, welcome to visit us! Your satisfaction is


our relentless pursuit!













Notes For Customer


Please kindly noted before you order!





1. Our price is  based on the CFR trade terms, which is shipping by sea, we will help you to arrange the shipment by sea and deliver to your nearest seaport! After arriving destination seaport, the buyer need to pay the destination port charges (such as terminal handling charges, documents charges, storage charges, ect), tax to do the customs clearance and pick up the goods by yourself.
The shipping documents we can supply is the Bill of lading, Commercial Invoice, Packing list. If you need any other documents, please contact our salesman before shipment!





2. The refrigerant will been removed before shipping, because it is forbidden on the boat. So, you need fill the refrigerant before using, more details, we will inform you once you receive the machine.





3. About the machine size, please subject to the product description. Please kindly noted there might be some size deviation due to the manual measurement, whichever is actual. If you need the exactly size, please contact our salesman to confirm it again before you place the order.





4. Buyers should inspect package / goods carefully before signing receipt of goods. If there is any damages, please take pictures and videos, and please contact with us within 24 hours, we will try to help you to ask the complaints and claims!





5. Please note, our machine is belong to the customize product, it don't accept "cancel the order" once arrange the production.
