Product Overview
Description
Machine features for Cnc Metal-Cutting Tool Hydraulic Metal Steel Plate Sheet Cutting Bending And Shearing Machine Specification For Sale Price List
Machine Description
Hoston Hydraulic Swing beam shearing machine are characterized by easy operation, reliable performance and fine appearance.
1. Steel plate welded structure, hydraulic transmission and accumulator return stroke.
2, Indicator based gap adjustment of blades, convenient and swift. Shadow light alignment
3. Top blade could be adjusted for full stroke or shorter ones. Fence guard for personnel safety
4. The quality of Swing beam shearing Machine is certified by hydraulic, electrical and mechanical components with high range.
5. The machine's performance, excellent in the standard equipment, can be upgraded with different components and accessories that are characterized by flawless performances even in extreme working.
6. The Option of CNC control panel allows an easier use of the machine optimizing the manufacturing process.
Machine Features
1. Better Cutting accuracy in thin sheets at lower rake angle
2. Higher cutting capacity at max. Rake angle
3. Less power consumption
4. Better safety for operator and machine east production on smaller jobs
5. Fast products on smaller jobs
6. NC or CNC up gradation possible
7. Low noise & smooth operation gives higher efficiency of operator

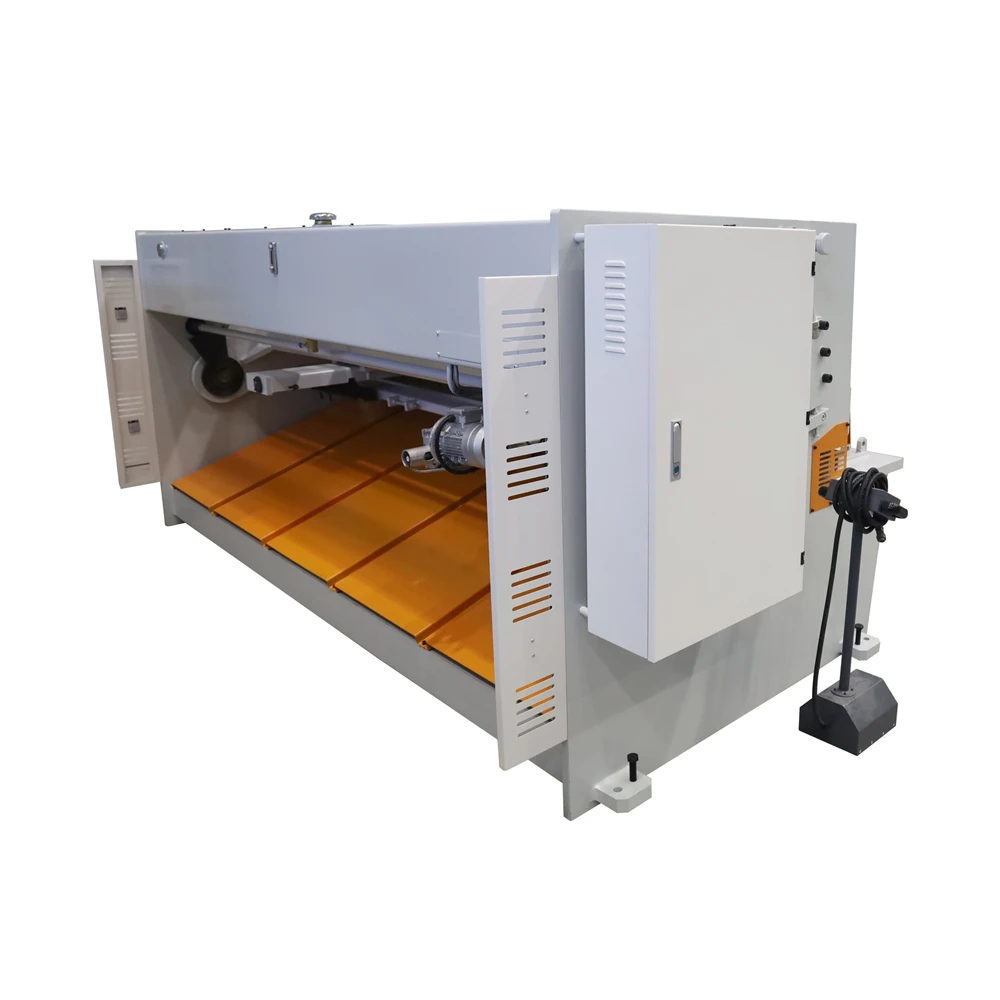

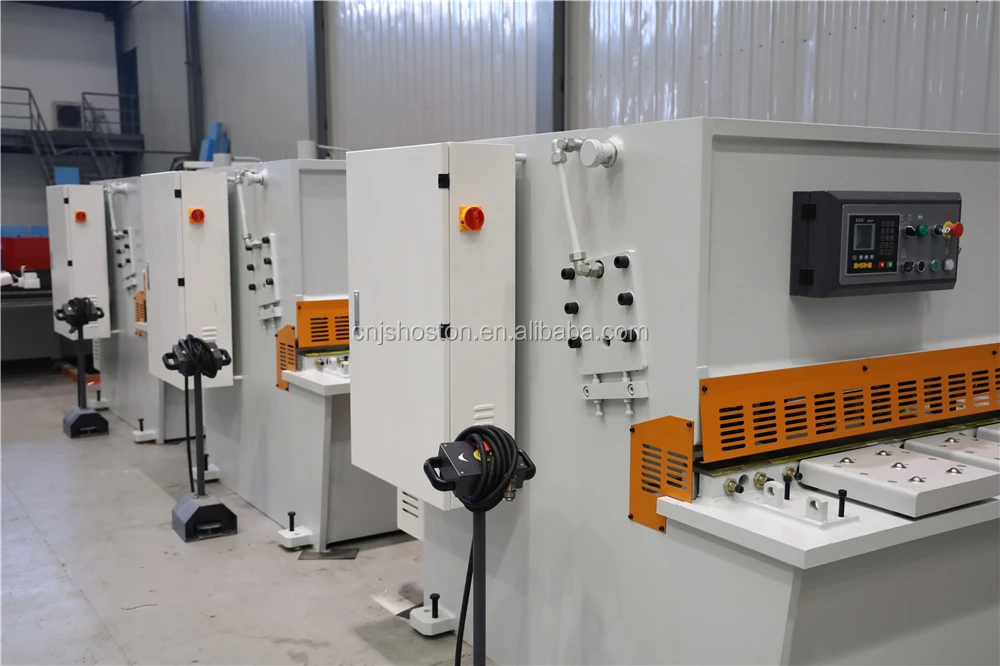

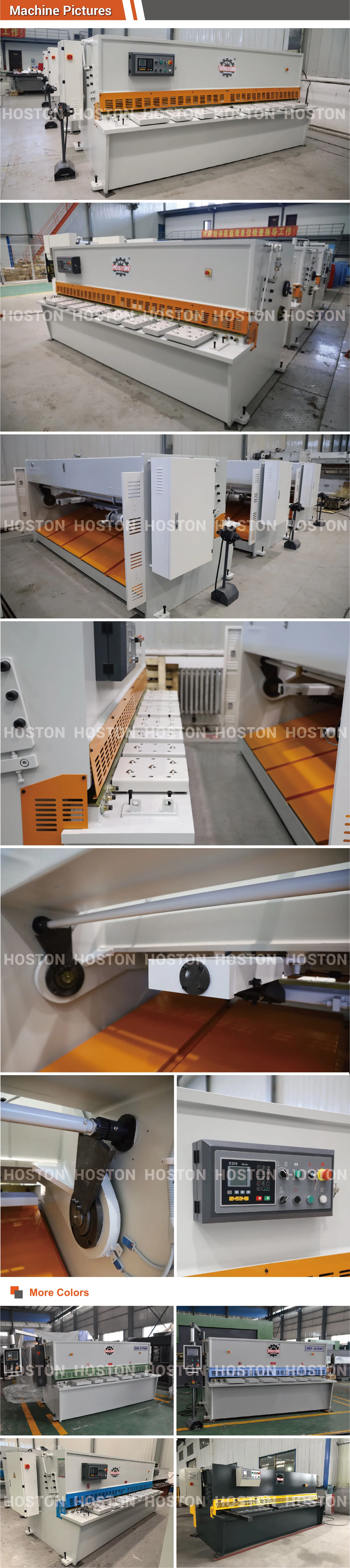

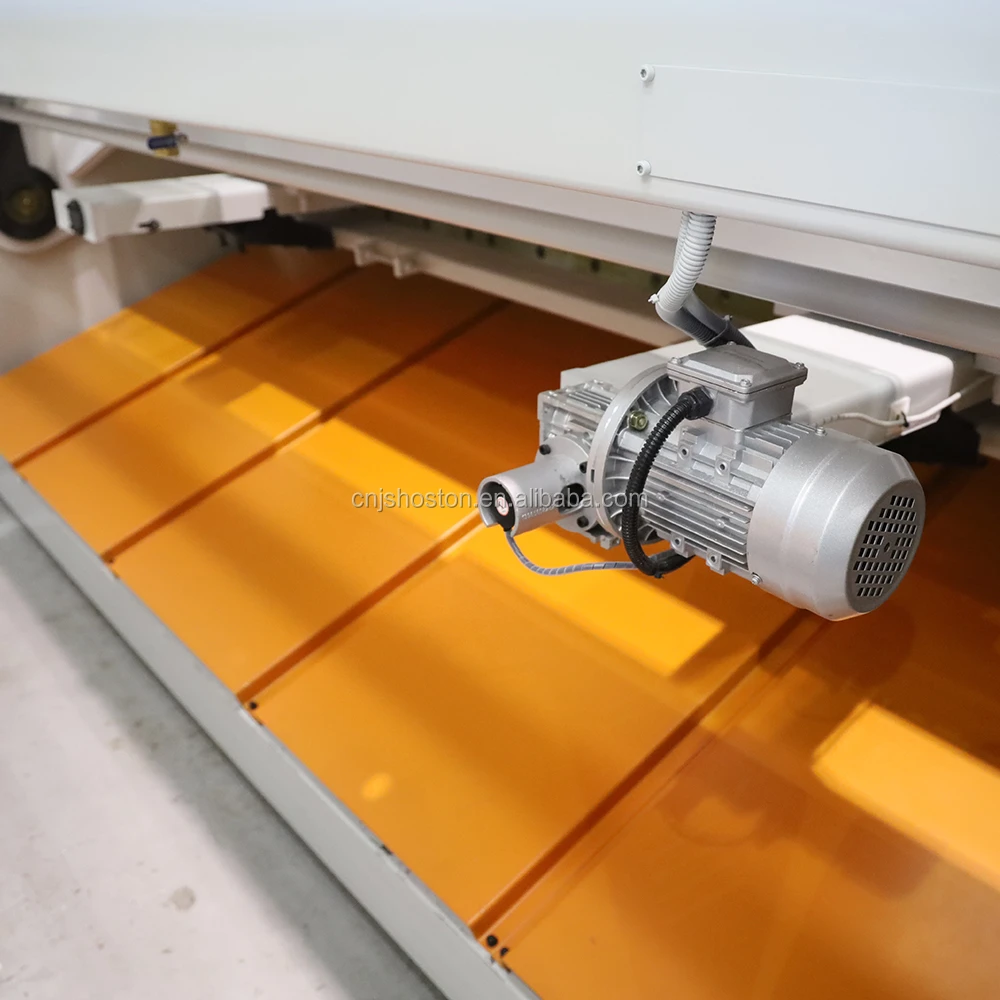

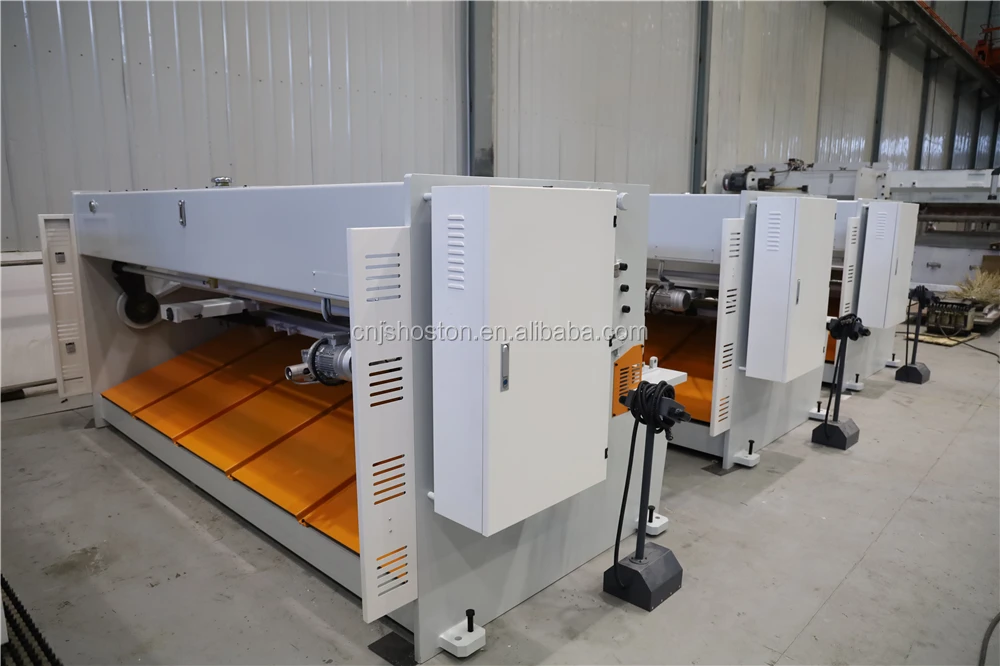

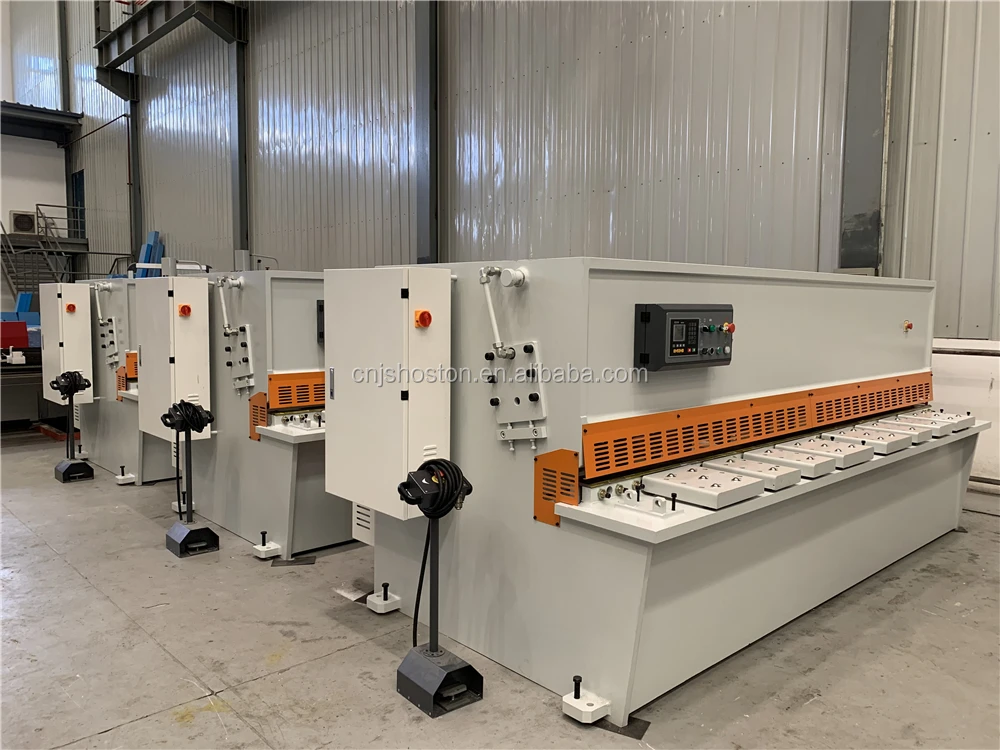

Machine pictures for Long Service Life Side Cutting Shears Metal Cutter Machine For Fabrication
Type | Cutting Thickness (mm) | Cutting width (mm) | Travel Times (times/min) | Backgauge Range (mm) | Cutting Angle (°) | Throat Depth (mm) | Power (KW) | Dimension LxWxH (mm) |
HBS-4x2500 | 4 | 2500 | 22 | 550 | 1.5° | 100 | 5.5 | 3020x1490x1500 |
HBS-4x3200 | 4 | 3200 | 19 | 550 | 1.5° | 100 | 5.5 | 3720x1490x1550 |
HBS-6x2500 | 6 | 2500 | 18 | 550 | 1.5° | 100 | 7.5 | 3030x1665x1620 |
HBS-6x3200 | 6 | 3200 | 15 | 550 | 1.5° | 100 | 7.5 | 3730x1665x1620 |
HBS-8x2500 | 8 | 2500 | 14 | 550 | 1.5° | 100 | 7.5 | 3040x1665x1620 |
HBS-8x3200 | 8 | 3200 | 12 | 550 | 1.5° | 100 | 7.5 | 3740x1665x1620 |
HBS-10x2000 | 10 | 2000 | 13 | 550 | 2° | 100 | 11 | 2550x1750x1700 |
HBS-10x2500 | 10 | 2500 | 11 | 550 | 2° | 100 | 11 | 3050x1750x1700 |
HBS-10x3200 | 10 | 3200 | 10 | 550 | 2° | 100 | 11 | 3750x1800x1750 |
HBS-12x2500 | 12 | 2500 | 12 | 750 | 2° | 100 | 15 | 3100x2000x1850 |
HBS-12x3200 | 12 | 3200 | 10 | 750 | 2° | 100 | 15 | 3900x2000x1850 |
HBS-16x2500 | 16 | 2500 | 11 | 750 | 2.5° | 100 | 18.5 | 3150x2200x1900 |
HBS-16x3200 | 16 | 3200 | 9 | 750 | 2.5° | 100 | 18.5 | 3950x2200x1900 |
HBS-20x2500 | 20 | 2500 | 8 | 750 | 2.5° | 100 | 22 | 3200x2180x2000 |
HBS-20x3200 | 20 | 3200 | 7 | 750 | 2.5° | 100 | 22 | 4000x2220x2100 |
HBS-25x2500 | 25 | 2500 | 7 | 750 | 3° | 120 | 37 | 3220x2280x2200 |
HBS-25x3200 | 25 | 3200 | 6 | 750 | 3° | 120 | 37 | 4020x2330x2220 |
HBS-25x4000 | 25 | 4000 | 5 | 750 | 3° | 120 | 37 | 4700x2400x2320 |
HBS-30x2500 | 30 | 2500 | 6 | 750 | 3.5° | 120 | 45 | 3250x2350x2280 |
HBS-30x3200 | 30 | 3200 | 5 | 750 | 3.5° | 120 | 45 | 4050x2450x2360 |
HBS-30x4000 | 30 | 4000 | 5 | 750 | 3.5° | 120 | 45 | 6720x2540x2430 |
Remark: Above models are only parts of our NC machine categories.
For more information, please feel free to contact with us.

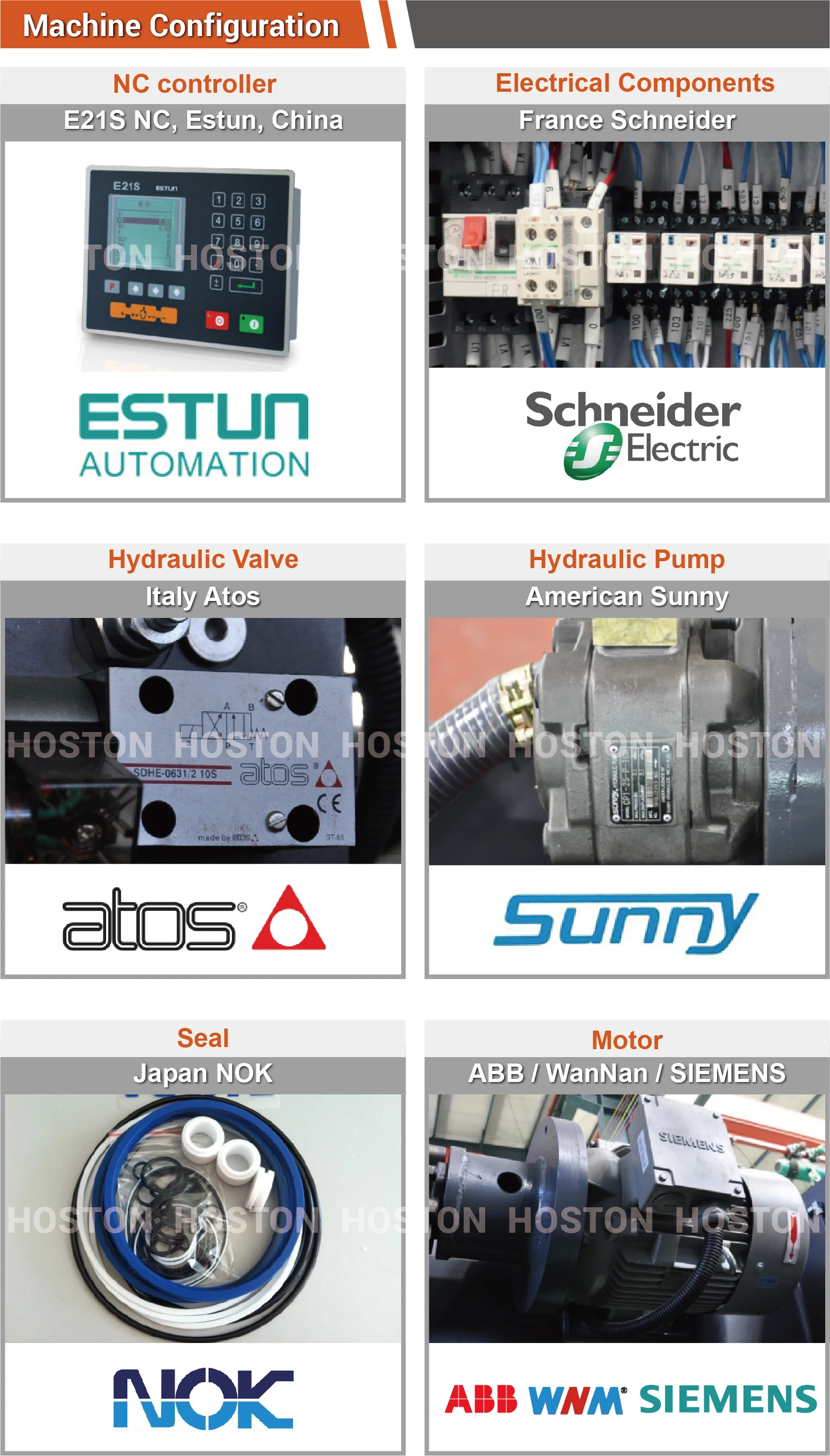

Machine configuration for Cnc Metal-Cutting Tool Hydraulic Metal Steel Plate Sheet Cutting Bending And Shearing Machine Specification For Sale Price List
Packing and delivery for Long Service Life Side Cutting Shears Metal Cutter Machine For Fabrication
