Newest 1-1.2T/H Wood Pellet Plant / Pellet Production Line



Succussful case:Wood Sawdust Pellet Machine Line / Small Wood Pellet Production Line

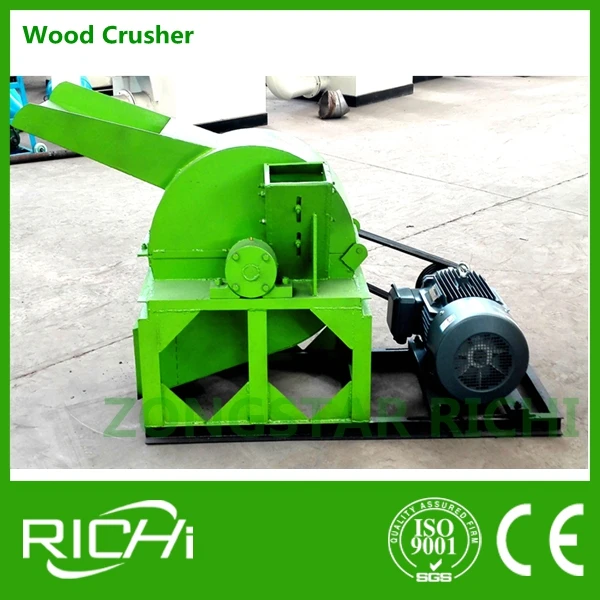

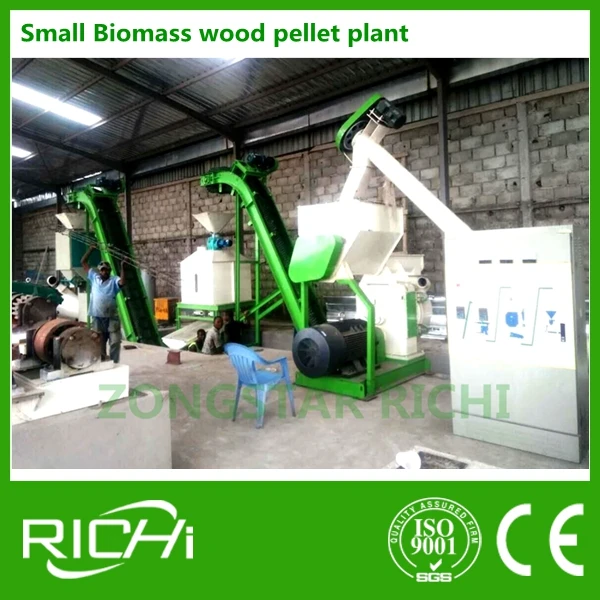

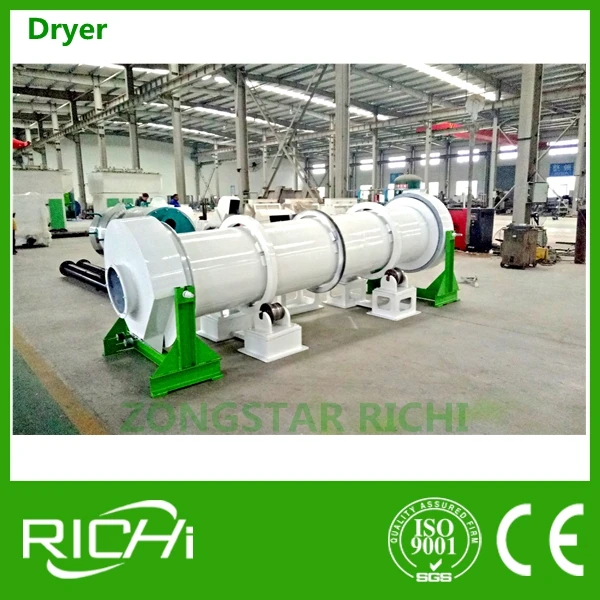

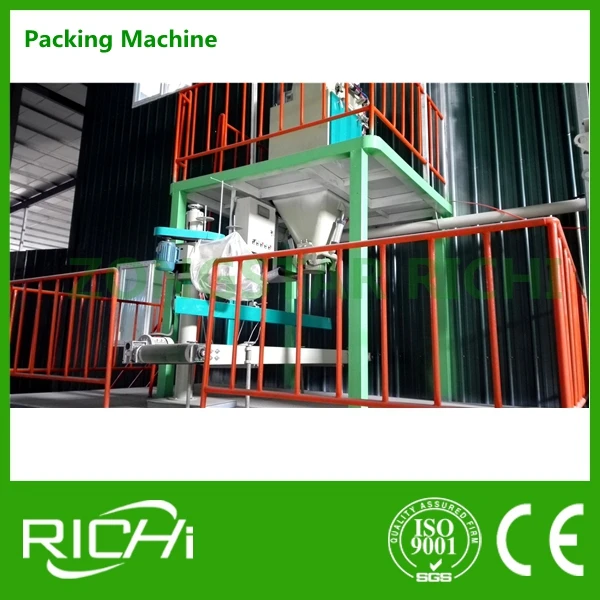

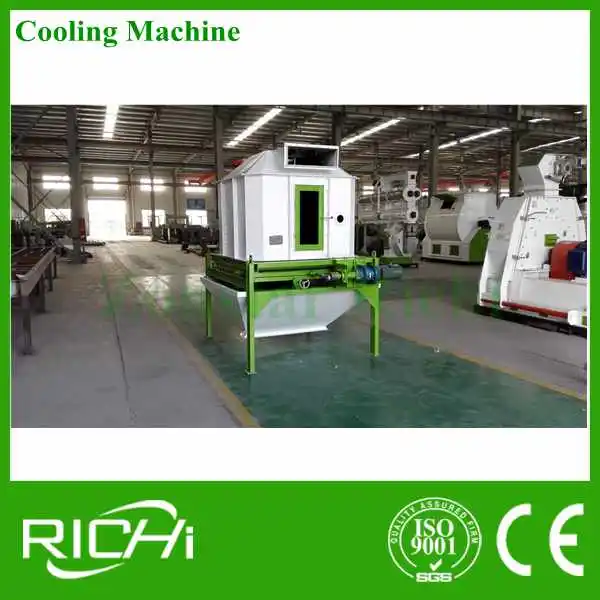

wood pellet line.jpg





Product Description







wood pellet line 5

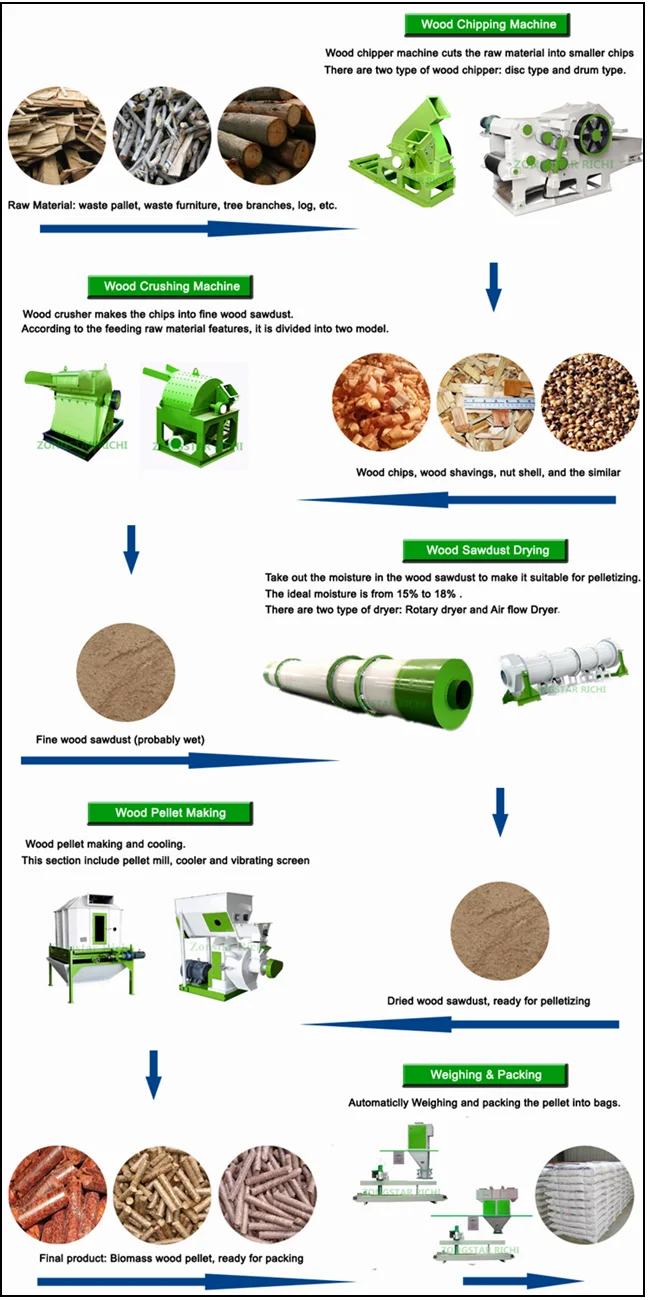

flow chart_.png






Raw materials of wood pellet production line


raw material new.jpg


 ♦ The raw material could be branches, wood chips, coconut sheel, nut sheel, rice or wheat straw, bean stem, biomass wood  sawdust, etc.


 ♦ If we choose raw material as hay, forage grass, alfalfa, moringa oleifera, etc. we will get the final product silage fodder.








Final products of wood sawdust pellet mill


final product wood pellet.jpg


 ♦ We could produce the wood pellet with different diameter by using different size of ring die mould. the range of the diameter could be ø 6mm-10mm.


 ♦ The length of the wood pellet is adjustable.  there is a regulating device on the biomass wood sawdust pellet mill machine.





FAQ











Your may Ask:


 1) How did you define your wood sawdust biomass pellet mill model as 250 / 320 / 350 /420 / 508,  etc. ?


 The model is defined based on the diameter of the ring die mould.


 For example, mould 250 means that the diameter of the ring die is 250 mm.





 2) what kind of raw material that the ring die mould is made of?


 There are two kinds of ring die mould in the market. one is made of carbon steel, the other is made of stainless  steel.   the former is cheaper than the latter.


 We adopt stainless steel ring die and press roller sheel in our machine.





 3) what about the size of the final product wood pellet?


 the size is adjustable accroding to your requirement.


 the diameter range of the wood sawdust biomass pellet is ø6-10 mm by using different size of ring die mould.


 the length of the biomass wood sawdust pellet could be adjusted on the machine.





 5) What is the suitable moisture (water content) of the raw material that easy to make pellet?


 the ideal moisture range is from 15%  to 18% .





 6) What brand of motors you used in the machine?


 We use Siemens brand motor in our machine. please rest assured about the quality.





 7) what about the power, capacity, size and weight of the biomass sawdust pellet mill machine?


 Please refer to the above technical parameter table to get the detail.


 If you want the details of bigger size of wood pellet mill machine, please click here.





 8) will you dispatch engineer to install the wood sawdust biomass pellet mill machine (production line)?


 Yes. we will dispatch engineer to do the service just based on the requirement of customers.





 9) where is your factory located? how could I get there?


 Our factory is located in Zhengzhou, Henan, China. It's 30 km far from the airport. we will pick you up at the airport.











For targeted help, please tell us:


 1) What's your raw material?


 2) What about the maximum size and major size of the raw material?


 3) What about your expecting size of the final product wood sawdust biomass pellet?


 3) what about the capacity? (how many ton per hour or day or year?)


 4) are you the final user or you will sell the machine to others?














Company Information








Sincerely Welcome to our factory !




♦  We, Henan Richi Machinery Co., Ltd. was established in 1995,  Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.


♦ The head office was located in Zhengzhou, Henan Province.


♦ As a professional biomass sawdust wood pellet mill machinery and complete plant project solution supplier, Henan Richi can always meet different customers' requirement.


♦ We understand how important the quality is, and we also understand the importance of timely shipping.


♦ We know how to survive and develop, because we always focus on the long-term development.








Good quality comes from precision CNC processing machines


precision processing machine.jpg





Exhibition








Exhibition




♦ 2015 China biomass sawdust wood pellet mill Industry Expo was held at Nanjing International Expo Center.
♦ Many international copanies were take part in the exhibition.





Packaging & Shipping








Packing & Delivery


packing and delivery.jpg


 To make sure the biomass sawdust wood pellet mill delivery to you at the best condition,  we adopt the considerate way  to  protect the equipment very well.  We consider our products just as our children.





Contact me








Contact us:


HENAN RICHI MACHINERY CO., LTD





Name: Summer Liu



Skype: richimachinery2
Mobile:+86 15837153047(wechat, whatsapp)


QQ:2459342413


Tel: +86 371 63379734;                   Fax: +86 371 63752859


//hnrichi.en.alibaba.com;       www.machinesgood.com





Please Leave your requirement at the bottom.











Useful tips:


 1) About the Compression Ratio of the ring die mould.


 define "L" as the effective hole length of the ring die.


 define "D" as the effective hole diameter of the ring die.





 the Compression Ratio = L / D.





 The higher Compression Ratio, the more compact that the biomass sawdust wood pellet will be, and the pelleting  speed will  be reduced accordingly.





 2)  Ring die failure cause analysis


 biomass wood sawdust pellet mill machine is the key equipment in biomass wood pellet producing process. The ring die mould  is  the heart part of pellet mill machine, and it's one the most easy wearing spare parts as well.





 Since the ring die mould work with friction all the time. the ring die mould will be wearing and finally failure along  with the throughput increasing. the handling capacity is one of the main performance index for the ring die mould.





 theoretically, one set of ring die mould and one pair of press roller could produce 2000 ton and 500 ton  wood sawdust  pellet.  but in practice, even the well-management wood sawdust biomass pellet producing factory could only reach to 1500 ton and  300 ton respectively. and for those poor-management one, the value is only 600 ton / 100 ton.





 After a period of working, the hole inside wall friction losses increased,
 A) the diameter of the hole increased, and the diameter of final product biomass wood sawdust pellet exceed the specified  value.
 B) the scraggly of the hole inside wall get worse, the wood sawdust raw material will easy to block, the capacity will  decrease.
 C) the thickness of the hole wall will be reduced, the structural strength of the ring die mould will be highly reduced.





 3) A number of reasons cause the ring die friction losses.


 A) the fineness of the biomass wood sawdust powder raw material.


 the more fine the raw material is,  the more easier to make pellet.
 otherwise, too coarse granular size of the raw material will increase the friction losses of the ring die.
 Generally, all of the raw material partical size should be more than 8 mesh, the proportion of partical that above 25  mesh should not less than 65%.


 for those high coarse fiber raw material, we should add some oil to reduce the friction, and the surface of the  final  pellet will look more smooth.



 B) the impurity in the raw material will accelerate the friction losses. hence the raw material cleaning is very  important.





 C) the space between the press roller and the ring die mould.
 It will speed up the friction if the space is too small. the ideal space is 0.2-0.4 mm.
 the space selection will depend on the diameter of the pellet. smaller diameter, smaller space.
 when we replace the ring die mould with a new one, the space should be set as lower value.
