SJ1 series joystick for radiometric chest pack
SJ1 series joystick for radiometric chest pack

SJ1 series joystick for radiometric chest pack

Share on (60201979904):


Price:$55.00 - $60.00

Quantity:


Product Overview

Description







Product Features


Single-axis finger operated, forward and backward directional operated.
Spring return
The appearance of small，easy to install
Potentiometer or uncontact hall effect sensor
Various output voltage range optional


Technical Information
Mechanical features
Travel angle
 ±30º
Operating type
Automatic Spring return
Breakout force
1.3N
Operating force (max)
3N
Maximum allowable force
 >50N
Expecting life
>2 million cycles (Potentiometer)
>5 million cycles (Hall effect)
Weight
Weight
45g
Electrical parameters
Potentiometer type
Power supply
<36Vdc
Resistance
4KΩ or 5KΩ
Resistance tolerance
< 20%
Electrical angle
±28°
Center voltage
48%~52% (percentage of power supply)
Center tap angle
±2.5°
Potentiometer dissipation(max)
0.25W(25℃, no load)
Center tap output voltage
48%~52%（±2%）
Hall type
Power supply
5.0±0.5Vdc
Power Supply current
<9mA ; <18mA(redundant)
Maximum allowable overload voltage
30Vdc
Reverse maximum allowable voltage
-15Vdc
Load resistance
＞10KΩ
Center tap output voltage
2.5±0.1V
Output linearity tolerance
<±0.2V
Directional switch
Power supply
＜35Vdc
Maxumum current
2mA
Breakout angle
±5°
Contact resistance
<200Ω
Environmental parameters
Operating temperature
-20℃~+70℃
Storage temperature
-40℃~+85℃
Protection level
IP50


Product Configuration


Type SJ1 - □□□
Code ① - ②


Description
① Product type
SJ1 series finger operated joystick, hall effect or potentiometer sensor unit, with directional switch, spring return，installation dimension 24mm*36mm
②Output signal
P041
Potentiometer,<36Vdc power supply, with 4KΩ center-tapped potentiometer,0%-100%Vdc output
P052
Potentiometer,<36Vdc power supply, with 5KΩ center-tapped potentiometer,10%-90%Vdc output
P053
Potentiometer,<36Vdc power supply, with 5KΩ center-tapped potentiometer,25%-75%Vdc output
H51
Hall effect, each axis of single hall sensor,5Vdc power supply,0.5~2.5~4.5V output voltage
H52
Hall effect, each axis of single hall sensor,5Vdc power supply,0~2.5~5.0V output voltage
H53
Hall effect, each axis of single hall sensor,5Vdc power supply,1.25~2.5~3.75V output voltage
2H51
Hall effect, each axis of redundant hall sensor,5Vdc power supply,0.5~2.5~4.5V output voltage
2H52
Hall effect, each axis of redundant hall sensor,5Vdc power supply,0~2.5~5.0V output voltage
2H53
Hall effect, each axis of redundant hall sensor,5Vdc power supply,1.25~2.5~3.75V output voltage

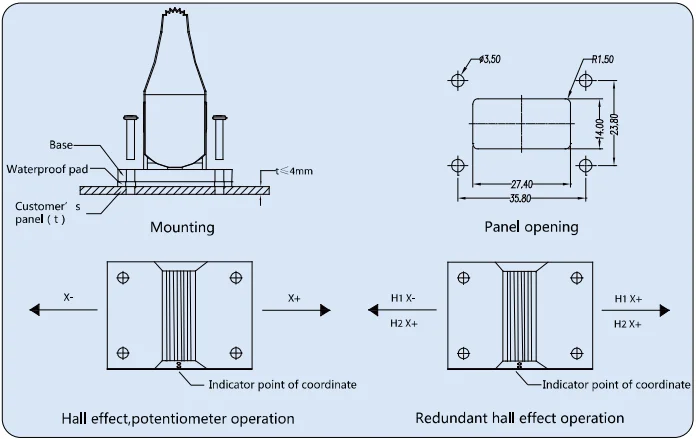

Dimensions




Product Installation

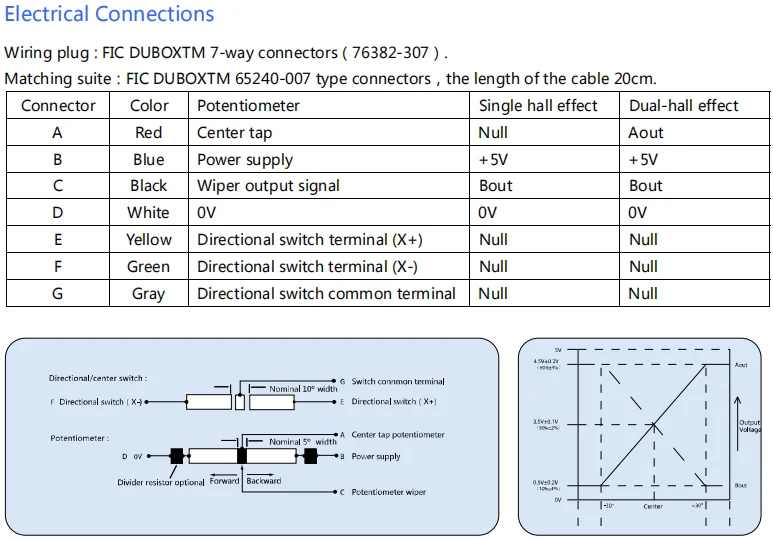

Electrical Connections




Recommend Products




Packing&Shipping
