1. LW Series Wire drawing machine with pulley 2. Drawing Metal Wire 3. Frequency Motor 4. High Speed 5. Easy Operating
Product Description
I. Composing of production line
Pay-off → Pulley type wire drawing machine → Horizontal take-up
II. Main technical parameters
No.
Name
Unit
Line 1
Line 2
1
Name of machine
LW-4/560
LW-9/560
2
Way of drawing
Pulley-type
Pulley-type
3
Number of block
4
9
4
Block diameter
mm
4 * φ 560
9 * φ 560
5
Way of timing
AC frequency conversion timing
AC frequency conversion timing
6
Motor power
KW
4*30
9*18.5
7
Diameter of inlet wire
mm
φ6.5(φ6.5)
φ4.0
8
Diameter of outlet wire
mm
φ4.0
φ1.6
9
Designed drawing speed
m/min
≤ 110
≤ 210
10
Way of control
Total digital
Total digital
11
Material of inlet wire
High & Medium & Low carbon steel wire
High & Medium & Low carbon steel wire
12
Way of pay-off
Rotating wheel pay-off
Rotating wheel pay-off
13
Motor power of pay-off
KW
11
11
14
Way of take-up
Φ630 horizontal spooler
Φ630 horizontal spooler
15
Operation direction
From left to right
From left to right
16
Power source
380V, 50HZ
380V, 50HZ
III . Instruction of wire drawing machine
1. Drive System
The way of transmission for wire drawing machine is by: Variable frequency motor + Narrow v-belt + Decelerator with hardness gear surface + Narrow v-belt to drive the block.
2. Block
Block is accurately founded by cast steel, re-tempering treatment after the rough processing, the work surface of block is welded by wear-resisting piano wire then sprayed with carbide tungsten, then finish machined by a grinding machine. The block working surface rigidity is over HRC60. The inside surface of block is sprayed with Aluminum.
Block inside adopts narrow gap type water cooling while block outside adopt concentrate air cooling. All blocks are fixed with leaning rollers.
3. Die box
All are normal die boxes(die dimension should be offered by client). Die box is cooled directly by water.
Tuning roller is driven by cylinder. Die box can be adjusted up to down, front to back, left to right agility and can be fixed. The screw in top and nut for die box are both made of tin bronze. Hard alloy made direction guiding die is fixed at die box inlet.
4. Gearbox
The chief bearings for gearbox with hard gear surface adopt products from Japanese NSK. All gearboxes are filled with VG220 compound gear oil before leaving factory.
5. Safety cover
On the top of each block there is a safety cover, which needs to close before the equipment start up. If the cover is open, the equipment can only run in slow speed. The safety cover has covered the total front of operation side and have daylight lamp inside for illuming use. Safety cover is controlled by spring.
6. Lubricating
Electric driven grease pump is fixed, which can automatically fill oil into the chief shaft bearing of block.
7. Take-up
The coiler take-up adopts frequency conversion motor drive, to achieve no-parking taking up. There are two rows of slide rail on the bottom of bearing frame, to easy to replace the frame. (The size of bearing frame is provided by the user).

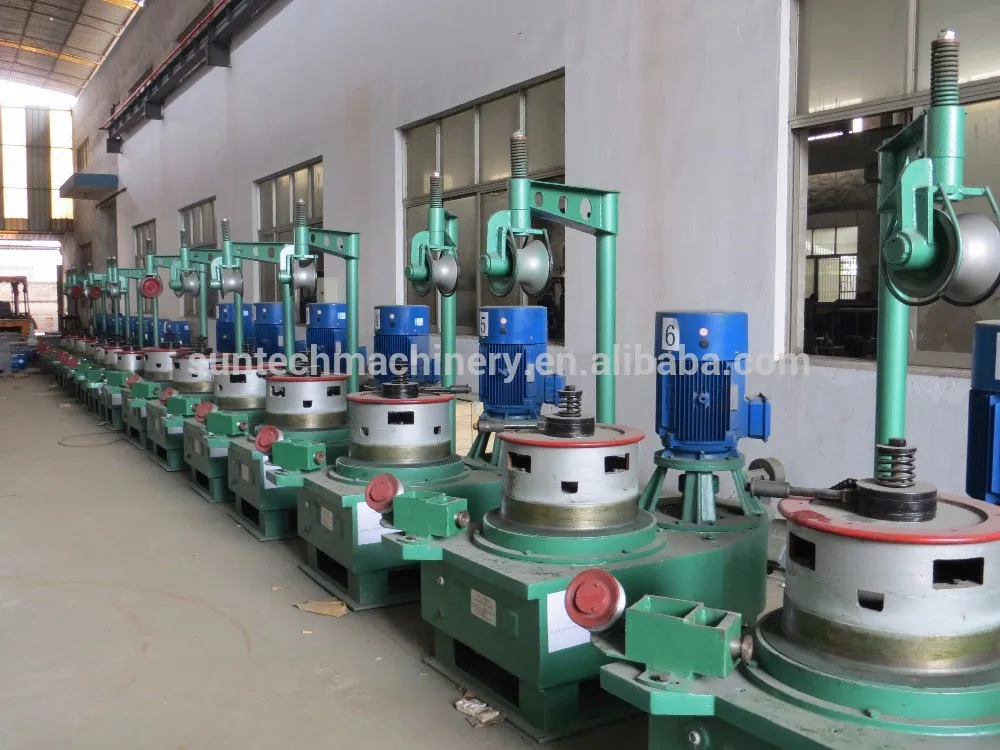

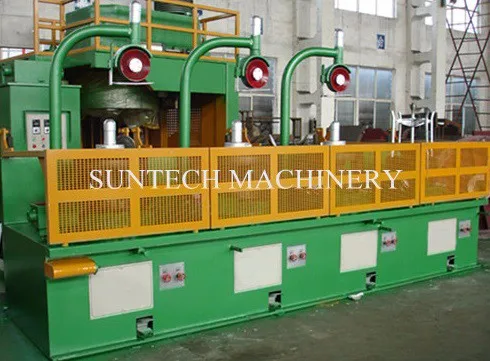

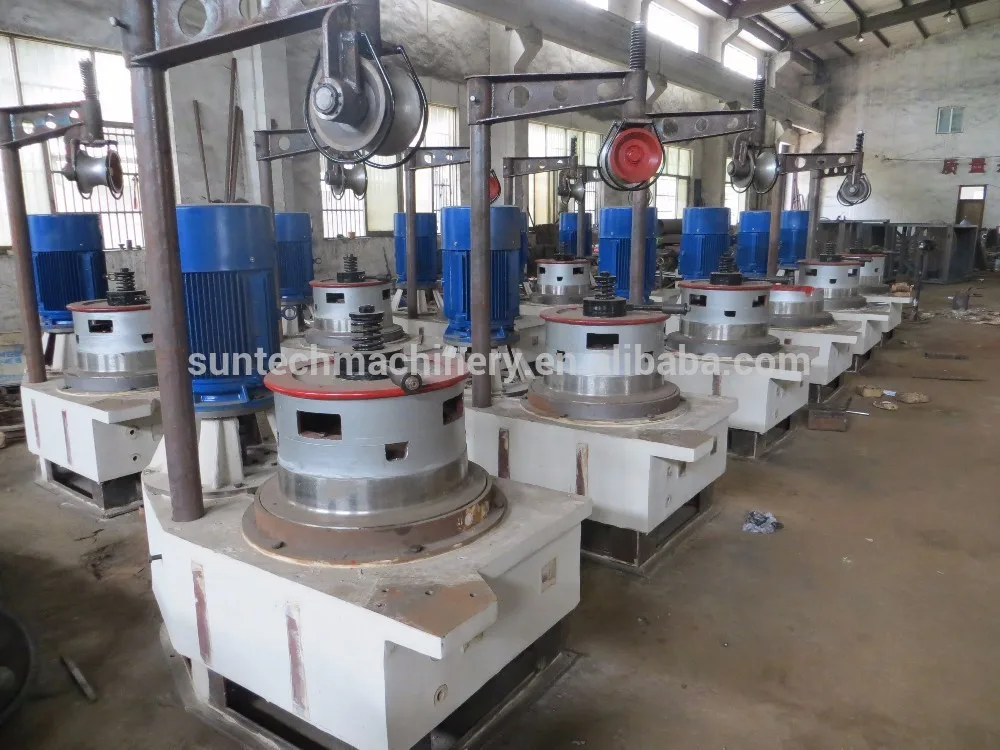

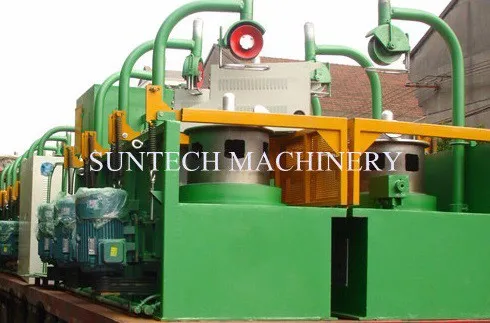

IV. Photos of wire drawing machine
Packaging & Shipping
We can pack it by pallet, or according to the customers' specific requirements.
Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes: (1) Correct operating mode (2) Correct maintenance way (3) Remove simple proble All the products of our company have already been widely used in metal products area.
