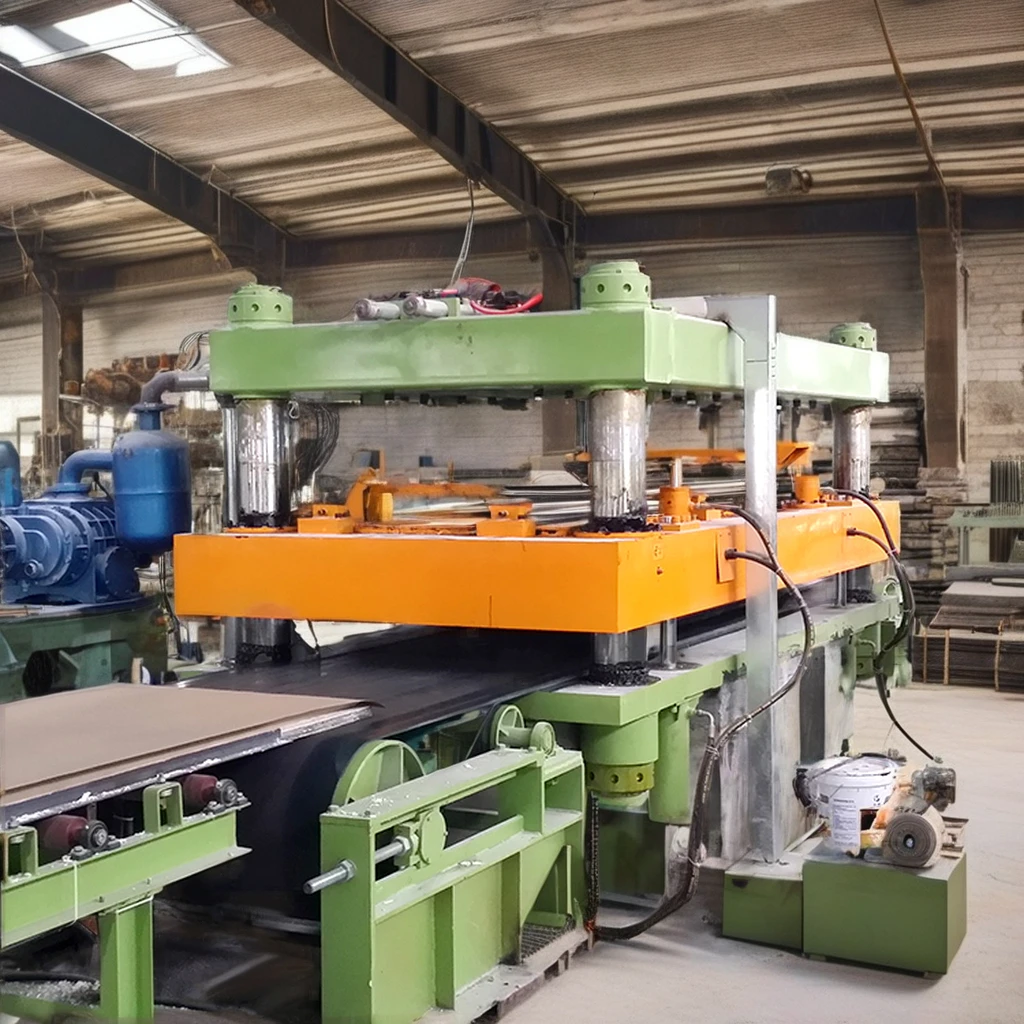

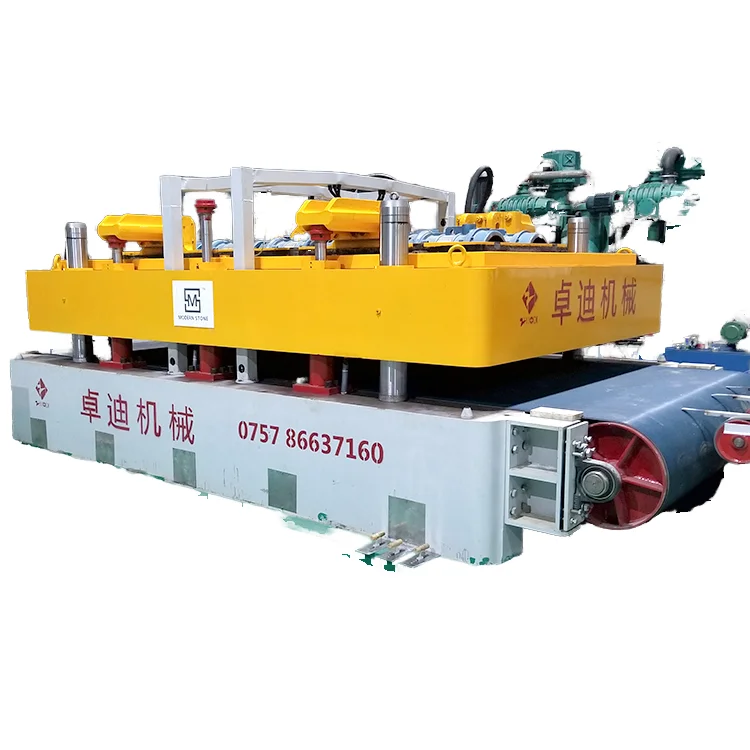

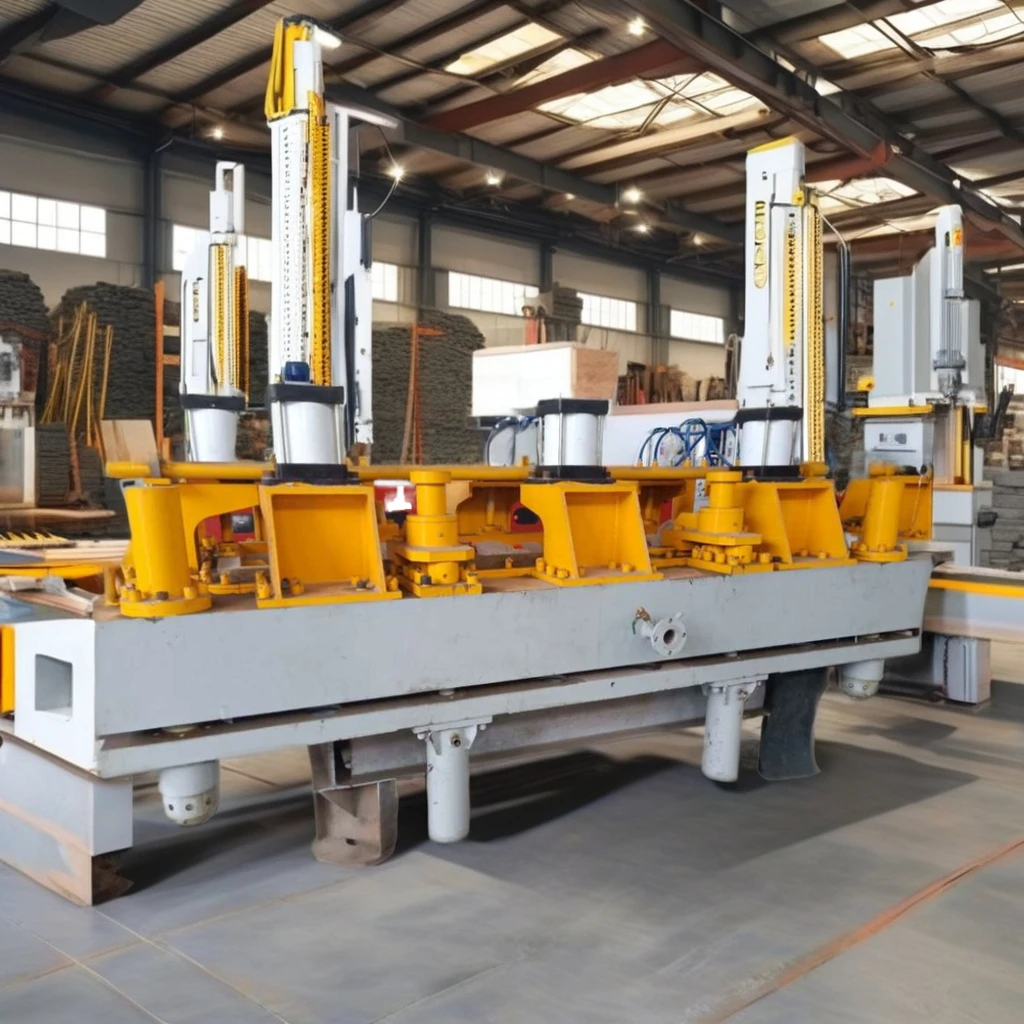

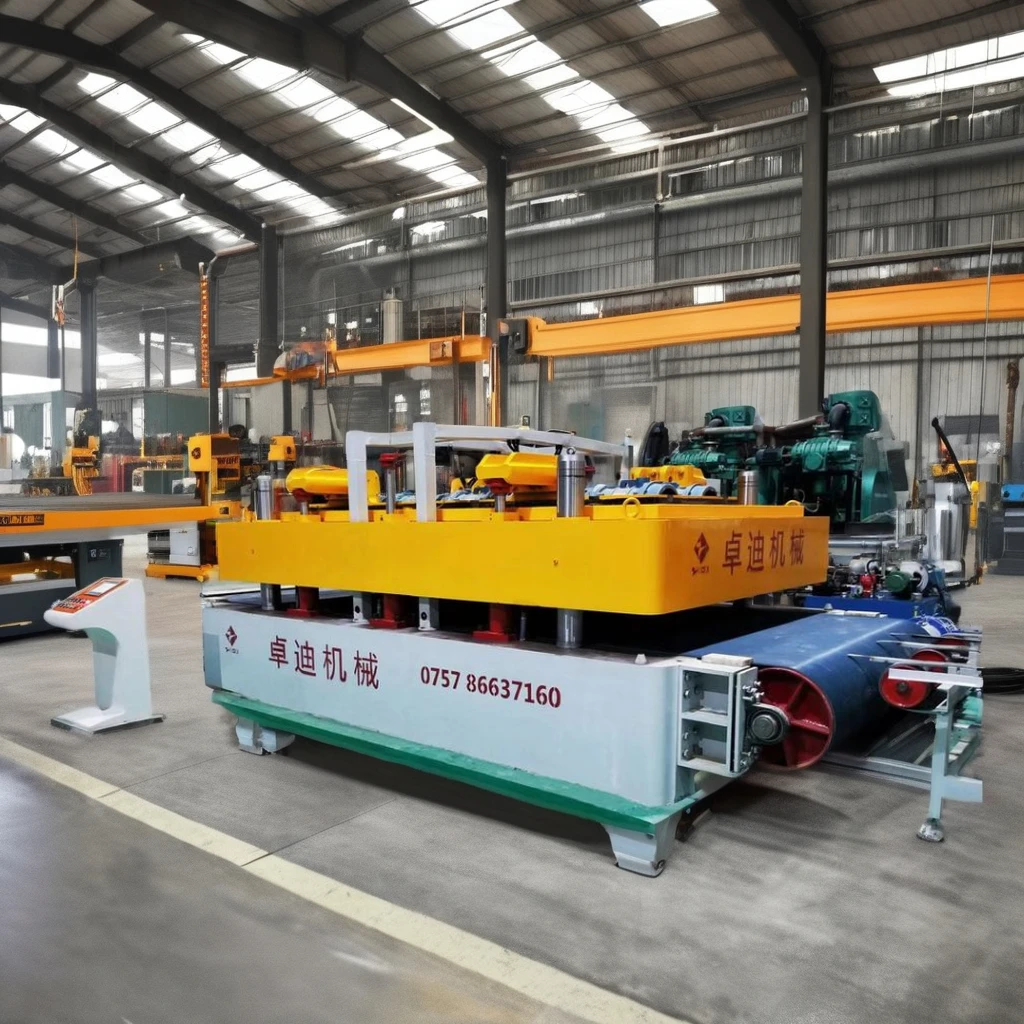

Vacuum vibrating quartz stone press machine
This is the heavy press of zhuodi machiney.Through the screw rod,the frame and the base is fixed together,which ensure the stability of the frame and make the vibration to the minimum.Through the 4 guide posts,the base,the out cover and the upper frame are connected together,which effectively ensure the pressing heads only work up & down,without any shaking with other directions.With such machine,the double color & vein color slab will be with very even color and clear lines,high intensity,no "flow color or cvoss color" phenomenon.
1.The machine is consist of pressing host,vibration system,hydraulic system,gas pressure system,automatic control system and belt conveying system.

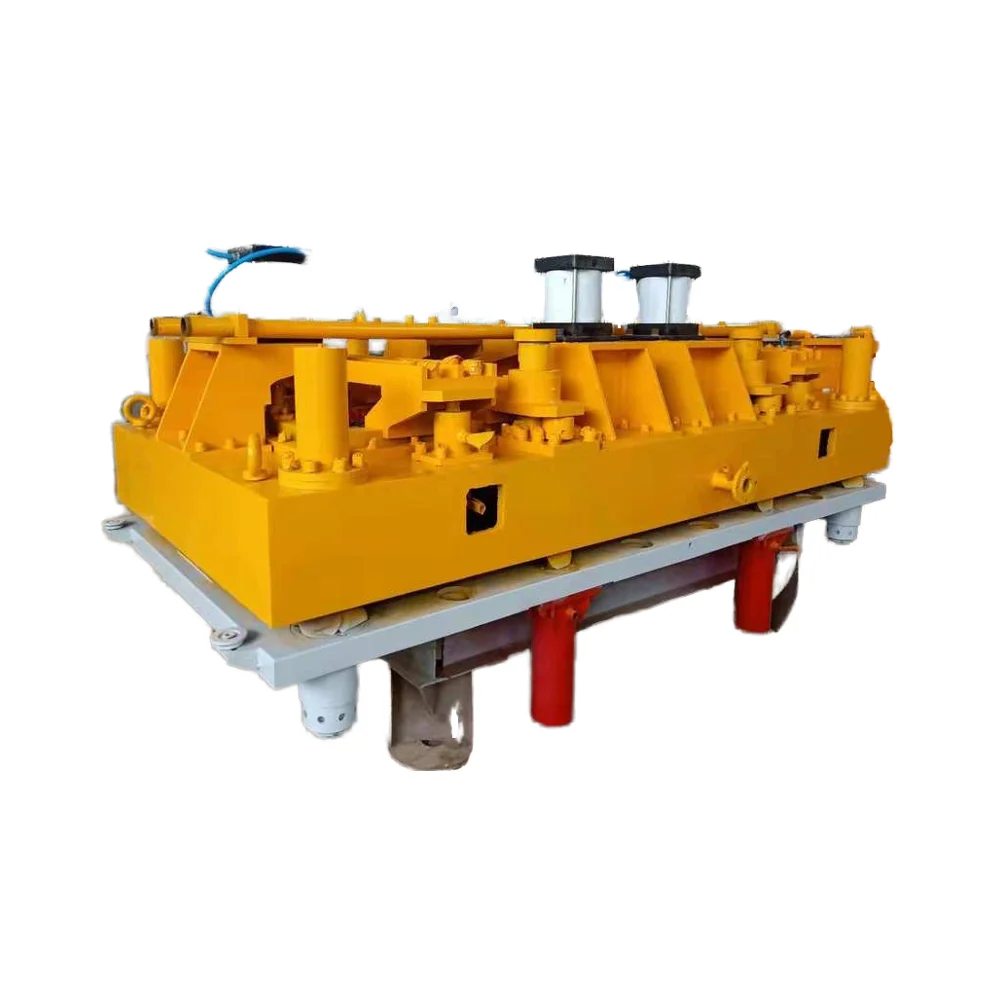

2.The press host is consist of machine base,vacuum cover,press head,upper column and upper cylinder.
3.The vibrating of pressure head is consist of 6(8) vibrating motors (vvvf) ,3(4) motors in row, and two rows are connected in series.The maximum vibrating force is 420(560) kn, with 6(8) cylinder in the upper which ensure the work of pressure head more stable.Trough the 4 guide posts to ensure the lifting ,top cover ,bottom ensure the pressure head only work up & down ,without any shaking in any other direction to ensure the stablity of the out cut . In this way ,the slab with high intensity.
4.Set up the automatic & manual switch ,easy operation .According to the slab different thickness ,vibrating time can be set Normally the vibrating time is 1 -2 minutes .
5.10 inch screen touch control and set up press program . |
Technical Parameters
| Type | Vibrating motor power | Driving power | Gas consumption | Slab size | Weight | Dimension |
| ZD0830G | 7.5KWX8 sets | 2.2kw | 260L/min | 3280*1000mm | 33t | 7050*2500*2600mm |
| ZD0824G | 7.5KWX6 sets | 2.2kw | 200L/min | 2600*1000mm | 31t | 6700*2500*2600mm |
1. Can you provide me with the product parameters
one polishing line two press lines semi-Auto distribution.
full production line dimension:117800*76840*14300mm(L*W*H)
Final slab dimension:760*2440mm;800*3100mm
thickness:10-30mm
daily capacity:360 slabs/day(20 hours)
annually capacity:260.000sqm/year
3. What is the size of the whole factory
one polish line can support 2 press lines
whole line dimension:136250*98280*10500mm(L*W*H)
Final slab dimension:1600*3200mm
thickness:10-40mm
daily capacity:480 slab/day(20hours)
annual capacity:720.000sqm/year
4. Do you have a perfect after-sales service system
with professional R&D team,providing pre-sales services,and timely solution.
12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will
grow with our customers and develop new products with our customers.
with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,
ensure the easy operation during the production with the low cost,high production and high quality.
