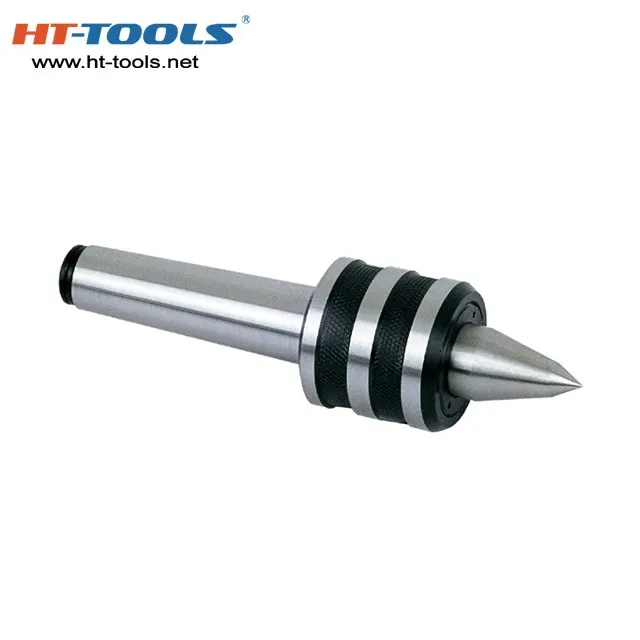

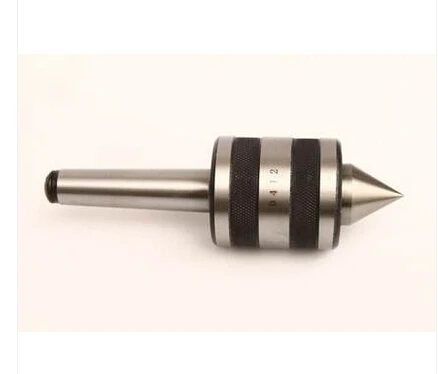

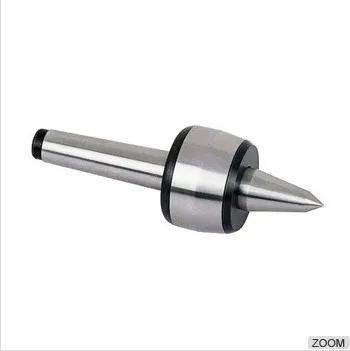

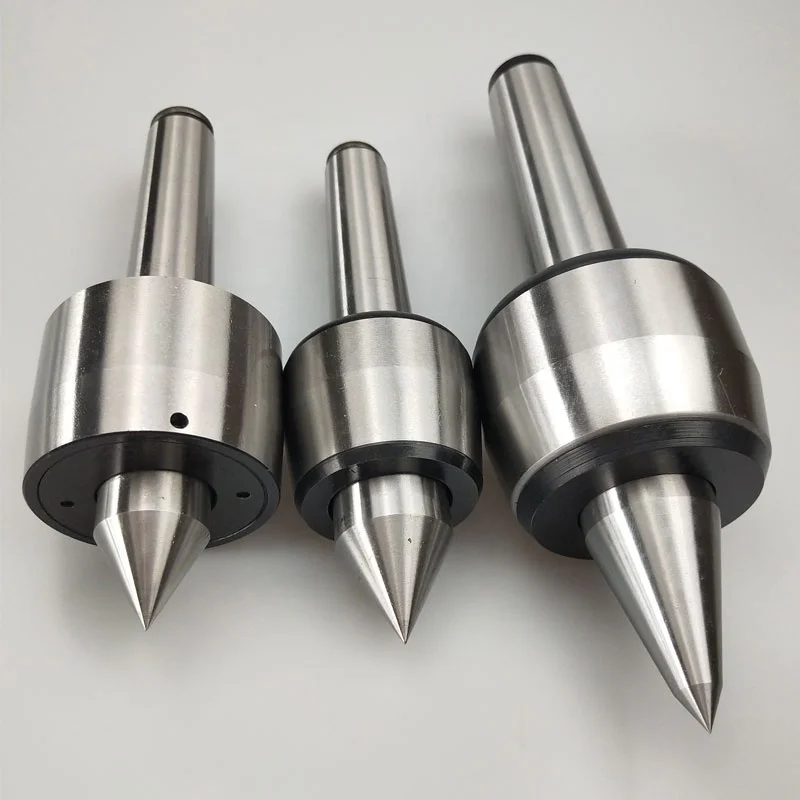

CNC Precision heavy duty Lathe High Speed Live Center MT4 MT5 MT6

Product Overview

Description

  CNC Precision heavy duty Lathe High Speed Live Center MT4 MT5 MT6



Type	MS.NO.	L(mm)	D(mm)	L1(mm)	d(mm)	D1(mm)	Max Radial Load(N)	Max Speed(rpm)	Wt(kg)	Accuracy(mm)
DM511	MS1	109.6	38	18.5	16	12.065	1400	3600	0.29	0.008
DM512	MS2	128.5	48	24	22	17.780	3500	3400	0.39	0.01
DM513	MS3	156	58	28.5	25	23.825	5500	3200	1.09	0.01
DM514	MS4	192.5	68	31.5	28	31.267	8000	3000	1.69	0.01
DM515	MS5	245	90	45	41	44.399	10000	2500	4.00	0.012
DM516	MS6	342.5	130	64	63	63.348	15000	1500	11.61	0.015



HT-0047	PRECISION LIVE CENTER
Order No.	MS.NO.	L	D	L1	d	D1	Max Load	Max Speed	Accuracy
		(mm)				(mm)	(kg)	(rpm)	(mm)
M11/101	MS1	124	36	27	15	12.065	80	7000	0.01
M11/102	MS2	139	45	34	20	17.780	140	7000	0.005
M11/106	MS3	176.5	60	47	25	23.825	400	5000	0.005
M11/108	MS4	217	70	53	32	31.267	500	3800	0.005
M11/110	MS5	273	90	65	40	44.399	1200	3000	0.005
M11/114	MS6	354.5	105	78	50	63.348	2500	2600	0.01

HT-0048	PRECISION LIGHT-LIVE CENTER
MS.NO.	L	D	L1	d	D1	Max Load	Max Speed	Accuracy
	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(rpm)	(mm)
MS1	115	34	20.3	18	12.065	320	5000	0.005
MS2	129.6	45	28.6	25	17.780	400	5000	0.006
MS3	161.7	52	32.5	28	23.825	800	4500	0.006
MS4	191.7	60	36.5	32	31.267	1250	3500	0.006
MS5	244.5	80	50.8	45	44.399	1500	3000	0.006
MS6	350.5	130	74.8	75	63.348	1800	2500	0.006
MS7	423.5	130	74.8	75	83.061	2200	2000	0.006















We have our own factory. We have 160 workers and 8 inspectors. Our old engineers have about 30 years experience in these area.

We established an independent commercial company in 2003. We have 12 sales.

Our products have been approved by many countries including German, Turkey, Brazil,Italy, England, American, India and so on.





1 Are you factory or Trade Company?
We are Industry and trade integration.

2 Could you supply samples?
Yes, we can supply.

3 Where do you export?
The whole world.

4 Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5 What’s the accuracy of ER Collet?
We have three kinds. 0.005mm 0.01mm and 0.015mm.

6. What are the shipping ways?
By international express, by air, by sea are all ok.

7. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.

8. What’s your payment way?
T/T, Pay pal, Western Union and so on.

9. What’s your delivery time?
5-20 days after order confirmed

10. What’s your package?
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
