Gobiz tpms for 6 wheels truck tire pressure monitoring system for trailer

Product Overview

Description

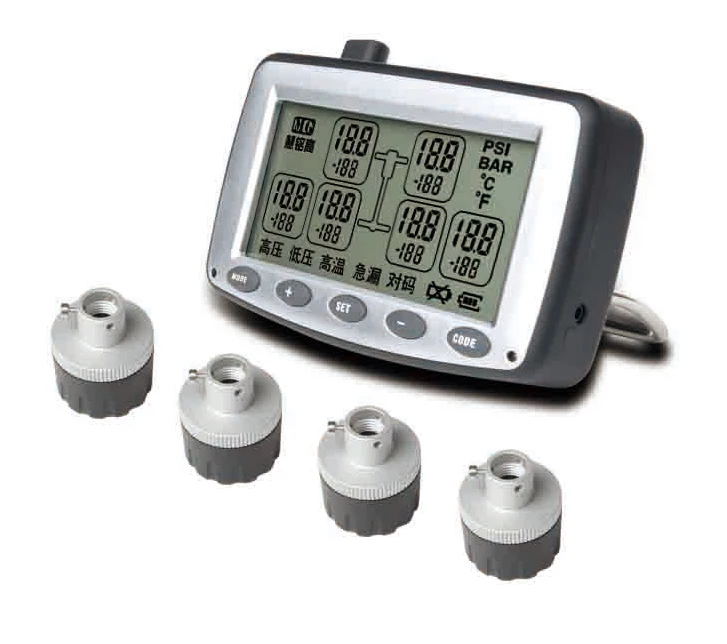

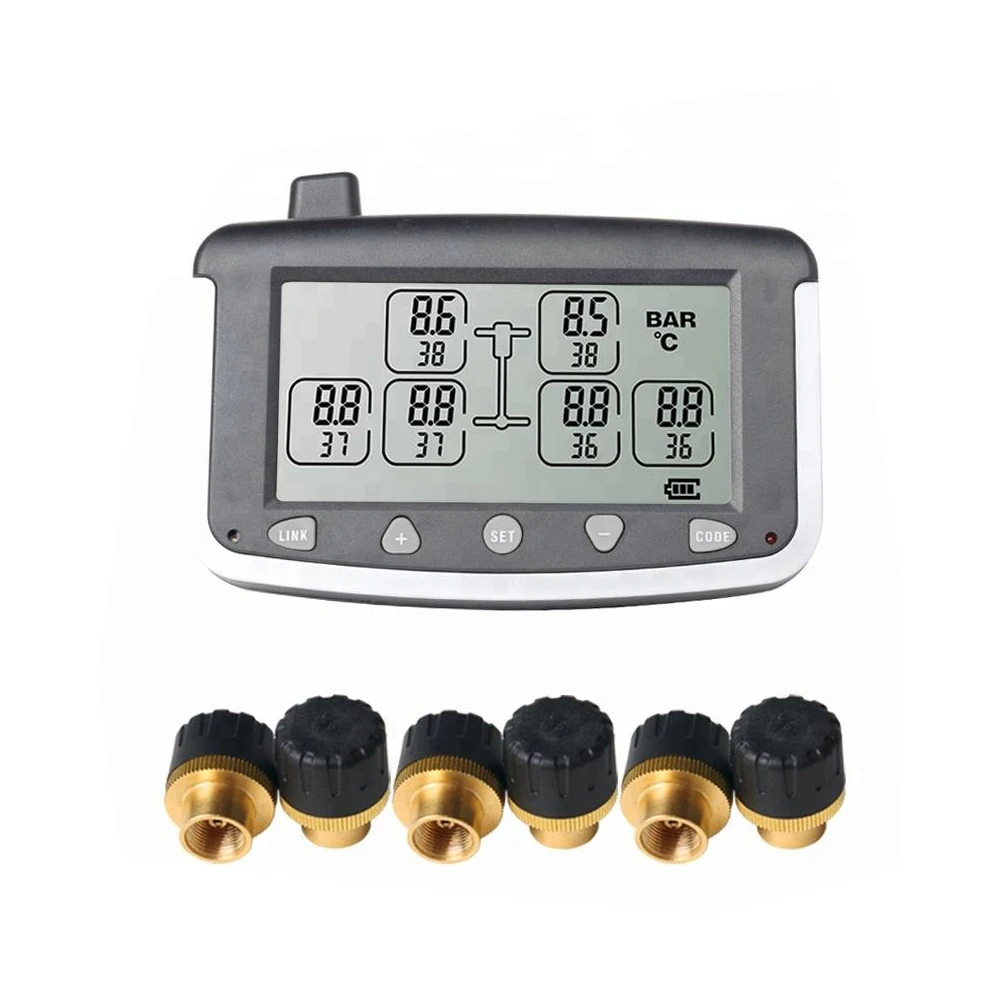

Gobiz tpms for 6 wheels truck tire pressure monitoring system for trailer







1. What are the advantages of TPMS ?



Full time, real time display tire pressure and temperature
100% wireless transmitting
Sensor transmit tire's pressure and temperature every 5 minutes
Capable of a truck and a trailer with 6 tires in total
Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure
Fast leakage alert
High pressure/low pressure setting for each axle
Supports trailer-exchange with an optional trailer-exchange repeater





2. Features:

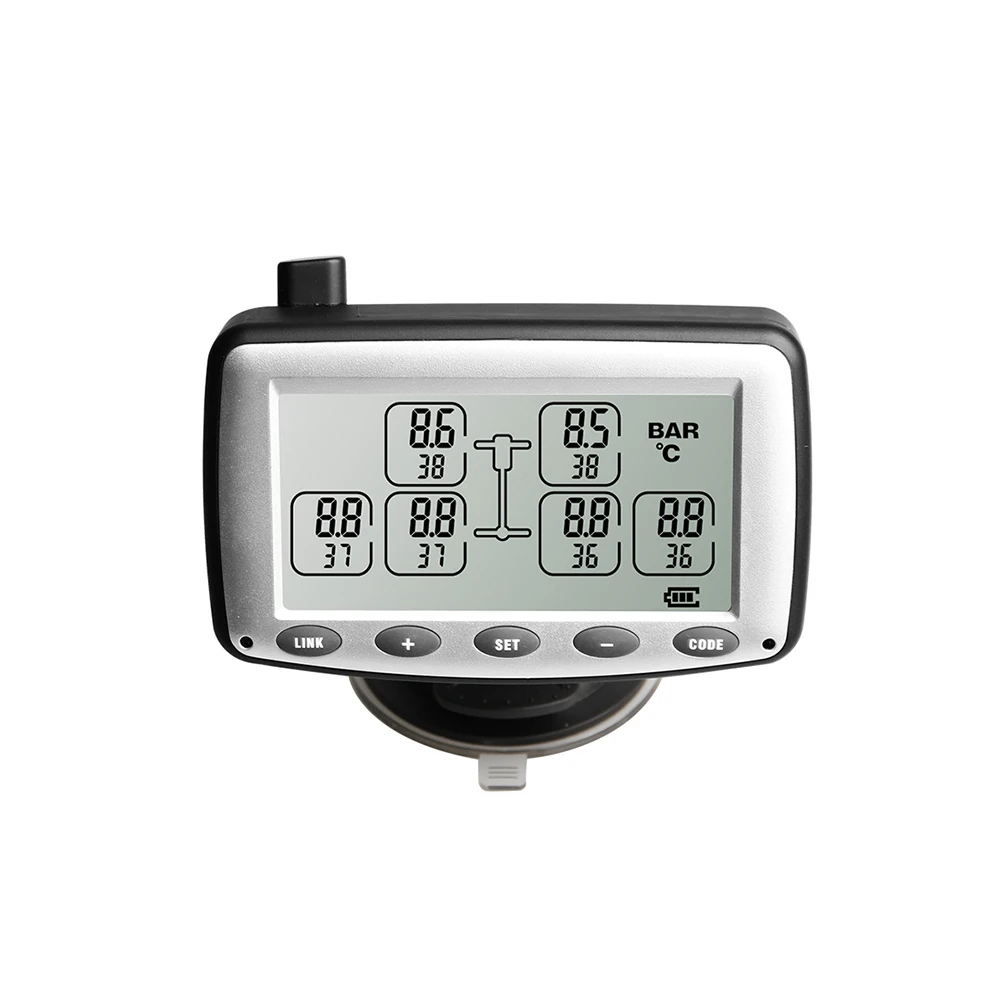

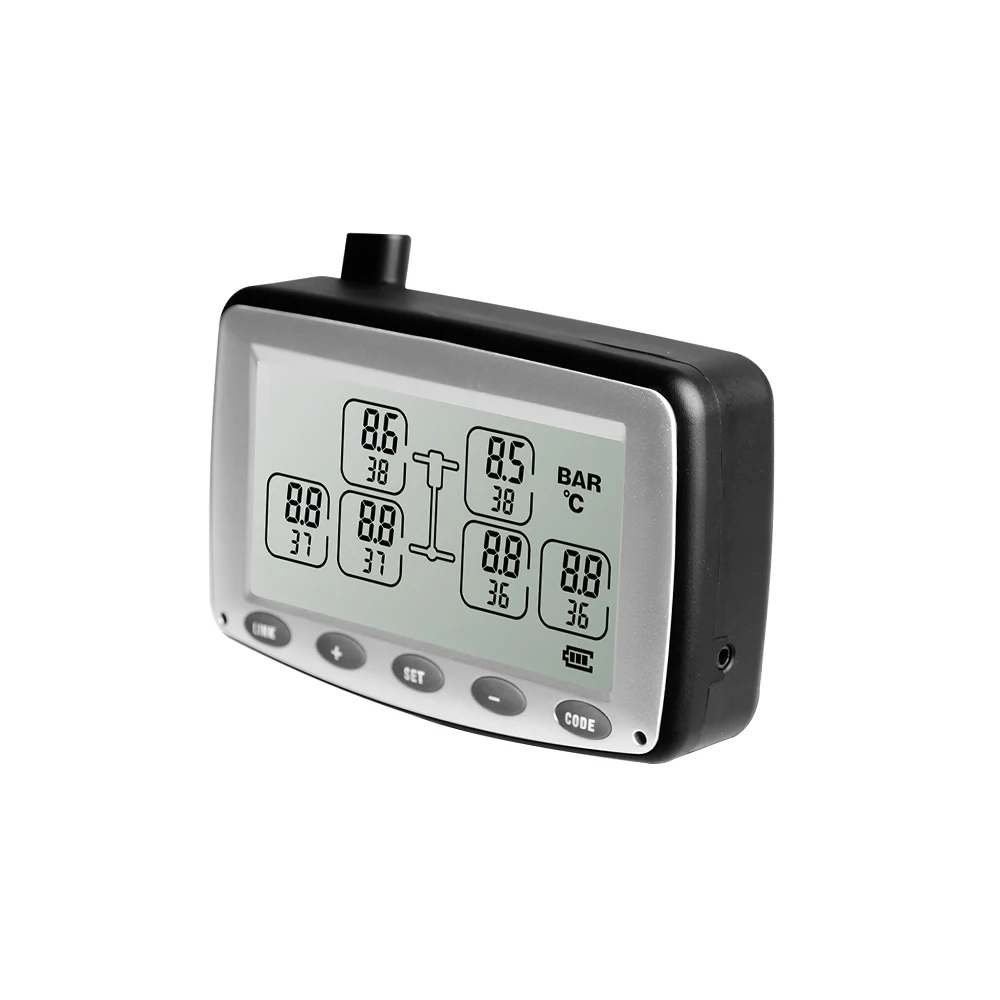

Monitor Features:



Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units(BAR, PSI).
Temperature unit selectable( ℃/ ℉ )
Monitors up to 6 Tyres.
Individual pressure alert for each axle.
Selectable display for one or two trailers.
Long range between monitor and sensors.
Awake sensor to program ID code.



Sensor Features:

Easy to install ad reliable.

Aluminum Valve

Water proof and submersible

Transmit pressure and temperature data every 2 minutes and continually monitoring to alert instantaneously to any issue.

Lithium-ion batteries last 5-7 years.

Detect leaks and temperature variances swiftly and reliably.

Individually coded for easy installation and individual settings.





3. Specifications:



Monitor specifications:



Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	5-7 years
Operating temperature:	-40 to +80° C
Weight:	42.5 grams
Size:	diameter:29 mm, height:32 mm



4. Our Facilities:



5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent



6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime







7. Contact info:



































Looking Forward to Cooperating with You!
