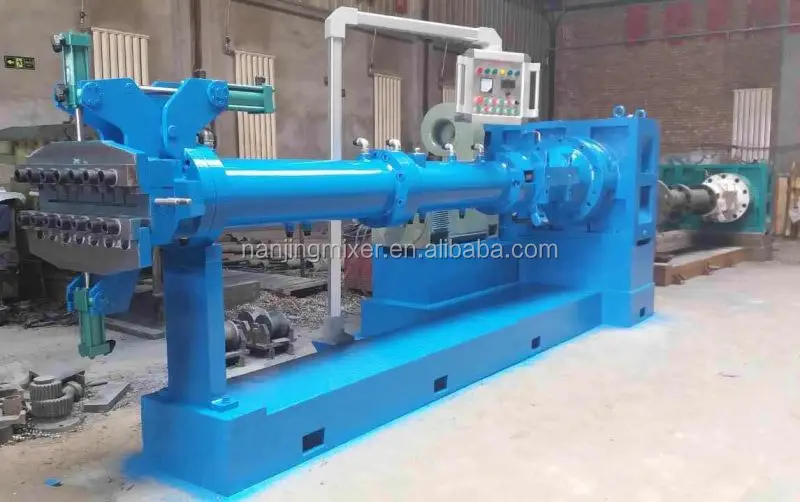

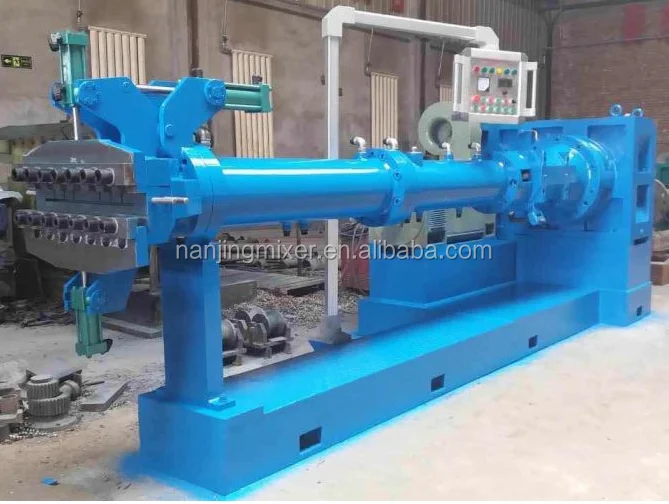

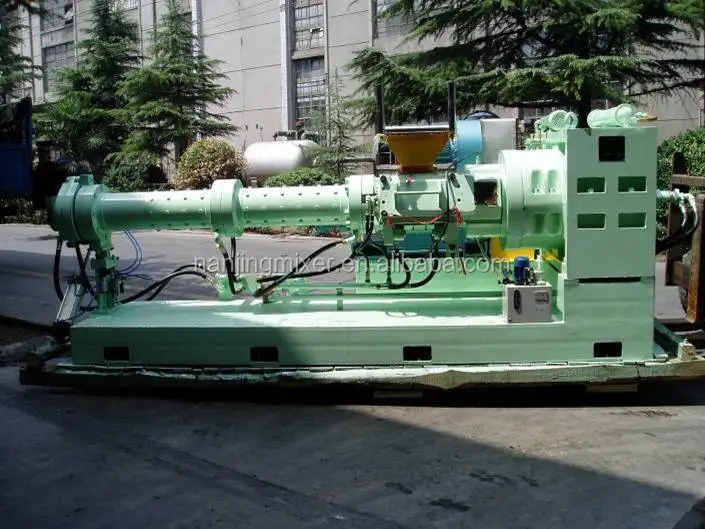

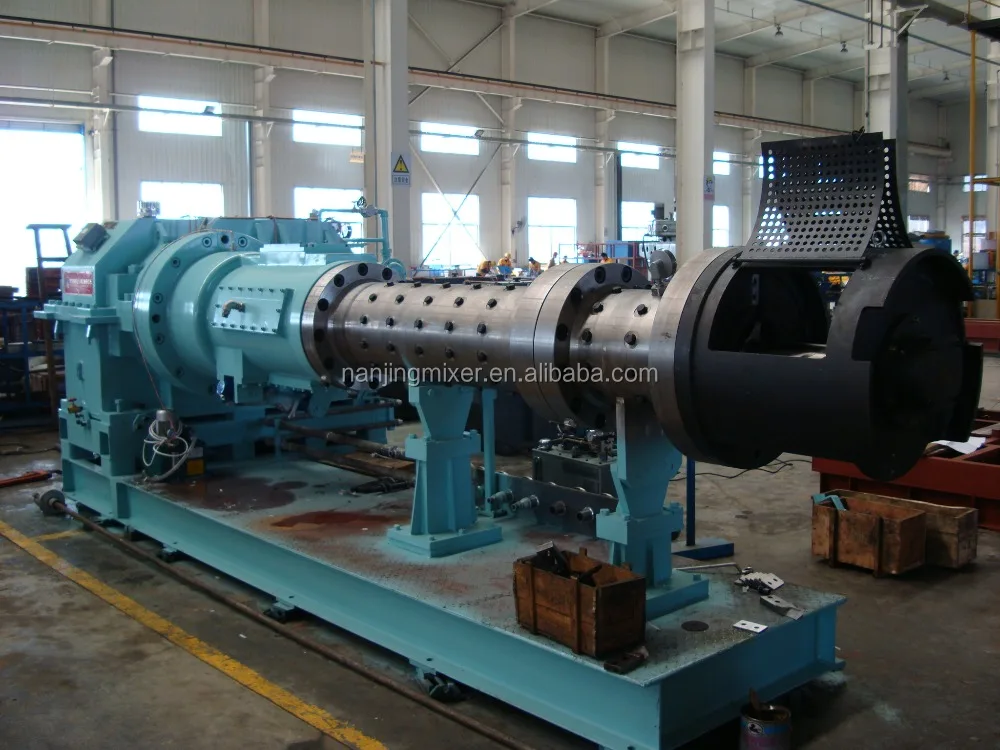

cold feed  rubber extruder with microwave curing oven

Rubber Extruder

Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type




Specification




Model/Diameter (mm)
L/D
Power (KW)
Screw Speed (RPM)
Output (Kg/h)
XJD-60
(6-16):1
11-37
80
120
XJD-90
(10-20):1
30-75
60
350
XJD-120
(10-18):1
45-110
50
650
XJD-150
(10-18):1
75-255
45
1200
XJD-200
(10-18):1
185-355
28
2200
XJD-250
(4-12):1
185-500
26
3000
