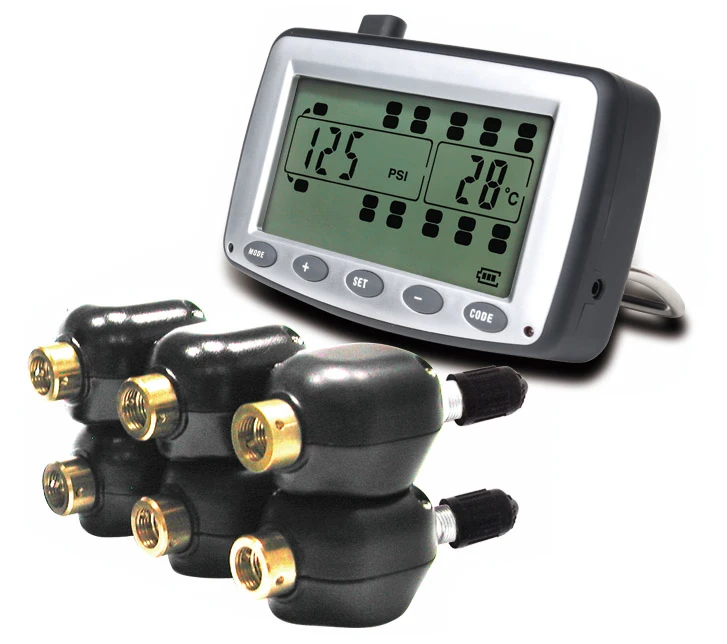

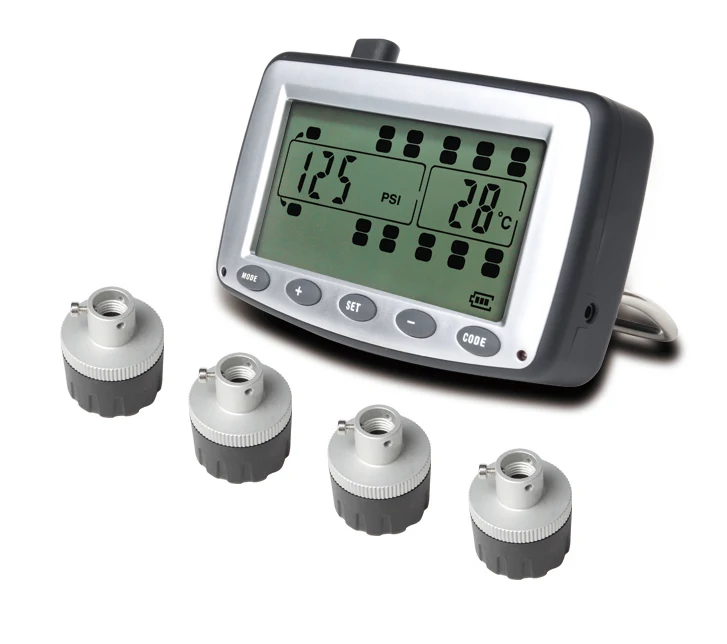

tpms for truck theftproof and waterproof tire pressure monitor device

Product Overview

Description

Tpms for truck theftproof and waterproof tire pressure monitor device







1. What are the advantages of TPMS ?



Full time, real time display tire pressure and temperature
100% wireless transmitting
Sensor transmit tire's pressure and temperature every 5 minutes
Capable of a truck and a trailer with 22 tires in total
Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure
Fast leakage alert
High pressure/low pressure setting for each axle
Supports trailer-exchange with an optional trailer-exchange repeater





2. Features:



Monitor Features:



Reliable and easy to install.
Large LCD screen.
Built-in rechargeable lithium battery.
Vibration awakening.
Automatical backlight.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.
Selectable pressure units(BAR, PSI).
Temperature unit selectable( ℃/ ℉ )
Monitors up to 22 Tyres.
Individual pressure alert for each axle.
Selectable display for one or two trailers.
Long range between monitor and sensors.
Awake sensor to program ID code.



Sensor Features:

Easy to install ad reliable.

Aluminum Valve

Water proof and submersible

Transmit pressure and temperature data every 2 minutes and continually monitoring to alert instantaneously to any issue.

Lithium-ion batteries last 5-7 years.

Detect leaks and temperature variances swiftly and reliably.

Individually coded for easy installation and individual settings.





3. Specifications:



Monitor specifications:



Operating voltage:	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	5-7 years
Operating temperature:	-40 to +80° C
Weight:	42.5 grams
Size:	diameter:29 mm, height:32 mm

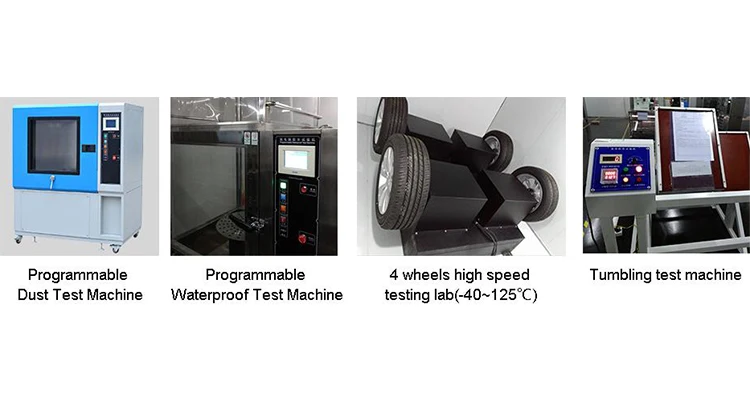

4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent







6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime
