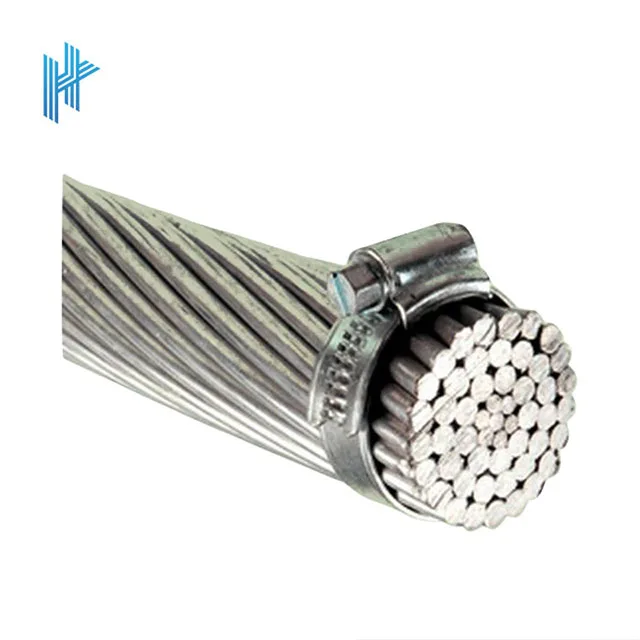

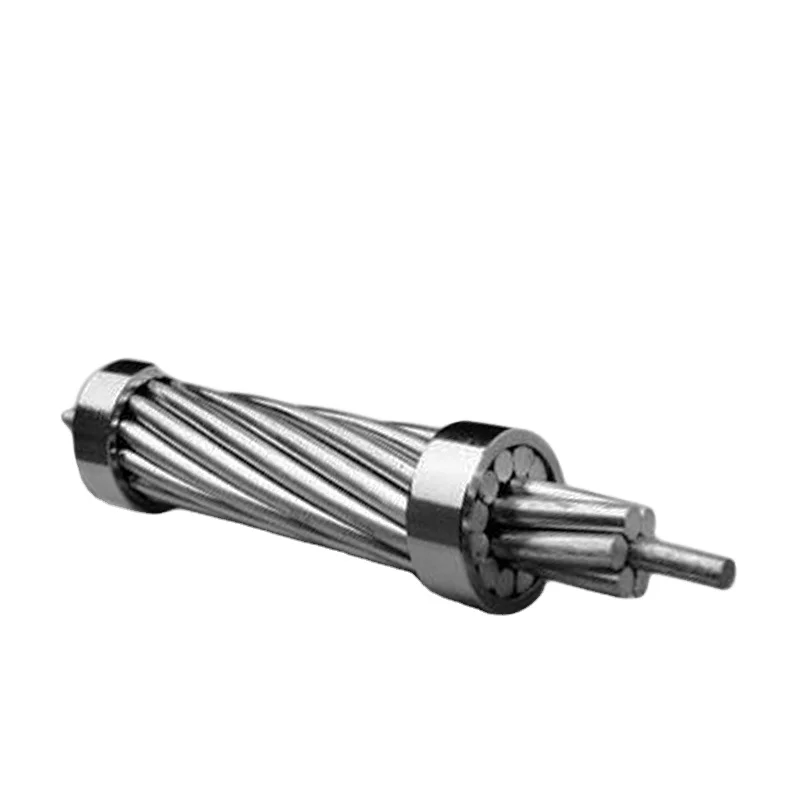

Heat resistant bare all aluminium alloy conductor AAAC cable
Advantage:
1. AAAC has large mechanical resistance than AAC which permits its use as a bare overhead conductor on aerial circuits for power transmission and distribution lines.
2. AAAC has better sag characteristics and strength to weight ratio as compared to AAC.
3. AAAC weight per unit and resistance is also lower which gives it advantage over the ACSR. Also, AAAC conductor has better corrosion protection than ASCR conductors..
Specifications
aluminium alloy conductor
1.ASTM B339, IEC1089, BS 3242,
2.Stable performance
3.Competitive price
4.Fast shipment
Application :
Used as bare overhead conductor for primary and secondary distribution. Designed for utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics.
(1)AAAC conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
(2)The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.
(3)AAAC referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to replace the conventional ACSR.


Strength
About twice that of aluminium 1350(EC)
Weight
Approximately 20% lighter than ACSR conductor of equal diameter
Corrosion resistance
It has a high resistance to atmospheric corrosion which is suitable for coastal and industrial areas.
Surface hardness
AAAC's surface is significantly harder than aluminium 1350. It is less liable to damage during installation which is an important
advantage of EHV transmission lines where corona and radio interference is a major consideration.
Termination
Much simpler jointing accessories required compared to ACSR
AC Resistance
AAAC is a non-magnetic material. It does not exhibit the magnetic core losses found in ACSR


Product Standard



Code Name

Nominal Area
(mm²)

Stranding
(No./mm)

Diameter Of Conductor
(mm)

Linear Mass(kg/km)

Rated Strength
(kgf)
Box
15
7/1.85
5.55
51
537
Acacia
20
7/2.08
6.24
65
680
Almond
25
7/2.34
7.02
82
861
Cedar
30
7/2.54
7.62
97
1014
Fir
40
7/2.95
8.85
131
1367
Hazel
50
7/3.30
9.9
164
1711
Pine
60
7/3.61
10.83
196
2048
Willow
75
7/4.04
12.12
245
2402
Oak
100
7/4.65
13.95
325
3398
Mulberry
125
19/3.18
15.9
415
4312
Ash
150
19/3.48
17.4
497
5164
