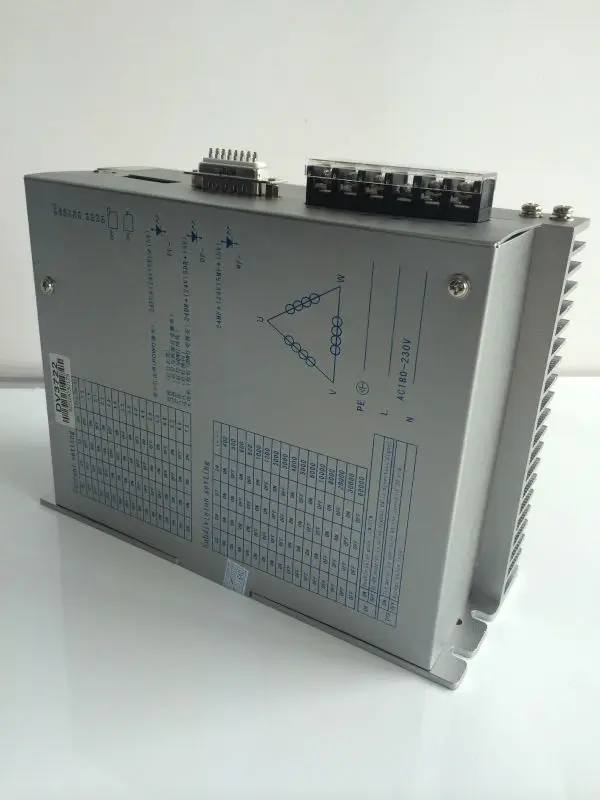

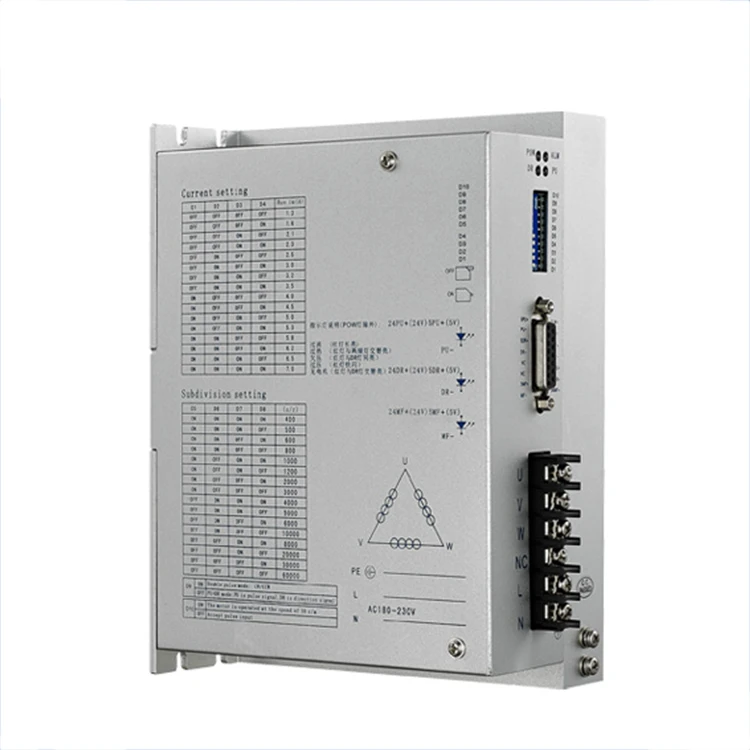

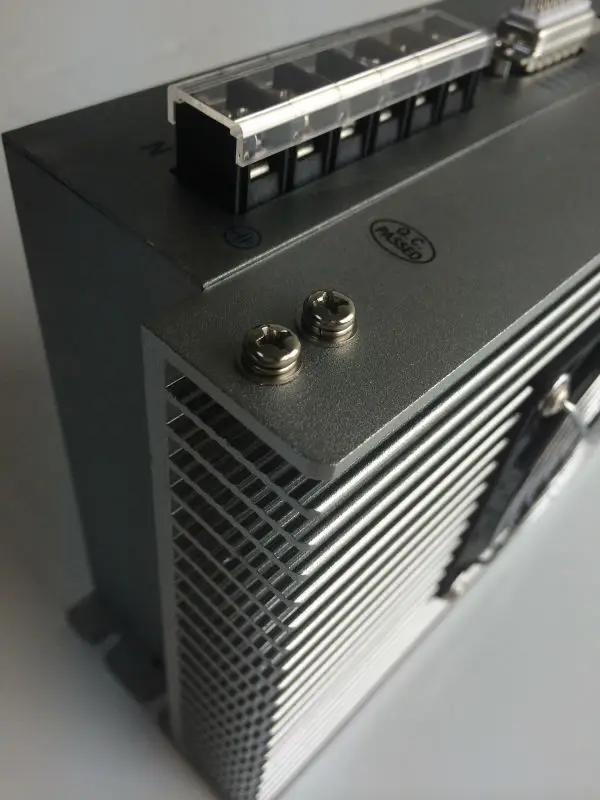

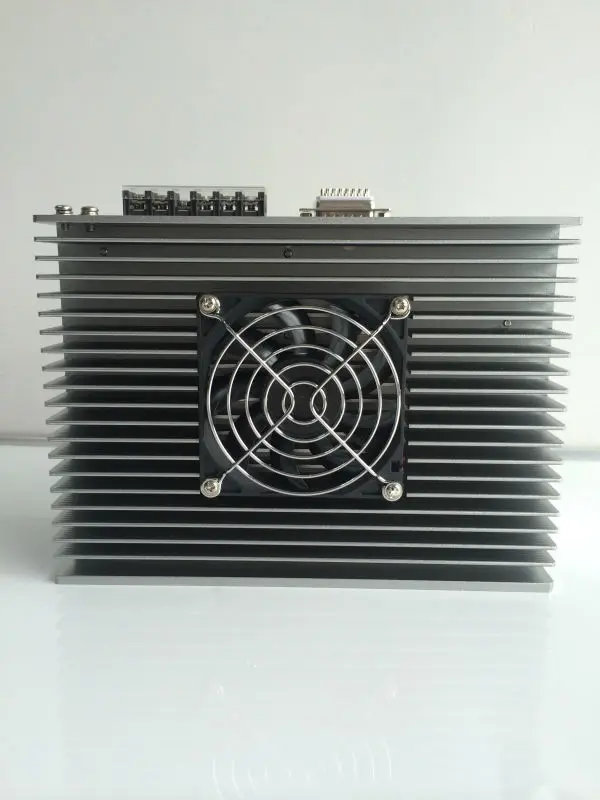

3 phase ac DVS3722 high torque stepper motor drive

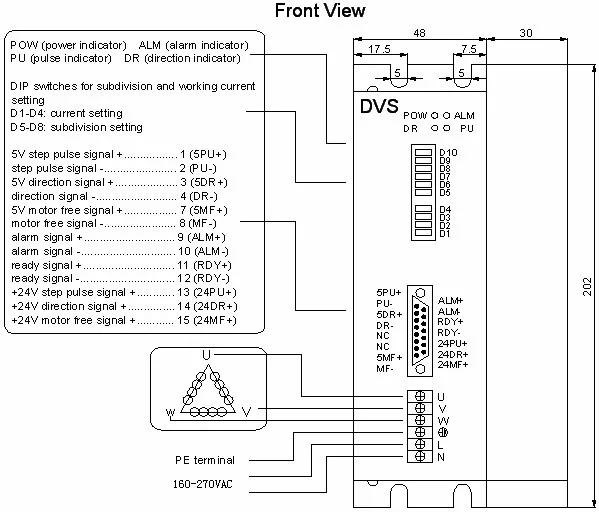

Ø Dimension Diagram

Ø Terminal Function

Symbol	Function	Definition
5PU+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
PU-	DP9=OFF,PU is step pulse signal	With the falling edge of the signal PU, the motor execute an angular step. The input resistance is 220Ω. Low voltage 0-0.5V,high voltage 4-5V,pulse width>2.5μs.
	DP9=ON,PU is positive step pulse signal
5DR+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
DR-	DP9=OFF,PU is step pulse signal	Change the motor's direction of rotation. The input resistance is 220Ω. Low voltage 0-0.5V,high voltage 4-5V,pulse width>2.5μs.
	DP9=ON,PU is nagtive step pulse signal
5MF+	Positive of opto-isolated input signal	Connect to +5V power supply,drive voltage ranges from +5V to +24V.Current limiting resistance is needed when it is over +5V.
MF-	Motor free signal	The motor current will be cut off and the driver stops working when  it is effective.
ALM+	Positive of opto-isolated input signal	The signal is effective(low voltage) when the drive is overcurrent and overheat.
ALM-	Negative of opto-isolated input signal
RDY+	Positive of opto-isolated input signal	It is effective(low voltage) when the driver is ready for receiving controller's signal.
RDY-	Negative of opto-isolated input signal
24PU+	Positive of opto-isolated input signal	Drive voltage : +24V
24DR+
24MF+
L,N	Power supply	160-270VAC
PE	Ground	Ground terminal
U	Connection
V
W
