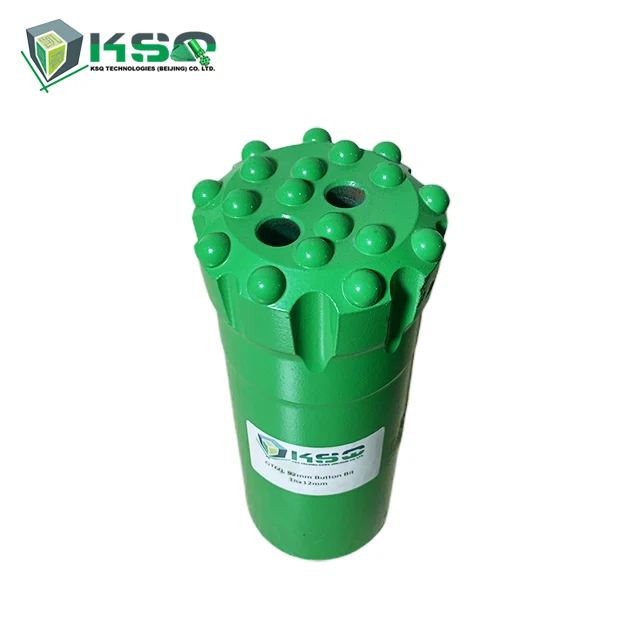

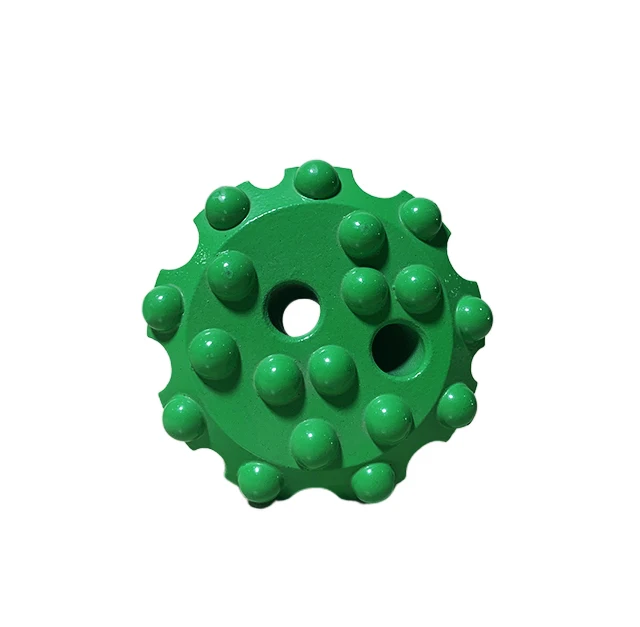

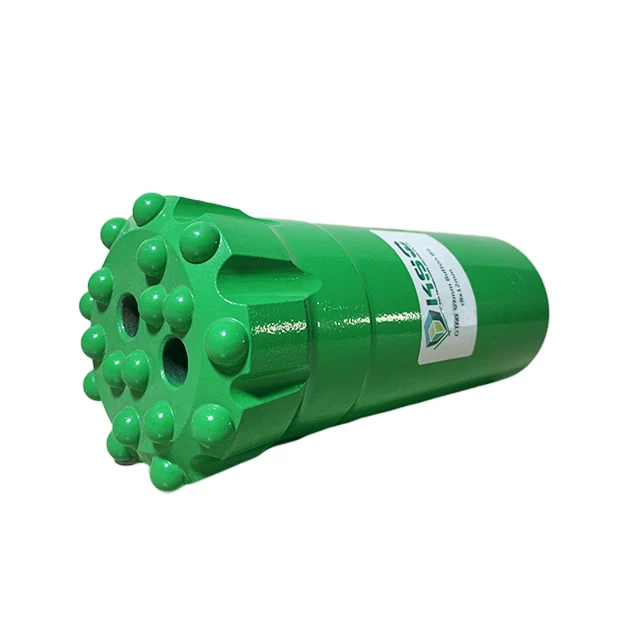

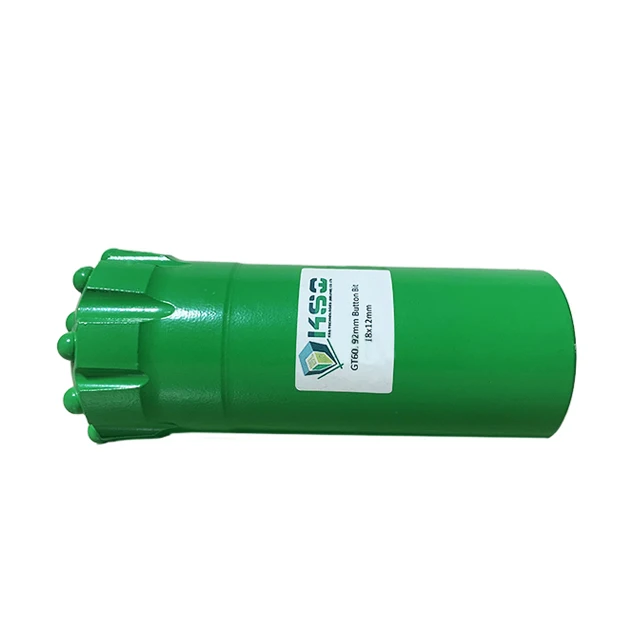

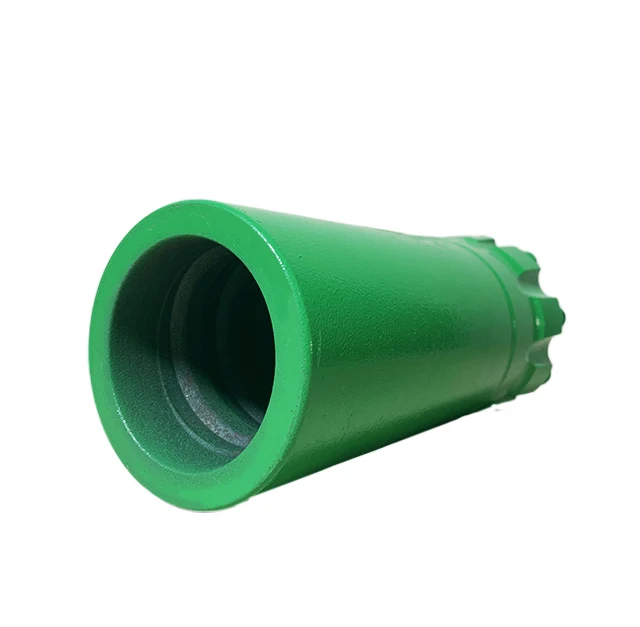

Spherical and Ballistic Tungsten Carbide Hard Rock Drilling Bits St58 St68 Gt60 Thread Button Bit
- Category: >>>
- Supplier: Ksq Technologies (beijing) Co. Ltd.
Share on (60214480802):
Product Overview
Description
Products Description
our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits
We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.
• Color: Green,Blue or Based on Customer requirements
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.
• Color: Green,Blue or Based on Customer requirements
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
GT60 button bit | ||||||||||||
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||||||||
mm | Front | Gauge | Front | Side | kg | |||||||
1 | 102 | 6x14 | 8x14 | 2 | - | 8.7 | ||||||
2 | 105 | 6x14 | 8x14 | 2 | - | 8.9 | ||||||
3 | 110 | 6x14 | 8x16 | 2 | - | 9.4 | ||||||
4 | 115 | 6x14 | 8x16 | 2 | - | 9.6 | ||||||
5 | 127 | 4x14, 3x14 | 8x16 | 4 | - | 10.8 | ||||||
6 | 152 | 8x14 | 9x16 | 3 | - | 16.2 | ||||||
T51 button bit | ||||||||||||
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||||||||
mm | Front | Gauge | Front | Side | kg | |||||||
1 | 89 | 3x11, 2x11 | 6x13 | 4 | - | 4.9 | ||||||
2 | 102 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 | ||||||
3 | 115 | 6x14 | 8x14 | 2 | - | 6.8 | ||||||
4 | 127 | 4x16, 2x13 | 8x16 | 4 | - | 7.5 | ||||||
T45 button bit | ||||||||||||
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||||||||
mm | Front | Gauge | Front | Side | kg | |||||||
1 | 70 | 3×11, 1×19 | 6×11 | 3 | - | 2.2 | ||||||
2 | 76 | 3×11, 1×11 | 6×13 | 3 | - | 2.4 | ||||||
3 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 4.1 | ||||||
4 | 102 | 3×13, 2×13 | 6×14 | 3 | 1 | 4.5 | ||||||
T38 button bit | ||||||||||||
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||||||||
mm | Front | Gauge | Front | Side | kg | |||||||
1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 | ||||||
2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 | ||||||
3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 | ||||||
4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 | ||||||

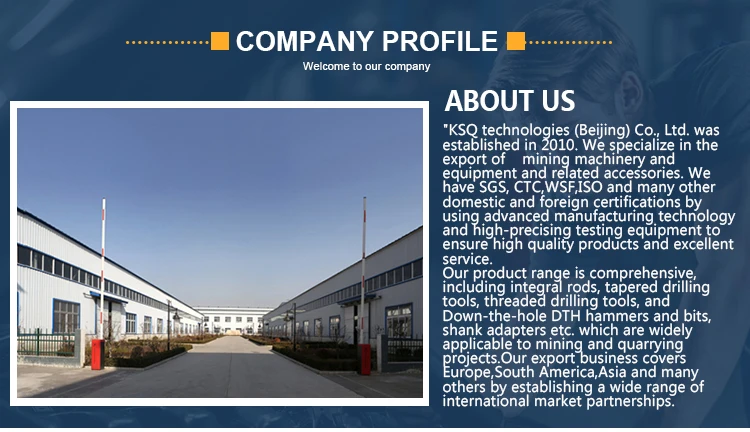

Company Profile

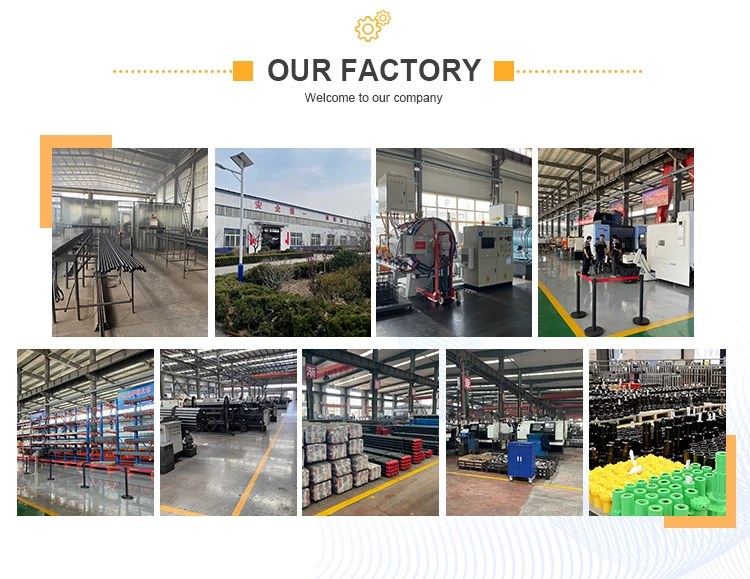

Factory
Why choose us
Certifications
Exhibition

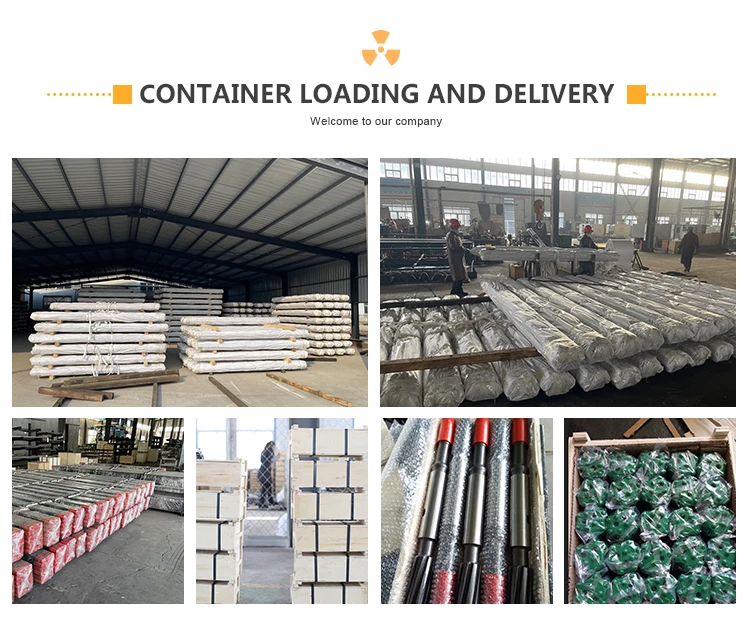

Packing and delivery
FAQ
1. Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3、Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3、Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
