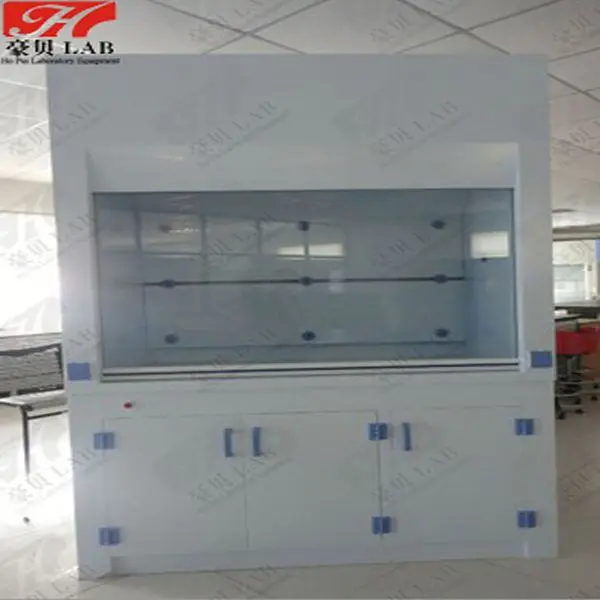

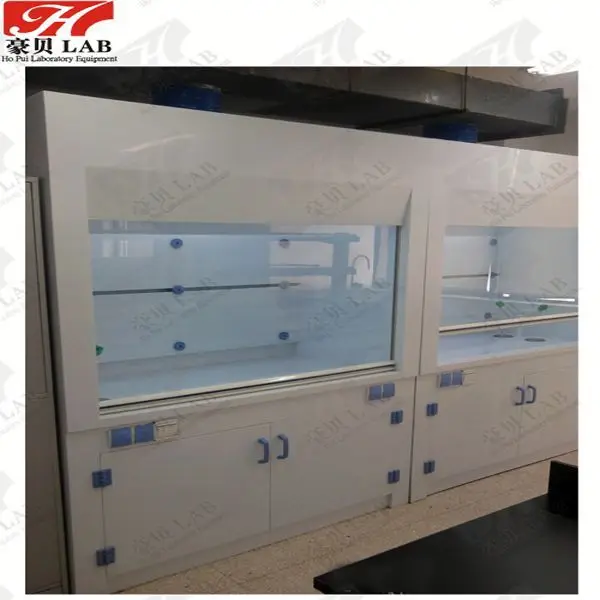

lab pp fume hood / table top fume hood / hood with fume scrubber

Product Overview

Description

lab pp fume hood / table top fume hood / hood with fume scrubber



product description



Material	PP
Type	Laboratory furniture
Size	L1200/1500/1800*W800*H2350
Color	Blue/customized
Brand name	Hopui
Application	Chemistry lab, physics lab and other laboratories
Socket	380 v three-phase ac relay
Water accessories	Circulating water,copper nozzle,PP cup
Technical parameter	Average wind speed 0.5m/s
Sash	6mm thick tempered glass with slideway design, mute moving to any position.
Place of origin	Guangdong
Function	Applicable to various labs chemical testing



Some informations for fume hood



The structure of PP ventilation cabinet
The cabinet body, door	12mm thick South imported double-sided porcelain white PP board
Worktop	15mm thick South imported double-sided porcelain white PP board
The inner lining	PP special 8mm thick laboratory material plate, corrosion resistance,  excellent  anti reflux, reflux liquid can be derived
Windows	6mm thick tempered glass
Handle	128mm type high strength engineering plastic Martin shaped handle
Hinge	using high strength engineering plastic hinge
accessories	PP small cup and laboratory dedicated copper paint single water cock
Electrical	configuration of 10A/220V,three power socket and 20W/30W/40W lamp lighting





Not only PP material ,we have other materials of fume hood

All steel structure
The shell, the lower  cabinet, door	1.0mm high-quality cold-rolled steel plate
Lining plate, guide plate	6mm thick compact panel
Configuration	Lighting device, control panel, tap, small cup
Table	12.7mm solid physiochemical board
Lighting	30W fluorescent lamps, hidden in the panel, not with ventilation cabinet airflow contact, easy replacement, with 5mm toughened glass
The gas collecting hood	PP material
Handle	Stainless steel handle
Control switch	12V touch type switch, the centralized control of the whole circuit system
Distribution box	In accordance with 220V and 380V power supply requirements, leakage  and motor protection device





Packing & Shipping

Packing :    wooden case and carton packing

Shipping details:   15-20 working days after receiving the full payment





Pay attention to ! ! !



1.Surface wind speed 0.5 m/s



2.The scope of work must be clean and tidy



3.Light and fan in any case must be kept in normal operation



4.When doing test must open the fan in advance



5.In order to prevent electric spark to cause fire and explosion danger, suggest don't use socket

 in detoxification in the cupboard



6.Suggest detoxification bar face not long time contact flame or hot objects, otherwise it will cause



 performance degradation or damage to the mesa


7.Under no circumstances shall not put your head in detoxification enclosure



8.Do any test operation, must pull explosion-proof glass door, for protection



9.After use, must be protective glass door down



  FAQ

 Q1. What is the advantage of PP fume hood?

 A1. Can prevent 98% of sulfuric acid, use time long than all steel fume hood



 Q2. Are these size and color can be customized

 A2.  Yes.



 Q3. Has the glass window easy to be broken?

 A3.  6mm thick safety of tempered glass,resistance to high temperature and strong pressure



 Q4. Do you have any other service?

 Q4.Yes, we can send our experienced engineer overseas for installation direction if necessary

 Q5. Any other transportation?

 A5. Yes,Ocean. Air or by Car



     1. Fast delivery,easy to operation

     2. ten years of production experience

     3. Provide after sales service for one year

     4.  Market: Have passed CE, ISO9001, ISO1001 quality management environment and

       management system

     5. Our company has cooperated with many enterprises

     6. We mainly sales to Europe and the United States, Southeast Asia and other countries,  as US,   Canada, Australia,Switzerland.

Strong team

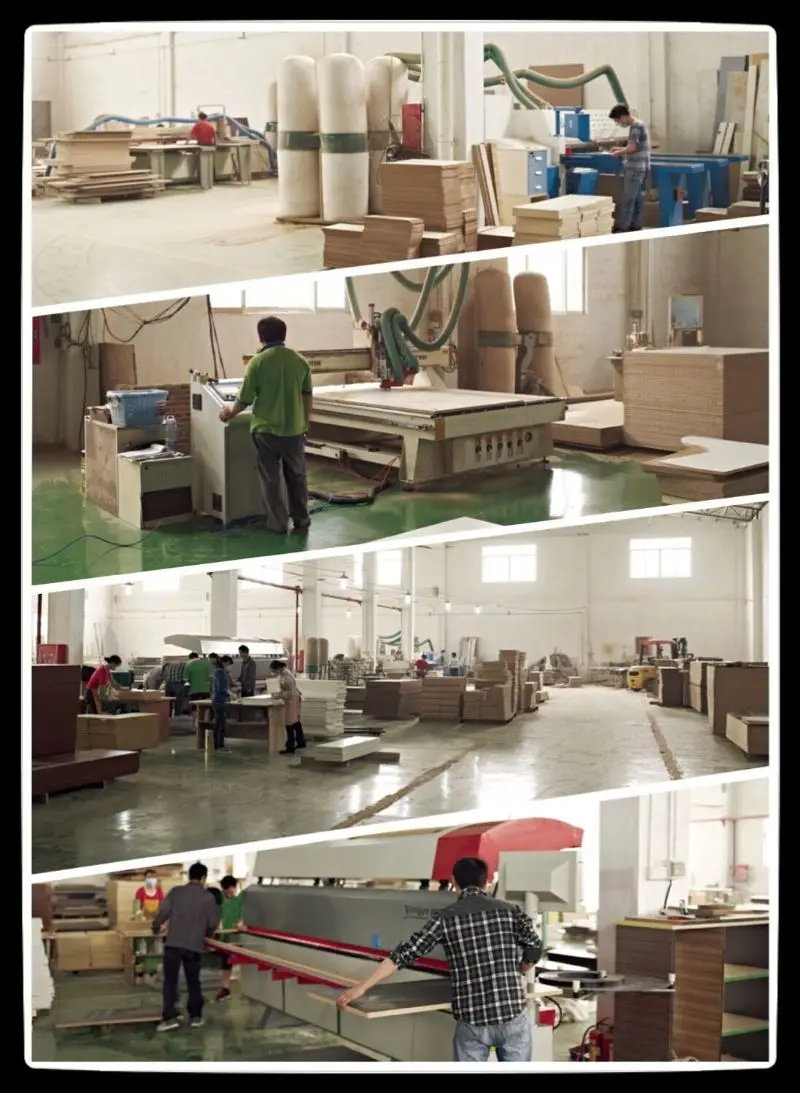

  The production line













 Packing







 Shipping





 More products

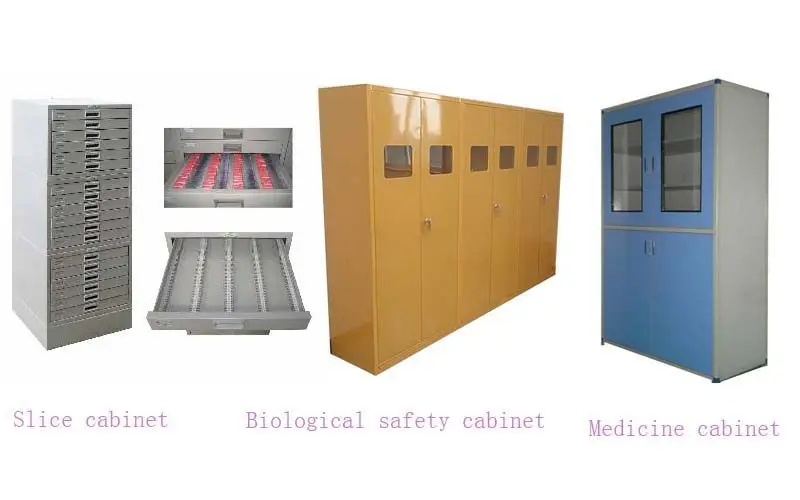

Our cabinet series
