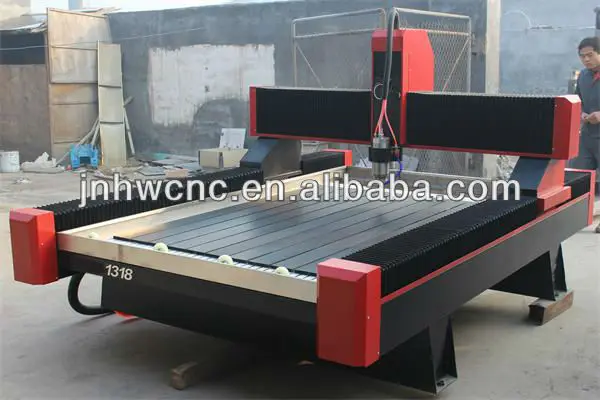

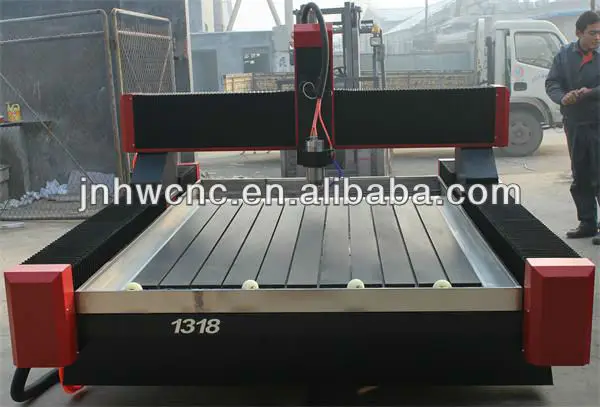

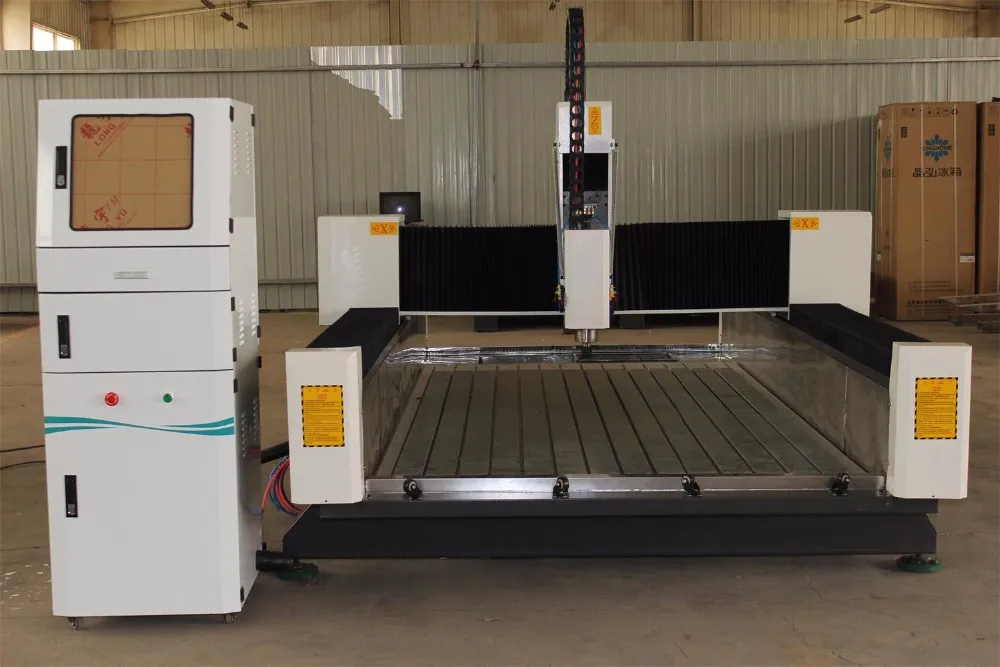

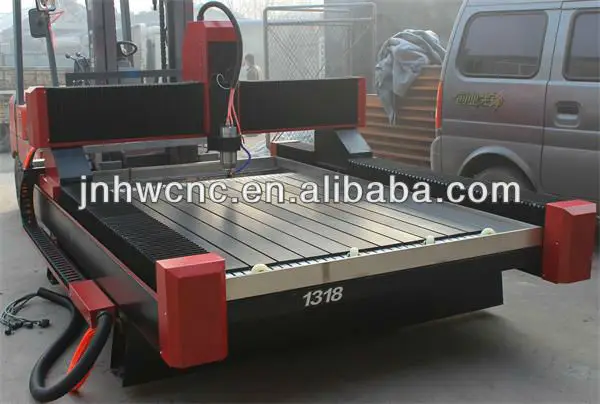

1325 CNC Router Stone Carving Machine Heavy Structure Stone Machinery for Efficient Carving

Product Overview

Description

heavy structure stone carving machine 1325 cnc router stone



1. T type heavy duty machine structure, good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.
2. Big power duel stepper motor for XYZaxis, high speed, stable moving, the travelling speed can reach to 18000mm/min.
3. The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw
breaking problem thoroughly.
4. The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
5. Using the higher precision rack & pinion transmission, higher accuracy, fast speed and powerful.
6. Big power 5.5kw spindle motor, more powerful, duel water proof system design, can solve the spindle water perocolation fault.
7. Using the imported linear square guide rail, duel four row (6 row) block, good weight bearing, stable moving, higher precision, long life time and higher knife precision.
8. Computer cabinet design, more convenient and keepign computer clean.
9. The limit switch for X Y Zaxis, and the memory function, after the break point, power off, can continue work
10. Using the big powerful water pump, bothway tools water cooling system, ensuring the tools can get the sufficient cooling and enlarge the tools life time.
11. Good software compatibility, Artcam/Type3/ Ucancam/CAD/CAM/JDPaint..., easy and convenient to us
12. SW-1325 model can also upgrade into 2, 3, 4, 6, 8 heads cnc router, increase the efficiency.
13. The working area and configuration can be customized according to your requirement, lower the cost and realize the biggest benefit!



#Applications:

Appropriate for mass processing of various materials like solid wood,density board,composite board,rigid plastic,artifical marble,acryl.



#Configuration:

Model	sw-1325	Optional
Working area (X*Y*Z,mm)	1300*2500*300	customization is  available
Machine structure	Thick-walled square tube structure lathe bed and T-slot table of sectional materials
Working holding	by clamps
Overall dimension	3050*2800*1700
Precision(mm)	0.07
Position accuracy(mm)	0.02
Repeatability(mm)	0.02
Lding speed (mm/min)	9,000
Working speed(mm/min)	5,000
Spindle	5.5kw,water-coolin(0-24000rpm)	air-cooling(0-18000rpm)
Available tools(mm)	φ3.175~φ12.7
Drive system	Stepper motor	Servo motor
Working voltage	AC380V±30V,50HZ
Command code	G Code(*.nc,*.mmg,*.u00,etc),*.eng
Control system	NcStudio	DSP
Compatible software	Window98/XP/7 G code



#Optional parts :

5.5kw water cooling spindle

Leashine hybrid servo motor /Japanese Yaskawa servo motor

DSP control system

Rotary

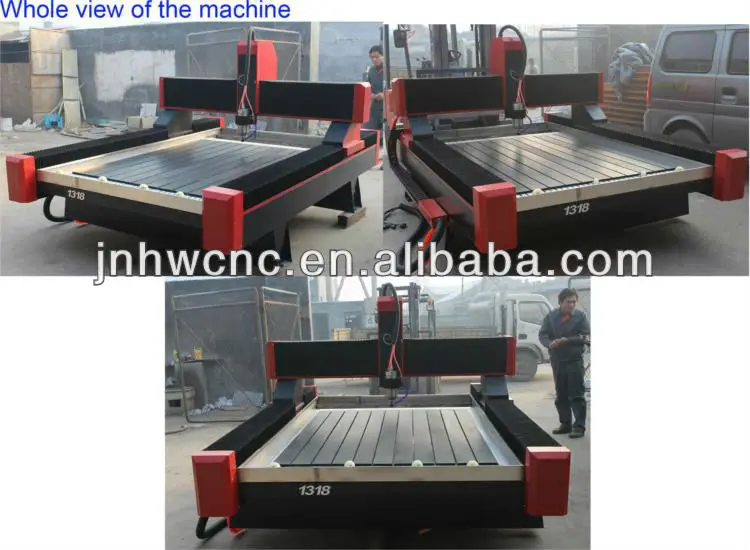

#Machine parts :





#Smaple:







                         Brief introduction about Jinan Huawei CNC Equipment CO.,Ltd







We’re a cnc router manufacturer and trading company in Jinan ( the main cnc router manufacture city in China ) for 11 years. We combine R&D, sale and after-sale service as a whole. We’re devoted to manufacturing cnc routers especially wood cnc routers and stone cnc routers.



We have a huge domestic market as well as hot sale in EU, Egypt, Africa, Belgium, Southeast Asia etc with CE certification. What we’re pursuing as following:



1.Quality is life.



2.Continuous Innovation



3.Long term partnership, close ties with customers to insure we understand their needs, and interpret it into actions of satisfactions, and both get positive ROI.





#FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?
Together with our machine, there are English manual or guide video that show how to operate the machine.
If you have any question, we can talk by phone, email or skype.

2) If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem.
Free after sales service for lifetime, please feel free to contact us if your machine have any problem. we will

give you 24 X 7 support by phone, email and skype.

3) This model is not suitable for me, do you have more models available?
Yes, we can supply many models. Replacement of some part, we can produce wood CNC engraving machine,

marble CNC engraving machine, and etc.

The above are most popular.

If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!





We offer free training in our factory, welcome foreign friend come here to study the machine.

 engineer oversea service is aviliable if you like, and Engineers will be trained user programming,

 peration, processing and routine maintenance.



We will offer Multi-language software and operation CD, Detailed User Manual together with machine for your reference.



24 hours (all days) technical support by call ,e-mail, skype or computer remote control  service by engineer.



1 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.

 lifetime maintenance, charge the appropriate fee and the cost of replacement parts
