AC DC Adapter 24V 10A 240W PSU UL62368 TUV GS CE PSE ROHS

Product Overview

Description

AC DC Adapter 24V 10A 240W PSU UL62368 TUV-GS CE PSE ROHS



Features:

Universal AC Input/full Range

4hrs Full Aging Testing

Cost effective and reliable

UL FCC GS TUV CE PSE KC SAA fully safety approved

Fully enclosed plastic case

MTBF>50,000 hours

Energy Star, Erp Step2, CEC, MEPS Compliant

2 year warranty



Application:

LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.





Specification:

Input	Voltage	AC 100V ~ 240V full range
	Frequency	50-60Hz
	Input Current	60A/240VAC
	Leakage Current	50,000hrs
Output	DC	24V 10A, 240W
Other	Ripple & Noise	240mV Max
	Protection	Over-Voltage, Over-Current, Short-Circuit
	Hold Up Time	>5mS @115VAC
	Cooling	Natural Cooling
	MTBF	50,000hrs
Mechanical	AC Input Type	IEC C14 3PIN
	DC Output Type	Per Customer's requirement
	Dimensions	195mm(L)*96mm(W)*41mm(H)
	Net Weight	1200G
Environment	Temperature	Operating 0 to 40C, Storage -25 to +85C
	Conducted EMI	FCC Part15 Class B , EN55022 class B
	Safety Certificate	CUL/UL CE GS SAA PSE KC CCC

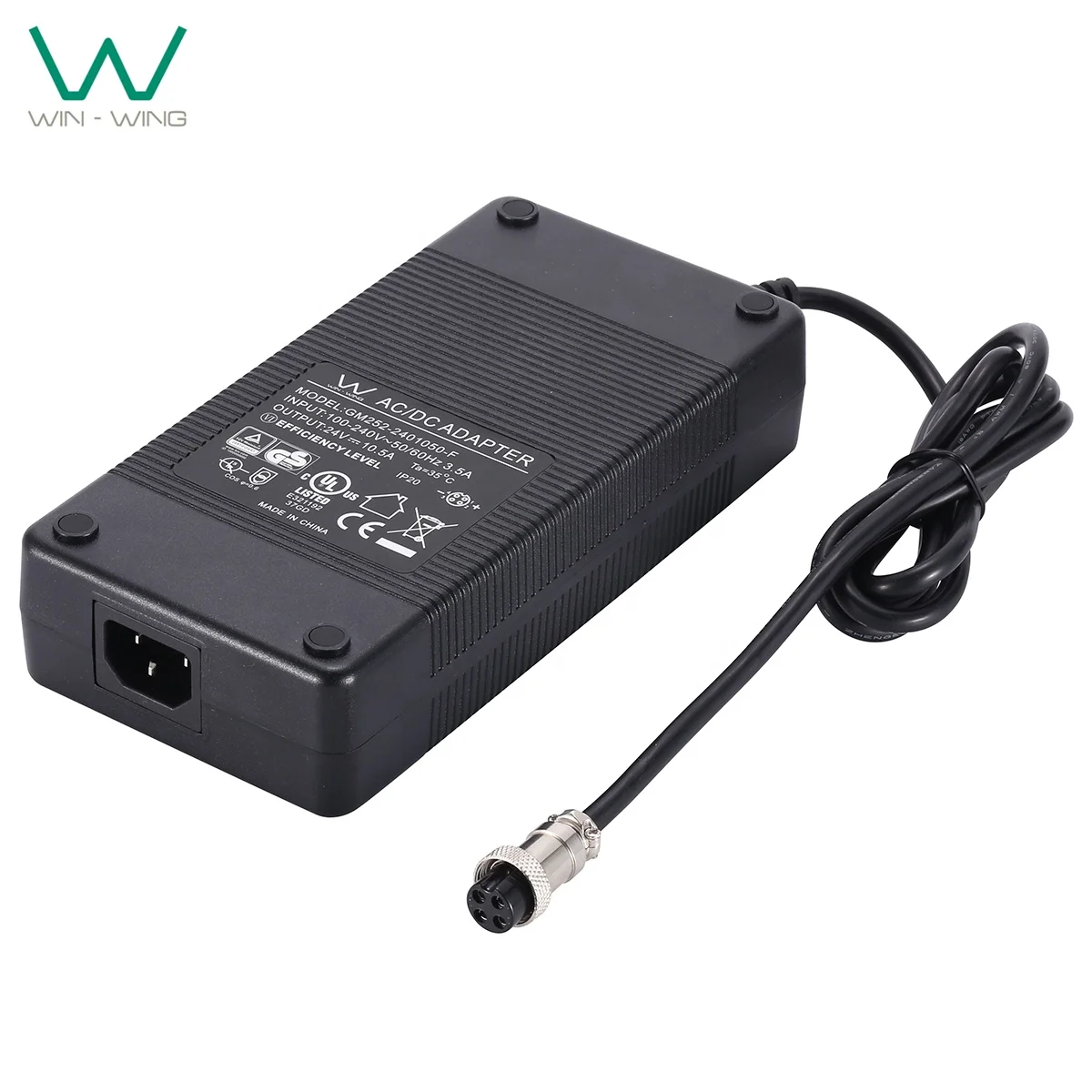

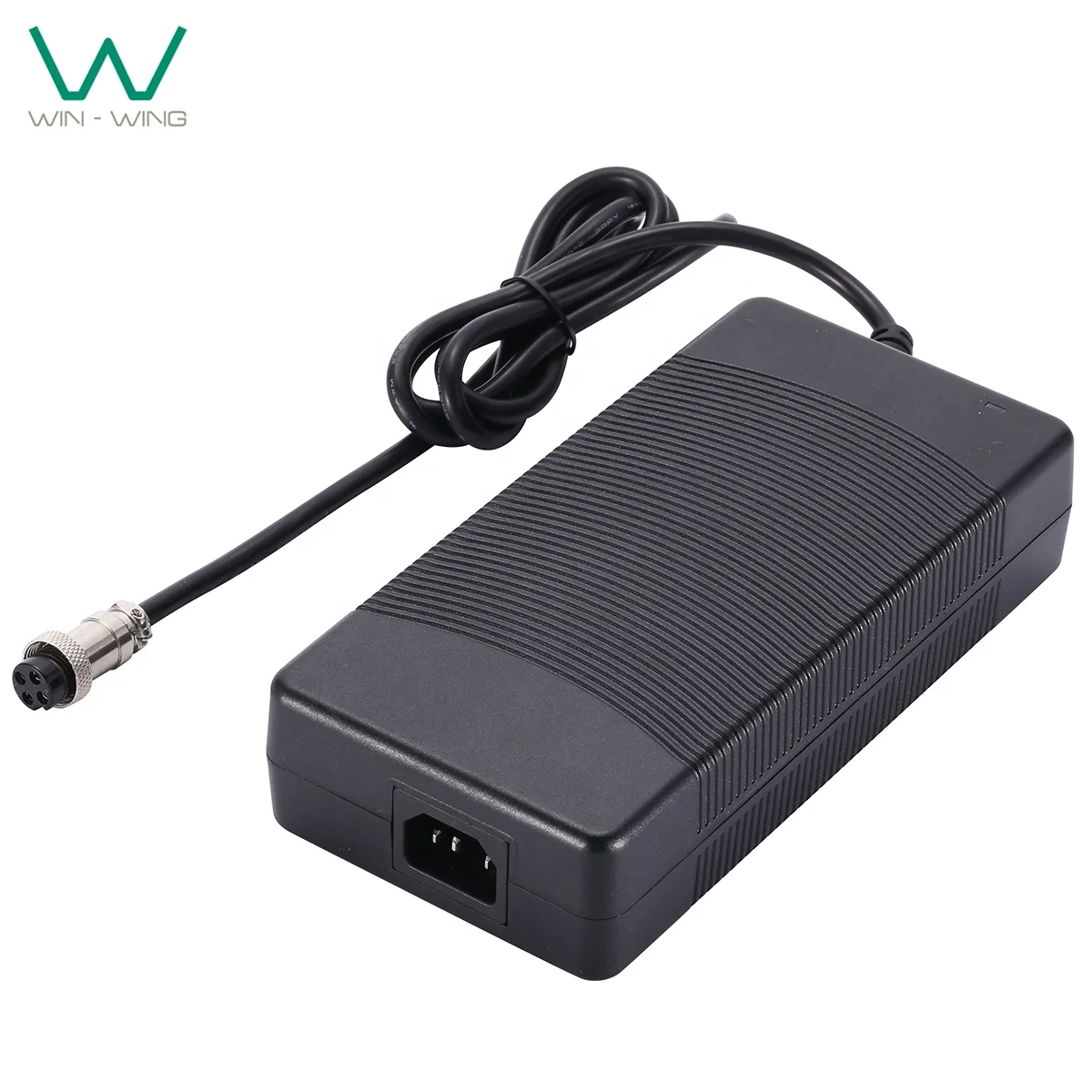

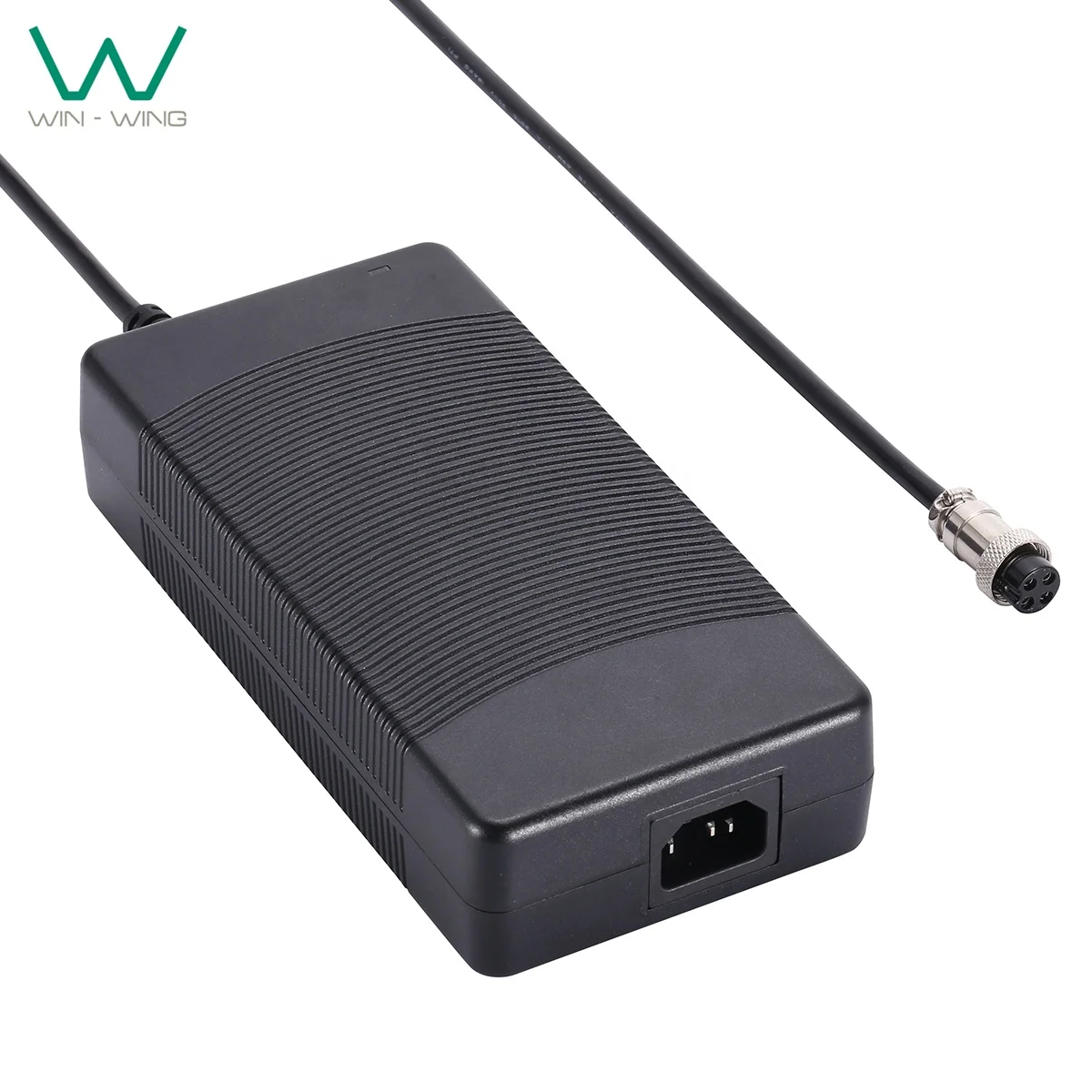

Pictures:
