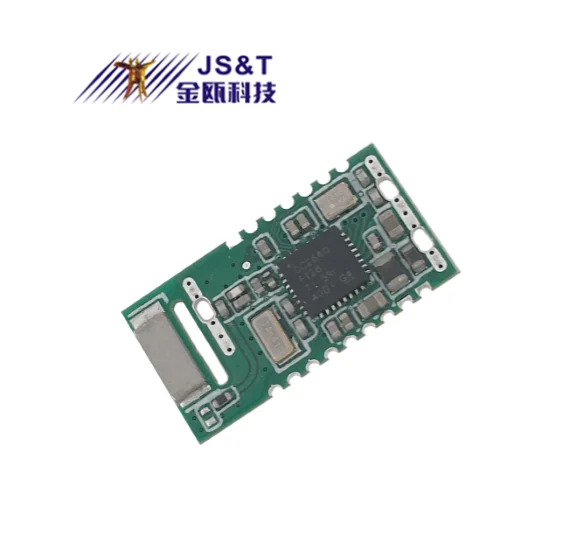

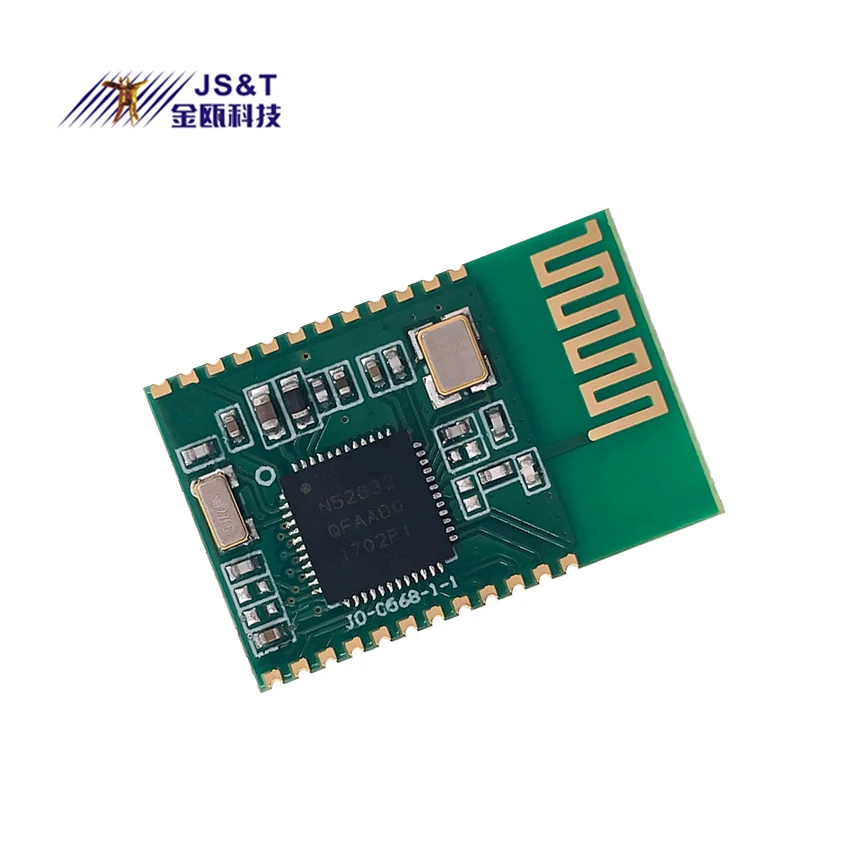

Модуль с низким энергопотреблением ble Nordic 52832/модуль bluetooth 100m модуль bluetooth 5,0

2018 NEW BLUETOOTH 5.0/4.2/4.1/3.0 SUPPER LOW ENERGY MODULE
Jinou low energy Bluetooth module uses BLE chipset, which supports Bluetooth 5.0 protocol. It can be used in power consumption sensitive situations, such as commercial medical care, mobile accessories, sports and healthy application. The module supports multiple roles to establish multiple connections simultaneously, namely it can connect other BLE devices and can be found and connected by other BLE devices at the same time.

Specification
Bluetooth BLE5.0 data transmission module

Working Frequency: ISM 2.402~2.480GHz
Antenna\t:Build-in ceramics antenna
Effective Distance\t:Connecting: 40m Broadcasting: 100m
Profiles:\tLL,SMP,L2CAP,ATT,GAP,GATT
Maximum connection:\t3
Communication Port:\tStandard UART
Max Transmission rate: Master→slave\t45Kbytes/Sec      slave→Master\t48Kbytes/Sec
Baud rate:\t1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600bps
Power Consumption\t:

RF level Class1/Class 2

Not connected (Broadcast interval 2s, turn on low energy mode, turn off the indicator light)\t54uA

Not connected (Broadcast interval 2s, turn off low energy mode, turn on the indicator light)\t2.1mA
Not connected ( Open scan function, broadcast interval 2s, turn off low energy mode, turn on the indicator light)\t4.5mA
Connected(Open low energy mode)0.34mA
Connected(Connect interval 10ms) 2.3mA
Connected(Full speed data transmission, broadcasting interval 2s, connecting interval 10ms) 6.0mA

Bluetooth BLE5.0 Mesh module

Working Frequency: ISM 2.402~2.480GHz
Effective Distance: \t40m
Profiles: \tMESH,GAP,GATT
Maximum GATT Connection: \t1
Communication Port: \tStandard UART, the maximum single data volume is 244 bytes.
The maximum number of Servers that Client can store: \t700

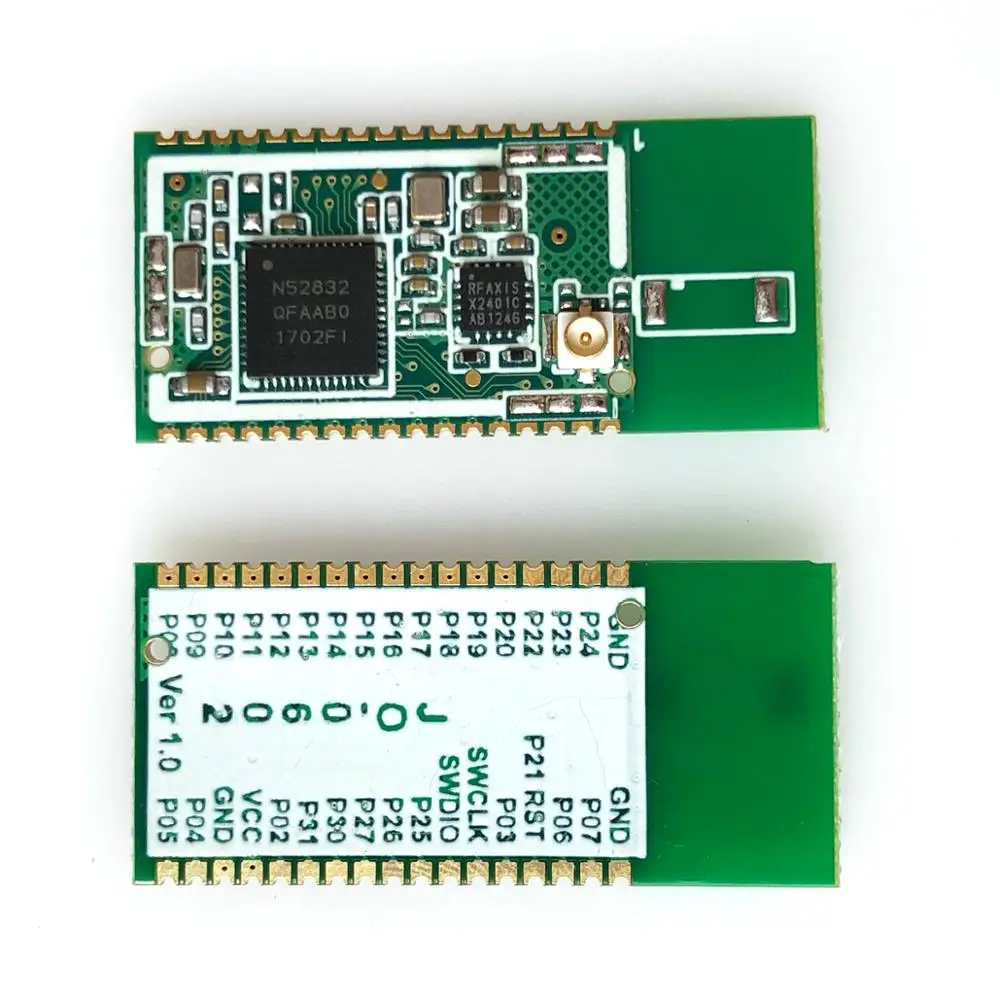

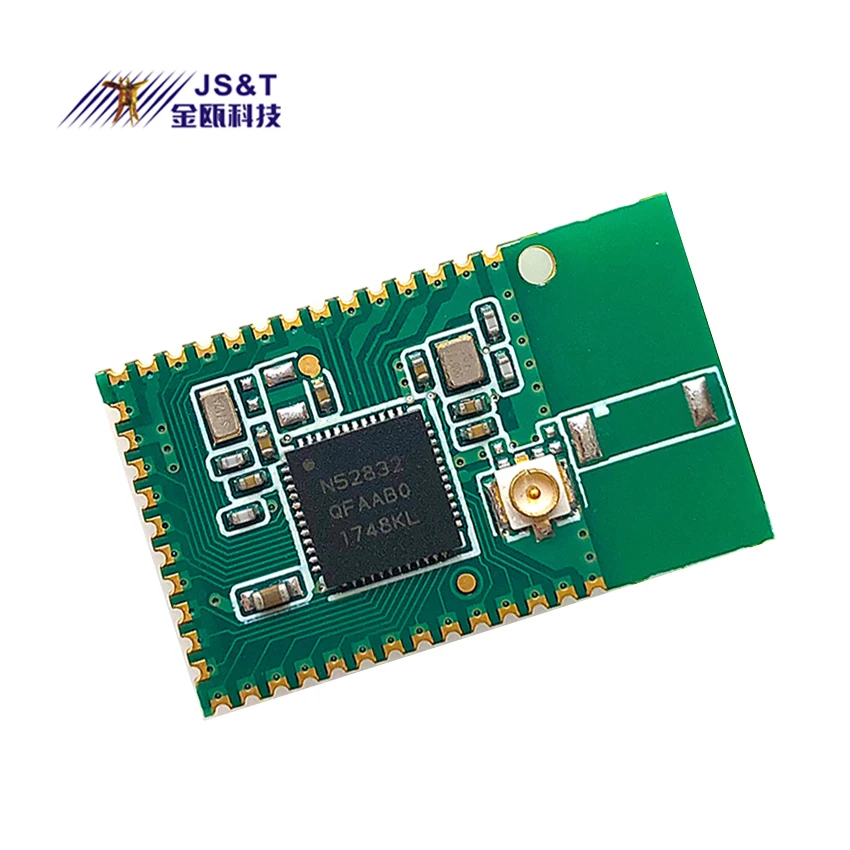

chip: \tnRF52832
