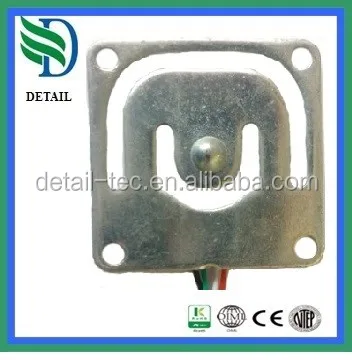

DLC928DA flat and thin mini load cell
- Category: Instrument Parts & Accessories >>>
- Supplier: Hunan Detail Sensing Technology Company Limited
Share on (60217639123):
Product Overview
Description
Product Description
DLC928DA mini force sensor
Model: DLC928DA Category: mini load cell Range: 10KG,30KG,50KG,75KG Dimension: 34*34*2.5mm Material: alloy steel Application: handle scale,kitchen scale,micro-fore test equipment Characteristic: small platform scale load cell , micro force sensor | |||
REF PIC | |||
Specification | |||
comprehensive error: | 0.05%FS | output resistance: | 1000±10Ω |
Rated output-FULL BRIDGE: | 1.6±0.2mv/v (50kg) 1.6±0.2mv/v (30kg) 1.0±0.2mv/v (10kg) | Input resistance: | 1000±10Ω |
Rated output-HALF BRIDGE: | 0.8±0.15mv/v | Insulation resistance: | ≥2000MΩ(100VDC) |
Non-linearity: | 0.05%FS | Excitation voltage: | 3~10VDC |
Hysteresis: | 0.05%FS | use temperature: | -10~+40ºC |
Repeatability: | 0.05%FS | temp effect on zero: | 0.1%FS/10ºC |
Creep: | 0.05%FS/10MIN | Temp effect on span: | 0.1%FS/10ºC |
Zero balance: | ±0.3mv/v | defend grade: | IP66 |
D5mm HOLE
DOME
Packaging & Shipping
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Company Information
Welcome to the workshop
TESTING MACHINE
FAQ
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
