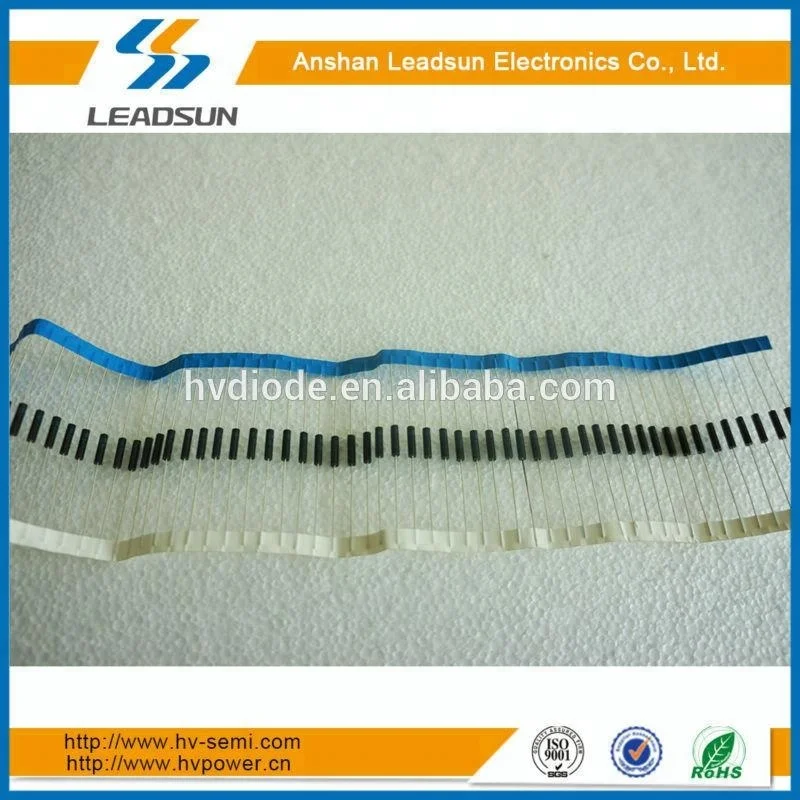

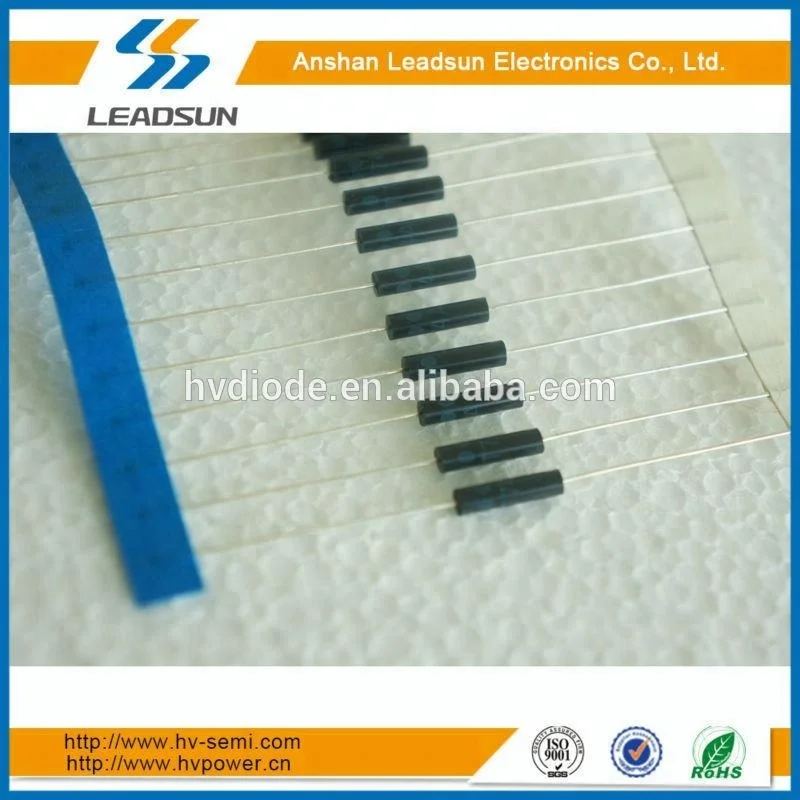

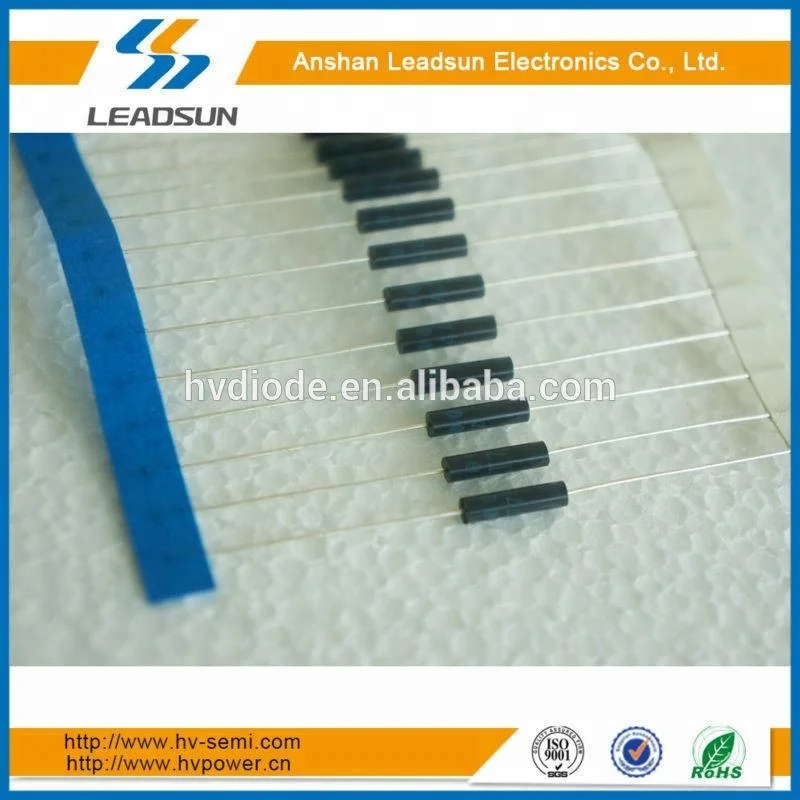

Standard 14KV high ultra fast diode 2CL74A

Product Overview

Description

Standard 14KV high ultra fast diode 2CL74A :

RoHS Certification and high reliability

low reverse current level

fast recover time

Peak reverse repetitive voltage:    14KV

Max foward voltage:                     50V

Average forward current:              5.0mA

Surge current:                                0.5A

Leakage current:                            2.0uA

Trr:                                                 80-100nS

Dimension:                                    φ2.5*10mm

Related Products



Packing: 200 pcs in one bag, 25 bags in one carton
