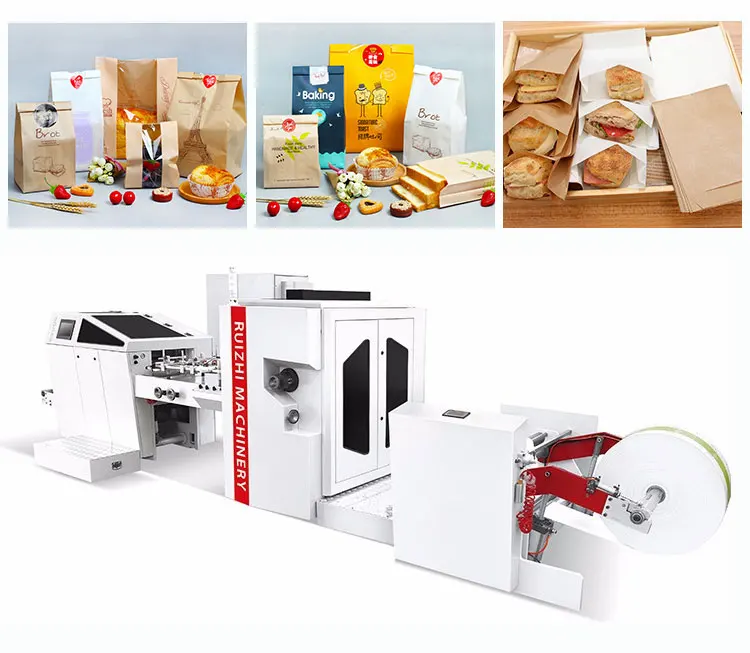

Fully Automatic Kraft Paper Bag Making Machine, machine for making paper bags

Product Description


ModelRZJD-G250J
Length of cutting bag110-460mm
Bag length100-450mm
Bag width70-250mm
Insert size20-120mm
Bag mouth height15/20mm
Bag speed 50-350pcs/min
Paper feed width100-780mm
Paper material diameter200-1000mm
Paper material thickness35-80g/m2
Working Air CurrentMore than 0.12m3/ minutes, 0.6-1.2 MPa
Electric power380V 17kw
Total weight4500kg
Machine Dimesion7100x3000x2200mm


Main features .

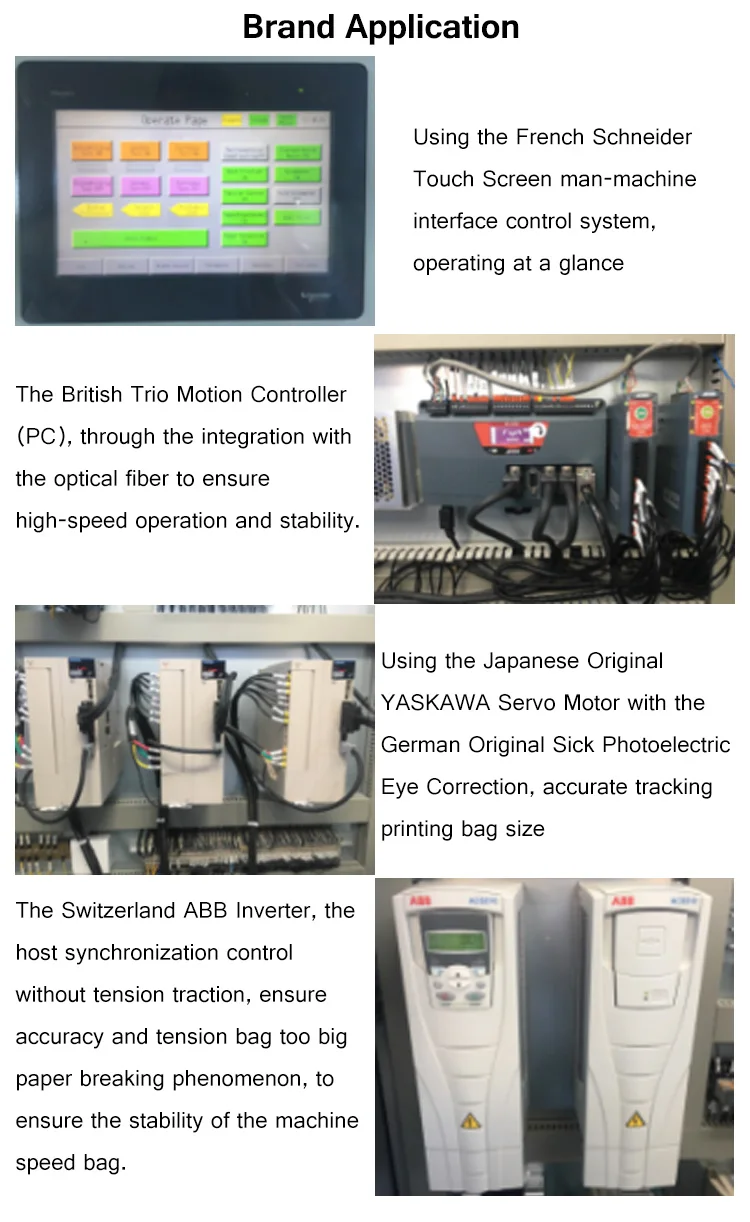

1. Using the French SCHNEIDER touch screen man-machine interface, operating at a glance, easy to control.
2 .Using the British TRIO Motion Controller (PC), through the integration with the optical fiber to ensure high-speed operation and stability.
3 .Using the Japanese Original YASKAWA servo motor with the German original SICK photoelectric eye correction, accurate tracking printing bag size.

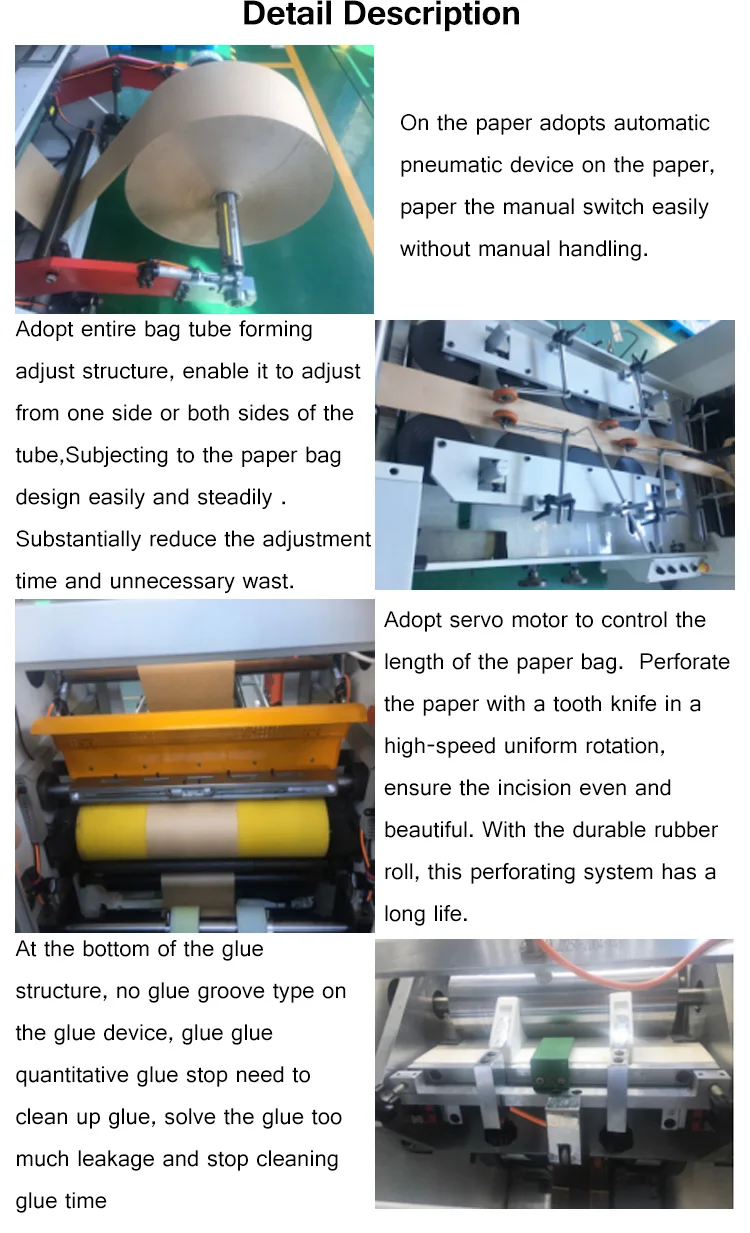

4 .The raw material loading and unloading adopts the pneumatic cylinder lifting structure, the roll adopts the full automatic constant tension control.
5 .Raw materials China correction using Taiwan Pasource , reduce the roll adjustment time alignment

Rlated Products


Samples


Company Information

ok_06.jpgRuizhi Packing Machinery Co.,Ltd is established at year of 1995, main product is side sealing plastic bag making machine.
It mainly includes automatic paper bag machine, plastic bag machine, pointed bottom paper bag machine, square bottom paper bag machine, food paper bag machine, hot cutting bag machine and so on.
With the expansion of production scale, in 2003, we rebuilt ourself as Ruizhi Packing Machinery Co.,Ltd in Pingyang County, Wenzhou City, China, while mainly trades in side sealing plastic bag making machine, we self-developed our new line of product, paper bag making machine.
Now our priority is paper bag making machine and side sealing plastic bag making machine, our machine is in great demand all around China, and we also have a big share of exporting business to Europe, America, Asia, Africa and so on.
Our product is listed in two national Torch Programs, and have acquired over twenty national patents, tested as standard product by the Quality Supervise Inspecting Center of Zhejiang Province, passed the appraisal of the provincial Science and Technology achievement, all technical indexes ranks in leading position of domestic similar products.
Our company does not only provide superior quality product, but also with comprehensive services, including technical consultation, installation and testing, training operators, and also supply relevant corollary equipment and packing material & etc.
Our goal is to offer life-long service to achieve own continuous good development, and that’s also what we fighting for!.jpgok_08.jpg-3.jpg

Machine Packing


FAQ


Q:Are you manufacturer or trading company?
A:Our company is a professional manufacturer. We have own factory and workers.



Q:What are the advantages of your company?
A: Our factory is founded at 1995. We have plenty of experience of making packaging machinery. And we have many professional technical personnel. And we have more competitive price, better service than trading companies.



Q: What types of machine do you have?

A: Commonly are paper bag making machine( sharp bottom and square bottom), printing machine.



Q:How do you control the quality?
A:Our company is CE certificated .We have many inspectors and Each device will go through 24 hours of trouble free operation before leaving the factory. We welcome customers to visit to our factory.


Q:How long is your delivery time?
A:Different products have different delivery time. The products will be delivered as soon as possible on the basis of the quality assurance. Usually the delivery time is within 30-45days after we received your deposit.
