SC100 Single Cabin Construction Hoist to Lift Passenger and Cargo

Shandong Xingdou Equipment is focus on all kinds of rack and pinion driving vertical access machinery and Supply design, solution and OEM to all customers all over the world!

Construction building hoist, Tower crane mini hoist, industrial lift, mast climbing platform, Mast climber.
500kg-3000kg loading capacity passenger cum material constriction site building lift

Its main products include:
PLC construction lifts.
Low, medium, and high-speed variable frequency construction lifts.
Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts.
Inclined construction lifts.
Small rack observation lift.
High-level test bed maintenance lift.
Other OEM type rack and pinion vertical lift.

A: Cabin Details

1.The cabin is boarded up by all punched aluminum sheet ,Sidewall of Wire Mesh for cage is also available. The size can be arranged to your requirement.
( Optional Size:3x1.5x2.1m, 3x1.3x2.1m, 3.2x1.5x2.1m, 3.2x1.3x2.1m, 3x1.5x2.4m, 3x1.3x2.4m, 3.2x1.5x2.4m, 3.2x1.3x2.4m)

2. Main structure of cage is made of high-quality steel after bending.(The bent steel is firm, good vertically, stability. Moreover it ensure stable of the whole structure.)

B: Specifications about mast section  of  OEM SC series construction hoist lift new arrival high rise

The Mast section(color is variable) is made of HF welding pipe and seamless pipe. (The high quality seamlesssteel pipe is good vertically, anti-pressure, anti-aging, thickness and so on), it offer a well rail for cage climbs on.

650*650*1508mm is the most common size fit for clients.
1. HF high quality tube&pipe Q345B good vertical.
2. Steel plate Q235B with high quality from Baosteel Group, steel plates are bent of U shape to stren-gthen the mast section
3. Mast section with galvanized coat or heat spray coat can be chosen
4. Steel round bar Q235B with high quality and strengthen the mast section Other model of mast section can choose:
450*450*1508mm, 650*900*1508mm,650*200*1508mm

Materials about Rack gear:
1.Model: 40*60*1508mm, or 40*60*1483mm or OEM according to drawing or sample
2.Materials: CL60 special rail steel,60# high quality carbon steel(common use) or other type C55,C50,C45 according to your requirement.

C: Completed safety measures for OEM SC series construction hoist lift new arrival high rise

1. Equiping with Anti-falling govenor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit swithes, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.

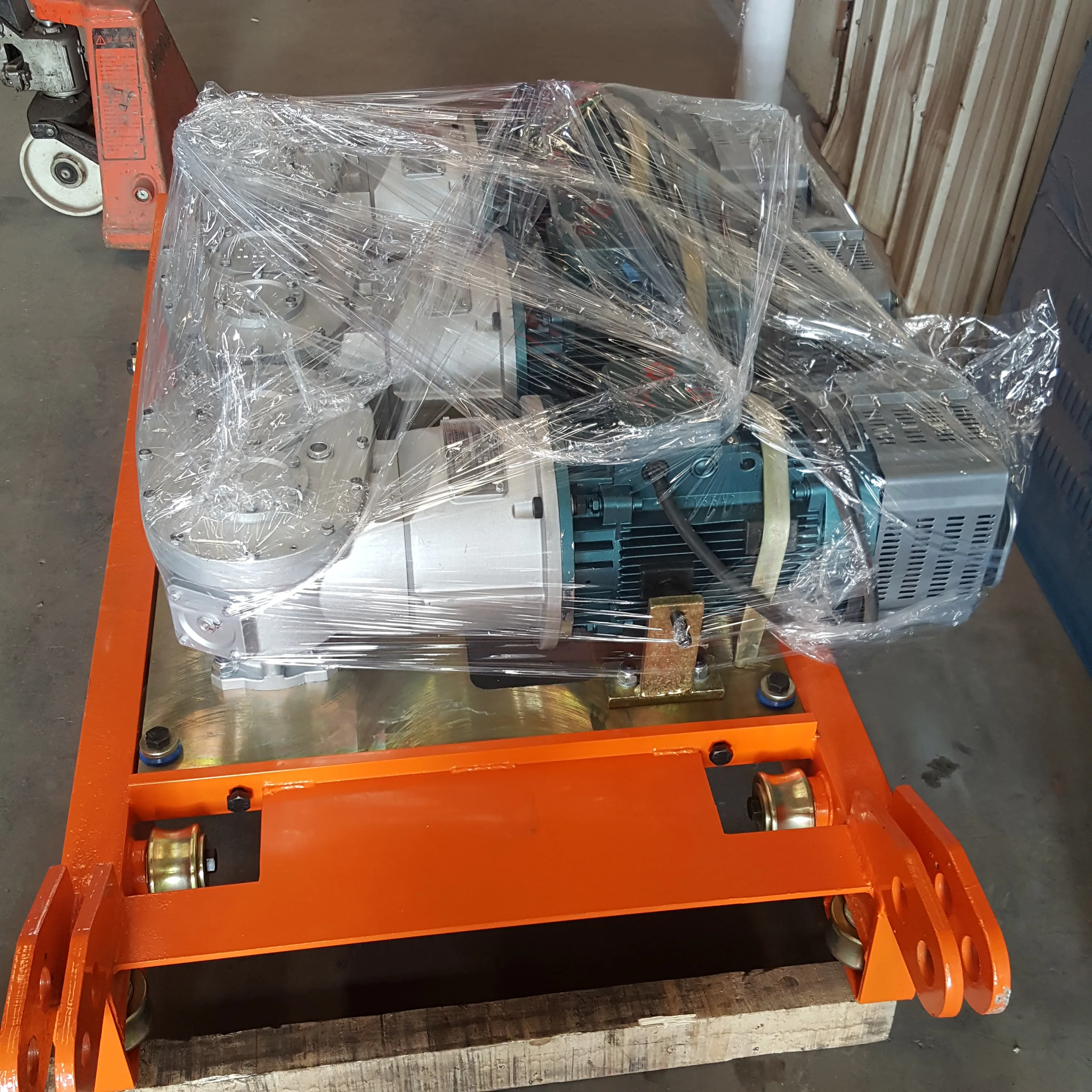

D. Different driven system for OEM SC series construction hoist lift new arrival high rise

High efficient&energy saving models:
1. 2000kg load per cage can choose motor: 3x8.5kw, 2x11kw, 2x13kw with energy saving characters. 3x11kw with common character. (With gearbox more than 90% energy usage rate) low speed type
2. 1000kg load per cage can choose motor: 2x8.5kw, 2x11kw with gearbox more than 90% energy usage rate.) low speed type
3. 1500kg load per cage can choose motor: 2x13kw, 2x15kw with gearbox or worm reducers. Low speed type
4. 2000kg load with mid-speed: 3x15kw,2x23kw and 2x26kw with high efficient gearbox.
Note: (SEW,NORD OR KOREA BRAND MOTOR COULD BE CHOOSE)

1. -All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.

99.8% Response Rate

96.8% Response Rate

98.8% Response Rate

 We Supply all construction building cabin hoist with 1 year warranty period from delivery, and can provide a Engineer for oversea's installation and maintenance, tranning or site guidance.
