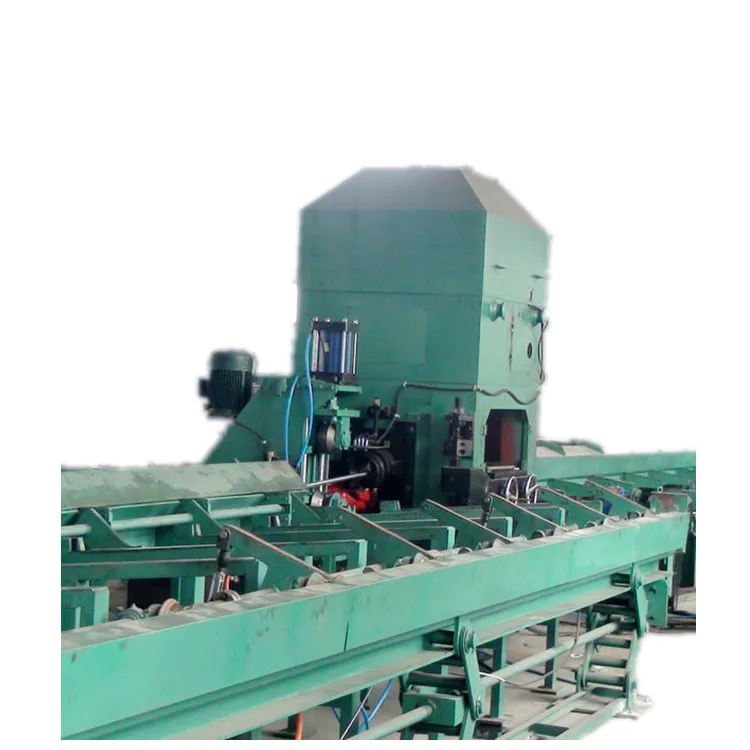

China 2 roll bar straightener machine

    It is used for straightening and calendering various metal bar after peeling or grinding.It is also used in the rough pre-straightening for the black bars with the hydraulic protection devices.

   The special curve between the upper concave and the lower convex of the two straightening rolls can easily realiize calendering while straightening. Two-rolls Straightening Machine includes four-pillar structure, four-beams structure,prestressed structure and frame structure as follows.

♦ Optimum straightening effect, even with high strength materials

♦ Two-roll principle with concave upper roller and convex bottom roller to ensure that the ends are straightened..

♦Straightener roll from alloyed and hardened chrome steel.

♦Lateral guidance of the bar to be straightened between the straightener rolls by special guide ledges.

♦Long striaghtening roller life due to coolant lubrication.

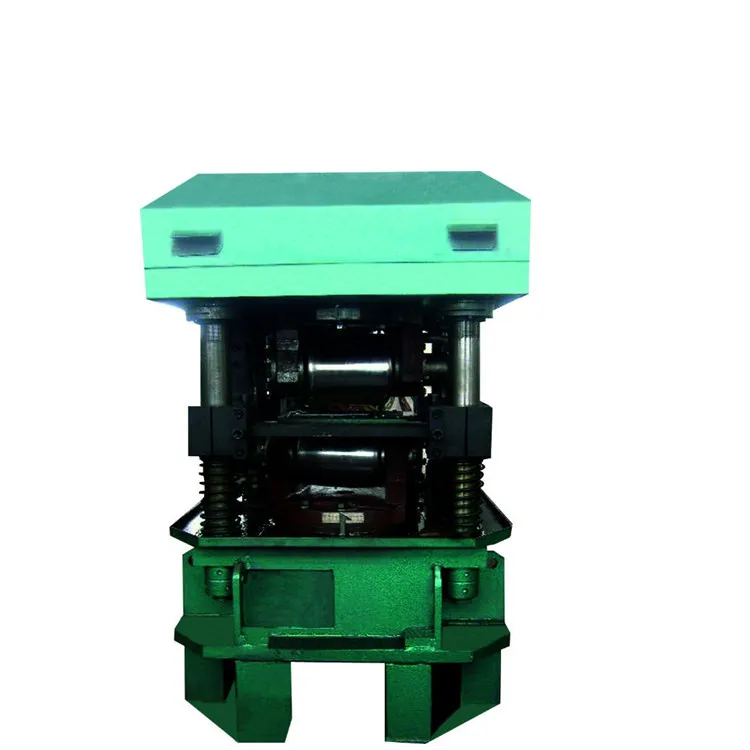

 Most Essential part---------the convex straightening rollers:

Whose special curves are researched and designed by our engineer to straighten and calender the bars at the same time.

1. Ferrous metals: Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;

A. Warranty period: 1 year,except for fast-wearing parts

B. Reply your enquiry in 24 working hours

C.Customized design is available. OEM& ODM are welcomed.

D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.

E.Special discount can be provided to our distributor.

1.Outside package: Standard export wooden case

2.Inner package:stretch film

Yantai Haige Machine Tools Co., Ltd  is a professional company in manufacturing of

 *Round metal bar peeling machine (used to quickly remove the rusted layer, cracks and other defects from the surface of the round black bars)

*Round metal bar straightening machine (used to straighten and calender the metal bars after peeling)

*Skiving roller burnishing machine (used to process the inner wall of the cylinder or the metal tube/Pipe)

*Piston rod polishing machine (used to polish the piston rod before and after plating

Certification

More inforamtion, please feel free to contact us by following:
