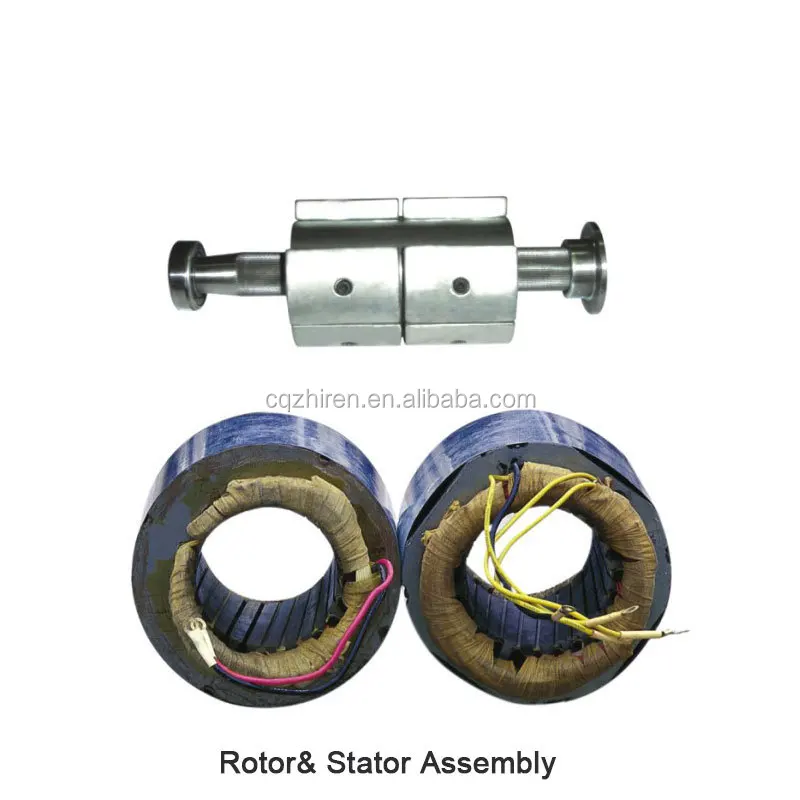

brushless rare earth permanent magnet generator stator and rotor
What is rare earth permanent magnet generator?
1. Rare Earth means rare earth elements such as neodymium, iron and boron etc.
2. Permanent Magnet means our generator uses permanent magnet as magnetic field, no avr, no exciter, no rotor windings(replaced by magnetic tiles).
3. Rare Earth Permanent Magnet has high energy product and high coercivity. It is featured by simple structure, small size, light weight and low failure rate.
Unique Advantages:
| Permanent magnet | no AVR, no exciter and no excitation windings |
| No carbon brush/brushless | no electric sparkle, no electromagnetic disturbance |
| Strong load capacity | can run inductive load such as UPS power source, air conditioner |
| Simple, small, and light | about 30% lighter than a common generator |
| Low temperature rise | no more than 50° temperature rise under continuous full-load run |
| Low failure rate | waterproof and dustproof, maintenance free |
| High reliability | Transient voltage deviation≤1 Steady-state voltage deviation ≤ 0. Voltage harmonic distortion rate ≤2 Telephone harmonic factor ≤2% |
Application:
This generator stator and rotor can be powered by gasoline engines. It is not for wind turbine.
Technical Drawing( 5kw-18kw):

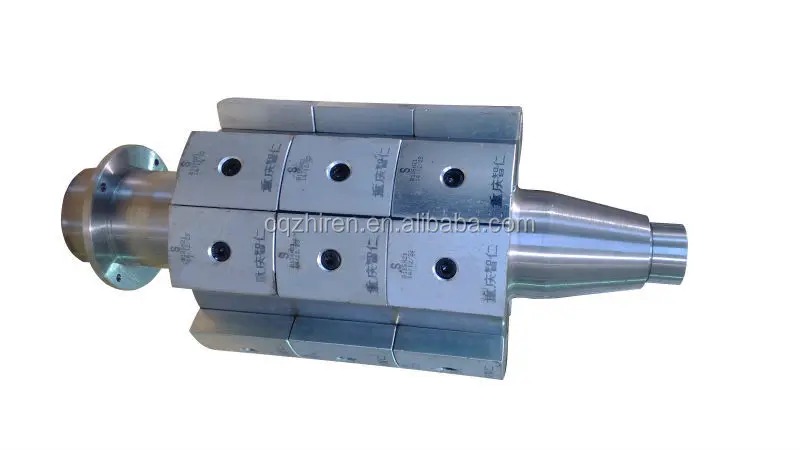

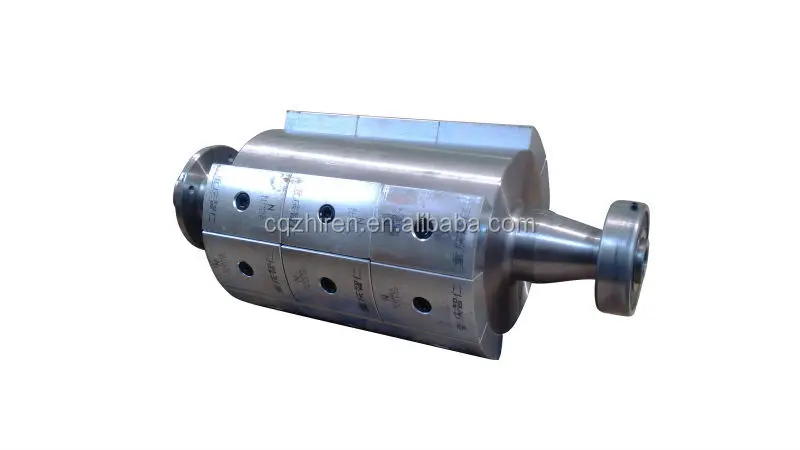

Different Rotor Available:

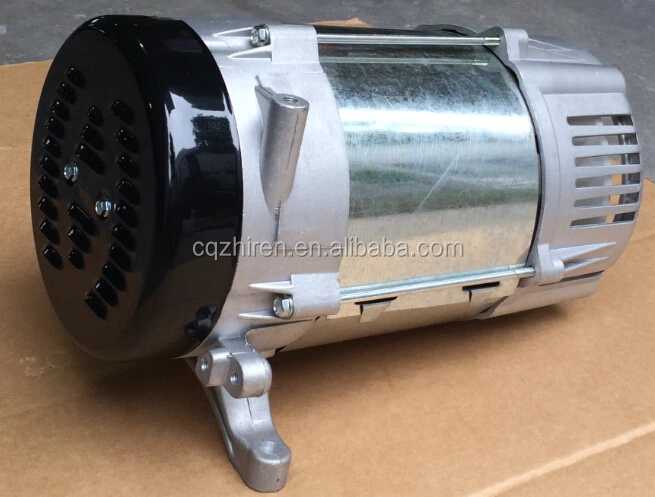

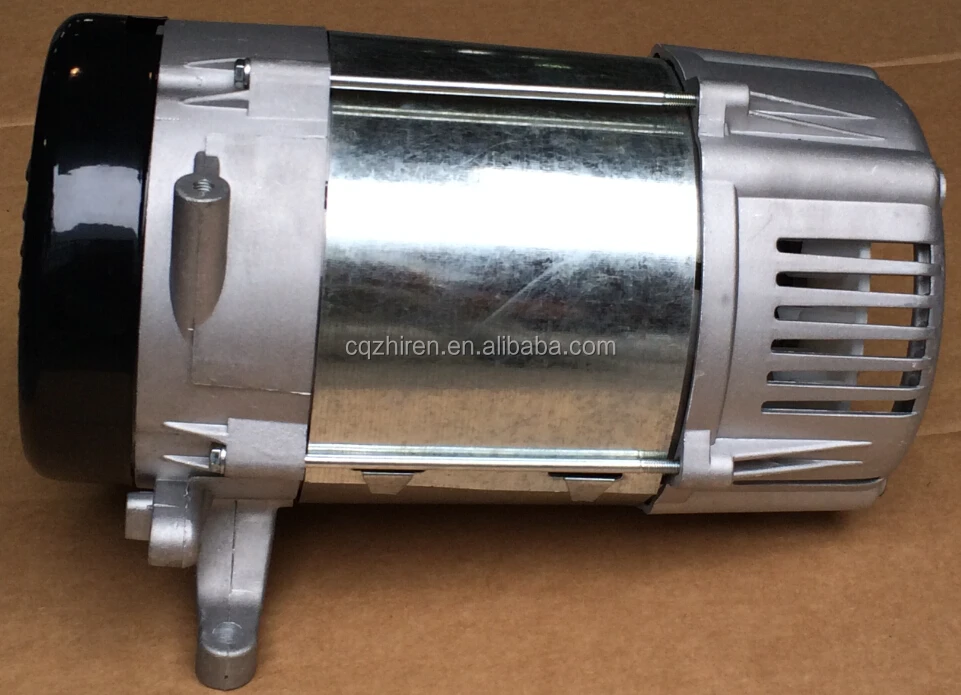

Details Display:


Click to Check for Generator Sets:
| Genset Model | Generator | Engine | Rated capacity | Max Load | Genset sites |
| YH2300M | Rare-Earth Permanent-Magnet Generator | 831 | 2200(VA) | 2300(W) | Click here |
| YH3350M | Rare-Earth Permanent-Magnet Generator | 1062 | 3250(VA) | 3350(W) | Click here |
| YH4100M | Rare-Earth Permanent-Magnet Generator | 1223 | 4000(VA) | 4100(W) | Click here |
| YH6000M | Rare-Earth Permanent-Magnet Generator | 19N1 | 5800(VA) | 6000(W) | Click here |
| YH9600M | Rare-Earth Permanent-Magnet Generator | 25T2 | 9500(VA) | 9600(W) | Click here |
| YH9600ME | Rare-Earth Permanent-Magnet Generator | 25T2 | 9500(VA) | 9600(W) | Click here |
| YH9700MT | Rare-Earth Permanent-Magnet Generator | 25T2 | 9500(VA) | 9700(W) | Click here |
| YH9700MTE | Rare-Earth Permanent-Magnet Generator | 25T2 | 9500(VA) | 9700(W) | Click here |
| YH12000ME | Rare-Earth Permanent-Magnet Generator | 3564 | 11000(VA) | 12000(W) | Click here |
| YH13000MTE | Rare-Earth Permanent-Magnet Generator | 3564 | 11000(VA) | 13000(W) | Click here |
| YH14000ME | Rare-Earth Permanent-Magnet Generator | 3854 | 13000(VA) | 14000(W) | Click here |
| YH14500MTE | Rare-Earth Permanent-Magnet Generator | 3854 | 13000(VA) | 14500(W) | Click here |
| YH15000MTE | Rare-Earth Permanent-Magnet Generator | 3864 | 14000(VA) | 14500(W) | Click here |
| YH17000MTE | Rare-Earth Permanent-Magnet Generator | 5404 | 16200(VA) | 17000(W) | Click here |
| YH21000MTE | Rare-Earth Permanent-Magnet Generator | 5434 | 19500(VA) | 21000(W) | Click here |
| YH23000MTE | Rare-Earth Permanent-Magnet Generator | 6134 | 21500(VA) | 23000(W) | Click here |
Send inquiry to know more about our generator stator and rotor.
