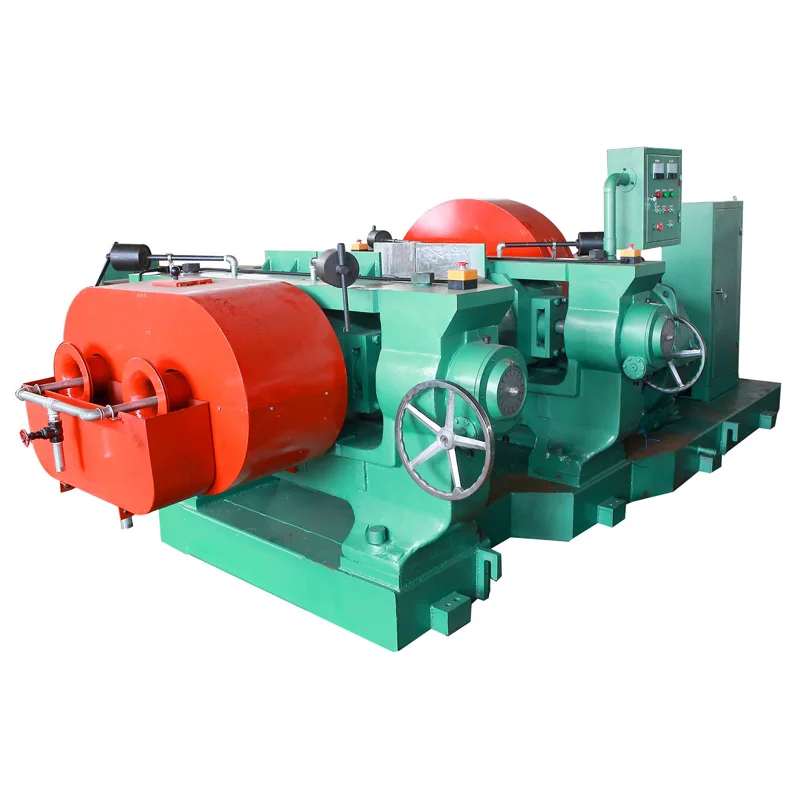

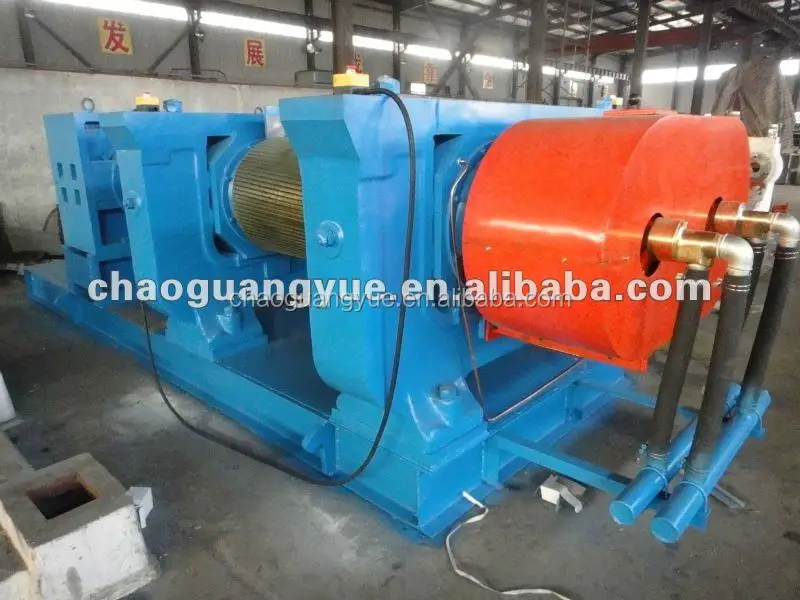

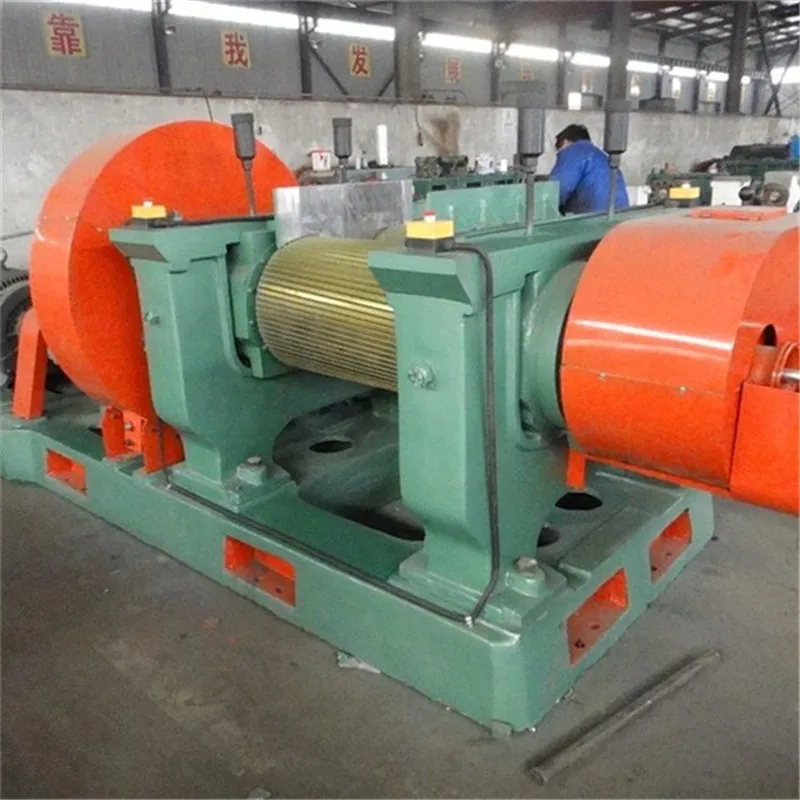

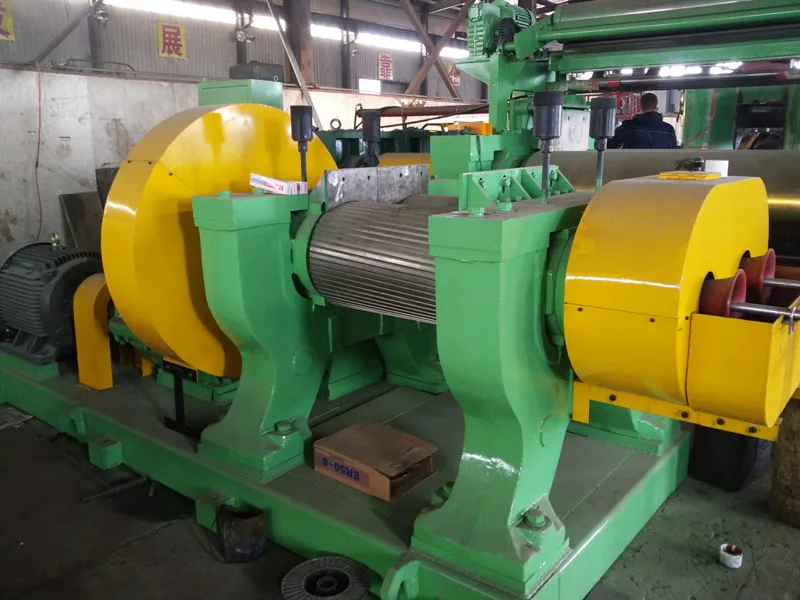

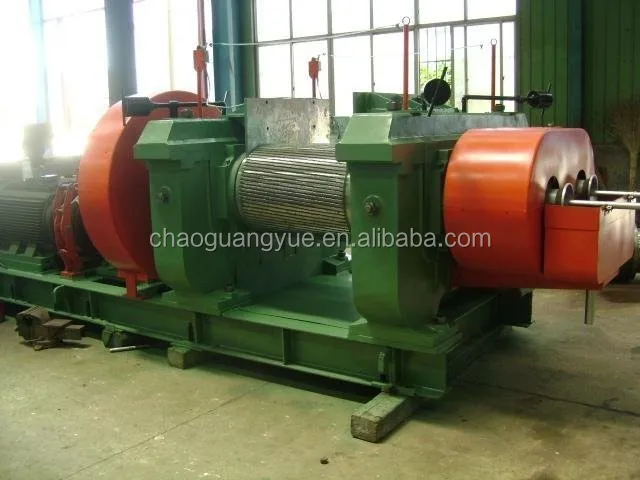

Hot sell XKP waste tire rubber crusher rubber cracker rubber crack mill

Technical Data:

Main structure and characteristic:

  This is a double roll rubber-mixing machine. It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.

  Front and back rolls are parallel mounted in the bearing of frame. By means of reducer, driving gears, speed ratio gears, the motor drives the front and back rolls rotate toward each other so that rubber-cracking is begun. The rolls are made from chilled cast alloy iron; the inner of it is hollow. Steam and cooling water can pass through them so that the surface temperature can be adjusted. Its surface possesses higher hardness and fineness.

  Roller bearing, copper bushing is fixed in the bearing base of frame. Back roll bearing bases are fixed up on frame, and the front roll-bearing base can slide in the guide-rail of frame.

  Roll spacing adjusting is carried out by means of the reverse of hand wheel makes the thread rod drive front bearing base movement. The roll pin reduces when the hand wheel rotates clockwise, otherwise it will increase.

  The emergency stopping device is mounted in the frame. In abnormal situation, pulling the rod, via dynamic, the machine is stopped immediately.

  Adjusting temperature device is two spray pipes with numeral rows of holes, extend the two pipes into the hollow roll, the holes are in the position of working section of the roll. The position of holes slants to 30 degree inner direction so that the spraying water and steam is directed at contacting angle of sizing material, this can control the surface temperature of roll.

Service: Two years guarantee and lifelong maintenance.Any problem,you could contact with us,we will feed back you with 24 hours.

 The tire crushing line can crushing the whole tire into the powder or the grain.It consisted of steel puller,tire cutter,tire shredder,coarse crush,fine grinder and so on.Every line depends the capacity pe year want to reach,the material of the tire and crushing fineness of the finished materials output.

WHY CHOOSE US?

 Qingdao chaoguangyue rubber machineny manufacting co.,itd is  one of the important backbone enterprises in rubber machinery industry in china and is one member of shandong machinery unino company. the main products are daylight press ,mixing mill ,kneader,extruder ,reclaimed rubber machines,tire and inner tube production machines.Powder equipment. .vulcanizing press .

1. specialized in rubber machinery over 20 years;

2.100% real manufacturer, rather than a trading company;

3.Two-year guarantee for whole machine

4.We can design and manufacture all kinds of non-standard machinery according to customers requirement.

5.Our products have passed ISO9001:2008 International Quality Management System Certification, the EURO Cert

6.Main Clients:Southeast Asia, Central Asia, Middle East, South and North America, Europe and other countries and regions.
