Product Overview

Description

rolling shutter side motor





Specifications



1.Max lifting Force:150kgs to 1500kgs
2.Voltage:single phase and three-phase
3.Packing:one set in two export cartons

Main Feature

1.automatically open or close the doors by pressing relevant buttons

2. can be operated by electricity and manual.

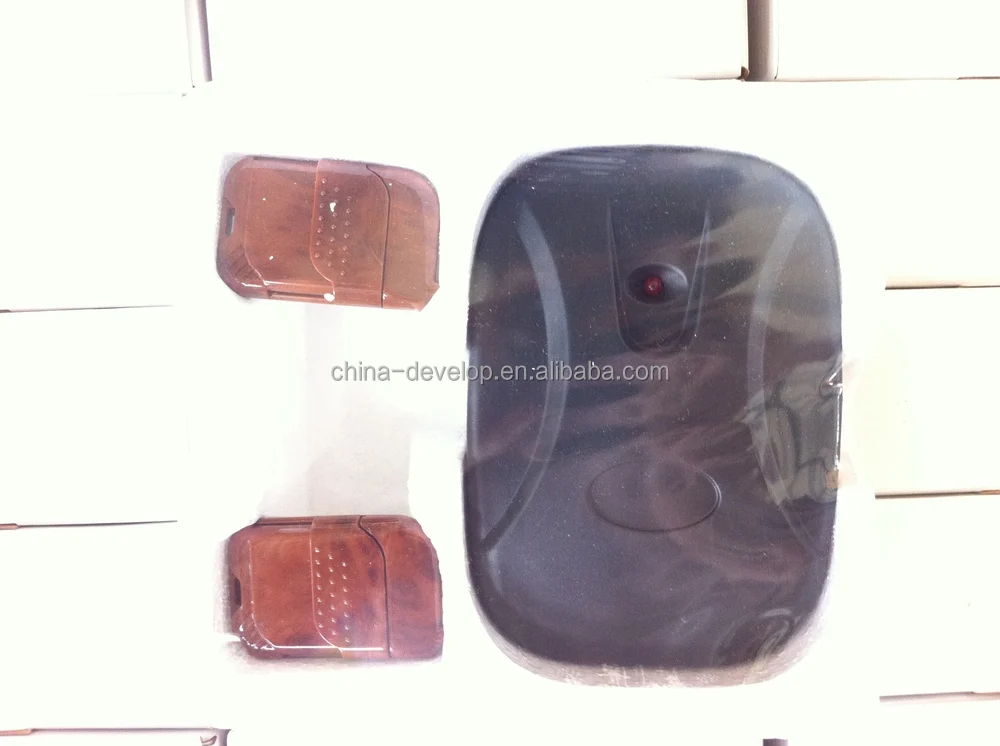

3.can be remote controlled

4. Easy to install and operate

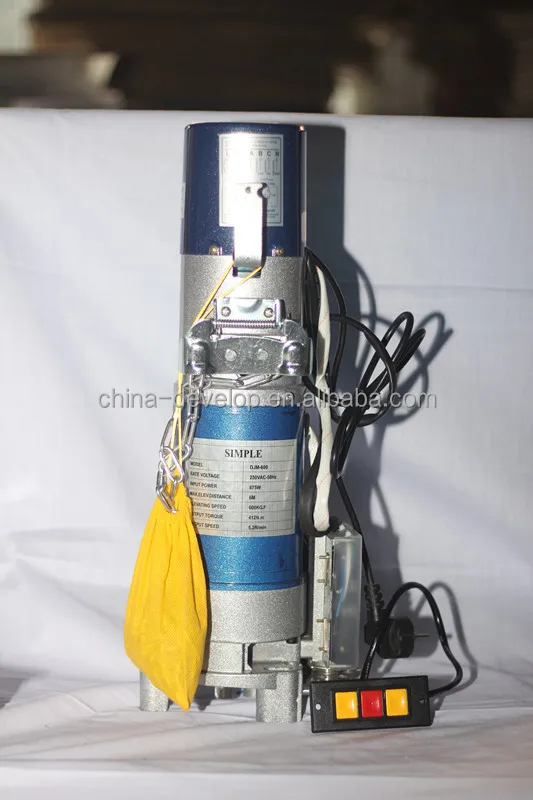

Product

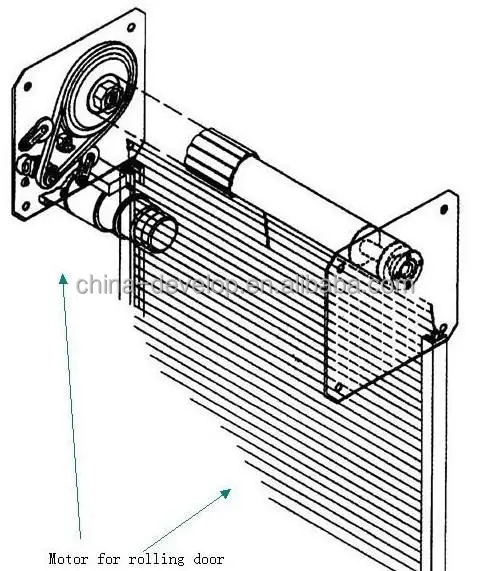

Installation





  Technical Parameters

MODEL	Input Power	Rated Voltage	Rated Current	Output Torque	Barrel / Tube DIA	Output Speed	Max Lifting	Max Lifting	Drive Chain
	(W)	(V)	(A)	(N.M)	(mm)	rpm	Weight (Kgs)	Hight (m)	Pitch
AC-3001P	500	220V50Hz	3	160	114	6.2	300	6	1/2"
AC-6001P	565	220V	2.5	410	140	6.5	600	6	5/8"
AC-8001P	700	220V	1.2	640	140	3.7	800	9	5/8"
AC-10001P	700	220V	3.2	710	140	5.5	1000	9	5/8"
AC-6003P	290	380V	1.4	410	140	6.5	600	6	5/8"
AC-8003P	425	380V	3.5	850	165	5	800	9	5/8"
AC-10003P	400	380V	2	870	165	5.5	1000	9	5/8"
AC-13003P	185	380V	4	1400	165	6.4	1300	9	3/4"
AC-15003P	180	380V	2.2	1600	165	4.9	1500	9	3/4"

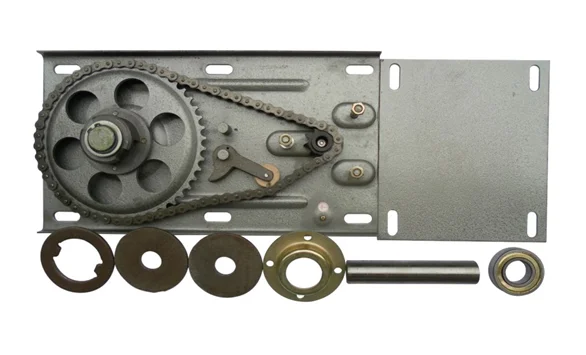

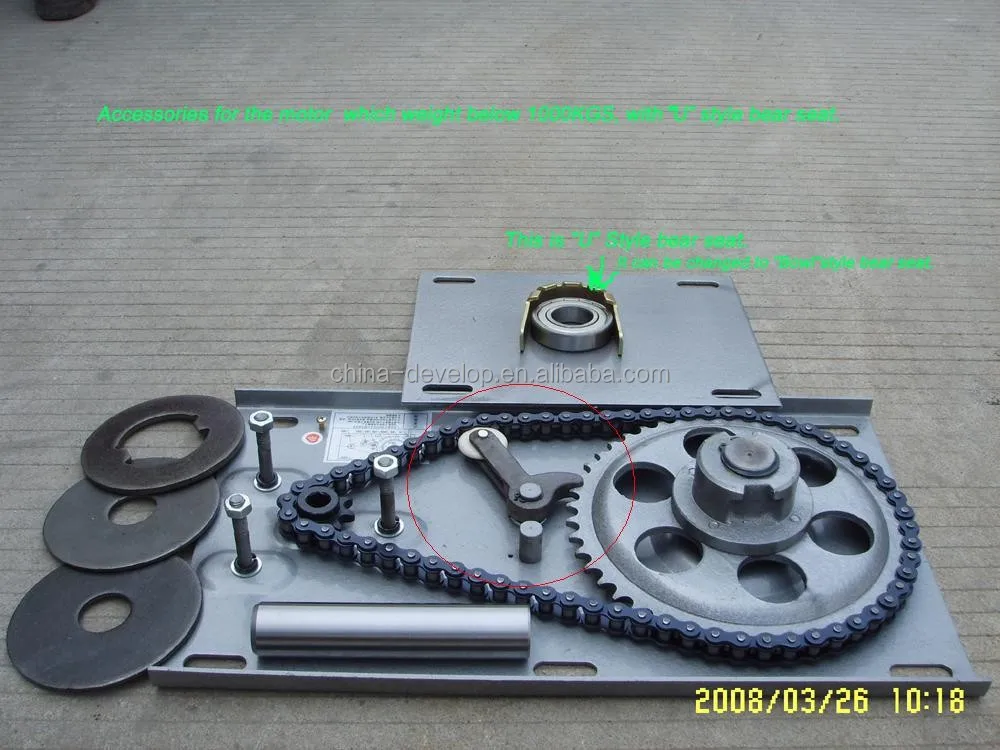

Accessories

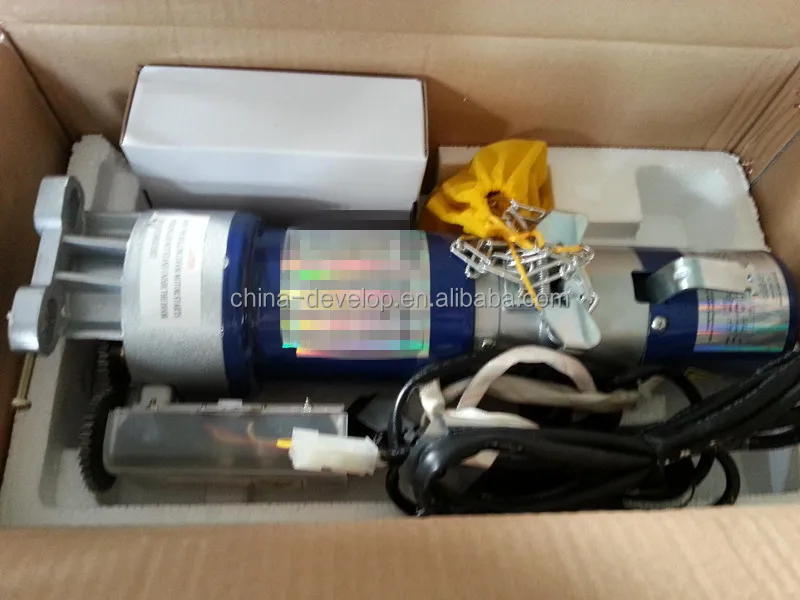

Package
