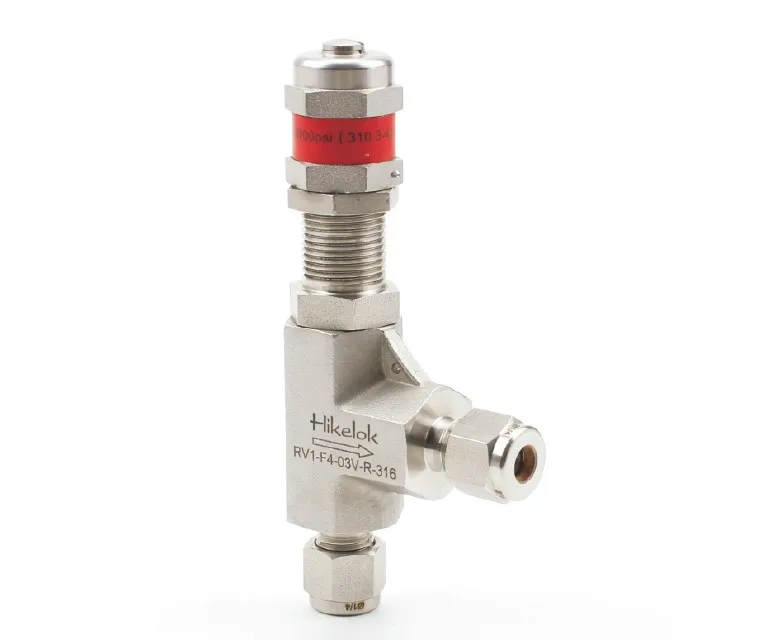

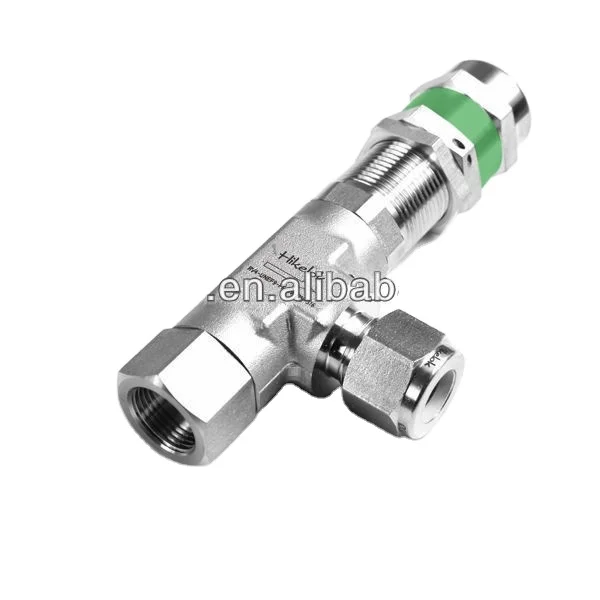

316 stainless steel safety valves Swagelok type pressure relief safety valves for LNG LPG Gas
- Category: >>>
- Supplier: Sailuoke Fluid Equipment Inc.
Share on (60228362993):
Product Overview
Description
1/2 - 2 INCH STAINLESS STEEL SAFETY RELIEF VALVE
Product Description
1. Specification Summary
Body Material | Stainless Steel |
Cleaning Process | Standard Cleaning and Packaging (SC-10) |
Connection Size Port1 | 1/4" |
Connection Type Port1 | NPT |
Connection Size Port2 | 1/4" |
| Connection Type Port2 | FNPT |
2. Details
Ordering Number: RV1-NPT4-FNPT4-6V-RN-316
Connection: 1/4" NPT* 1/4" FNPT
Liquid or gas service
Set pressure from 50 to 6000 psig (3.4 to 413 bar)
Maximum outlet pressure up to 1500 psig (103 bar)
Spring adjusts to provide desired set pressure
The effect of system back pressure is minimized by the design of these valves.
color-coded springs available for a wide range of set pressure
Spring Kits
Ordering number and Dimensions
3. Materials Standards
4. Pressure Ratings
5. How to order?
6. Other Products you may like
Packaging & Shipping
7. Packing and Shipping
Our Services
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are the responsibilities of the system designer and user.
From quote to delivery, we can provide the detailed support you need.
1.CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery
Company Information
- Established in 2011.
- Passed ISO9001-2000 & 2008
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
- 0.5 Hour's Drive from Chengdu Shuangliu Airport.
Main product:
--- Twin Ferrules Series Tube Fittings
--- Ball Valves
--- Check Valves
--- Needle Valves
--- Instrument Manifolds
--- Bellows-Sealed Valves
--- Relief Valve
8. Why choose us?
- Hikelok Relief valve are designed and manufactured to interchange and intermix with Swagelok® and major global brands.
- Metal-to-metal seal connections, non-elastomeric seals were provided for leak-free connections.
- Professional Team to keep good quality and offer the best solution.
- 100% inspection before shipment.
- Gold supplier authenticated by ALIBABA. Safe and easy to buy from us.
FAQ
a. What is the acceptable MOQ?
For this Relief valve, our acceptable MOQ is 10pcs
b. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
c. What is the acceptable payment term?
T/T, Paypal ,Western union
