CNC Aluminum window making machine corner key cutting machine

Price:$4,500.00 - $5,500.00

Price in USD:Details

Quantity:

CNC Aluminum window making machine corner key cutting machine

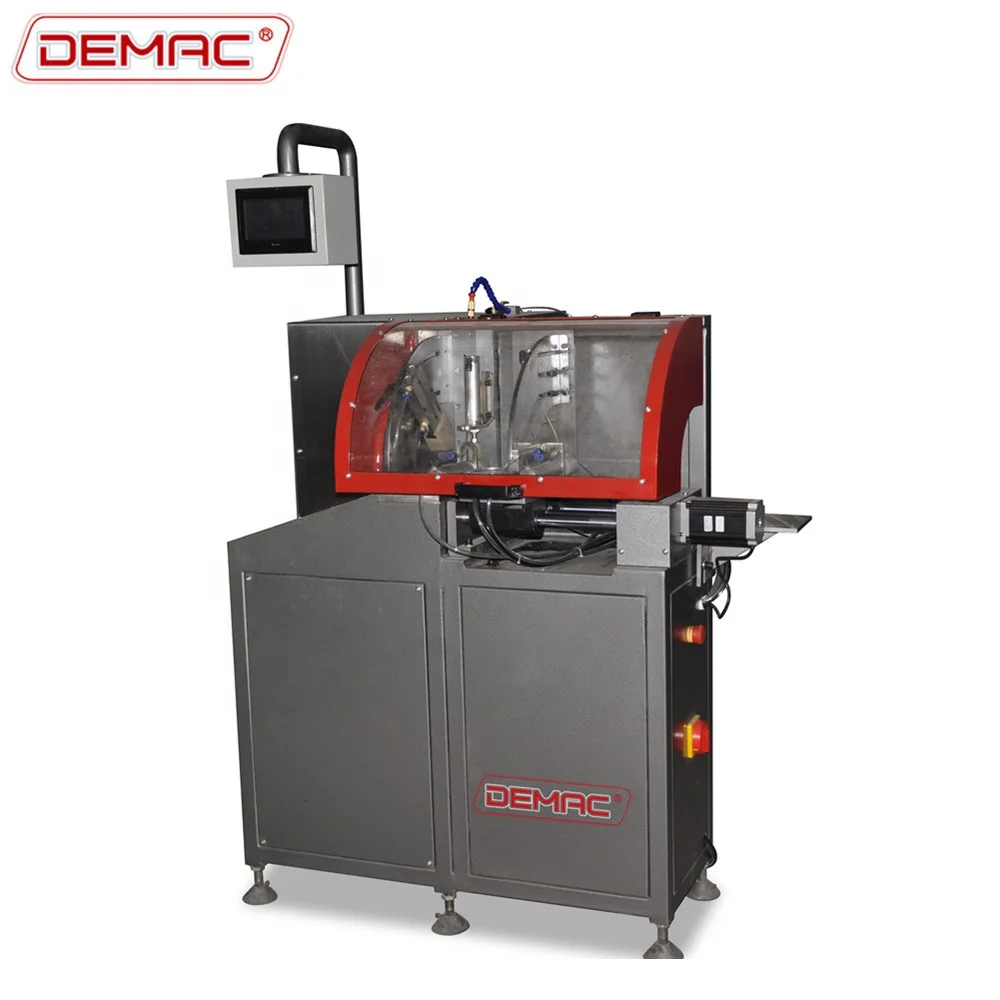

CNC Corner Key Cutting Saw LJJZ-CNC-500

Specification: window making machine

Used for aluminum corner connector profile cutting into right pieces and the 90° aluminum and curtain-wall profile cutting..

With Micro PC CNC control System, Man-Machine interface operation. (LJJZ-CNC-500)

Touch Screen input and control, convenient set the data and perform the order.

Linear bearing, running in lower resistance and high processing accuracy.

Auto profile feeding system

Automatic feeding/cutting after loading profile, convenient cooperation, safety reliable.

Setting cutting quantity in advance and digital display the cutting length and quantity.

Suitable for the batch production of corner key for aluminum window.

Technical Parameter: window making machine

Power supply	Made to order

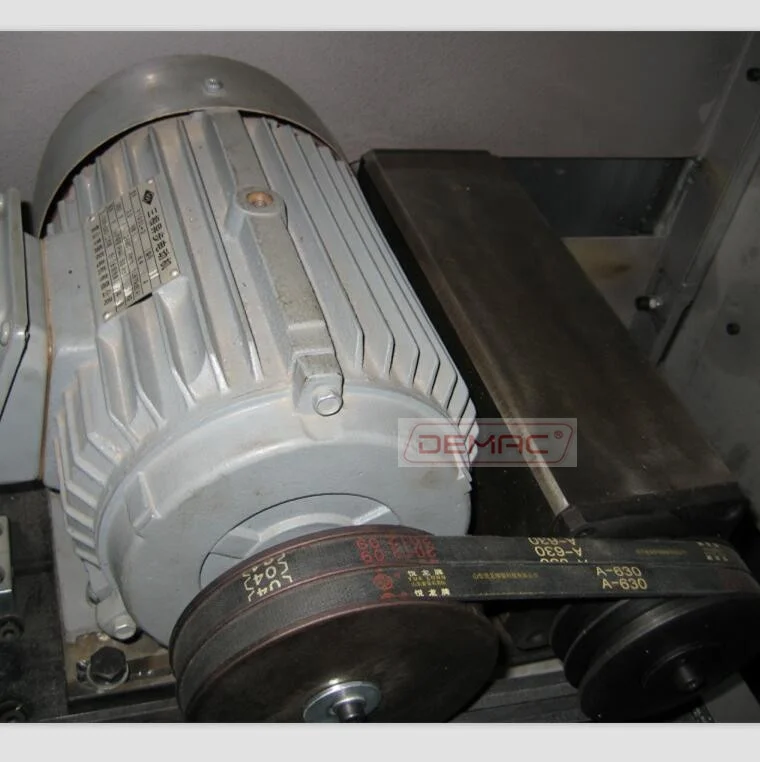

Motor power	2.2KW
Motor rotary speed	2850r/min
Operation air pressure	0.5~0.8Mpa
Air consumption	80L/min
auto-feeding length	3~180mm
Cutting length	Non limited when manual cutting
Saw blade cut width	max 125mm
Feeding speed	stepless timing 0~3m/min
Saw blade specification	φ500mm×4.4mm×φ30mm Z=120
Cutting width/height	140mm/140 mm
Dimension	5530mm×1770mm×1840mm
Weight	500kg
