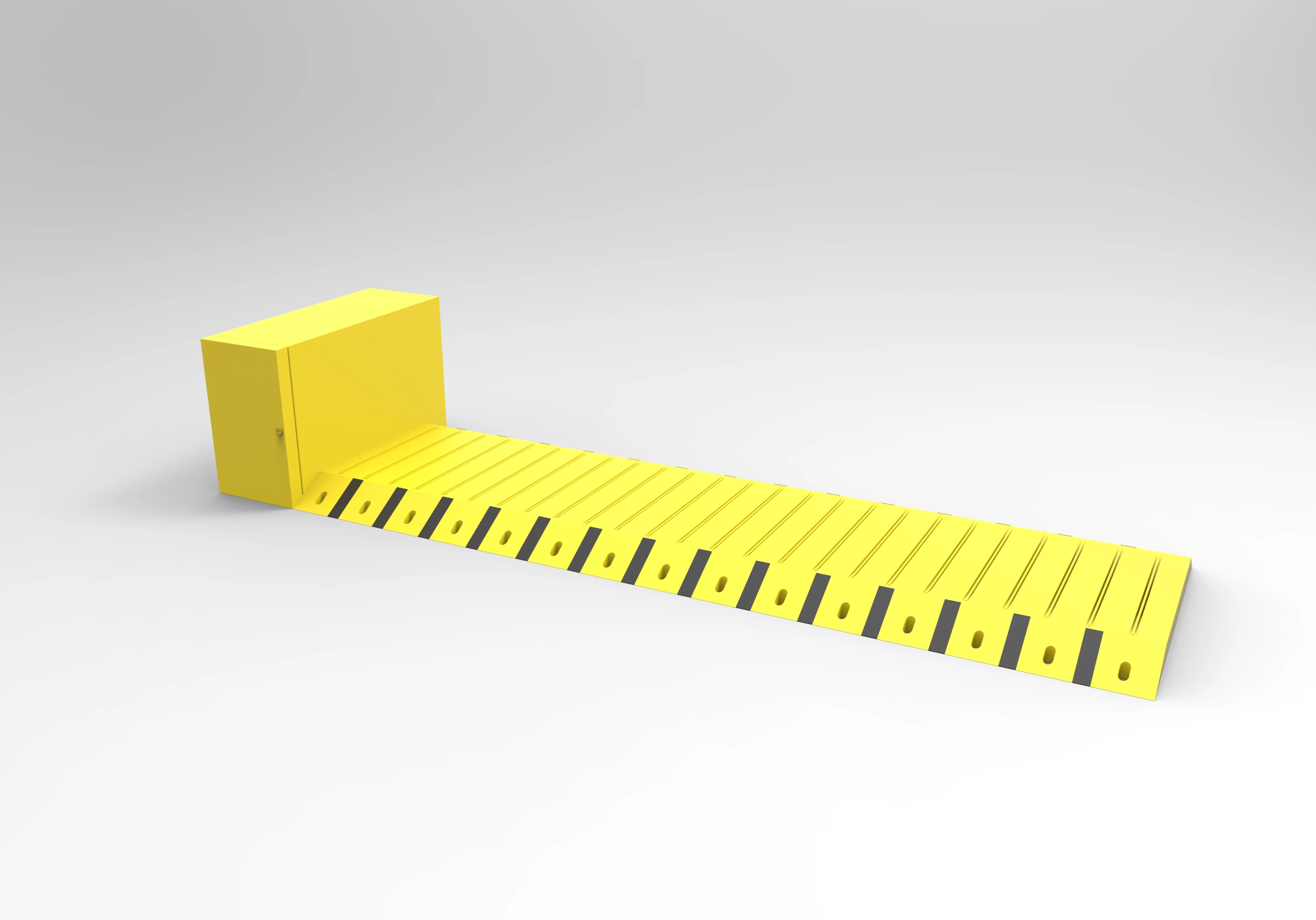

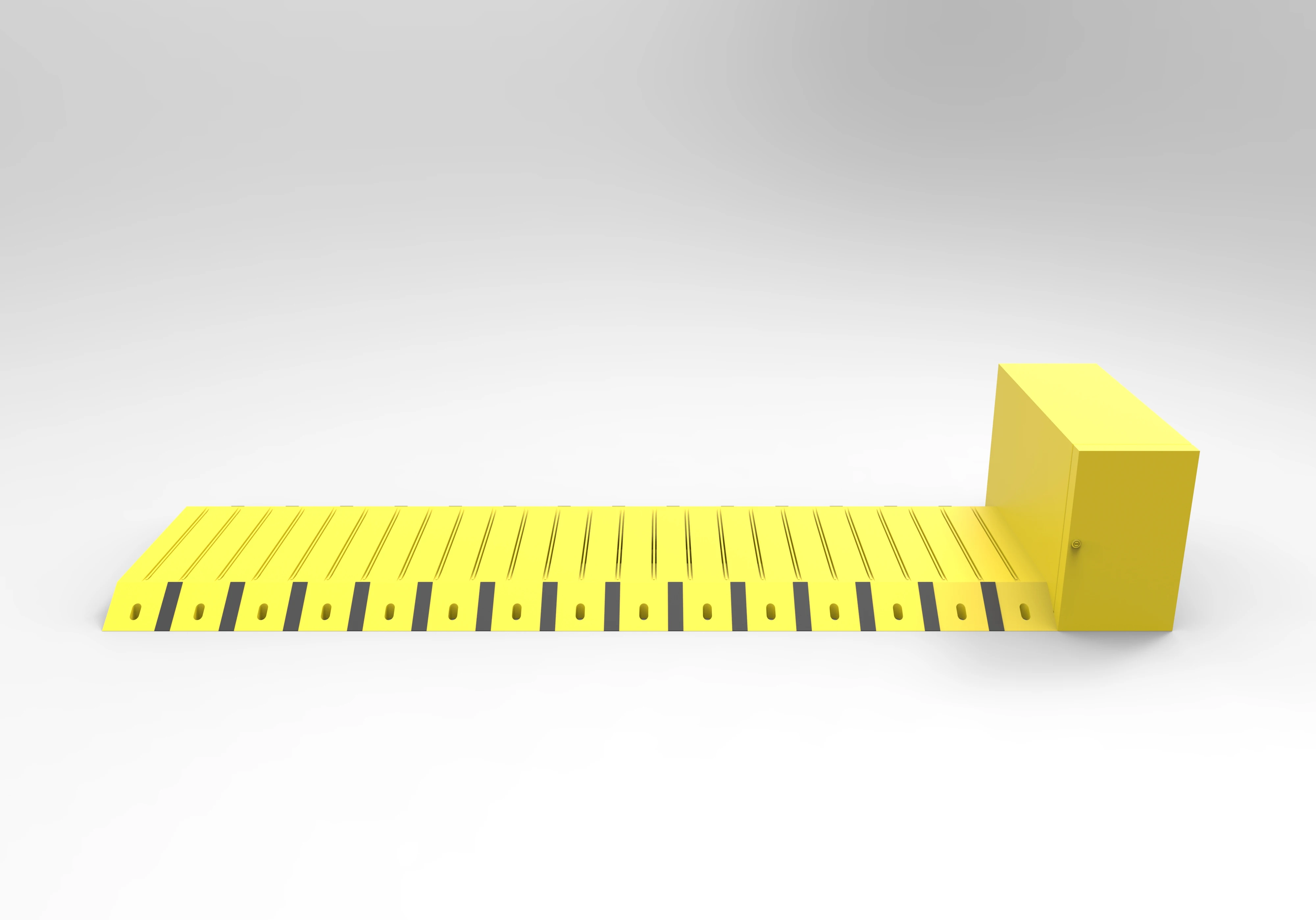

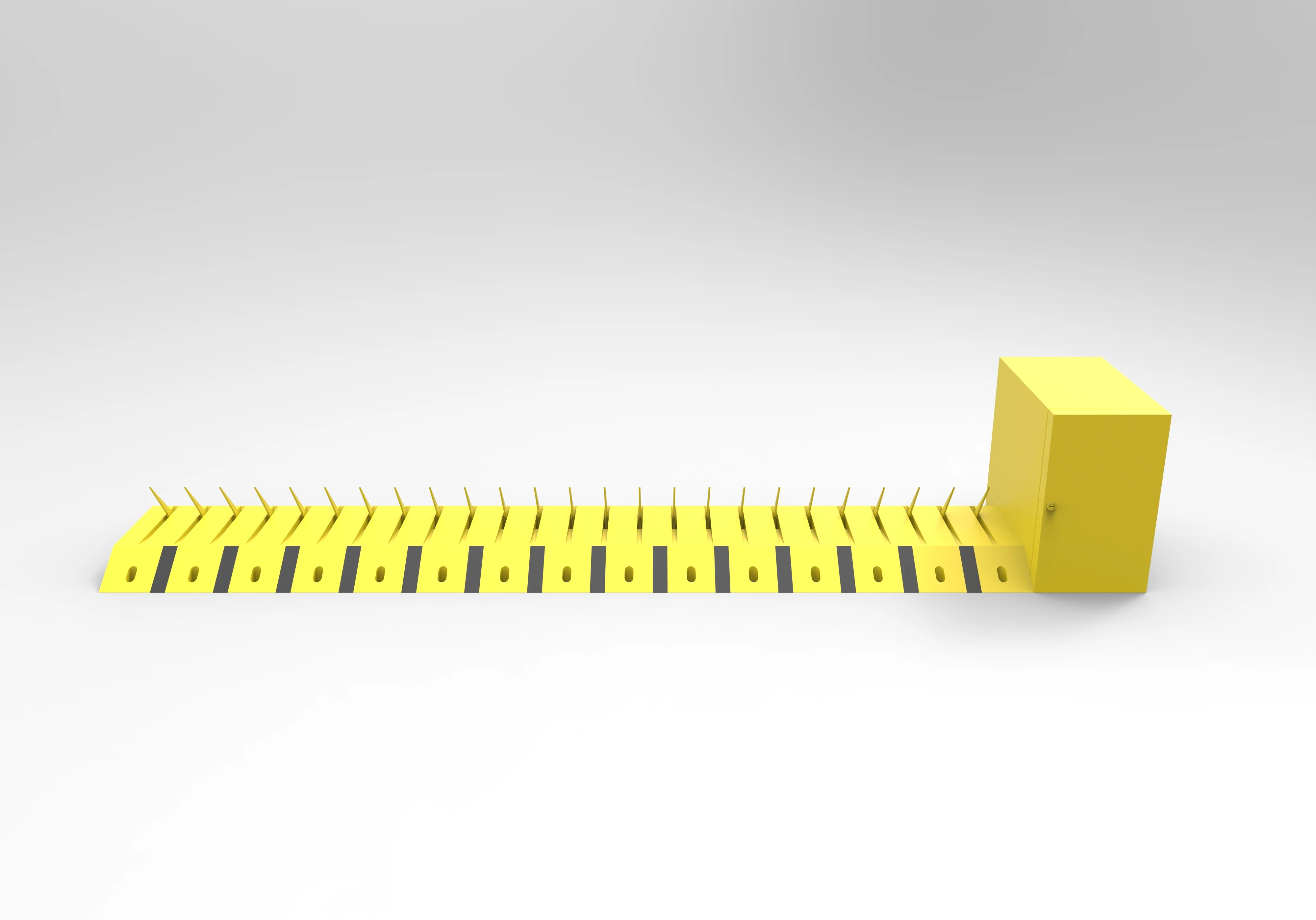

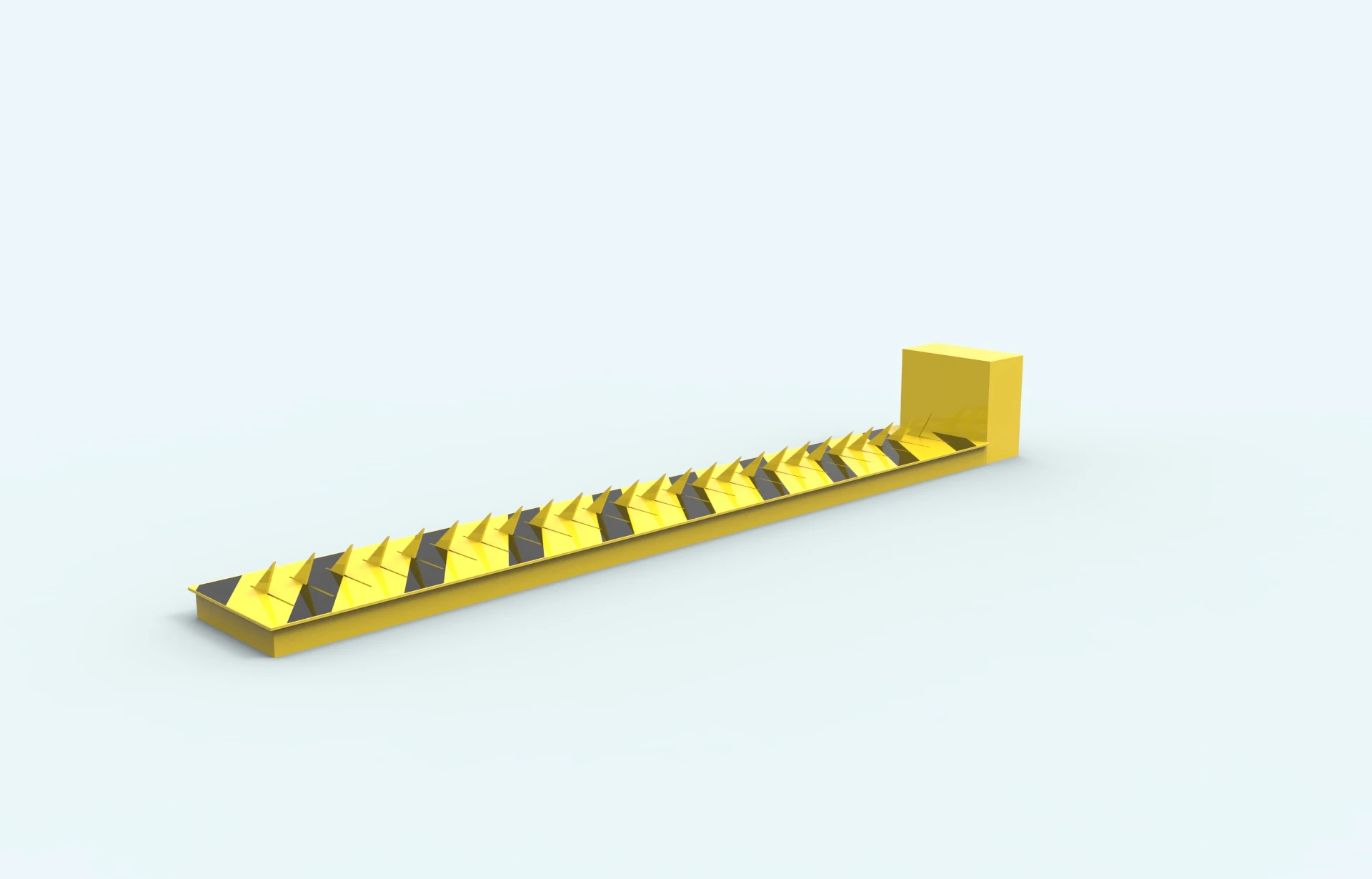

A3 steel traffic road tyre killer with spikes full automatic remote control for parking lot
- Category: >>>
- Supplier: Shenzhen TDZ Technology Co. Ltd
Share on (60233404575):
Product Overview
Description
A3 steel traffic road tyre killer with spikes full automatic remote control for parking lot
1,Short introduction
traffic spikes is as principle of nail plate to set protection device on the nail .it doesn’t play a role when prople ,animal and bicycles pass through by mistake because it is small load . so when the card pass it play it’s pole because the big load .
2,Feature
The spikes was made of A3 steel (shape similar to the deceleration zone) and the steel blade components, the use of mechatronic control device, easy to operate, safe, reliable, non-permitted vehicles and intercept terrorist vehicle traffic advanced equipment.
When you need to perform the interception mission, press the remote control up key, steel blade broke births within the immediately stretched out, as a vehicle to force through the tires are punctured and deflated, while steel blade can effectively prevent the passage of wheels and wheel are forced to stop.
Intercept mission ended, press the remote control key drop, steel blade immediately return to the ground level, into standby.
The product has a broken tire, car stop dual role, inexpensive, can make a partial substitute for anti-wall
3,Technical parameters
Applications | Key areas of intersection safety |
Overall material | Steel production |
Surface Treatment | Spray |
Degree of protection | IP67 |
color | Black and yellow |
length | 3000mm (Can be customized up to 8 meters long) |
Width | 550mm The total width of 550mm equipment |
weight | About 150kg/m |
height | 50mm |
Weight-bearing | 60T |
Blade height rises | 120mm |
Blade thickness | 12mm |
Blade pitch | 120mm |
Movement form | Hydraulic |
Work Environment | -40℃~+70℃ |
Lift Control | Proximity wire |
Control distance | ≤100M |
Rise / fall time | 2seconds |
Power supply | 220v(±10)50-60HZ |
Output Power | 350W |
Control unit | Control logic unit |
4, Installation
1)Installation requires interception pavement width
According to the customers’s actual width of the selected intersection,traffic spikes intercept width.
Standard size: 2.5m/3m/3.5m/4m/4.5m/5.5m
2)Installation of environmental requirements
A)An intersection of roads need to be installed must have sufficient flatness.
B)Install the horse must be a concrete pouring pavement, (because you want to play on the road expansion bolts)
C)If the road is not the concrete pouring, do local casting, (need to play the position bolts made of cement pavement c25Above grade cement)Junction or gate 3 must be installed in the power supply is available. (220v)
D)road side mounting breaking child transmission of sufficient installed workstation space (control cabinet) 0.7x0.7 meters.
3)Installation
A)Easy to install, just a few bolts marked on it (according to the length of breaking child may be)
B)Do drainage, dust treatment according to geographical situation pavement
C)After installation the spikes must be carried out with the broken tire power train debugging.
Pls note :if didn’t use in long -term, pls deal with mine car stop maintenance and repair. (1) to do waterproofing and moisture work equipment, to avoid equipment failure due to damp; (2) prevent rust phenomenon occurs cylinder and lubricated periodically to prevent rust affect performance; (3)control box for seals and other components need to be checked regularly to see if it is in good condition, to avoid damage by high temperatures and corrosion.
5.Using and maintenance
1)traffic spikes operations can be divided into the remote control button / footswitch, and other facilities linkage.
A remote control: the button on the remote control
Stop button
up key
down key
The B button / footswitch a button, the next stop
The B footswitch (red) under (green)
2)Maintenance
A regular inspection of equipment, operate the lift broke births, check for normal operation.
B regularly refuel driveshaft broke births (SKF butter)
For the control cabinet to view:
a)proof fan is running;
b)Control indicator system;
c) Control cabinet with breaking child junction ring is damaged;
d) Check the power switch;
e)Check whether the motor is running noise.
Packaging & Shipping
Payment Terms: LC, TT, Western Union, Cash
Packaging: paper carton and wooden case
Shipping Way:
1. Fast way: By express courier, door to door, such as DHL, FedEx, UPS, TNT, EMS.
By air, to airport
2. Cheap way: By sea.
Our Services
Warranty:
One year Warranty, from the date of delivery, a lifetime technical support.
Feedback quickly:
1. 24 hours online service and reply your inquiry within 8 hours.
2. We could provide Online supports for you when need supports on testing.
Advantage:
1.One stop security solution provider, can help you save time and costs.
2.Good quality with competitive price, offer OEM and ODM service.
3. Professional technique supports and great after sell service.
4. Fastest delivery and safe shipping way.
Payment terms:
T/T,L/C, Western Union, cash etc.
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A1:We keep good quality and competitive price to ensure our customers benefit ;
A2:We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q8:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the whole unit product and the
accessories.
Q9:Is OEM,ODM available?
A:Yes, it is available.
