GCD5-100 five torch straight gas cutting machine
US $150.00-$200.00
SIGN 2030 gantry cnc plasma cutting/ cnc plama cutter gantry/ plasma flame cutting machine
- Category: Gas Cutting Machine >>>
- Supplier: Jinan Sign CNC Equipment Co. Ltd.
Share on (60234890944):
Product Overview
Description

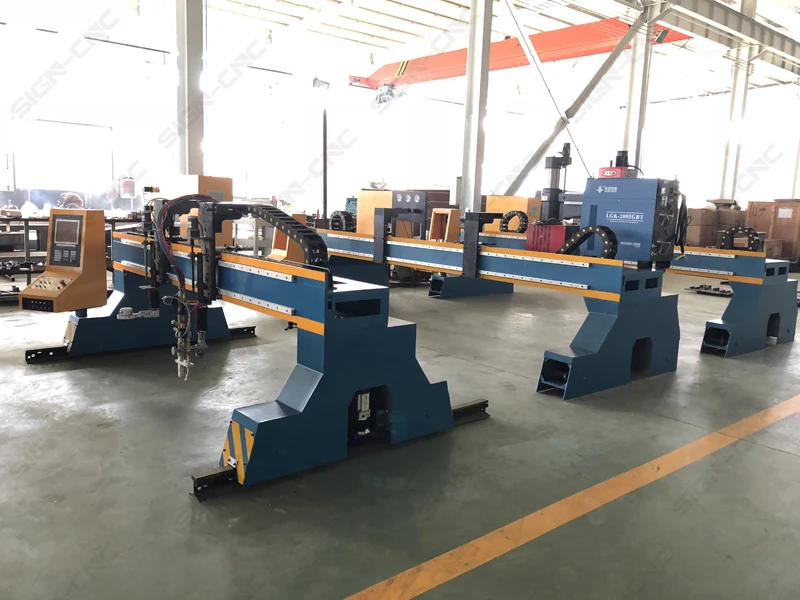

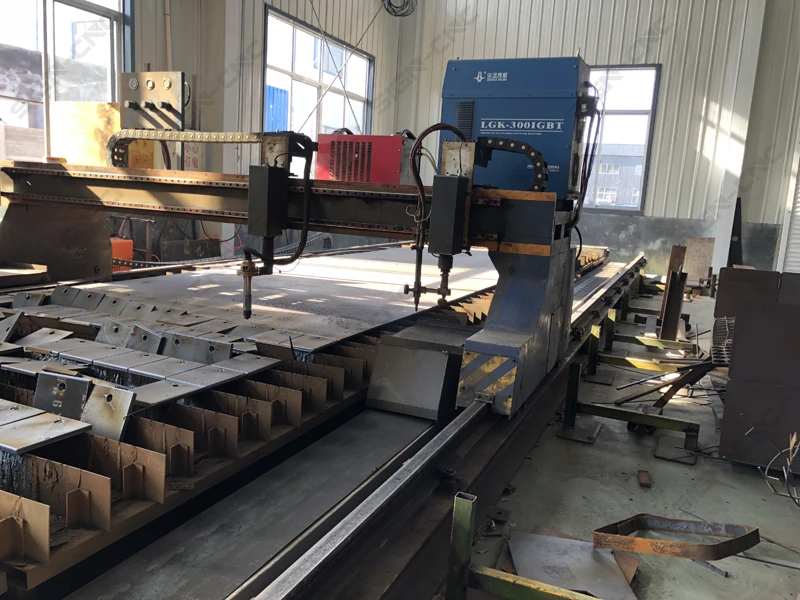

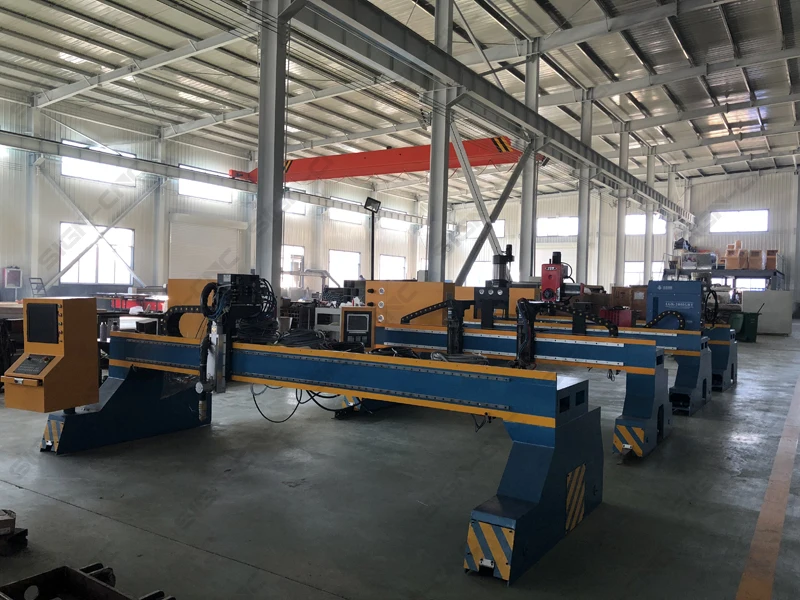

SIGN 2030 gantry cnc plasma cutting/ cnc plama cutter gantry/ plasma flame cutting machine
Product Description
Features
1.With auto-ignition, auto-lifting, auto-cutting, powder-spay printing, re-cutting, auto-height control for cutting torch as options
2.Closed loop control for servo system
3.No clearance transmission for gear and gap, and with automatic acceleration and deceleration, cutting sequential control, art parameters set-up and kerf-compensation function
4.This machine not only can do strip cutting in batch, but also can cut different shapes
5.Main beam is whole press brake, welded and stress-relieved
6.With stable structure and good rigidity, and no deformation after long time using, servo motor, reducer, gas pipe and solenoid valve,
cutting torches are all international famous brand, ensuring the quality stable and reliable
Technical Parameters
| model | SIGN-2030 |
| Physical dimension/length of guide | 2000×3000(mm) |
| Laser type | plasma and flame |
| Cutting thickness | Flame: 6~200 (mm). |
| Software Support | InteGNPS/Artcut6/Caxa/Auto CAD/Art CAM |
| Working power | AC220V-50HZ |
| Cutting precision | ±0.5 mm |
| Image ready | English |
| Transmission mode | USB/SD/RS232 |
| Slotting compensation | Automatic or artificial set |
| Cutting gas | Oxygen, Acetylene, Propane |
| Heave travel of cutting touch(mm) | 1-150mm |
| Flame Cutting rate | 50~700mm/min |
| Heave height of cutting touch | ≤200mm |
| Straight line repeat accuracy | ±0.5mm/10m |
| Ambient temperature | -5~45 |
| Relative humidity | <95% non-condensation |
| Neighboring environment | Ventilating, no greater impact |
Company Information
We have a strong professional technical team to provide the best products. We have experienced managers with the most perfect price system integration schemes for our customers.
We have been experienced in exporting the CNC machine for over 8 years, familiar with the different requirements from all kinds lines Meanwhile, we insist the principle of “the best products, the most reasonable price, the maximum benefits for customers”, there are prestigious fame in the industry business field. All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours. |
Packaging & Shipping
| Standard export wooden box, and all the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation. |
1. Processing date : 25 working days |
2. Payment terms : 50% advance, the other 50% should be paide before shipping |
4. Laser power brand: Raycus |
5. Warranty :one year |
Product Description
Our Services
Point 1:
Control system CD for software in English and with manual. 24 hours technical support by call, email, skype, whatsapp, wechat and so on. Free training course in our factory Engineer available to service machinery overseas Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts discounted / agent price for you. |
Contact us
| How to Contact US? |
| Send your Inquiry Details in the below for more information,Click "Send" Now. |
