Автоматическая портативная газовая машина с ЧПУ и запасными частями

Product Overview

Description

Automatic portable cnc gas cutting machine with spare parts

Machine Introduction :

1.Programmable cutting arbitrary shape parts of line and arc .

2.Dynamic and static graphic display, easy to learn.Can convert CAD file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs and also can program and operate directly on the machine .

3.Track and movement organizations adopt unique design, ensuring the working precision of machine.

4. Can use flame cutting (gas cutting ) and plasma cutting .

5.Interfaces in English or Chinese can be converted freely.

6.Economical, Portable and easy to operate.

7.Great working stability, effective shield plasma high frequency interference.



Technical data



No.	Technical specification
1	Model	JX-1525	JX-1530
2	Input voltage	AC 220/110V±10%VAC 50/60Hz
3	Effective cutting range(mm)	1500*2500	1500*3000
4	Flame cutting gas	Oxygen+ propane or acetylene
5	Plasma cutting gas	Air compressor
6	Cross beam width*guide rail length (mm)	2300*3500mm
7	Cutting speed mm/min	0-4000mm/min
8	Flame Cutting thickness (mm)	1-150 (Oxygen + acetylene or propane)
9	Plasma Cutting thickness(mm)	0-30mm(according to power source capacity)
10	Move precision	±0.2mm/m
11	Torch	Flame, electric height adjustment(±60mm) Plasma, arc voltage height
12	Cutting system	Start control system/Shanghai Fangling
13	Host weight(kg)	45
14	Total weight(kg)	100	120
15	Gas pressure(Mpa)	Max.0.1
16	Oxygen pressure(Mpa)	Max.0.7
17	Plasma cutter	60A-160A(according to the metal thickness)
18	Emergency stop	Yes
19	Working temperature	-5~45℃
20	Power	350w
21	Processing Materials	Iron, steel aluminum sheets, galvanized sheets, Titanium plates

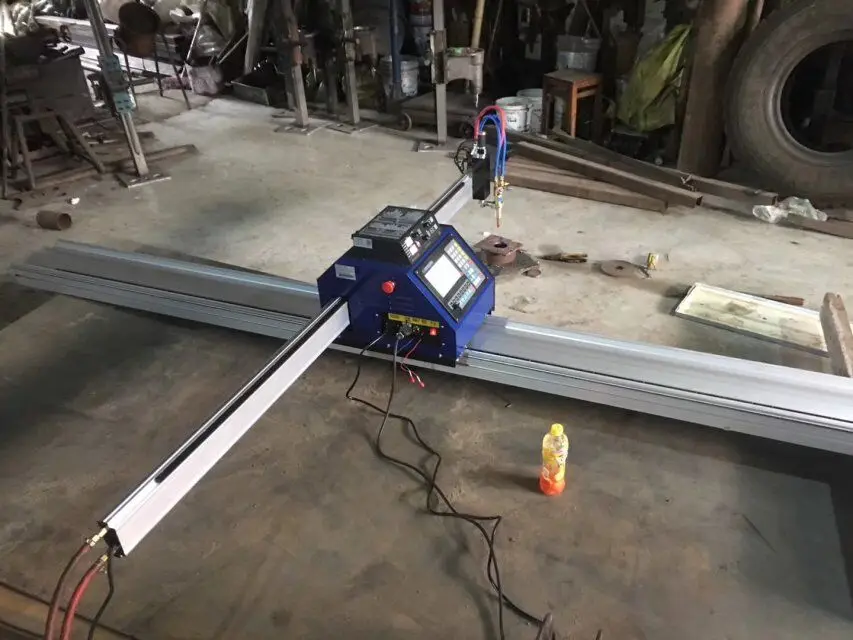

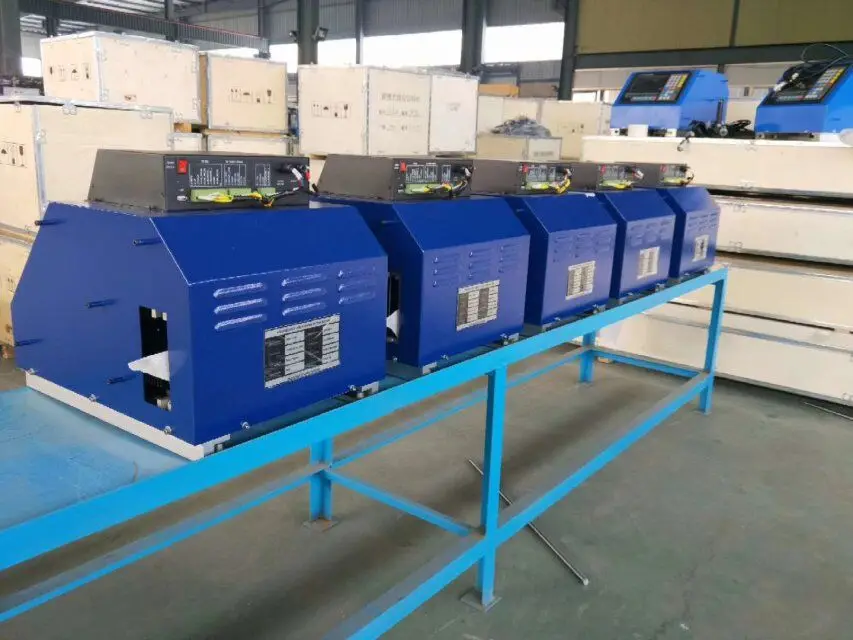

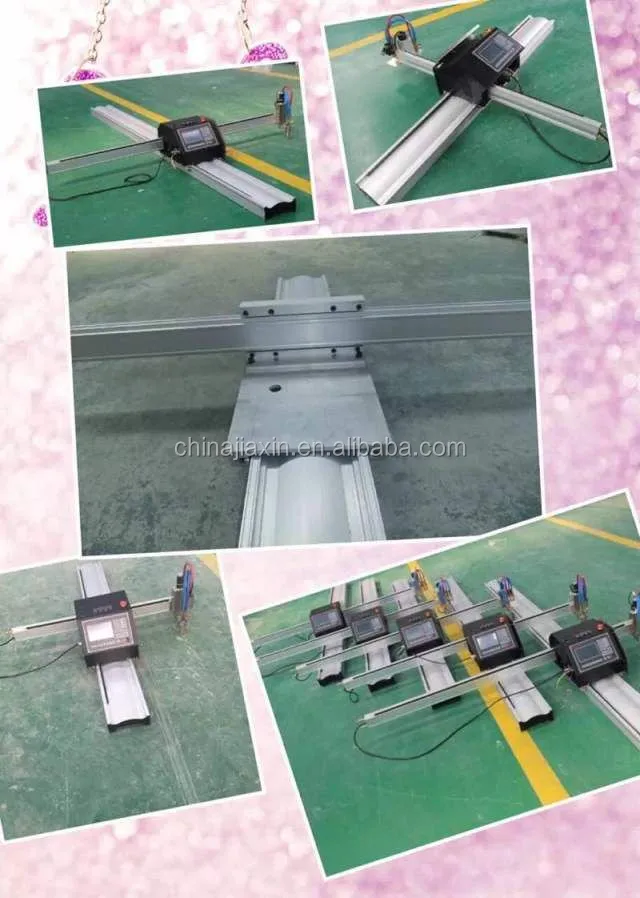

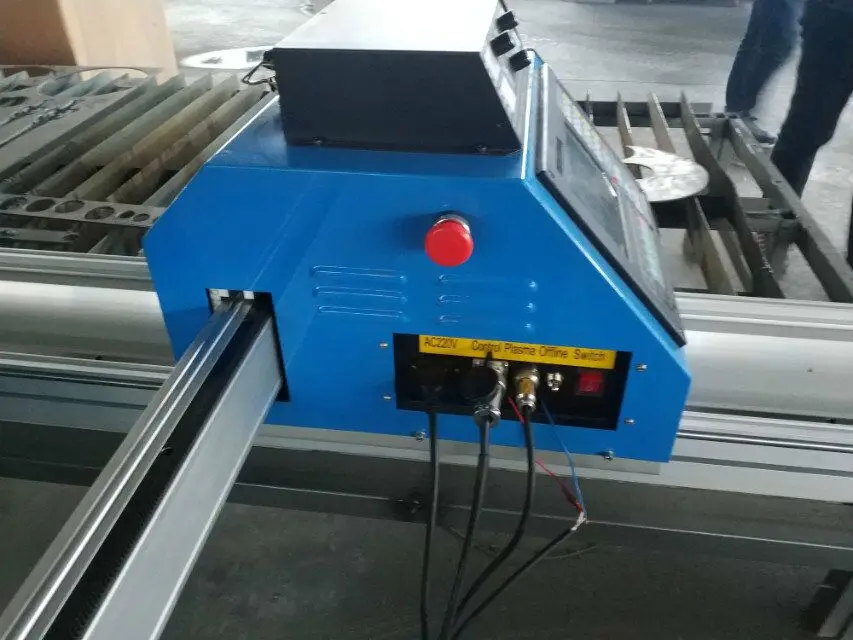

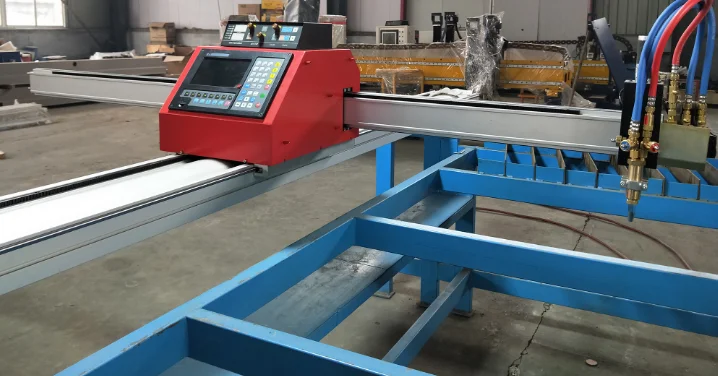

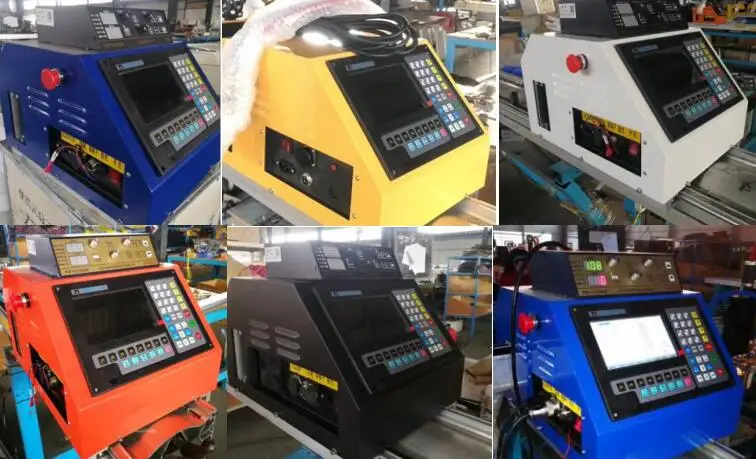

Picture show

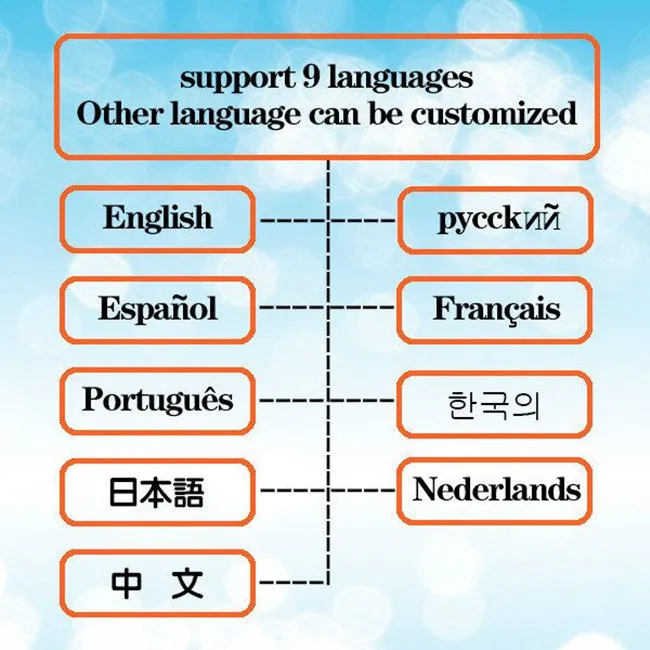

 9 Languages

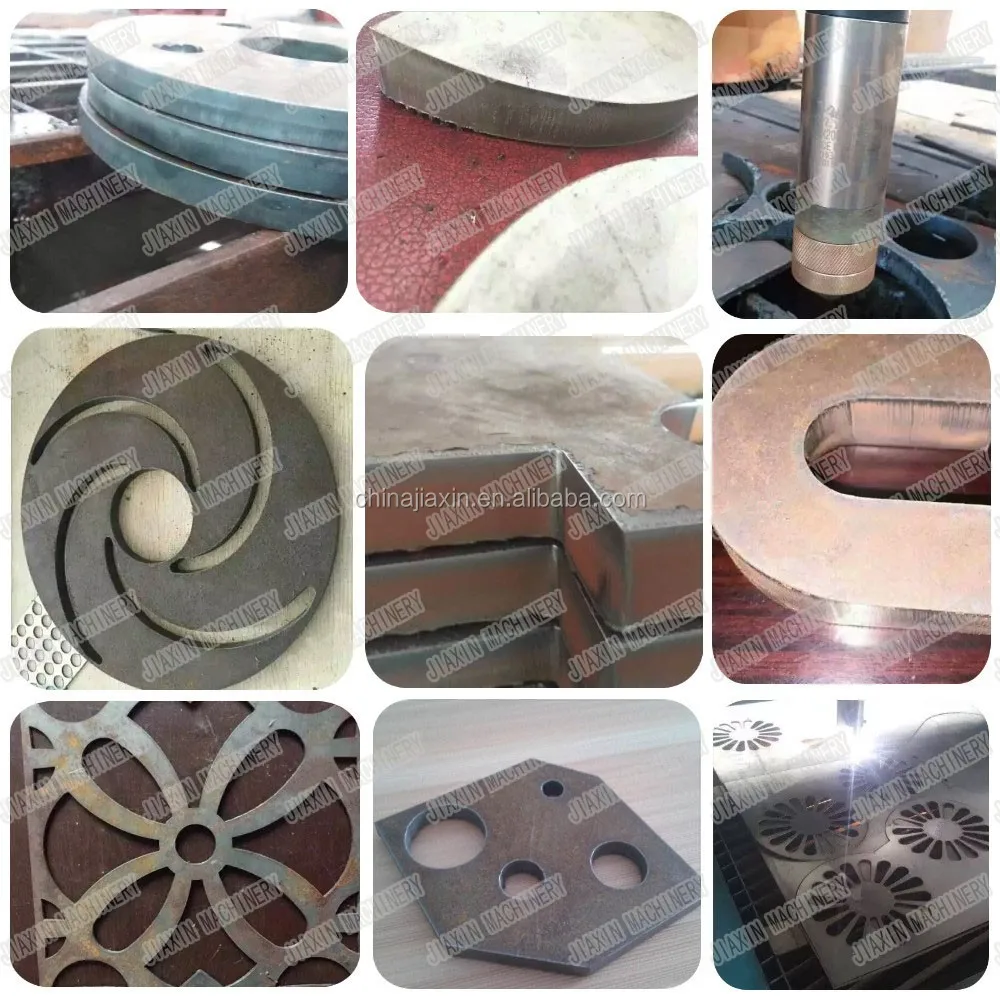

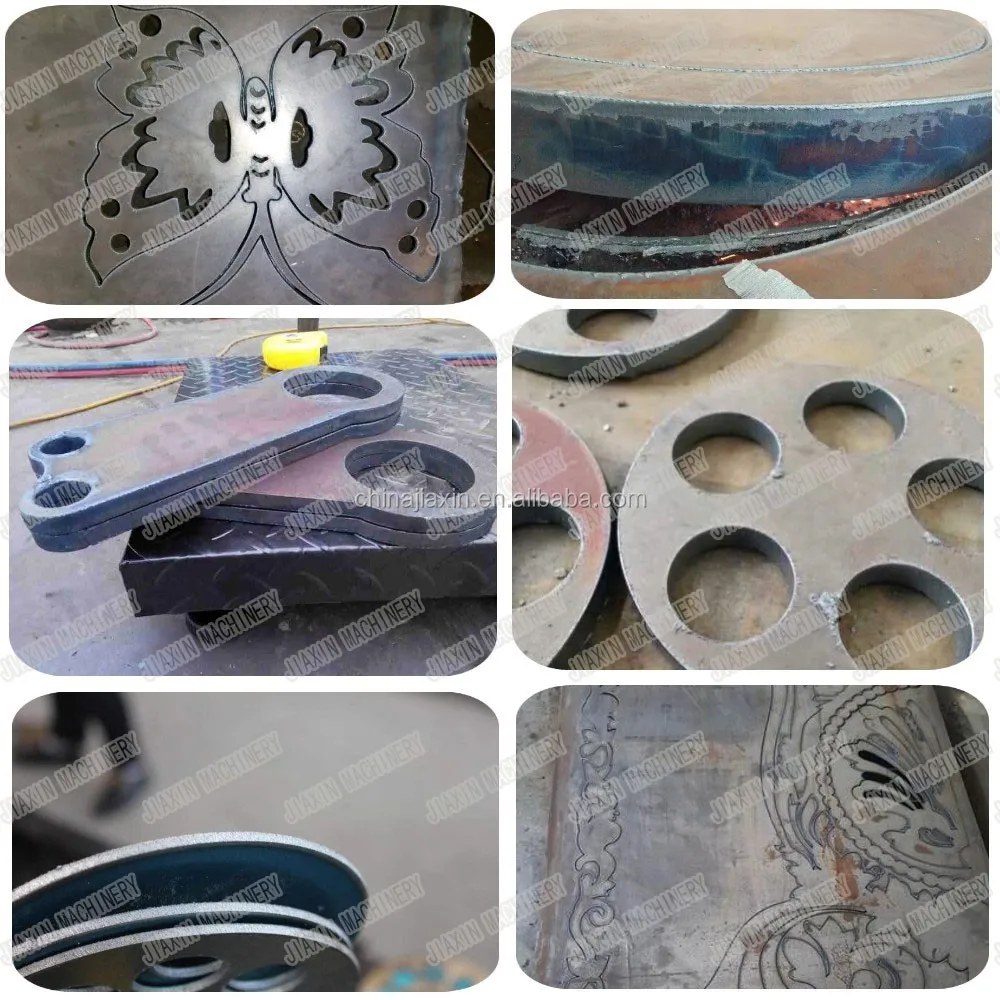

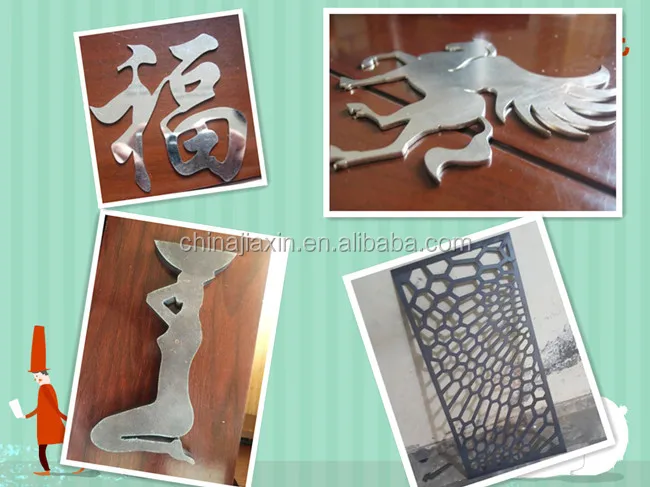

Sample

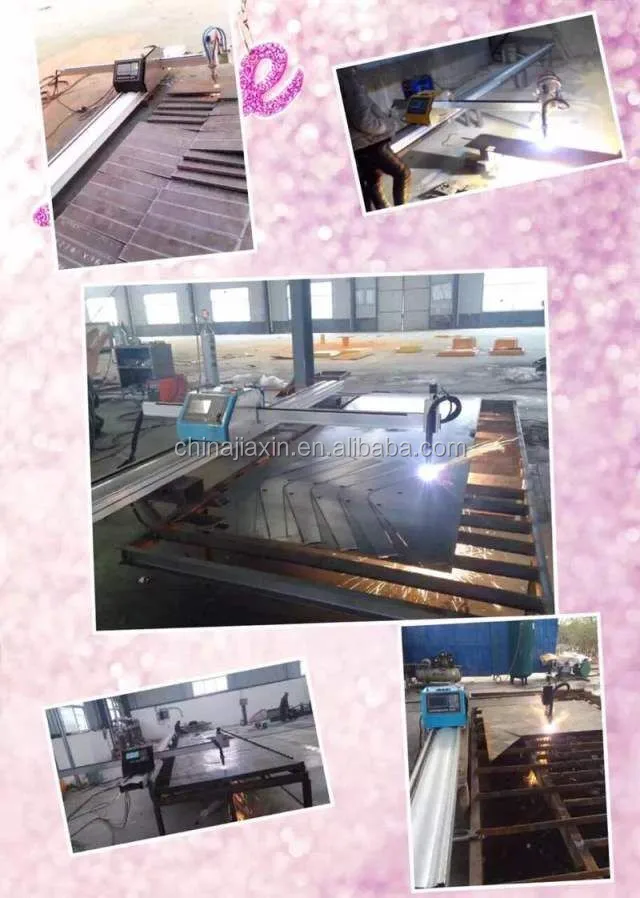

 Working pictures

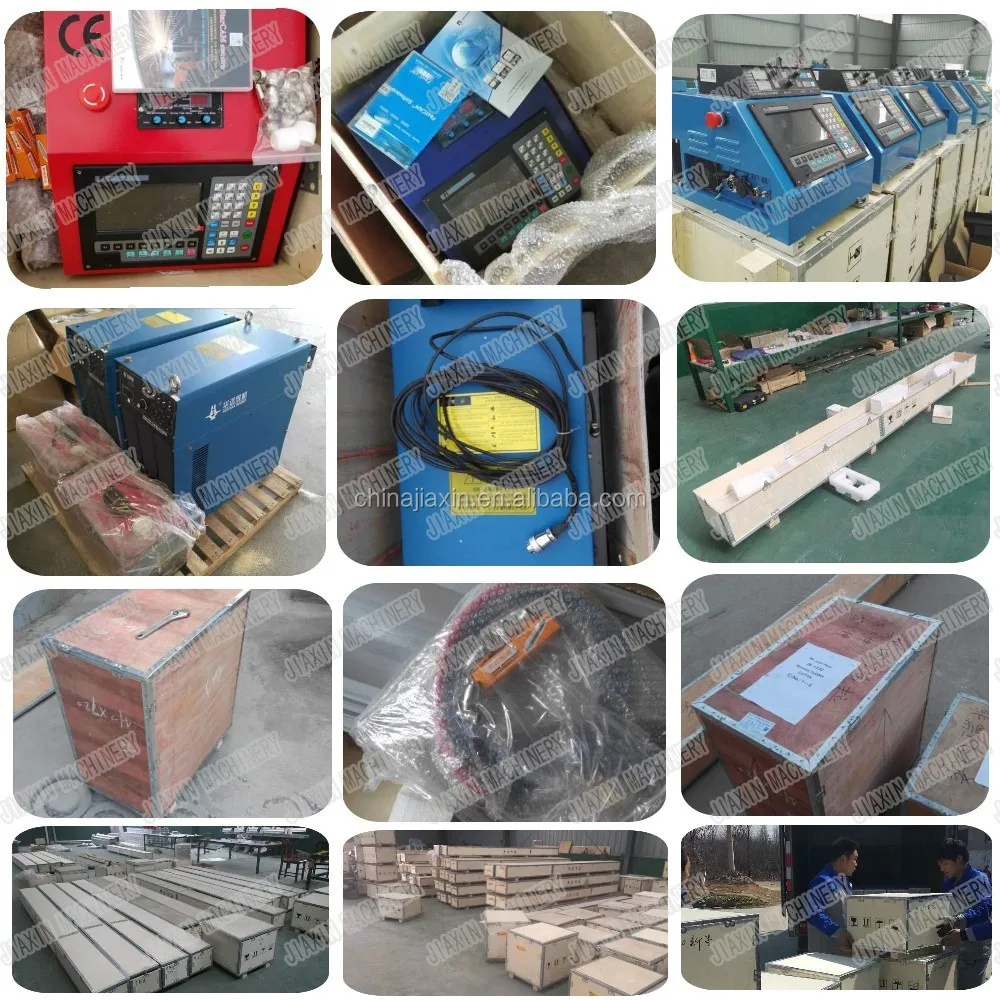

 We chose the best quality plywood for packing, stable and no need for

steaming. About the delivery ways, you can choose by sea, by air or by car.









1.We provide you the friendly English User manual and Testing Video for free.

2.24 hours technical support by email or calling.

3.12 Months warranty Quality guarantee and Charge free technical support forever

4.Free training to make sure you master the operating of  automatic stirrup bending machine, not including programming training.

5.Videos of operating the machine are available.





we are manufacturer of CNC automatic steel bar bending machine,bending

machine , cutting machine, steel bar straightening machine etc.we also can supply

setting up a new factory full line service . We have already exported various kinds

of concrete pile , pole and pipe concern making machines to overseas countries

 and regions such as Indonesia, Parkistan, Vietnam, Myanmar ,Korea,Malaysia ,

South african, Mideast Southeastern Asia, etc.











Q: What's the delivery time?

A: 10-15 working days to delivery port.

Q: What's the usually delivery terms?

A: FOB, CNF, CIF, Exworks will be OK.

Q: What's the MOQ?

A: 1 set.

Q: What’s the payment term?

A: We accept T/T, L/C or Cash.

Q: What's your delivery port?

A: Usually Qingdao port, Shanghai port.

Q: What's the packing?

A: Iron Pallet and Plywood cases or carton or depending on your requires.

Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?

A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.

Q: Can you place OEM orders?

A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information.

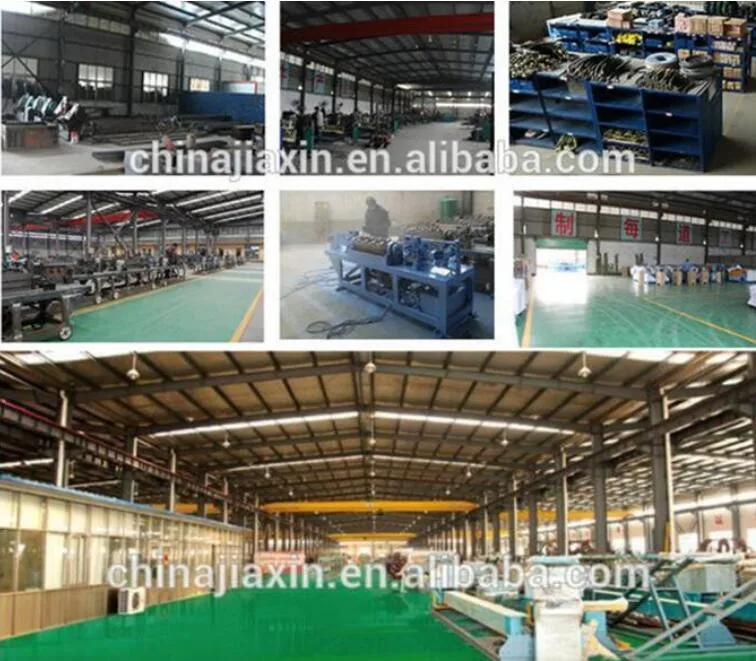

Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
