plastic medicine oil child proof children resistant cap liner die cutting and inserting wadding lining machine

Product Overview

Description

cap liningmachine

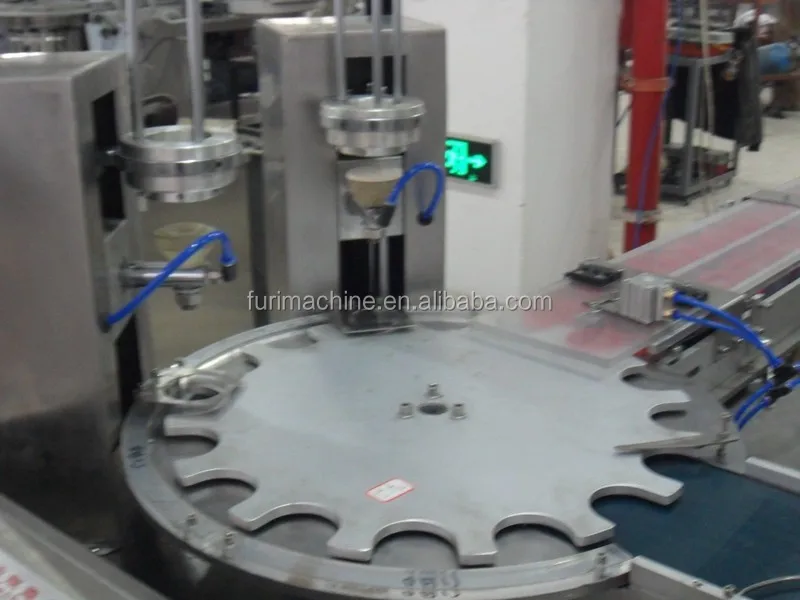

FRTB-SD1 -C  Fully Automatic Cap Lining Machine

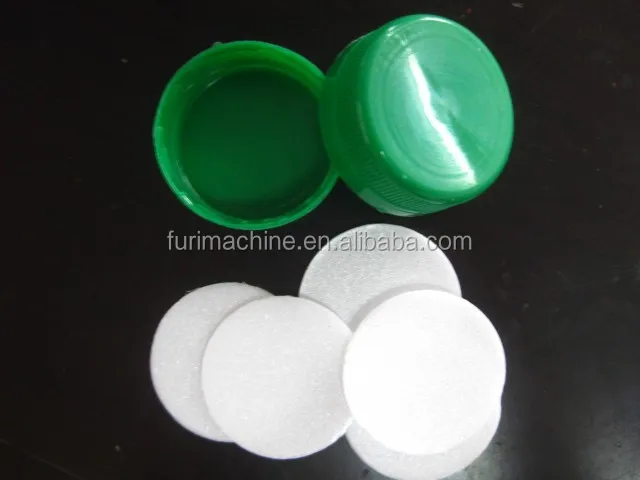

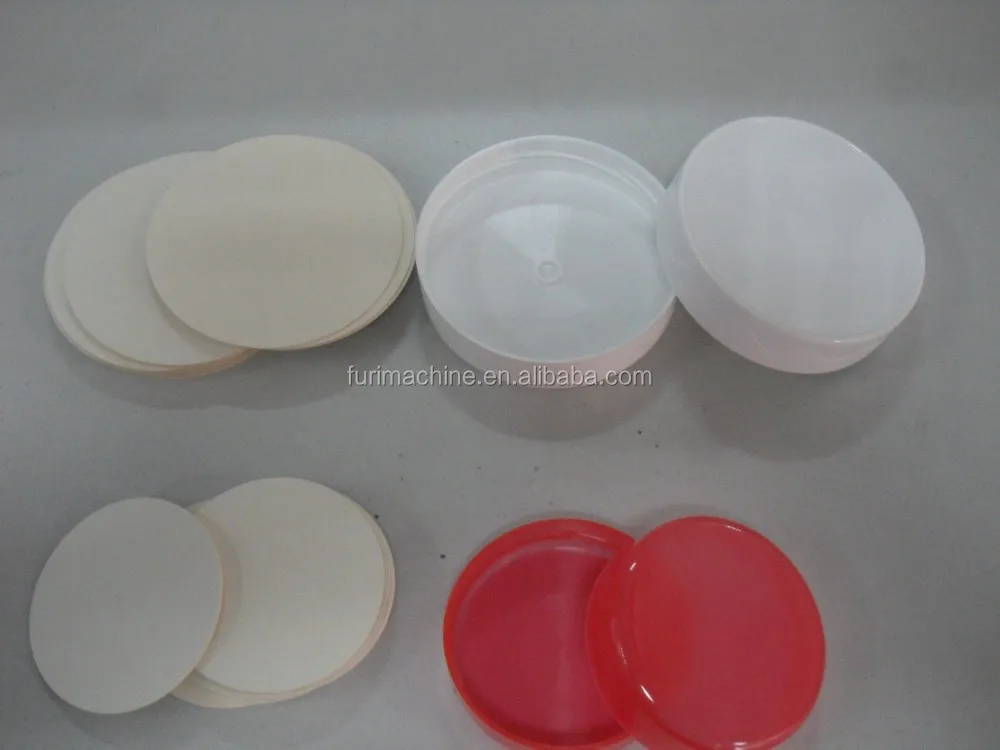

1,Automatice inserting Pre-Cut liners into caps

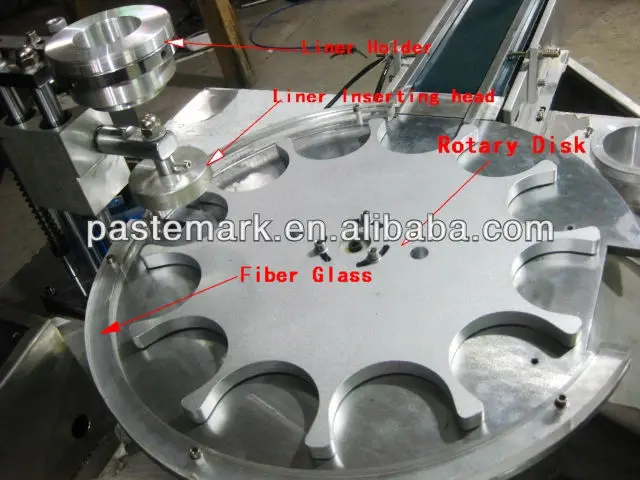

2,Changable Mold and adjustable conveyor for more sizes caps working in one machine







3,No Liner or oposite side liner caps detective and rejection Device

4,Free Counter Installed



5,Outlet shift device for your 2 packing cartons(you can pre-set how many pieces packed in one box in the counter,when it reach the quantity,the outlet shift device will change to another packing box automatic)



6,Hot melt Glue machine is optional if you need dropping glue to sticker the liner inside the caps.





7. Technical Parameters:







Specification Productivity Voltage Power Dimension L×W×H N.W. 20-80 60-80 bottles/min. 220/380 V 1.2 KW 1200×600×1500(mm) 350KGS
